1972 Lamborghini Jarama USA Electrical System (4.16)

Maintenance Parts:

Belts

PN	Item
001604645	Belt Belt	Current Stock: 3 Our Price: $24.80
004009744	Power Steering Belt Power Steering Belt	Avail to order Our Price: $115.81
004504532	Belt Belt	Current Stock: 1 Our Price: $55.72
004608478	Belt Belt	Avail to order Our Price: $113.58

Brakes

PN	Item
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA	Avail to order Our Price: $456.30
003207720	E-Brake Pad - Espada - Jarama Handbrake Pad	Avail to order Our Price: $76.00
003206764	Brake Pad Rear - Espada - Miura - Jarama - Sold Each Rear Brake Pad	Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
001702817	THERMOSTAT VALVE THERMOSTAT VALVE		Avail to order Our Price: $544.03
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002104719	Drive Plate Drive Plate	Avail to order Our Price: $873.70
002104088	Clutch Rod Clutch Rod	Avail to order Our Price: $28.39
001501188	Oil Filter - Miura Countach Espada Jarama Oil Filter Cartridge	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item	Diagram
001320172	Air Filter - Carbureted Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option		Avail to order Our Price: $502.34
001501128	OIL FILTER SEAL OIL FILTER SEAL		Current Stock: 3 Our Price: $22.01

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.06
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.59
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.14
001605819	Relay Relay	Current Stock: 1 Our Price: $44.63
006617089	10 W Bulb 10 W Bulb	Avail to order Our Price: $15.95
006617103	3w Bulb 3w Bulb	Avail to order Our Price: $7.18

Gaskets

PN	Item	Diagram
001526482	Engine Gasket Set - Espada - Jarama Engine Gasket Kit Espada - Jarama		Avail to order Our Price: $1,153.39
001526462	Grommet and Oil Seals Set - Espada - Jarama Grommet and Oil Seals Set Espada - Jarama		Avail to order Our Price: $99.27

Ignition

PN	Item	Diagram
001627934	DISTIBUTOR CAP DISTRIBUTOR CAP		Avail to order Our Price: $1,049.61

Misc

PN	Item
006715235	Windsc.Wip.Blade Windsc.Wip.Blade	Avail to order Our Price: $68.75
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.16
001719309	URRACO THERMOSTAT Coolant Thermostat		Current Stock: 2 Our Price: $195.00

Open All

Select Group and TAV

< Previous Next >

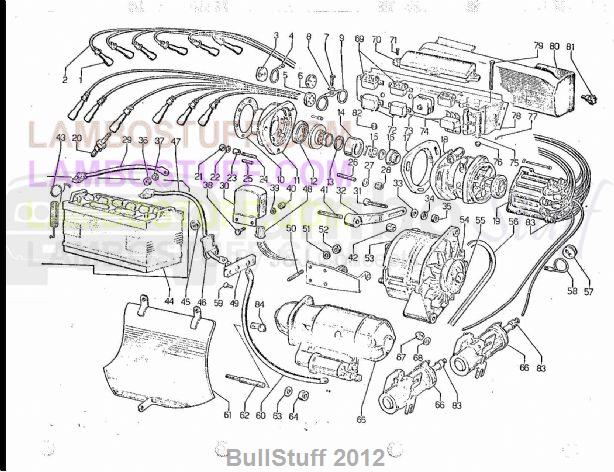

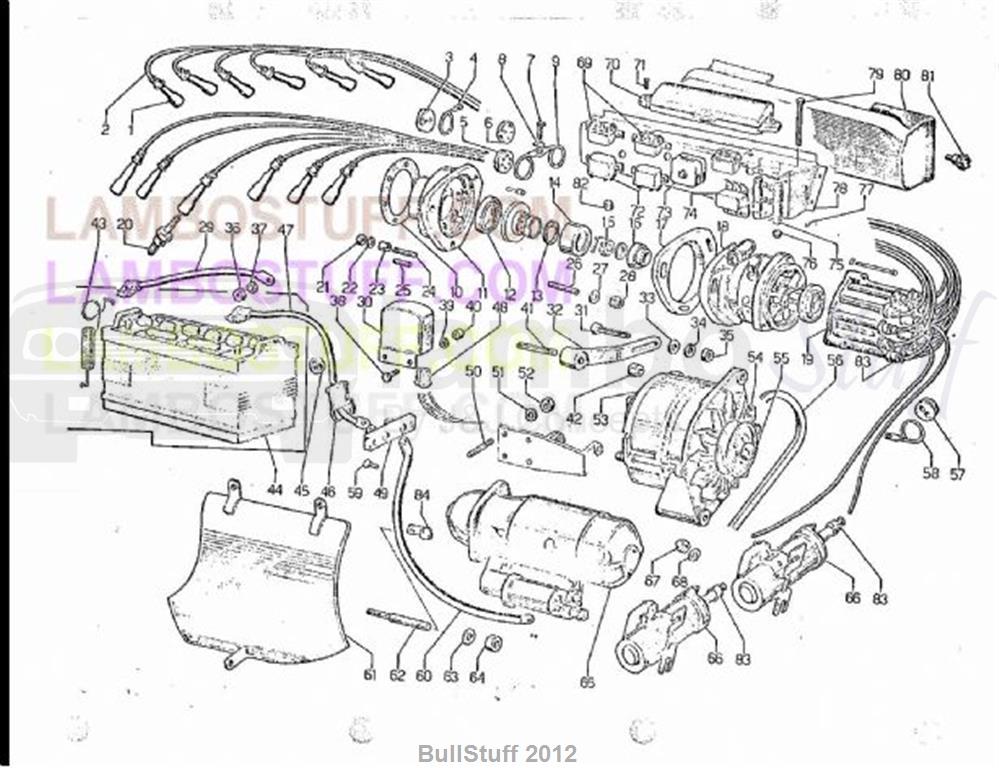

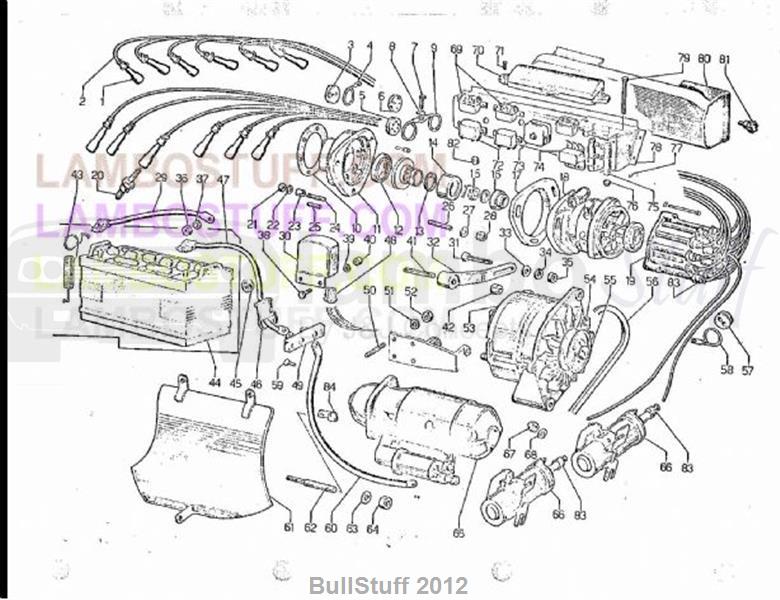

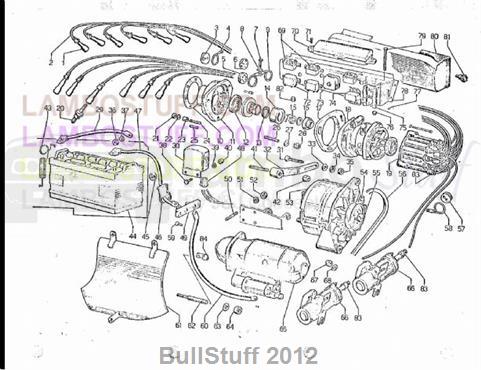

TAV: 4.16 - Electrical System

1972 Lamborghini Jarama USA Electrical System (4.16)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jarama Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0	001606213	This item is no longer available	4 req
0	001606214	This item is no longer available	2 req
0	001606215	This item is no longer available	1 req
0	008501503	Bearing	1 req	Avail to order Our Price: $15.27
0	008500801	Bearing	1 req	Avail to order Our Price: $8.85
0	001606218	This item is no longer available	1 req
0	001606219	This item is no longer available	1 req
0	001606221	This item is no longer available	2 req
0	001606222	This item is no longer available	1 req
0	001606223	Earth Pin	2 req	Avail to order Our Price: $46.97
0	001606245	Contact Pairs 71007136713	4 req	Current Stock: 4 Our Price: $144.01
0	001606246	This item is no longer available	2 req
0	001606271	This item is no longer available	1 req
0	001606252	Spring Brush	1 req	Avail to order Our Price: $41.98
0	001606267	This item is no longer available	1 req
1	001605393	Spark Plug Cap	12 req	Avail to order Our Price: $30.73
2	001605392	This item is no longer available	12 req
3	001601566	2 Hole Spark Plug Grommet	4 req	Avail to order Our Price: $75.03
4	001601567	NLA (No Longer Available)	6 req	*See Description
5	001601565	4 Hole Spark Plug Grommet	2 req	Avail to order Our Price: $63.40
6	001601564	6 Hole Spark Plug Grommet	2 req	Avail to order Our Price: $52.80
7	008100620	Screw M6x12 Uni 5739/5s/Z	1 req	Avail to order Our Price: $6.81
8	008410603	Washer D.6.4 Uni 1751/Zd	1 req	Avail to order Our Price: $2.00
9	001605041	Spark Plug Wire Grommet Bracke	1 req	Avail to order Our Price: $66.80
10	001600906	Distributor Bracket Seal	1 req	Current Stock: 1 Our Price: $11.54
11	001600905	NLA (No Longer Available)	1 req	*See Description
12	008613502	Oil Seal 35x47x7 mm	1 req	Current Stock: 9 Our Price: $10.95
13	008573202	O-Ring I 30 Uni 3654	1 req	Avail to order Our Price: $6.52
14	001600376	Distributor P.T.O. Sleeve	1 req	Avail to order Our Price: $486.06
15	008820201	Split Pin 1.8x15 Uni 1336a	1 req	Current Stock: 19 Our Price: $7.58
16	001600377	Distributor P.T.O.	1 req	Avail to order Our Price: $193.12
17	001600371	Distributor Mount Shim	1 req	Avail to order Our Price: $93.06
18	001604649	This item is no longer available	1 req
19	001606272	This item is no longer available	1 req
20	008811401	This item is no longer available	12 req
21	N01100637	HEX.NUT	6 req	Current Stock: 18 Our Price: $2.00
22	WHT001197A	WASHER	6 req	Current Stock: 2 Our Price: $2.00
23	008850606	Reference Pin 8h7x6.25x8	2 req	Avail to order Our Price: $11.96
24	008300613	Stud M6x14 Uni 5911 8g/Z	4 req	Avail to order Our Price: $5.74
25	008300612	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
26	008300818	Stud M8x30 Uni 5911 8g Zd	3 req	Avail to order Our Price: $5.04
27	N90179103	WASHER	3 req	Current Stock: 5 Our Price: $2.00
28	N0111849	HEX.HEAD CLAMPING NUT	3 req	Current Stock: 5 Our Price: $2.43
29	001604647	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
30	001606629	Shielded Regulator	1 req	Avail to order Our Price: $88.68
31	008100832	Screw M8x1x35uni 5738/8g/Z	1 req	Avail to order Our Price: $2.92
32	001604482	Alternator Upper Bracket	1 req	Avail to order Our Price: $71.86
33	N90179103	WASHER	1 req	Current Stock: 5 Our Price: $2.00
34	WHT001514	SPRING WASHER	1 req	Current Stock: 9 Our Price: $26.80
35	008200810	M8x1 Uni5588 65/8gzd Nut	1 req	Avail to order Our Price: $2.00
36	N0111849	HEX.HEAD CLAMPING NUT	1 req	Current Stock: 5 Our Price: $2.43
37	WHT001514	SPRING WASHER	1 req	Current Stock: 9 Our Price: $26.80
38	008100620	Screw M6x12 Uni 5739/5s/Z	2 req	Avail to order Our Price: $6.81
39	N01152427	WASHER	2 req	Current Stock: 16 Our Price: $2.00
40	N01118312	HEX.HEAD CLAMPING NUT	2 req	Avail to order Our Price: $2.14
41	008301004	Stud M10x45 Uni 59118gz	1 req	Avail to order Our Price: $35.20
42	008201008	Nut	1 req	Current Stock: 2 Our Price: $2.00
43	001604956	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
44	001601336	This item is no longer available	1 req
45	008611401	Grommet 14x20x1.5 mm	1 req	Avail to order Our Price: $6.81
46	001606173	Starter Motor Wire Pipette	2 req	Current Stock: 9 Our Price: $2.00
47	001607342	Long Battery/StarterMotor Wire	1 req	Avail to order Our Price: $213.93
48	001602565	Governor Sheath	2 req	Avail to order Our Price: $169.45
49	001606170	BATTERY WIRE TERMINALS	1 req	Avail to order Our Price: $62.62
50	008300822	Stud M8x18 Uni 5911 8g Z	4 req	Avail to order Our Price: $26.31
51	008410606	Washer 7x3.5x18 Uni 5961-67	4 req	Avail to order Our Price: $2.92
52	008200806	M8 Uni 5588/8g/Z Nut	4 req	Current Stock: 25 Our Price: $2.00
53	001604648	This item is no longer available	1 req
54	001604745	Alternator Fan	1 req	Avail to order Our Price: $15.41
55	001604743	This item is no longer available	1 req
56	001604645	Belt	1 req	Current Stock: 3 Our Price: $24.80
57	001601566	2 Hole Spark Plug Grommet	1 req	Avail to order Our Price: $75.03
58	001601567	NLA (No Longer Available)	1 req	*See Description
59	008700801	Screw M8x16 Uni 5933/5s/Z	2 req	Current Stock: 18 Our Price: $2.00
60	001609057	This item is no longer available	1 req
61	001604957	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
62	008301215	Starter Motor Special Stud	2 req	Avail to order Our Price: $21.59
63	008411303	Snap Ring 21x13x2.5 Uni 175 1	2 req	Current Stock: 6 Our Price: $3.31
64	008201211	M12x1.75x10 Uni 5588/ 8g/Z	2 req	Avail to order Our Price: $9.53
65	001604460	NLA (No Longer Available)	1 req	*See Description
66	001601335	Ignition Coil	2 req	Current Stock: 1 Our Price: $156.07
67	008200804	Nut	3 req	Current Stock: 7 Our Price: $2.00
68	008400601	Washer 13x6.4x1.5 Uni 1734/5s/	3 req	Avail to order Our Price: $2.00
69	001605819	Relay	3 req	Current Stock: 1 Our Price: $44.63
70	006775095	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
71	N10430103	HEXALOBULAR SOCKET	2 req	Current Stock: 21 Our Price: $2.00
72	001603918	Relay	2 req	Avail to order Our Price: $380.49
73	001608165	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
74	006617030	Horn Relay	1 req	Avail to order Our Price: $35.29
75	004505565	This item is no longer available	2 req
76	008200811	M8 Uni 5589/8g/ZdNut	2 req	Avail to order Our Price: $6.81
77	008700506	Screw Knip 4.8x16din7971 Black	4 req	Current Stock: 4 Our Price: $2.00
78	006107528	Valve Box Bracket	1 req	Avail to order Our Price: $181.16
79	008100824	Screw M8x75 Uni 5737-65a/F	2 req	Current Stock: 9 Our Price: $2.00
80	001608038	Fusebox Guide Bulkhead	1 req	Avail to order Our Price: $154.62
81	001605758	Fusebox Fastening Knob	2 req	Avail to order Our Price: $11.28
82	008611401	Grommet 14x20x1.5 mm	3 req	Avail to order Our Price: $6.81
83	001604394	This item is no longer available	16 req
84	008830104	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
