Lamborghini LP560 Parts

0 items in your cart
Your Shopping Cart
  • Your cart is empty
View & Checkout
Subtotal: $0.00
Shipping: $0.00
Total: $0.00

Maintenance Parts:

Belts

PN Item Diagram
001604645 Belt
Belt 		view diagram Current Stock: 3
Our Price: $24.72
Belt
004009744 Power Steering Belt
Power Steering Belt 		view diagram Avail to order
Our Price: $115.85
004504532 Belt
Belt 		view diagram Current Stock: 1
Our Price: $55.61
Belt
004608478 Belt
Belt 		view diagram Avail to order
Our Price: $113.62

Brakes

PN Item Diagram
003106765 FRONT BRAKE PADS JARAMA AND MIURA
FRONT BRAKE PADS JARAMA AND MIURA 		view diagram Avail to order
Our Price: $457.05
FRONT BRAKE PADS JARAMA AND MIURA
003207720 E-Brake Pad - Espada - Jarama
Handbrake Pad 		view diagram Avail to order
Our Price: $75.95
E-Brake Pad - Espada - Jarama
003206764 Brake Pad Rear - Espada - Miura - Jarama - Sold Each
Rear Brake Pad 		view diagram Avail to order
Our Price: $78.63

Common repairs and upgrades

PN Item Diagram
001702817 THERMOSTAT VALVE
THERMOSTAT VALVE 		Avail to order
Our Price: $544.89
THERMOSTAT VALVE
410860382 STEERING WHEEL COVER
STEERING WHEEL COVER WITH CREST LOGO 		Current Stock: 2
Our Price: $22.58
STEERING WHEEL COVER

Drivetrain

PN Item Diagram
002104719 Drive Plate
Drive Plate 		view diagram Avail to order
Our Price: $873.67
002104088 Clutch Rod
Clutch Rod 		view diagram Avail to order
Our Price: $28.40
001501188 Oil Filter - Miura Countach Espada Jarama
Oil Filter Cartridge 		Current Stock: 3
Our Price: $48.16
Oil Filter - Miura Countach Espada Jarama

Fuel-Air

PN Item Diagram
001320172 Air Filter - Carbureted
Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option 		view diagram Avail to order
Our Price: $502.37
Air Filter - Carbureted

Fuses-Bulbs-Relays

PN Item Diagram
006617095 Bulb for license plate lamp
Bulb LAMP SV8,5-8 5W 		view diagram Current Stock: 42
Our Price: $11.09
Bulb for license plate lamp
006617091 Bulb 21w tail light
21w Bulb 		view diagram Current Stock: 4
Our Price: $13.56
Bulb 21w tail light
006617094 LAMP BA 15S 21W
Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model) 		view diagram Current Stock: 76
Our Price: $9.90
LAMP BA 15S 21W
N0177522 bulb
Headlight LAMP 12V/3W 		view diagram Current Stock: 10
Our Price: $2.17
bulb
001605819 Relay
Relay 		view diagram Current Stock: 1
Our Price: $44.66
Relay
006617089 10 W Bulb
10 W Bulb 		view diagram Avail to order
Our Price: $15.96
006617103 3w Bulb
3w Bulb 		view diagram Avail to order
Our Price: $7.14

Gaskets

PN Item Diagram
001526482 Engine Gasket Set - Espada - Jarama
Engine Gasket Kit Espada - Jarama 		Avail to order
Our Price: $1,153.38
Engine Gasket Set - Espada - Jarama
001526462 Grommet and Oil Seals Set - Espada - Jarama
Grommet and Oil Seals Set Espada - Jarama 		Avail to order
Our Price: $99.29

Ignition

PN Item Diagram
001627934 DISTIBUTOR CAP
DISTRIBUTOR CAP 		Avail to order
Our Price: $1,049.60
DISTIBUTOR CAP

Misc

PN Item Diagram
006715235 Windsc.Wip.Blade
Windsc.Wip.Blade 		view diagram Avail to order
Our Price: $68.74
008200605R OE spec alternative for 008200605
M6 Ncm 70 Urama Simmon Nut 		Avail to order
Our Price: $1.94
OE spec alternative for 008200605
0R0000149 CLEANER FLUID 250ml
CLEANER FLUID 		Current Stock: 1
Our Price: $70.78
CLEANER FLUID 250ml

Sensors

PN Item Diagram
001801333 OIL & COOLANT TEMPERATURE THERMOMETER
Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY 		view diagram Avail to order
Our Price: $150.37
OIL & COOLANT TEMPERATURE THERMOMETER
001719309 URRACO THERMOSTAT
Coolant Thermostat 		Current Stock: 2
Our Price: $195.00
Open All

Select Group and TAV

< Previous Next >

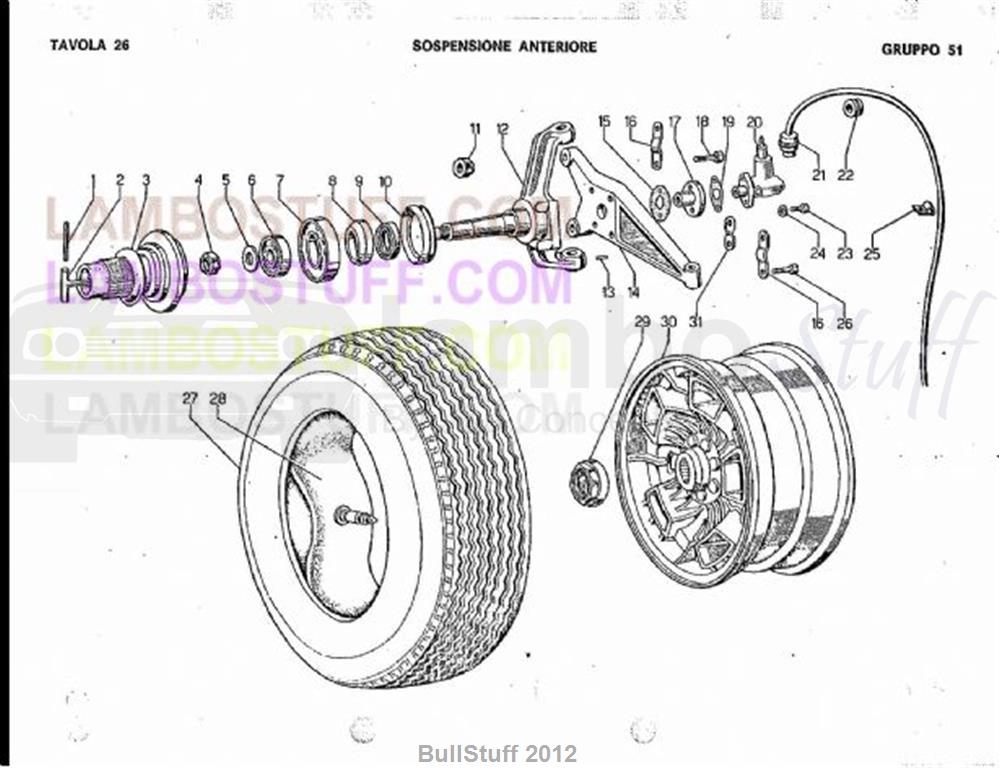

TAV: 26.51 - Front Suspension

1972 Lamborghini Jarama USA Front Suspension (26.51)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jarama Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
0 005100692 Rh Wheel Steering Arm
1 req Avail to order
Our Price: $336.21
0 005106530 POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
1 req *See Description
0 005106532 Lh Front Stub Axle
1 req Avail to order
Our Price: $647.05
0 005107165 Lh Threaded Nut
2 req Avail to order
Our Price: $431.03
1 008900601 Elastic Pin 6x55 Din1481
1 req Avail to order
Our Price: $2.00
2 005104544 Odometer Spindle
1 req Avail to order
Our Price: $57.03
3 005106529 POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
1 req *See Description
4 008201802 18x1.5 Left Nut
1 req Avail to order
Our Price: $6.87
5 008411801 Snap Ring 18.5x30x2.5
2 req Avail to order
Our Price: $6.87
6 008542001 Bearing
2 req Avail to order
Our Price: $88.26
7 008543501 Bearing
2 req Avail to order
Our Price: $735.73
8 005106528 Spacer
2 req Avail to order
Our Price: $54.65
9 008615801 Oil Seal 58x72x10 mm
2 req Avail to order
Our Price: $43.25
10 005106567 Front Oil Seal Sleeve
2 req Avail to order
Our Price: $92.44
11 008201801 18 X 1.5 Right Nut
1 req Avail to order
Our Price: $5.59
12 005106531 Rh Front Stub Axle
1 req Avail to order
Our Price: $647.05
13 008850502 Dowel 5x11 mm
2 req Avail to order
Our Price: $6.87
14 005100693 Lh Wheel Steering Arm
1 req Avail to order
Our Price: $336.21
15 005103781 Odometer Return Bushing
1 req Current Stock: 3
Our Price: $9.02
Odometer Return Bushing
16 008411003 POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
4 req *See Description
17 005104543 Odometer Centring Bushing
1 req Avail to order
Our Price: $41.01
18 008101019 Screw M10x1.5x45 Uni5737/
4 req Avail to order
Our Price: $5.22
19 005103782 Odometer Return Seal
1 req Avail to order
Our Price: $14.09
Odometer Return Seal
20 005106107 DISCONTINUED - NLA - CONTACT US
1 req *See Description
21 005104545 Odometer Wire
1 req Avail to order
Our Price: $260.86
22 008610801 POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
1 req *See Description
23 008700612 Screw M6x25 Uni 5931/8g/Zd
2 req Avail to order
Our Price: $2.00
24 WHT001197A WASHER
2 req Current Stock: 2
Our Price: $2.00
WASHER
25 008830111 NLA (No Longer Available)
1 req *See Description
26 008101022 Screw M10x1.5x35 Uni5737/
4 req Avail to order
Our Price: $4.92
27 005107925 This item is no longer available 4 req
28 005108116 This item is no longer available 4 req
29 005107164 Lh Threaded Nut
2 req Avail to order
Our Price: $431.03
30 005102997 Front Wheel Rim
4 req Avail to order
Our Price: $2,274.06
31 003101454 Brake Hose Bracket
2 req Avail to order
Our Price: $13.94

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
