1972 Lamborghini Jarama USA Air Pollution (1.1066.46)

Maintenance Parts:

Belts

PN	Item
001604645	Belt Belt	Current Stock: 3 Our Price: $24.72
004009744	Power Steering Belt Power Steering Belt	Avail to order Our Price: $115.85
004504532	Belt Belt	Current Stock: 1 Our Price: $55.61
004608478	Belt Belt	Avail to order Our Price: $113.62

Brakes

PN	Item
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA	Avail to order Our Price: $457.05
003207720	E-Brake Pad - Espada - Jarama Handbrake Pad	Avail to order Our Price: $75.95
003206764	Brake Pad Rear - Espada - Miura - Jarama - Sold Each Rear Brake Pad	Avail to order Our Price: $78.63

Common repairs and upgrades

PN	Item	Diagram
001702817	THERMOSTAT VALVE THERMOSTAT VALVE		Avail to order Our Price: $544.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
002104719	Drive Plate Drive Plate	Avail to order Our Price: $873.67
002104088	Clutch Rod Clutch Rod	Avail to order Our Price: $28.40
001501188	Oil Filter - Miura Countach Espada Jarama Oil Filter Cartridge	Current Stock: 3 Our Price: $48.16

Fuel-Air

PN	Item	Diagram
001320172	Air Filter - Carbureted Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option		Avail to order Our Price: $502.37

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.09
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.56
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
001605819	Relay Relay	Current Stock: 1 Our Price: $44.66
006617089	10 W Bulb 10 W Bulb	Avail to order Our Price: $15.96
006617103	3w Bulb 3w Bulb	Avail to order Our Price: $7.14

Gaskets

PN	Item	Diagram
001526482	Engine Gasket Set - Espada - Jarama Engine Gasket Kit Espada - Jarama		Avail to order Our Price: $1,153.38
001526462	Grommet and Oil Seals Set - Espada - Jarama Grommet and Oil Seals Set Espada - Jarama		Avail to order Our Price: $99.29

Ignition

PN	Item	Diagram
001627934	DISTIBUTOR CAP DISTRIBUTOR CAP		Avail to order Our Price: $1,049.60

Misc

PN	Item
006715235	Windsc.Wip.Blade Windsc.Wip.Blade	Avail to order Our Price: $68.74
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.37
001719309	URRACO THERMOSTAT Coolant Thermostat		Current Stock: 2 Our Price: $195.00

Open All

Select Group and TAV

< Previous Next >

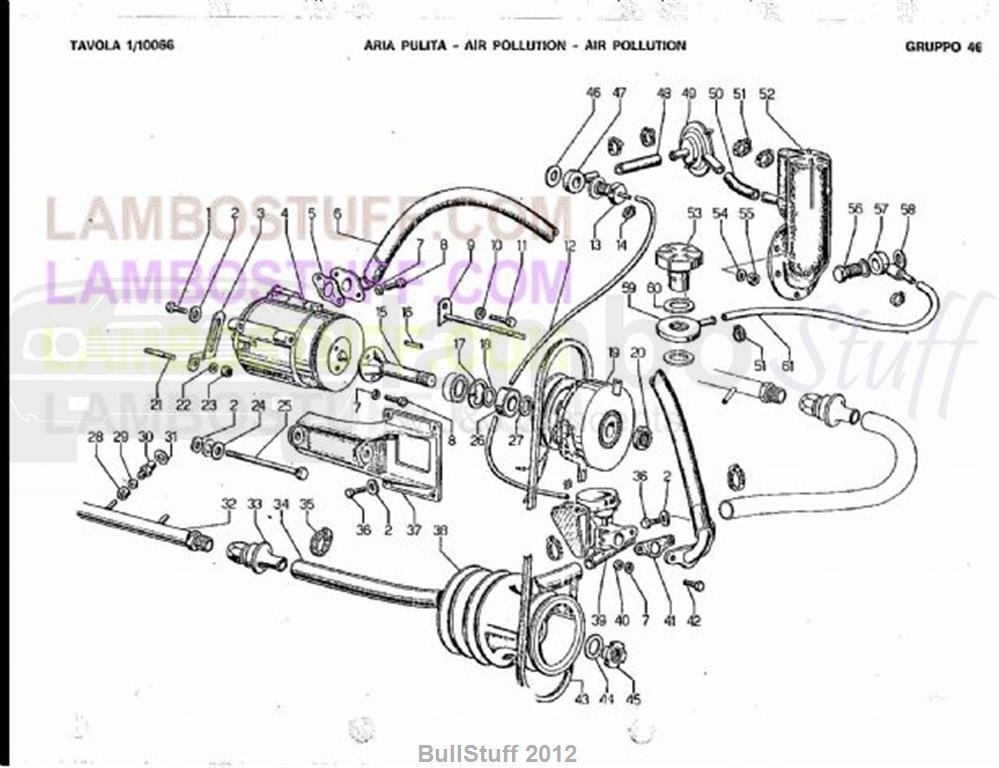

TAV: 1.1066.46 - Air Pollution

1972 Lamborghini Jarama USA Air Pollution (1.1066.46)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jarama Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008100911	Screw 3/8x16 Unc Fontana	1 req	Current Stock: 3 Our Price: $6.87
2	WHT000768	SPRING WASHER	6 req	Current Stock: 17 Our Price: $2.09
3	004606302	Air Pump Adjustment	1 req	Avail to order Our Price: $81.46
4	004624322	Smog/Air Pump	1 req	Avail to order Our Price: $2,064.91
5	004606297	Air Pump Pipe Seal	1 req	Avail to order Our Price: $8.35
6	004607595	Air Pump Union Pipe To Diverte	1 req	Avail to order Our Price: $69.41
7	008410603	Washer D.6.4 Uni 1751/Zd	7 req	Avail to order Our Price: $2.00
8	008100606	Screw Tcei 1/4X12 Special	5 req	Avail to order Our Price: $6.87
9	004606894	Retainer For Joint	1 req	Avail to order Our Price: $27.13
10	008411005	Washer D.10.5 Uni 1751/F	1 req	Avail to order Our Price: $2.00
11	008100910	Screw 3/8x16nc Fontana	1 req	Avail to order Our Price: $20.13
12	004606891	Diverter Union Pipe To Rh Inta	1 req	Avail to order Our Price: $69.41
13	004606893	Vacuum Union	1 req	Avail to order Our Price: $27.13
14	008830204	Clamp	2 req	Avail to order Our Price: $10.06
15	004606277	Joint Shaft	1 req	Avail to order Our Price: $502.44
16	008860503	Tab 5x5x25	1 req	Avail to order Our Price: $6.87
17	07M109381	Snap Ring I 35 Uni 3654	1 req	Current Stock: 35 Our Price: $2.00
18	008401702	Electrical Coupling Washer	1 req	Avail to order Our Price: $11.93
19	004607194	Coupling	1 req	Avail to order Our Price: $404.04
20	003251702	This item is no longer available	1 req
21	008300828	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
22	N90179103	WASHER	1 req	Current Stock: 5 Our Price: $2.00
23	008200804	Nut	1 req	Current Stock: 7 Our Price: $2.00
24	008401002	Washer 10.5x22x1 5s	2 req	Avail to order Our Price: $6.87
25	008101001	Screw M10x120uni 5737/65 8	1 req	Avail to order Our Price: $15.14
26	410115207	Bearing	2 req	Avail to order Our Price: $35.96
27	008401701	Washer	1 req	Avail to order Our Price: $20.51
28	004607189	Union Nut	12 req	Current Stock: 3 Our Price: $17.30
29	004607188	Double Tapers	12 req	Current Stock: 3 Our Price: $17.30
30	004606196	Air Injection Union	12 req	Current Stock: 3 Our Price: $40.26
31	008401408	Annealed Copper Washer 21x14x1	12 req	Current Stock: 41 Our Price: $2.00
32	004606276	This item is no longer available	2 req
33	004607187	NLA (No Longer Available)	2 req	*See Description
34	004606890	Diverter Union Pipe To Air Int	2 req	Avail to order Our Price: $69.41
35	008830206	Clamp	4 req	Current Stock: 1 Our Price: $23.26
36	008100903	Screw 3/8x16ncx32 Fontana	4 req	Avail to order Our Price: $6.87
37	004606298	Air Pump Bracket	1 req	Avail to order Our Price: $509.90
38	004606589	Air Pump Pulley	1 req	Avail to order Our Price: $343.34
39	004607197	Diverter Valve	1 req	Avail to order Our Price: $135.71
40	008200601	M6 Uni 5588-8g/Z Nut	2 req	Avail to order Our Price: $4.18
41	004607438	Diverter Flange Seal	1 req	Current Stock: 2 Our Price: $7.58
42	008100618	Screw M6x20 Uni 5739/8g/Zd	2 req	Current Stock: 44 Our Price: $2.00
43	004607385	Air Pump Belt	1 req	Avail to order Our Price: $112.57
44	008401801	Tempered Flat Washer18x30x2 C4	1 req	Avail to order Our Price: $26.69
45	008251801	M18x1.5x28 Self-Locking Ring N	1 req	Avail to order Our Price: $42.05
46	008401610	Annealed Copper Washer 16x22x0	2 req	Current Stock: 25 Our Price: $11.23
47	001703240	Heating Coolant Delivery Conne	1 req	Avail to order Our Price: $40.86
48	004607434	Pipe From Manifold To Valve	1 req	Avail to order Our Price: $69.41
49	001103869	This item is no longer available	1 req
50	004607441	Valve Exhaust RubberUnion	1 req	Avail to order Our Price: $54.26
51	008830205	Clamp	6 req	Avail to order Our Price: $7.91
52	001106403	Espada Breather Casing	1 req	Avail to order Our Price: $390.62
53	001103872	Oil Filler Plug	1 req	Avail to order Our Price: $41.75
54	N01152427	WASHER	6 req	Current Stock: 16 Our Price: $2.00
55	N01118312	HEX.HEAD CLAMPING NUT	6 req	Avail to order Our Price: $2.17
56	003201511	Bolt	1 req	Avail to order Our Price: $53.68
57	003101518	Check Valve	1 req	Avail to order Our Price: $202.76
58	003101513	Copper Washer 16.2x24x1	2 req	Avail to order Our Price: $2.00
59	001103876	This item is no longer available	1 req
60	001101401	Oil Filler Plug Gasket	2 req	Avail to order Our Price: $4.01
61	004607775	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
