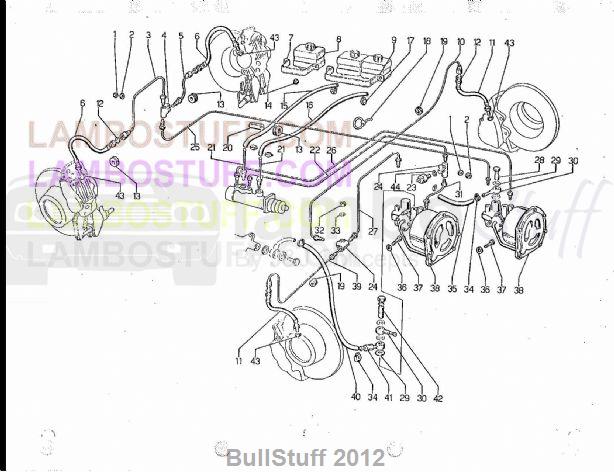

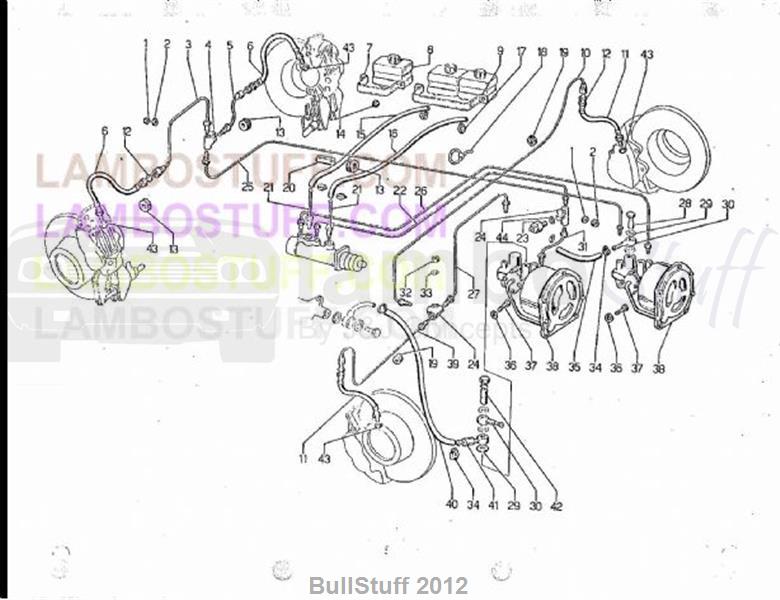

TAV: 14.31.32 - Brakes System (Pipelines)

1972 Lamborghini Jarama USA Brakes System (Pipelines) (14.31.32)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jarama Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	N01118312	HEX.HEAD CLAMPING NUT	2 req	Current Stock: 4 Our Price: $2.01
2	N01152427	WASHER	2 req	Avail to order Our Price: $2.00
3	003204603	Rear Three-Way Pipe/Rh Hose	1 req	Avail to order Our Price: $64.62
4	003101450	Three-Way Union	1 req	Avail to order Our Price: $98.22
5	003204602	Rear Three-Way Pipe/Lh Hose	1 req	Avail to order Our Price: $64.62
6	003201483	Rear Brake Hose	2 req	Current Stock: 1 Our Price: $143.78
7	003107923	Brake/Clutch Reservoir Clamp	1 req	Avail to order Our Price: $15.44
8	003103947	Brake Oil Reservoir	3 req	Avail to order Our Price: $56.69
9	003107922	Brake/Clutch Reservoir Clamp	1 req	Avail to order Our Price: $19.88
10	003108003	Lh Three-Way Hose	1 req	Avail to order Our Price: $65.19
11	003101453	Front Brake Hose	2 req	Current Stock: 1 Our Price: $106.58
12	008200903	3/8X24 Unf Special Nut	4 req	Avail to order Our Price: $6.37
13	008610802	Grommet 8x18x2 mm	3 req	Avail to order Our Price: $8.84
14	N0211963	HEX.HEAD CLAMPING	3 req	Avail to order Our Price: $2.00
15	003208011	This item is no longer available	1 req
16	003108011	This item is no longer available	1 req
17	008830204	Clamp	4 req	Avail to order Our Price: $9.37
18	008830401	Brake & Clutch Pump Pipe Clamp	2 req	Avail to order Our Price: $2.65
19	008610802	Grommet 8x18x2 mm	2 req	Avail to order Our Price: $8.84
20	003104639	This item is no longer available	37 req
21	003105399	Clutch Cylinder LoadPipe	2 req	Avail to order Our Price: $11.79
22	003108002	This item is no longer available	1 req
23	003201449	Brake Light Check	1 req	Avail to order Our Price: $147.25
24	003101450	Three-Way Union	2 req	Avail to order Our Price: $98.22
25	003203000	This item is no longer available	1 req
26	003207999	This item is no longer available	1 req
27	003104599	Brake Booster/Front Three-Way	1 req	Avail to order Our Price: $20.88
28	003201511	Bolt	1 req	Avail to order Our Price: $49.97
29	003101513	Copper Washer 16.2x24x1	5 req	Avail to order Our Price: $2.00
30	003204607	Brake Booster Union Pipe	2 req	Avail to order Our Price: $110.94
31	003104604	Three-Way Pipe/BrakeBooster	1 req	Avail to order Our Price: $64.62
32	N01118312	HEX.HEAD CLAMPING NUT	1 req	Current Stock: 4 Our Price: $2.01
33	N01152427	WASHER	1 req	Avail to order Our Price: $2.00
34	008830205	Clamp	4 req	Avail to order Our Price: $7.37
35	003208006	This item is no longer available	1 req
36	008411005	Washer D.10.5 Uni 1751/F	6 req	Avail to order Our Price: $2.00
37	008100909	Screw 3/8 24 Fil 1 8g	6 req	Avail to order Our Price: $6.37
38	003201353	This item is no longer available	2 req
39	003108001	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
40	003208005	Check Valve Engine Pipe	1 req	Avail to order Our Price: $19.24
41	003101518	Check Valve	1 req	Avail to order Our Price: $189.43
42	003101486	Bolt	1 req	Avail to order Our Price: $34.89
43	008411004	Corrugated Washer	8 req	Avail to order Our Price: $2.65
44	N91116801	WASHER	1 req	Current Stock: 1 Our Price: $8.40
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
