1981-1988 Lamborghini Jalpa 3.5 USA Fuel System (7.62)

Maintenance Parts:

Belts

PN	Item	Diagram
001219534	Auxiliary Unit Belt Auxiliary Unit Belt		Avail to order Our Price: $346.32
004613685	Air Pump Belt Air Pump Belt		Avail to order Our Price: $79.07

Brakes

PN	Item	Diagram
003135292	Brake Pads Front - Jalpa - Early Diablo - Per Rotor Front Brake Pads		Avail to order Our Price: $524.67
003220800	Brake Pad Rear - Urraco - Jalpa - Sold Each Rear Brake Pad Kits		Avail to order Our Price: $99.00

Common repairs and upgrades

PN	Item	Diagram
007029005	Bonnet Lifter Bonnet Lifter		Current Stock: 4 Our Price: $114.79
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 21 Our Price: $86.65
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $350.78
002111112	Flywheel Flywheel	Avail to order Our Price: $1,270.26
002111111	Clutch Pressure Plate Clutch Pressure Plate	Current Stock: 1 Our Price: $2,742.24
002108644	Thrust Bearing Thrust Bearing	Current Stock: 1 Our Price: $1,856.19
002106838	Clutch Cylinder Rod Clutch Cylinder Rod	Avail to order Our Price: $68.44
002109862	Clutch Plate Clutch Plate	Current Stock: 2 Our Price: $1,431.28

Fuel-Air

PN	Item	Diagram
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.		Current Stock: 1 Our Price: $130.02
006220011	Fuel Filter Fuel Filter		Avail to order Our Price: $314.68

Fuses-Bulbs-Relays

PN	Item
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
006311154	RELAY RELAY	Avail to order Our Price: $56.14
006309758	Cylinder Bulb 6411/12v 10w Cylinder Bulb 6411/12v 10w	Avail to order Our Price: $11.85
006617093	12v 5w Bulb 12v 5w Bulb	Avail to order Our Price: $20.24
006617106	12v 60/55w Bulb 12v 60/55w Bulb	Avail to order Our Price: $85.26

Gaskets

PN	Item
001526493	Engine Gasket Set - Jalpa - Miura Engine Gasket Kit Jalpa and Miura See also 001526473 grommet & oil seals set	Avail to order Our Price: $1,098.80
001526473	Grommet and Oil Seals Set - Jalpa - Miura Grommet and Oil Seals Set Jalpa - Miura	Avail to order Our Price: $348.55
001526492	Engine Gasket Kit Jalpa Engine Gasket Kit	Avail to order Our Price: $1,403.08

Ignition

PN	Item	Diagram
008811403	Spark Plug - Countach-Jalpa Spark Plug		Current Stock: 16 Our Price: $39.99
001622092	DISTRIBUTOR PLUG WIRES - JALPA DISTRIBUTOR PLUG WIRES - JALPA		Avail to order Our Price: $668.46

Misc

PN	Item
006121168	NLA (No Longer Available) Wiper Blade Type B	Avail to order Our Price: $40.35
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $136.52
001719309	URRACO THERMOSTAT Coolant Thermostat	Current Stock: 2 Our Price: $195.00
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.37
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $646.12

Open All

Select Group and TAV

< Previous Next >

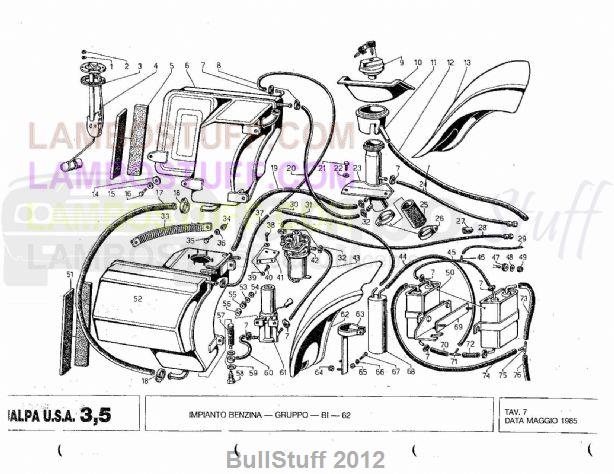

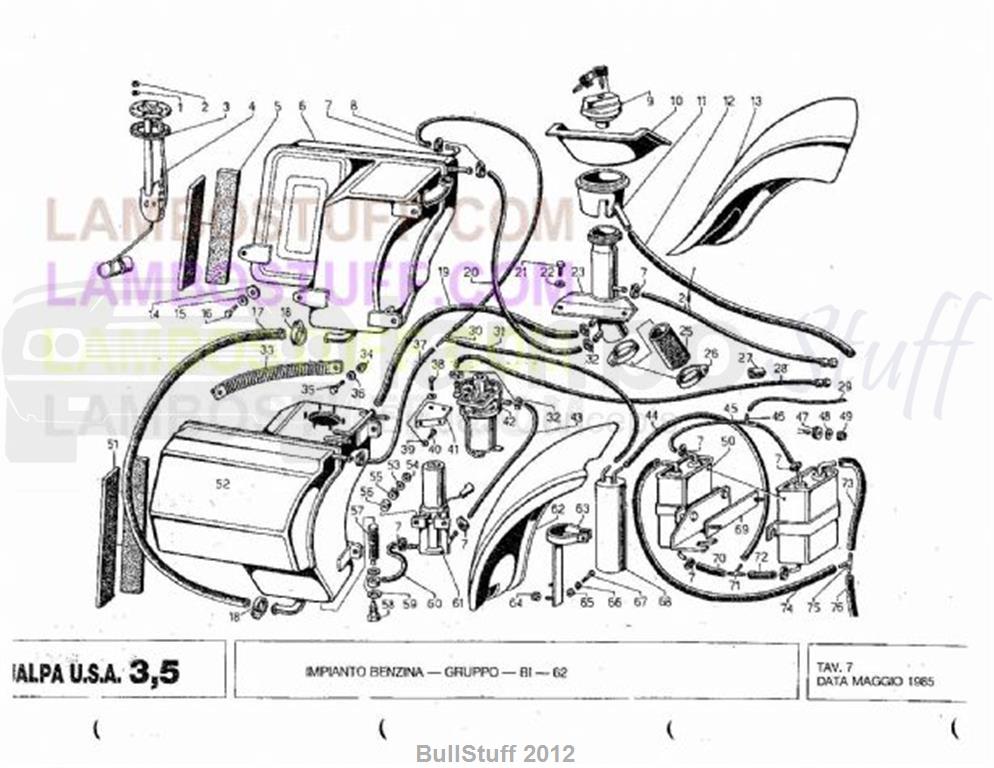

TAV: 7.62 - Fuel System

1981-1988 Lamborghini Jalpa 3.5 USA Fuel System (7.62)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jalpa Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008410404	Corrugated Washer D.4.1 Uni370	6 req	Avail to order Our Price: $2.00
2	008200401	M4 Uni 5587/5s/Z	6 req	Avail to order Our Price: $2.00
3	006205360	Float Dimmer Seal	1 req	Current Stock: 14 Our Price: $114.96
4	006208724	FUEL SENDING UNIT	1 req	Avail to order Our Price: $850.46
5	006220834	This item is no longer available	2 req
6	006220221	Rh Fuel Tank	1 req	Avail to order Our Price: $4,035.33
7	008830901	NLA (No Longer Available)	8 req	*See Description
8	006222653	This item is no longer available	1 req
9	006220985	FUEL FILLER CAP & KEY COUNTACH-JALPA	1 req	Avail to order Our Price: $61.06
10	006220327	Fuel Flap Cup	1 req	Avail to order Our Price: $68.74
11	006208726	Fuel Tank Pipe Boot	1 req	Avail to order Our Price: $34.52
12	006209751	This item is no longer available	1 req
13	006220275	Rh Tank Cover Bulkhead	1 req	Avail to order Our Price: $199.04
14	N90179103	WASHER	5 req	Current Stock: 5 Our Price: $2.00
15	WHT001514	SPRING WASHER	5 req	Current Stock: 9 Our Price: $26.80
16	008100809	Screw M8x22 Uni 5739/8g/Zd	5 req	Current Stock: 8 Our Price: $2.00
17	006208730	Tank Union Pipe	1 req	Avail to order Our Price: $341.86
18	008833501	Clamp	2 req	Avail to order Our Price: $11.93
19	006208729	Rh Tank Breather Pipe	1 req	Avail to order Our Price: $26.10
20	006208728	Lh Tank Breather Pipe	1 req	Avail to order Our Price: $6.04
21	008100506	Screw M5x14 Uni 5739	3 req	Avail to order Our Price: $11.93
22	WHT002961	WASHER	3 req	Current Stock: 38 Our Price: $2.00
23	006223252	Tank Filler Pipe Set	1 req	Avail to order Our Price: $1,039.17
24	006220772	Tank Fuel Recirculation Pipe	1 req	Avail to order Our Price: $32.06
25	006220218	Lh Filling Pipe Connecting Sle	1 req	Avail to order Our Price: $336.21
26	008835004	Clamp	2 req	Avail to order Our Price: $10.86
27	006208736	Engine Filter Pipe Guard	2 req	Avail to order Our Price: $13.35
28	006210975	This item is no longer available	1 req
29	006222664	This item is no longer available	1 req
30	006220752	Plastic Three-Way Union Ts8	1 req	Avail to order Our Price: $6.87
31	006222655	This item is no longer available	1 req
32	008830903	Clamp	4 req	Avail to order Our Price: $14.02
33	001304420	Fuel Pump Ground Wire	1 req	Avail to order Our Price: $3.35
34	008200804	Nut	4 req	Current Stock: 7 Our Price: $2.00
35	008100827	Screw M8x25 Uni 5739/8g/Zg	4 req	Current Stock: 14 Our Price: $2.00
36	WHT001942	WASHER	4 req	Current Stock: 13 Our Price: $3.51
37	006220232	This item is no longer available	1 req
38	008100630	Screw M6x14 Uni 5739/8g/Z	2 req	Avail to order Our Price: $2.00
39	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
40	008100613	Screw M6x10 Uni 5739/5s/Z	2 req	Avail to order Our Price: $2.00
41	006210989	Fuel Filter Bracket	1 req	Avail to order Our Price: $62.77
42	006220011	Fuel Filter	1 req	Avail to order Our Price: $314.68
43	006223251	This item is no longer available	1 req
44	006222656	This item is no longer available	1 req
45	006222663	Filter Union/Three-Way Pipe	2 req	Avail to order Our Price: $3.29
46	006213782	This item is no longer available	1 req
47	008610801	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	4 req	*See Description
48	N90179103	WASHER	4 req	Current Stock: 5 Our Price: $2.00
49	N0111849	HEX.HEAD CLAMPING NUT	4 req	Current Stock: 5 Our Price: $2.39
50	006221563	Carbon Filter	2 req	Avail to order Our Price: $863.24
51	006220834	This item is no longer available	2 req
52	006220222	Lh Fuel Tank	1 req	Avail to order Our Price: $4,035.33
53	WHT002961	WASHER	2 req	Current Stock: 38 Our Price: $2.00
54	N01100637	HEX.NUT	2 req	Current Stock: 18 Our Price: $2.00
55	008610601	Grommet 6x10x1.5 mm	2 req	Avail to order Our Price: $5.57
56	006223247	Pump Fastening Shim	2 req	Avail to order Our Price: $12.68
57	001303074	NLA	1 req	*See Description
58	001303057	Fuel Intake Nipple Bolt	1 req	Avail to order Our Price: $721.61
59	008401804	Annealed Copper Washer 18.2x30	2 req	Avail to order Our Price: $4.70
60	006223248	Hose From Tank to Pump	1 req	Avail to order Our Price: $35.05
61	001320370	NLA (No Longer Available)	1 req	*See Description
62	006220276	Rh Tank Cover Bulkhead	1 req	Avail to order Our Price: $199.04
63	006222673	Fuel Breather CasingBracket	1 req	Avail to order Our Price: $68.74
64	N01118312	HEX.HEAD CLAMPING NUT	2 req	Avail to order Our Price: $2.17
65	N10689901	HEX.NUT	1 req	Current Stock: 5 Our Price: $2.00
66	008410502	Washer D.5.3 Uni 1751/Zd	1 req	Current Stock: 33 Our Price: $2.00
67	008100505	Screw M5x20 Uni 5739/5s	1 req	Avail to order Our Price: $2.00
68	006221564	Fuel Breather Casing	1 req	Avail to order Our Price: $928.84
69	006222674	Canister Bracket	1 req	Avail to order Our Price: $140.89
70	006222658	This item is no longer available	1 req
71	006220752	Plastic Three-Way Union Ts8	1 req	Avail to order Our Price: $6.87
72	006222657	This item is no longer available	1 req
73	006222659	This item is no longer available	1 req
74	006222660	This item is no longer available	1 req
75	006222661	Three-Way Union	1 req	Avail to order Our Price: $4.92
76	006222662	This item is no longer available	1 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
