1981-1988 Lamborghini Jalpa 3.5 USA Gearbox (Z.F.) (16.24)

Maintenance Parts:

Belts

PN	Item	Diagram
001219534	Auxiliary Unit Belt Auxiliary Unit Belt		Avail to order Our Price: $346.32
004613685	Air Pump Belt Air Pump Belt		Avail to order Our Price: $79.07

Brakes

PN	Item	Diagram
003135292	Brake Pads Front - Jalpa - Early Diablo - Per Rotor Front Brake Pads		Avail to order Our Price: $524.67
003220800	Brake Pad Rear - Urraco - Jalpa - Sold Each Rear Brake Pad Kits		Avail to order Our Price: $99.00

Common repairs and upgrades

PN	Item	Diagram
007029005	Bonnet Lifter Bonnet Lifter		Current Stock: 4 Our Price: $114.79
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 21 Our Price: $86.65
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $350.78
002111112	Flywheel Flywheel	Avail to order Our Price: $1,270.26
002111111	Clutch Pressure Plate Clutch Pressure Plate	Current Stock: 1 Our Price: $2,742.24
002108644	Thrust Bearing Thrust Bearing	Current Stock: 1 Our Price: $1,856.19
002106838	Clutch Cylinder Rod Clutch Cylinder Rod	Avail to order Our Price: $68.44
002109862	Clutch Plate Clutch Plate	Current Stock: 2 Our Price: $1,431.28

Fuel-Air

PN	Item	Diagram
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.		Current Stock: 1 Our Price: $130.02
006220011	Fuel Filter Fuel Filter		Avail to order Our Price: $314.68

Fuses-Bulbs-Relays

PN	Item
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
006311154	RELAY RELAY	Avail to order Our Price: $56.14
006309758	Cylinder Bulb 6411/12v 10w Cylinder Bulb 6411/12v 10w	Avail to order Our Price: $11.85
006617093	12v 5w Bulb 12v 5w Bulb	Avail to order Our Price: $20.24
006617106	12v 60/55w Bulb 12v 60/55w Bulb	Avail to order Our Price: $85.26

Gaskets

PN	Item
001526493	Engine Gasket Set - Jalpa - Miura Engine Gasket Kit Jalpa and Miura See also 001526473 grommet & oil seals set	Avail to order Our Price: $1,098.80
001526473	Grommet and Oil Seals Set - Jalpa - Miura Grommet and Oil Seals Set Jalpa - Miura	Avail to order Our Price: $348.55
001526492	Engine Gasket Kit Jalpa Engine Gasket Kit	Avail to order Our Price: $1,403.08

Ignition

PN	Item	Diagram
008811403	Spark Plug - Countach-Jalpa Spark Plug		Current Stock: 16 Our Price: $39.99
001622092	DISTRIBUTOR PLUG WIRES - JALPA DISTRIBUTOR PLUG WIRES - JALPA		Avail to order Our Price: $668.46

Misc

PN	Item
006121168	NLA (No Longer Available) Wiper Blade Type B	Avail to order Our Price: $40.35
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $136.52
001719309	URRACO THERMOSTAT Coolant Thermostat	Current Stock: 2 Our Price: $195.00
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.37
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $646.12

Open All

Select Group and TAV

< Previous Next >

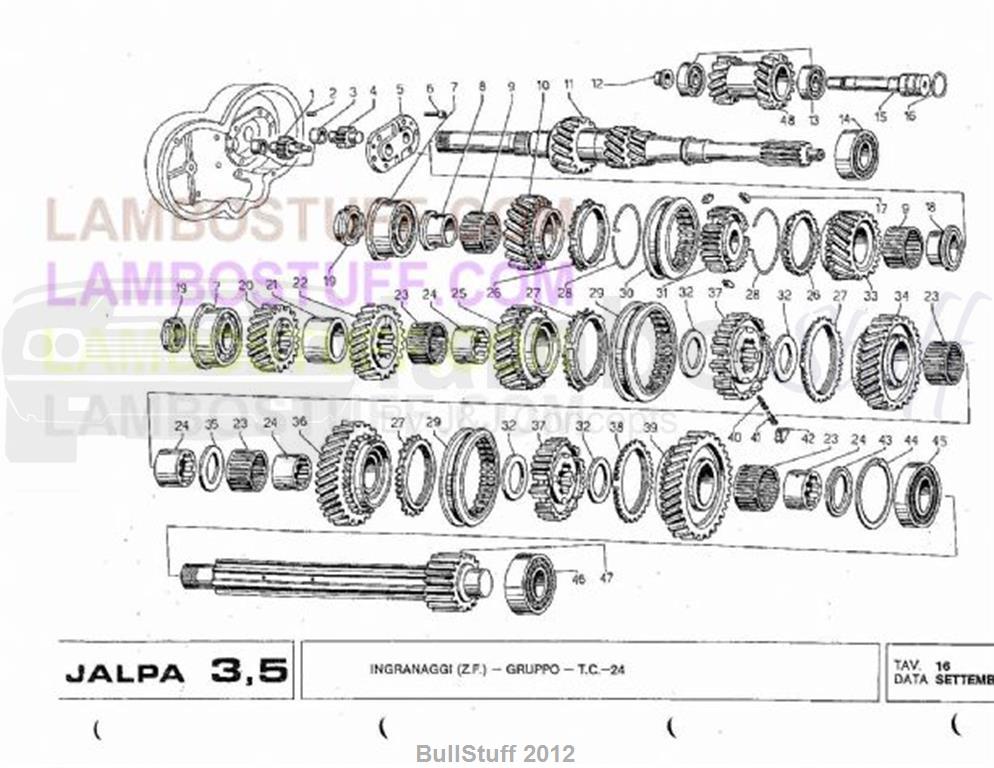

TAV: 16.24 - Gearbox (Z.F.)

1981-1988 Lamborghini Jalpa 3.5 USA Gearbox (Z.F.) (16.24)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jalpa Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002408624	Oil Pump Drive Gear	1 req	Avail to order Our Price: $225.88
2	008850504	Reference Pin 5h6x8.5 C 40	2 req	Avail to order Our Price: $21.40
3	002408625	Oil Pump Gear Bushing	2 req	Avail to order Our Price: $72.24
4	002408623	Oil Pump Drive Gear	1 req	Avail to order Our Price: $278.06
5	002408622	Gearbox Oil Pump Cover	1 req	Avail to order Our Price: $300.42
6	N10546402	HEXALOBULAR SOCKET	6 req	Current Stock: 5 Our Price: $2.00
7	008503006	Bearing	2 req	Avail to order Our Price: $659.52
8	002420116	5th Speed Gear Bushing on Prim	1 req	Avail to order Our Price: $169.23
9	008524503	Bearing	2 req	Avail to order Our Price: $151.33
10	002420931	5th Speed Gear & Clutch Casing	1 req	Avail to order Our Price: $1,478.98
11	002420110	Gearbox Primary Shaft	1 req	Avail to order Our Price: $1,021.27
12	002409583	Reverse IntermediateGear Bushi	1 req	Avail to order Our Price: $27.36
13	008501704	Bearing	2 req	Avail to order Our Price: $57.22
14	008523511	Bearing	1 req	Avail to order Our Price: $84.09
15	002409591	Reverse IntermediateGear Pin	1 req	Avail to order Our Price: $56.28
16	008601702	Ring 18 mm Or	2 req	Current Stock: 7 Our Price: $2.00
17	002421415	4th/5th SynchroniserBlock	3 req	Avail to order Our Price: $24.30
18	002420117	4th Speed Gear Bushing on Prim	1 req	Avail to order Our Price: $161.02
19	008253001	M30x1.5x44 Ring Nut	2 req	Avail to order Our Price: $69.25
20	002420930	5th Speed Gear on Secondary	1 req	Avail to order Our Price: $272.84
21	002420128	This item is no longer available	1 req
22	002420119	4th Speed Gear on Secondary	1 req	Avail to order Our Price: $315.33
23	008524701	Code 30010003520	4 req	Current Stock: 3 Our Price: $55.77
24	002420124	Bushing	4 req	Current Stock: 6 Our Price: $506.83
25	002420133	3rd Speed Gear on Secondary	1 req	Avail to order Our Price: $508.40
26	002421414	Synchroniser Ring	2 req	Avail to order Our Price: $231.84
26	002421413	4th/5th Block Ring Spring	2 req	Avail to order Our Price: $26.10
27	002421416	Ring	3 req	Current Stock: 5 Our Price: $1,516.04
29	002421417	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
30	002421412	4th/5th Speed Synchroniser Sle	1 req	Avail to order Our Price: $221.41
31	002421411	4th/5th Speed Synchroniser Cas	2 req	Avail to order Our Price: $221.41
32	002420127	Shim Adjustment Washer	4 req	Avail to order Our Price: $43.32
33	002420132	4th Speed Gear & Clutch Casing	1 req	Avail to order Our Price: $460.69
34	002420134	2nd Speed Gear on Secondary	1 req	Avail to order Our Price: $524.80
35	002420129	1st/2nd Speed Shim	1 req	Avail to order Our Price: $43.32
36	002420135	1st Speed Gear on Secondary	1 req	Avail to order Our Price: $1,012.33
37	002420126	Synchroniser 1 Bushing Assembl	2 req	Avail to order Our Price: $380.19
38	002421421	NLA (No Longer Available)	1 req	*See Description
39	002420136	Reverse Gear on Secondary	1 req	Avail to order Our Price: $329.50
40	002421418	Strut Spring	6 req	Avail to order Our Price: $67.41
41	002421419	Block Strut	6 req	Current Stock: 2 Our Price: $34.71
42	002421420	Synchroniser Block	6 req	Current Stock: 17 Our Price: $29.59
43	002420130	Spacer	1 req	Avail to order Our Price: $45.93
44	008578002	Special O-Ring Aa80 I	1 req	Avail to order Our Price: $39.44
46	008524008	Bearings	1 req	Avail to order Our Price: $164.75
46	008523503	Bearing	1 req	Avail to order Our Price: $158.78
47	002420111	Gearbox Secondary Shaft	1 req	Avail to order Our Price: $386.15
48	002420718	Reverse IntermediateGear	1 req	Avail to order Our Price: $392.11
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
