1981-1988 Lamborghini Jalpa 3.5 USA Rear Suspension (38.52)

Maintenance Parts:

Belts

PN	Item	Diagram
004613685	Air Pump Belt Air Pump Belt		Avail to order Our Price: $76.70
001219534	Auxiliary Unit Belt Auxiliary Unit Belt		Avail to order Our Price: $335.91

Brakes

PN	Item	Diagram
003135292	Brake Pads Front - Jalpa - Early Diablo - Per Rotor Front Brake Pads		Avail to order Our Price: $509.81
003220800	Brake Pad Rear - Urraco - Jalpa - Sold Each Rear Brake Pad Kits		Avail to order Our Price: $96.01

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Avail to order Our Price: $83.98
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $341.11
002108644	Thrust Bearing Thrust Bearing	Current Stock: 1 Our Price: $1,804.01
002106838	Clutch Cylinder Rod Clutch Cylinder Rod	Avail to order Our Price: $66.50
002109862	Clutch Plate Clutch Plate	Current Stock: 2 Our Price: $1,389.53
002111111	Clutch Pressure Plate Clutch Pressure Plate	Current Stock: 1 Our Price: $2,742.24
002111112	Flywheel Flywheel	Avail to order Our Price: $1,232.98

Fuel-Air

PN	Item	Diagram
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.		Current Stock: 1 Our Price: $130.02
006220011	Fuel Filter Fuel Filter		Avail to order Our Price: $305.02

Fuses-Bulbs-Relays

PN	Item
006617094	Check Parts Manual for location Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 77 Our Price: $9.60
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.09
006311154	Relay Relay	Avail to order Our Price: $54.49
006617093	12v 5w Bulb 12v 5w Bulb	Avail to order Our Price: $19.64
006309758	Cylinder Bulb 6411/12v 10w Cylinder Bulb 6411/12v 10w	Avail to order Our Price: $11.48
006617106	12v 60/55w Bulb 12v 60/55w Bulb	Avail to order Our Price: $82.73

Gaskets

PN	Item
001526493	Engine Gasket Set - Jalpa - Miura Engine Gasket Kit Jalpa and Miura See also 001526473 grommet & oil seals set	Avail to order Our Price: $1,066.00
001526473	Grommet and Oil Seals Set - Jalpa - Miura Grommet and Oil Seals Set Jalpa - Miura	Avail to order Our Price: $338.14
001526492	Engine Gasket Kit Jalpa Engine Gasket Kit	Avail to order Our Price: $1,361.46

Ignition

PN	Item	Diagram
001622092	Spark Plug Wires - Jalpa Wires From Distributor To Spar		Avail to order Our Price: $646.55
008811403	Spark Plug - Countach-Jalpa Spark Plug		Avail to order Our Price: $64.49

Misc

PN	Item
006121168	NLA (No Longer Available) Wiper Blade Type B	Avail to order Our Price: $39.22
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57

Sensors

PN	Item	Diagram
002408637	Reverse Switch Switch		Avail to order Our Price: $132.69
001801333	NLA (No longer Available to order) Oil & Coolant Temperature Thermometer		Avail to order Our Price: $145.52

Open All

Select Group and TAV

< Previous Next >

TAV: 38.52 - Rear Suspension

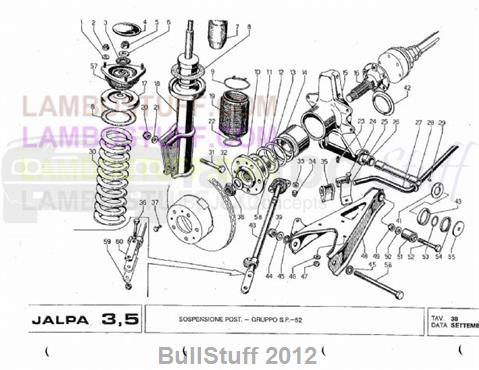

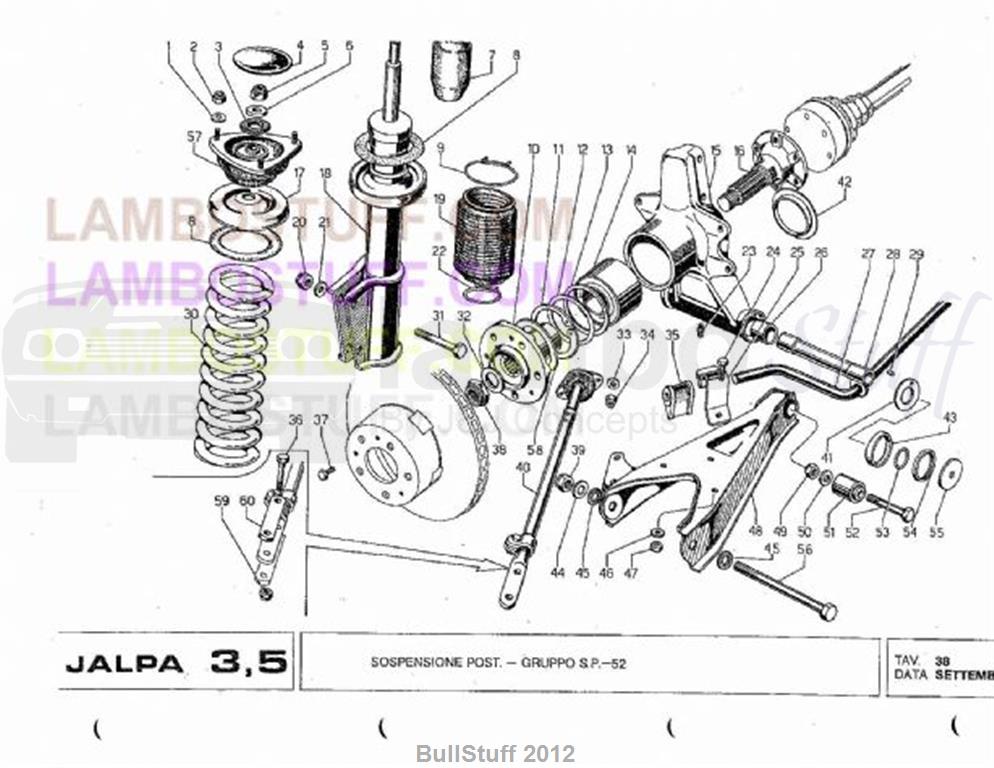

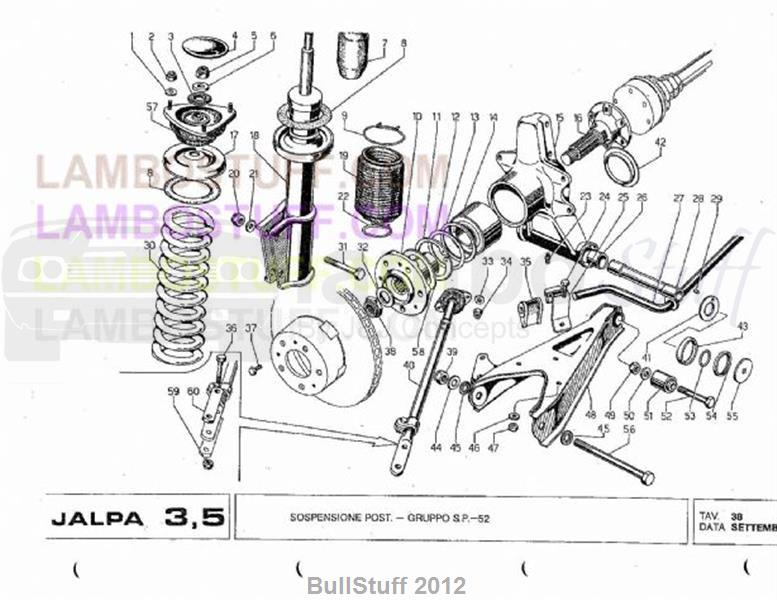

1981-1988 Lamborghini Jalpa 3.5 USA Rear Suspension (38.52)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jalpa Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0	005219579	Lh Rear Suspension Arm	1 req	Avail to order Our Price: $424.91
1	N90179103	WASHER	6 req	Current Stock: 5 Our Price: $2.00
2	N0111849	HEX.HEAD CLAMPING NUT	6 req	Current Stock: 5 Our Price: $2.31
3	005207464	NLA (No Longer Available)	2 req	*See Description
4	005206948	Grease Cap	2 req	Avail to order Our Price: $47.49
5	008201406	Nut	2 req	Current Stock: 8 Our Price: $2.00
6	005207465	Shock Absorber Nut Stop	2 req	Avail to order Our Price: $12.23
7	005208239	Rear Shock Absorber Pad	2 req	Avail to order Our Price: $222.21
8	005207451	Shock Absorber Spring Bracket	4 req	Avail to order Our Price: $64.04
9	008830107	Clamp D.68/U	2 req	Avail to order Our Price: $23.19
10	005206929	Rear Wheel Hub	2 req	Avail to order Our Price: $621.71
11	008578201	O-Ring I 82 Uni 3654	2 req	Current Stock: 12 Our Price: $3.57
12	008407502	Washer 75x82.5x0.05	1 req	Avail to order Our Price: $19.54
13	008407501	Washer 75x82.5x0.5	2 req	Avail to order Our Price: $6.64
14	008504502	NLA (No Longer Available)	2 req	*See Description
15	005219578	Rear Suspension Hub Holder	2 req	Avail to order Our Price: $13,027.49
16	005208235	Drive Shaft Flange	2 req	Avail to order Our Price: $487.53
17	005206915	Rear Spring Upper Bracket	2 req	Avail to order Our Price: $28.03
18	005220589	NLA (No Longer Available)	2 req	*See Description
19	005108120	Shock Absorber Bellows	2 req	Avail to order Our Price: $120.99
20	008201008	Nut	4 req	Current Stock: 2 Our Price: $2.00
21	008401006	Washer 22x10.5x2.5 Uni 1734/5s	4 req	Current Stock: 1 Our Price: $2.00
22	008830119	NLA (No Longer Available)	2 req	*See Description
23	008880601	Hydraulic 273 A Grease Dispens	2 req	Current Stock: 8 Our Price: $2.00
24	008100826	Screw M8x16 Uni 5739/8g/Z	2 req	Avail to order Our Price: $2.00
25	005107110	Bar Attachment Bracket	4 req	Avail to order Our Price: $50.09
26	008802203	Bushing 22x25x30 mm	4 req	Avail to order Our Price: $11.97
27	005213361	Rear Torsion Bar	1 req	Avail to order Our Price: $133.89
28	005206679	Lower Arm Shim	4 req	Avail to order Our Price: $26.17
29	WHT003082	Cylinder Pins 1707 H11 3x5	4 req	Current Stock: 41 Our Price: $2.00
30	005213359	NLA (No Longer Available)	2 req	*See Description
31	008101032	Special Screw M10x55	4 req	Avail to order Our Price: $8.50
32	008402502	Washer 25x39x4 Uni 1750 5s	2 req	Avail to order Our Price: $2.39
33	N90179103	WASHER	4 req	Current Stock: 5 Our Price: $2.00
34	008200804	Nut	4 req	Current Stock: 7 Our Price: $2.00
35	008922002	Bar Mount 20	4 req	Avail to order Our Price: $61.91
36	008101015	Screw M10x40 Uni 5737/8g	4 req	Avail to order Our Price: $14.69
37	008100826	Screw M8x16 Uni 5739/8g/Z	6 req	Avail to order Our Price: $2.00
38	008202502	M25x1.5 Uni 4535-64 Nut	2 req	Avail to order Our Price: $89.49
39	008201406	Nut	2 req	Current Stock: 8 Our Price: $2.00
40	005207821	Suspension Linkage	2 req	Avail to order Our Price: $1,383.57
41	008402603	Self-Lubricating Washer Wc 24	4 req	Avail to order Our Price: $15.54
42	005209248	Cover	2 req	Avail to order Our Price: $7.09
43	005219576	Rear Hub Holder Bushing	4 req	Avail to order Our Price: $25.43
44	008401413	Flat Washer 14.3 Uni1750/Z	2 req	Current Stock: 11 Our Price: $2.00
45	008401506	Polypac Genuine SealWasher	4 req	Avail to order Our Price: $11.56
46	N0152785	WASHER	8 req	Current Stock: 71 Our Price: $2.00
47	008200806	M8 Uni 5588/8g/Z Nut	8 req	Current Stock: 25 Our Price: $2.00
48	005219580	Rh Rear Suspension Arm	1 req	Avail to order Our Price: $424.91
49	008201603	Nut	2 req	Avail to order Our Price: $3.87
50	008401611	Washer 17x29x3 5s Uni 16592	2 req	Avail to order Our Price: $15.88
51	008921608	Lower LH Arm Estenblock	2 req	Avail to order Our Price: $104.37
52	008101624	Special Screw M16x1.5x90	4 req	Avail to order Our Price: $61.20
53	008612203	Hub Holder Sealing Ring	4 req	Avail to order Our Price: $9.39
54	008613802	Hub Holder Sealing Ring	4 req	Avail to order Our Price: $22.82
55	005219574	Hub Holder O-Ring Bracket	4 req	Avail to order Our Price: $29.97
56	008101415	Special Screw M14x190	2 req	Avail to order Our Price: $45.33
57	005213401	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
58	005112242	Wheel Outer Cover	2 req	Avail to order Our Price: $249.71
59	008201008	Nut	4 req	Current Stock: 2 Our Price: $2.00
60	005206679	Lower Arm Shim	4 req	Avail to order Our Price: $26.17
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
