1981-1988 Lamborghini Jalpa 3.5 USA Front Bonnet And Removable Hardtop (43.78)

Maintenance Parts:

Belts

PN	Item	Diagram
001219534	Auxiliary Unit Belt Auxiliary Unit Belt		Avail to order Our Price: $346.32
004613685	Air Pump Belt Air Pump Belt		Avail to order Our Price: $79.07

Brakes

PN	Item	Diagram
003135292	Brake Pads Front - Jalpa - Early Diablo - Per Rotor Front Brake Pads		Avail to order Our Price: $524.67
003220800	Brake Pad Rear - Urraco - Jalpa - Sold Each Rear Brake Pad Kits		Avail to order Our Price: $99.00

Common repairs and upgrades

PN	Item	Diagram
007029005	Bonnet Lifter Bonnet Lifter		Current Stock: 4 Our Price: $114.79
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 21 Our Price: $86.65
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $350.78
002111112	Flywheel Flywheel	Avail to order Our Price: $1,270.26
002111111	Clutch Pressure Plate Clutch Pressure Plate	Current Stock: 1 Our Price: $2,742.24
002108644	Thrust Bearing Thrust Bearing	Current Stock: 1 Our Price: $1,856.19
002106838	Clutch Cylinder Rod Clutch Cylinder Rod	Avail to order Our Price: $68.44
002109862	Clutch Plate Clutch Plate	Current Stock: 2 Our Price: $1,431.28

Fuel-Air

PN	Item	Diagram
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.		Current Stock: 1 Our Price: $130.02
006220011	Fuel Filter Fuel Filter		Avail to order Our Price: $314.68

Fuses-Bulbs-Relays

PN	Item
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
006311154	RELAY RELAY	Avail to order Our Price: $56.14
006309758	Cylinder Bulb 6411/12v 10w Cylinder Bulb 6411/12v 10w	Avail to order Our Price: $11.85
006617093	12v 5w Bulb 12v 5w Bulb	Avail to order Our Price: $20.24
006617106	12v 60/55w Bulb 12v 60/55w Bulb	Avail to order Our Price: $85.26

Gaskets

PN	Item
001526493	Engine Gasket Set - Jalpa - Miura Engine Gasket Kit Jalpa and Miura See also 001526473 grommet & oil seals set	Avail to order Our Price: $1,098.80
001526473	Grommet and Oil Seals Set - Jalpa - Miura Grommet and Oil Seals Set Jalpa - Miura	Avail to order Our Price: $348.55
001526492	Engine Gasket Kit Jalpa Engine Gasket Kit	Avail to order Our Price: $1,403.08

Ignition

PN	Item	Diagram
008811403	Spark Plug - Countach-Jalpa Spark Plug		Current Stock: 16 Our Price: $39.99
001622092	DISTRIBUTOR PLUG WIRES - JALPA DISTRIBUTOR PLUG WIRES - JALPA		Avail to order Our Price: $668.46

Misc

PN	Item
006121168	NLA (No Longer Available) Wiper Blade Type B	Avail to order Our Price: $40.35
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $136.52
001719309	URRACO THERMOSTAT Coolant Thermostat	Current Stock: 2 Our Price: $195.00
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.37
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $646.12

Open All

Select Group and TAV

< Previous Next >

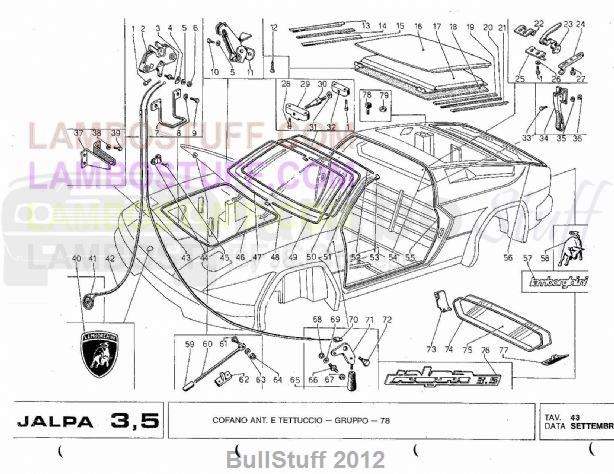

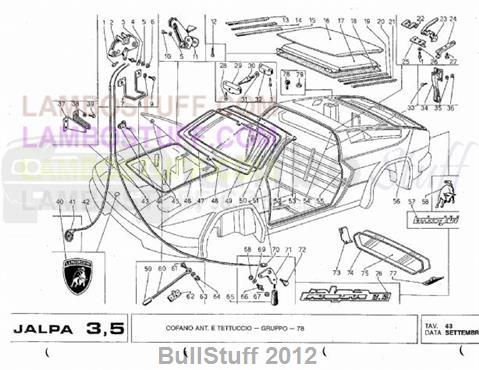

TAV: 43.78 - Front Bonnet And Removable Hardtop

1981-1988 Lamborghini Jalpa 3.5 USA Front Bonnet And Removable Hardtop (43.78)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jalpa Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0	007807032	Tight.Handle Support	1 req	Avail to order Our Price: $162.52
0	007807030	Lh Handle Mounting Assembly	1 req	Avail to order Our Price: $405.53
1	N90638803	HEXAGON HEAD BOLT	8 req	Avail to order Our Price: $2.00
2	006959110	Fiat Original BonnetLock 423	1 req	Current Stock: 1 Our Price: $139.85
3	006959298	Bonnet Lock Cable Fix.Pin	2 req	Avail to order Our Price: $34.97
4	007059012	Bonnet Cable Fix.Washer	1 req	Avail to order Our Price: $24.38
5	WHT002961	WASHER	4 req	Current Stock: 38 Our Price: $2.00
6	008200607	D 6x1 Sin. 8g Nut	2 req	Avail to order Our Price: $14.92
7	004113498	This item is no longer available	1 req
8	WHT002961	WASHER	2 req	Current Stock: 38 Our Price: $2.00
9	N01021626	HEXAGON HEAD BOLT	2 req	Current Stock: 8 Our Price: $2.00
10	008100625	Screw M6x16 Uni 5739/8g/Z	2 req	Avail to order Our Price: $140.00
11	007859005	Bonnet Hook	1 req	Avail to order Our Price: $56.78
12	008700313	Lock Screw 2.9x13din7982/N	6 req	Avail to order Our Price: $2.91
13	007807010	NLA (No Longer Available)	1 req	*See Description
14	007807023	Top Sheet Steel	1 req	Avail to order Our Price: $24.38
15	007807038	Window Ledge Rub.Mould.	1 req	Avail to order Our Price: $139.55
16	007807025	This item is no longer available	1 req
17	007807040	Panel Moulding	1 req	Avail to order Our Price: $1,216.59
18	007807024	This item is no longer available	1 req
19	007807038	Window Ledge Rub.Mould.	1 req	Avail to order Our Price: $139.55
20	007807023	Top Sheet Steel	1 req	Avail to order Our Price: $24.38
21	007807011	NLA (No Longer Available)	1 req	*See Description
22	007807034	Plate On Mounts For Handle	2 req	Avail to order Our Price: $201.28
23	007807029	Rh Handle Mounting Assembly	1 req	Avail to order Our Price: $405.53
24	007807033	Tightening Handle Rod	2 req	Avail to order Our Price: $136.60
25	007807031	Tight.Handle Support	1 req	Avail to order Our Price: $162.52
26	008400817	Washer 14x8.4x1.5uni6592-69/B	4 req	Avail to order Our Price: $2.00
27	008700825	Screw M8	4 req	Avail to order Our Price: $2.91
28	008700824	Screw M8x16 Uni 5933/5s/B	4 req	Avail to order Our Price: $2.91
29	007807035	Bracket On Body Attach.	2 req	Avail to order Our Price: $189.51
30	007807036	Front Coupl.Cone Pin	2 req	Avail to order Our Price: $141.95
31	008401020	Washer	4 req	Avail to order Our Price: $2.91
32	007807037	Bracket On Sun Roof	2 req	Avail to order Our Price: $175.94
33	WHT003088	SCREW	8 req	Current Stock: 9 Our Price: $2.00
34	007807039	Top Fixing Hook Behind Seat	2 req	Avail to order Our Price: $303.21
35	N01152221	WASHER	8 req	Current Stock: 3 Our Price: $2.00
36	008200405	4x0.7x3 Uni 5589 5s Nut	8 req	Avail to order Our Price: $2.91
37	007859006	Hook Retaining Bracket Assembl	1 req	Avail to order Our Price: $243.77
38	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
39	008100631	Screw M6x8 Uni 5739 8g	4 req	Avail to order Our Price: $2.00
40	006102515	Bonnet Badge	1 req	Current Stock: 5 Our Price: $1,018.12
41	008611602	Grommet 16x25x1.5 mm	1 req	Avail to order Our Price: $16.40
42	006959120	mm 1815 Front Bon Sec. Cable	1 req	Avail to order Our Price: $69.93
43	006959114	Engine Cover ReleaseCable	1 req	Avail to order Our Price: $69.93
44	008830120	Clamp	1 req	Avail to order Our Price: $2.91
45	008700506	Screw Knip 4.8x16din7971 Black	1 req	Current Stock: 4 Our Price: $2.00
46	007859008	NLA (No Longer Available)	1 req	*See Description
47	006915120	Rh Windscreen Weather Strip	1 req	Avail to order Our Price: $1,049.60
48	006915150	/ Windshield Frame Butt Strap	2 req	Current Stock: 2 Our Price: $69.93
49	006915121	Left Windscreen Weather Strip	1 req	Avail to order Our Price: $1,049.60
50	007115001	NLA (No Longer Available)	1 req	*See Description
51	007890011	Windscreen Weather Strip	1 req	Avail to order Our Price: $781.80
52	007890013	Cross.Memb.Rub.Mould.	1 req	Avail to order Our Price: $69.04
53	007890003	NLA (No Longer Available)	2 req	*See Description
54	007890005	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
55	006758118	Door Rubber Seal	2 req	Avail to order Our Price: $125.36
56	007890001	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
57	006111397	Lamborghini Black Plate	1 req	Current Stock: 2 Our Price: $323.28
58	006121271	Bull Dark Bronze	1 req	Avail to order Our Price: $228.85
59	006956046	This item is no longer available	1 req
60	007859010	Engine Hood Rod	1 req	Avail to order Our Price: $162.52
61	006935114	Mov.Seat Fix.Screw	1 req	Avail to order Our Price: $14.02
62	006959186	Bonnet Rod Front Support	1 req	Avail to order Our Price: $48.98
63	WHT001514	SPRING WASHER	1 req	Current Stock: 9 Our Price: $26.80
64	N0211963	HEX.HEAD CLAMPING	1 req	Avail to order Our Price: $2.00
65	007859003	Front Hood Lever Knob	1 req	Avail to order Our Price: $40.56
66	006959298	Bonnet Lock Cable Fix.Pin	2 req	Avail to order Our Price: $34.97
67	008200607	D 6x1 Sin. 8g Nut	2 req	Avail to order Our Price: $14.92
68	008580401	Circlip 5 7 Din 6799	1 req	Avail to order Our Price: $2.91
69	N01152427	WASHER	2 req	Current Stock: 16 Our Price: $2.00
70	006960123	This item is no longer available	1 req
71	007859002	Front Bonnet ReleaseLever	1 req	Avail to order Our Price: $202.03
72	006959160	Front Bonnet Handle Pin	1 req	Avail to order Our Price: $69.93
73	007818002	Rear Window Lh Bulkhead	1 req	Avail to order Our Price: $164.25
74	007818004	Rear Window Outline Mould.	1 req	Avail to order Our Price: $436.98
75	007818003	Rear Window Glass	1 req	Avail to order Our Price: $855.79
76	007890006	Jalpa Plates 3.5	1 req	Avail to order Our Price: $310.12
77	007818001	Rear Window Rh Bulkhead	1 req	Avail to order Our Price: $253.46
78	006929145	Bonnet Strik.Block	2 req	Avail to order Our Price: $14.02
79	008200504	M5 Lh. Special Nut	2 req	Avail to order Our Price: $18.56
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
