Maintenance Parts:

Belts

PN Item Diagram
001604645 Belt
Belt
view diagram Current Stock: 3
Our Price: $16.41
Belt
004009744 Power Steering Belt
Power Steering Belt
view diagram Avail to order
Our Price: $96.97
004504532 Belt
Belt
view diagram Current Stock: 1
Our Price: $44.94
Belt
004608478 Belt
Belt
view diagram Avail to order
Our Price: $91.56

Brakes

PN Item Diagram
003207720 E-Brake Pad - Espada - Jarama
Handbrake Pad
view diagram Current Stock: 4
Our Price: $64.03
E-Brake Pad - Espada - Jarama
003206764 Brake Pad Rear - Espada - Miura - Jarama - Sold Each
Rear Brake Pad
view diagram Avail to order
Our Price: $57.42

Drivetrain

PN Item Diagram
001501188 Oil Filter - Miura Countach Espada Jarama
Oil Filter Cartridge
view diagram Avail to order
Our Price: $35.08
Oil Filter - Miura Countach Espada Jarama
002104088 Clutch Rod
Clutch Rod
view diagram Avail to order
Our Price: $22.98

Fuel-Air

PN Item Diagram
001320172 Air Filter - Carbureted
Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option
view diagram Avail to order
Our Price: $367.37
Air Filter - Carbureted
001306247 Fuel Filter
Fuel Filter
Current Stock: 2
Our Price: $46.75
Fuel Filter
001320172KN Performance filter for Countach/Espada/Jarama/Miura
High Flow performance filter.
Current Stock: 3
Our Price: $125.90
Performance filter for Countach/Espada/Jarama/Miura

Fuses-Bulbs-Relays

PN Item Diagram
006617095 Bulb for license plate lamp
Bulb LAMP SV8,5-8 5W
view diagram Current Stock: 45
Our Price: $8.45
Bulb for license plate lamp
001605819 Relay
Relay
view diagram Current Stock: 1
Our Price: $37.34
Relay
006617091 Bulb 21w tail light
21w Bulb
view diagram Current Stock: 7
Our Price: $10.37
Bulb 21w  tail light
006617094 Check Parts Manual for location
Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)
view diagram Current Stock: 77
Our Price: $7.60
Check Parts Manual for location
N0177522 bulb headlight
Headlight LAMP 12V/3W
view diagram Current Stock: 11
Our Price: $2.00
bulb headlight
006617103 3w Bulb
3w Bulb
view diagram Avail to order
Our Price: $5.35

Gaskets

PN Item Diagram
001526462 Grommet and Oil Seals Set - Espada - Jarama
Grommet and Oil Seals Set Espada - Jarama
Avail to order
Our Price: $74.89
001526482 Engine Gasket Set - Espada - Jarama
Engine Gasket Kit Espada - Jarama
Avail to order
Our Price: $870.74
Engine Gasket Set - Espada - Jarama
0011001010 Front Head Gasket
Front Head Gasket
Current Stock: 6
Our Price: $43.59
Front Head Gasket

Ignition

PN Item Diagram
001610428 Distributor/Spark Plug Wires - Dual Distributor Ignition System
Distributor/Spark Plug Wires
view diagram Avail to order
Our Price: $671.33
Distributor/Spark Plug Wires - Dual Distributor Ignition System

Misc

PN Item Diagram
006715235 Windsc.Wip.Blade
Windsc.Wip.Blade
view diagram Avail to order
Our Price: $55.48
008200605R OE spec alternative for 008200605
M6 Ncm 70 Urama Simmon Nut
Avail to order
Our Price: $3.00
OE spec alternative for 008200605
900000381 BATTERY CHARGER ROW BC - EURO
Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.
Current Stock: 1
Our Price: $154.40
BATTERY CHARGER ROW BC - EURO
900000382 NLA
use PN 400093050D for USA replacement
Avail to order
Our Price: $154.40
NLA

Sensors

PN Item Diagram
001801333 NLA (No longer Available to order)
Oil & Coolant Temperature Thermometer
view diagram Avail to order
Our Price: $113.33
NLA (No longer Available to order)
002409171 DISCONTINUED - NLA
Reverse Light Switch
view diagram Avail to order
Our Price: $172.83
Open All

Select Group and TAV

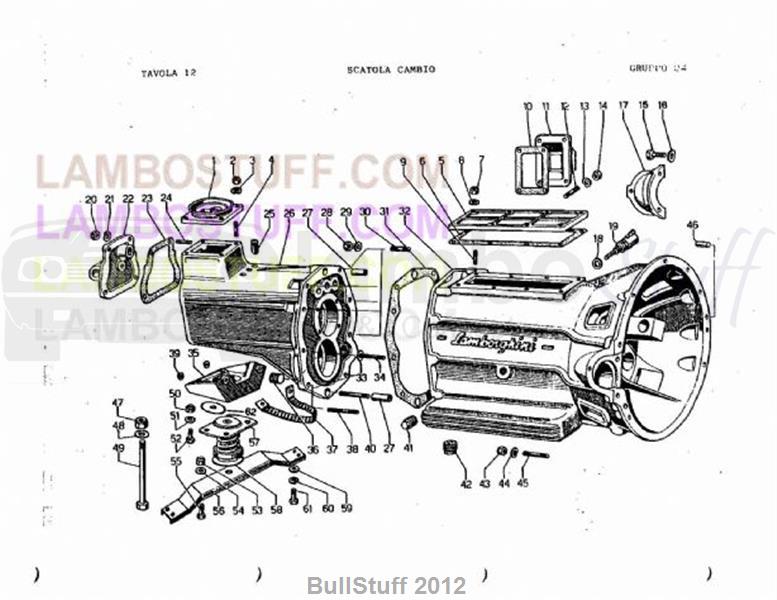

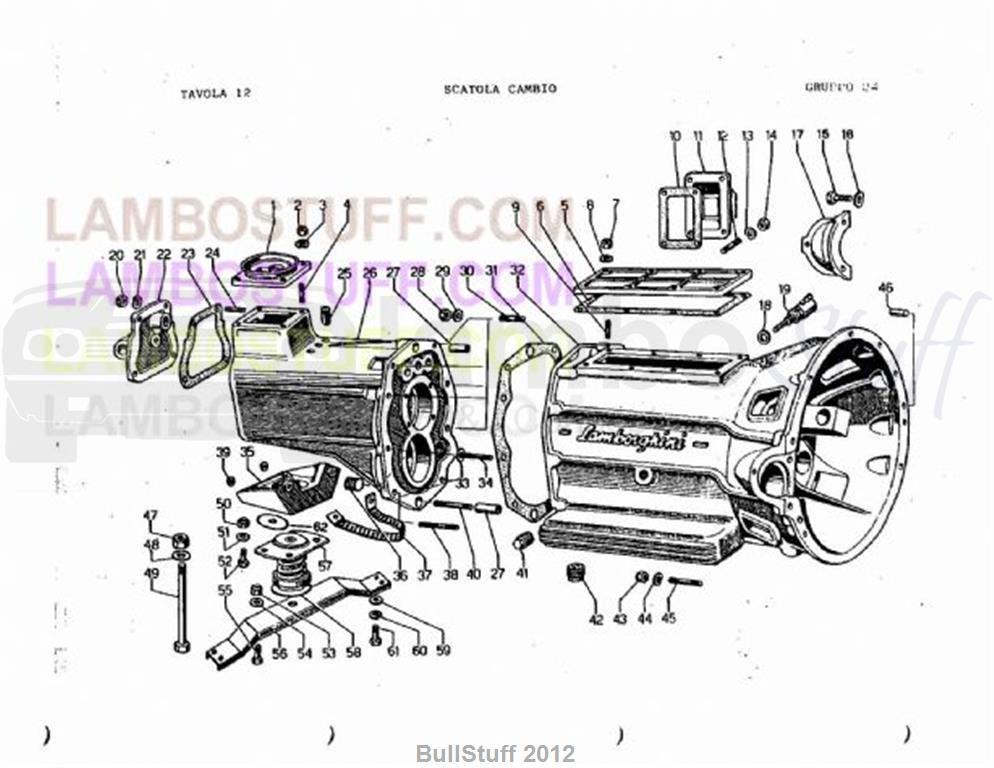

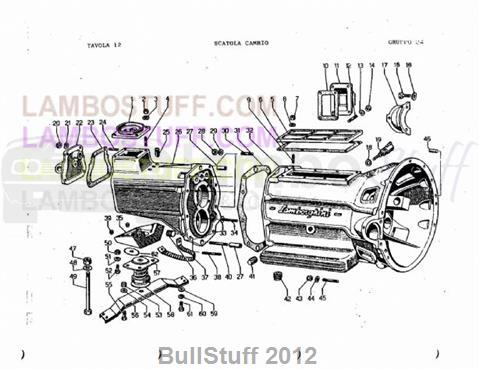

TAV: 12.0.24 - Transmission Housing

1968-1978 Lamborghini Espada USA Transmission Housing (12.0.24)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Espada Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 002402557 Gear Lever Boot Cover
1 req Avail to order
Our Price: $33.01
2 N01100637 HEX.NUT
4 req Avail to order
Our Price: $2.00
HEX.NUT
3 WHT001197A WASHER
4 req Avail to order
Our Price: $2.00
WASHER
4 008300413 This item is no longer available 4 req
5 002402186 This item is no longer available 1 req
6 002402167 Gear Lever Cover Seal
1 req Avail to order
Our Price: $11.33
Gear Lever Cover Seal
7 N01100637 HEX.NUT
8 req Avail to order
Our Price: $2.00
HEX.NUT
8 008410802 This item is no longer available 8 req
9 008300619 POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
8 req *See Description
10 002402528 This item is no longer available 1 req
11 002402524 Reverse Gear Cover
1 req Avail to order
Our Price: $63.87
12 008300613 Stud M6x14 Uni 5911 8g/Z
4 req Avail to order
Our Price: $4.76
Stud M6x14 Uni 5911 8g/Z
13 008418802 This item is no longer available 4 req
14 008200804 Nut
4 req Current Stock: 8
Our Price: $2.00
Nut
15 N01020717 HEXAGON HEAD BOLT
3 req Current Stock: 25
Our Price: $2.00
HEXAGON HEAD BOLT
16 008410503 Washer Din 137a 5.3x10 Zgd.
3 req Avail to order
Our Price: $2.00
17 002402533 This item is no longer available 1 req
18 008401216 Fiber Washer 12.5x20x1.5
1 req Avail to order
Our Price: $2.00
19 002409171 DISCONTINUED - NLA
1 req *See Description
20 N01100637 HEX.NUT
4 req Avail to order
Our Price: $2.00
HEX.NUT
21 008418602 This item is no longer available 4 req
22 002402353 Gear Lever RetainingLever
1 req Avail to order
Our Price: $68.44
23 002401858 This item is no longer available 1 req
24 008308413 This item is no longer available 4 req
25 002401851 Plug
3 req Avail to order
Our Price: $42.12
26 002487278 This item is no longer available 1 req
27 008851481 This item is no longer available 2 req
28 008208808 This item is no longer available 8 req
29 008418885 This item is no longer available 8 req
30 008300618 Stud M6x38 Uni 5911 8g Z
5 req Avail to order
Our Price: $24.13
31 002401768 Gearbox Box Seal
1 req Avail to order
Our Price: $18.79
Gearbox Box Seal
32 002401782 Gearbox & Clutch Box
1 req Avail to order
Our Price: $2,825.17
33 N90179103 WASHER
1 req Current Stock: 28
Our Price: $2.00
WASHER
34 008300815 Special Stud M8x33
1 req Avail to order
Our Price: $16.32
35 002408202 This item is no longer available 1 req
36 008831802 This item is no longer available 1 req
37 001804328 This item is no longer available 1 req
38 008300826 Stud M8x40 Uni 5911 8g Z
2 req Avail to order
Our Price: $8.99
39 N0152785 WASHER
3 req Current Stock: 125
Our Price: $2.00
WASHER
40 008300827 Stud M8x60 Uni 5911 8g Z
1 req Avail to order
Our Price: $8.56
41 008932205 Plug 16x1.5
1 req Avail to order
Our Price: $7.23
42 086301141A Magnetic Plug 22x1.5
1 req Avail to order
Our Price: $32.20
Magnetic Plug 22x1.5
43 N01100845 HEX.NUT
9 req Current Stock: 22
Our Price: $2.00
HEX.NUT
44 WHT001514 SPRING WASHER
9 req Current Stock: 4
Our Price: $59.90
SPRING WASHER
45 008300815 Special Stud M8x33
7 req Avail to order
Our Price: $16.32
46 WHT003078 Reference Pin 8h7x16C40
2 req Avail to order
Our Price: $13.29
Reference Pin 8h7x16C40
47 008201407 Nut
1 req Avail to order
Our Price: $2.33
48 008401417 Washer 15x25x2 Uni 1736/Zd Aq4
1 req Current Stock: 1
Our Price: $2.75
Washer 15x25x2 Uni 1736/Zd Aq4
49 008101418 Special Screw M14x78.5
1 req Avail to order
Our Price: $39.07
50 008200804 Nut
4 req Current Stock: 8
Our Price: $2.00
Nut
51 N90179103 WASHER
4 req Current Stock: 28
Our Price: $2.00
WASHER
52 008100836 Special Screw M8x25
4 req Avail to order
Our Price: $7.23
53 001200808 This item is no longer available 1 req
54 N90179103 WASHER
1 req Current Stock: 28
Our Price: $2.00
WASHER
55 008100830 Screw M8x20 Uni 5739/8g/Z
1 req Current Stock: 20
Our Price: $2.00
Screw M8x20 Uni 5739/8g/Z
56 002409201 Gearbox Crossmember
1 req Avail to order
Our Price: $31.61
57 002405140 Vibrachoc
1 req Avail to order
Our Price: $375.87
58 008401401 POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
1 req *See Description
59 N90179103 WASHER
4 req Current Stock: 28
Our Price: $2.00
WASHER
60 008418806 This item is no longer available 4 req
61 008100830 Screw M8x20 Uni 5739/8g/Z
4 req Current Stock: 20
Our Price: $2.00
Screw M8x20 Uni 5739/8g/Z
62 002409200 Gearbox Silentblock Mount Shim
1 req Avail to order
Our Price: $20.33

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
