1968-1978 Lamborghini Espada USA Fuel (29.0.62)

Maintenance Parts:

Belts

PN	Item
004608478	Belt Belt	Avail to order Our Price: $113.58
004504532	Belt Belt	Current Stock: 1 Our Price: $55.72
001604645	Belt Belt	Current Stock: 3 Our Price: $24.80
004009744	Power Steering Belt Power Steering Belt	Avail to order Our Price: $115.81

Brakes

PN	Item	Diagram
003207720	E-Brake Pad - Espada - Jarama Handbrake Pad		Avail to order Our Price: $76.00
003206764	Brake Pad Rear - Espada - Miura - Jarama - Sold Each Rear Brake Pad		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48
001702817	THERMOSTAT VALVE THERMOSTAT VALVE		Avail to order Our Price: $544.03

Drivetrain

PN	Item	Diagram
002104088	Clutch Rod Clutch Rod		Avail to order Our Price: $28.39
001501188	Oil Filter - Miura Countach Espada Jarama Oil Filter Cartridge		Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	Air Filter - Carbureted Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option	Avail to order Our Price: $502.34
001306247	Fuel Filter Fuel Filter	Current Stock: 3 Our Price: $115.65
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.06
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.59
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.14
001605819	Relay Relay	Current Stock: 1 Our Price: $44.63
006617103	3w Bulb 3w Bulb	Avail to order Our Price: $7.18

Gaskets

PN	Item
001526482	Engine Gasket Set - Espada - Jarama Engine Gasket Kit Espada - Jarama	Avail to order Our Price: $1,153.39
001526462	Grommet and Oil Seals Set - Espada - Jarama Grommet and Oil Seals Set Espada - Jarama	Avail to order Our Price: $99.27
0011001010	Front Head Gasket Front Head Gasket	Current Stock: 4 Our Price: $52.22

Ignition

PN	Item	Diagram
001610428	Distributor/Spark Plug Wires - Dual Distributor Ignition System Distributor/Spark Plug Wires		Avail to order Our Price: $1,295.63

Misc

PN	Item
006715235	Windsc.Wip.Blade Windsc.Wip.Blade	Avail to order Our Price: $68.75
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
002409171	DISCONTINUED - NLA Reverse Light Switch	Avail to order Our Price: $236.34
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.16
001719309	URRACO THERMOSTAT Coolant Thermostat	Current Stock: 2 Our Price: $195.00

Open All

Select Group and TAV

< Previous Next >

TAV: 29.0.62 - Fuel

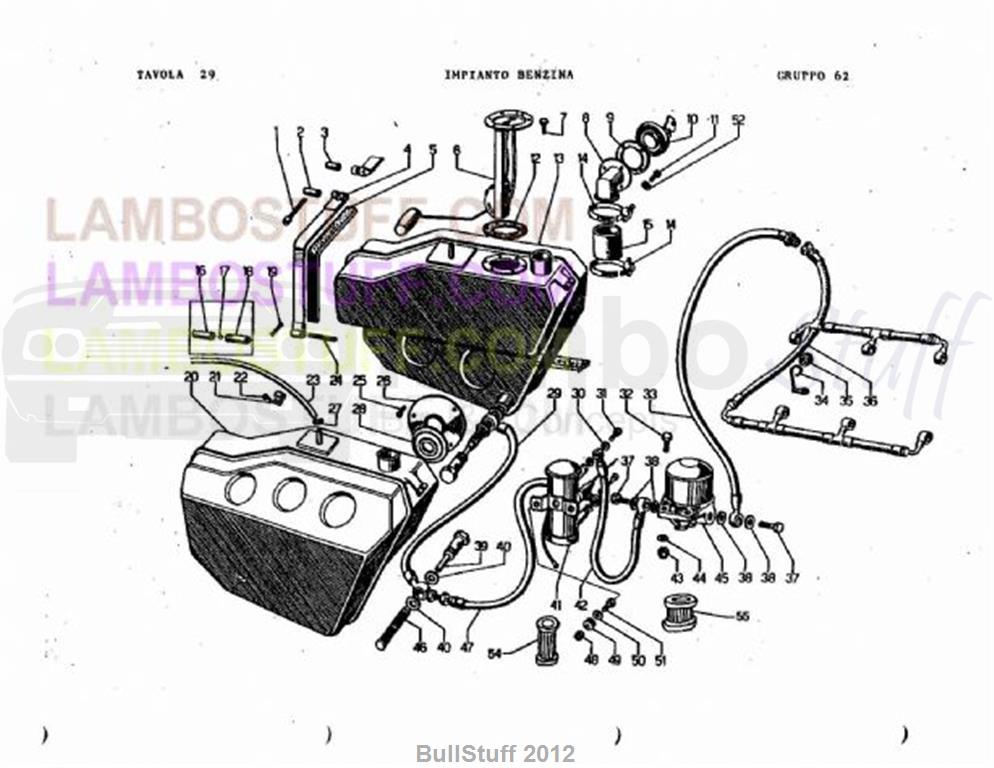

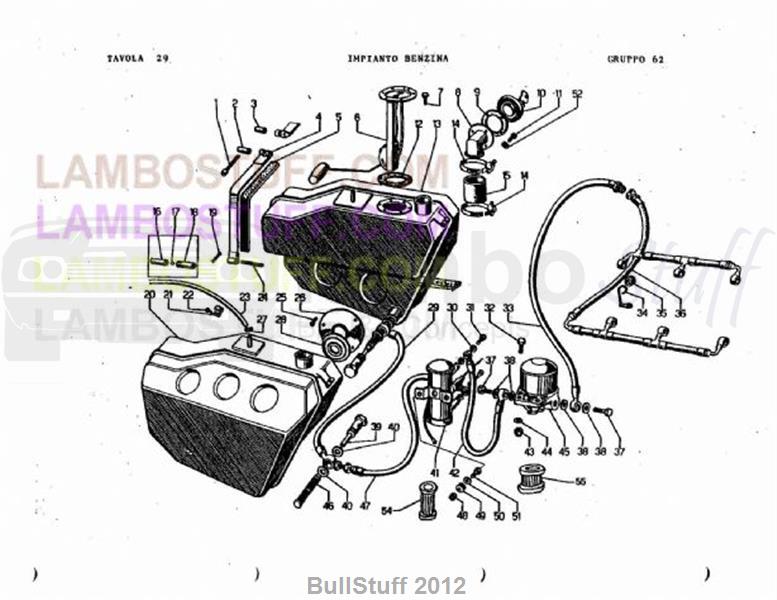

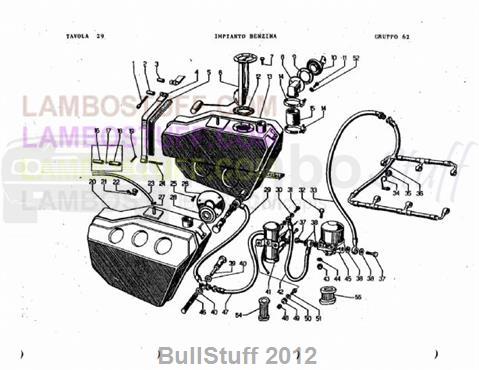

1968-1978 Lamborghini Espada USA Fuel (29.0.62)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Espada Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	006203084	Tank Tierod	4 req	Avail to order Our Price: $79.15
2	006203079	Tank Clamp Pin	4 req	Avail to order Our Price: $52.54
3	006203080	Tank Clamp Filter Pin	4 req	Avail to order Our Price: $26.55
4	006204949	Tank Upper Clamp	2 req	Avail to order Our Price: $64.37
5	006204952	This item is no longer available	2 req
6	006205361	This item is no longer available	1 req
7	008100402	Screw M4x16 Uni 5739/8g/Z	6 req	Avail to order Our Price: $2.00
8	006209086	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
9	006209154	Fuel Filler Seal	2 req	Avail to order Our Price: $12.06
10	006209048	NLA	2 req	*See Description
11	008100401	Screw M4x10 Uni 5739/5s/Z	6 req	Avail to order Our Price: $2.00
12	006205360	Float Dimmer Seal	1 req	Current Stock: 14 Our Price: $114.94
13	006204791	This item is no longer available	1 req
14	006830203	This item is no longer available	4 req
15	006205090	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
16	006205491	Pipe & Magnetic BallHousing	2 req	Avail to order Our Price: $7.29
17	008910301	Ball Rivrb-3.969/1205	2 req	Current Stock: 3 Our Price: $2.92
18	006205490	Fuel Breather Ball Pipe	2 req	Avail to order Our Price: $9.92
19	008820201	Split Pin 1.8x15 Uni 1336a	8 req	Current Stock: 19 Our Price: $7.58
20	006205185	This item is no longer available	1 req
21	008830111	NLA (No Longer Available)	2 req	*See Description
22	008700506	Screw Knip 4.8x16din7971 Black	2 req	Current Stock: 4 Our Price: $2.00
23	006205479	This item is no longer available	2 req
24	006203081	Fuel Tank Clamp Pin	2 req	Avail to order Our Price: $26.55
25	008700306	Screw Knip B3.5x16din7971	6 req	Avail to order Our Price: $2.92
26	006205695	Fuel Outlet Cover	2 req	Avail to order Our Price: $21.00
27	008830204	Clamp	2 req	Avail to order Our Price: $10.11
28	006205501	Fuel Primer Coolant Guard	2 req	Avail to order Our Price: $21.00
29	006205089	Tank Union Hose	1 req	Avail to order Our Price: $477.14
30	001301474	Fibre Seal 14x10x2	4 req	Current Stock: 4 Our Price: $4.38
31	001304211	Fuel Pump Union Screw	2 req	Current Stock: 3 Our Price: $14.00
32	008100827	Screw M8x25 Uni 5739/8g/Zg	2 req	Current Stock: 14 Our Price: $2.00
33	006205082	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
34	001304891	Fuel Pipe Bracket Hook	1 req	Avail to order Our Price: $17.50
35	008611401	Grommet 14x20x1.5 mm	1 req	Avail to order Our Price: $6.81
36	001304765	NLA	1 req	*See Description
37	001301475	Fuel Filter Union Pipe	2 req	Avail to order Our Price: $156.07
38	001301476	NLA	4 req	*See Description
39	001303057	Fuel Intake Nipple Bolt	2 req	Avail to order Our Price: $721.62
40	008401804	Annealed Copper Washer 18.2x30	4 req	Avail to order Our Price: $4.67
41	001304213	POMPA BENZINA TESTA ROSSA	1 req	Avail to order Our Price: $530.65
42	006205085	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
43	008200804	Nut	2 req	Current Stock: 7 Our Price: $2.00
44	N90179103	WASHER	2 req	Current Stock: 5 Our Price: $2.00
45	001301378	NLA (No Longer Available)	1 req	*See Description
46	001303074	NLA	2 req	*See Description
47	006205110	Pump/Tank Hose	1 req	Avail to order Our Price: $185.63
48	N01118312	HEX.HEAD CLAMPING NUT	2 req	Avail to order Our Price: $2.14
49	008610601	Grommet 6x10x1.5 mm	2 req	Avail to order Our Price: $5.62
50	WHT002961	WASHER	2 req	Current Stock: 38 Our Price: $2.00
51	008100617	Screw M6x18 Uni 57395s	2 req	Avail to order Our Price: $6.81
52	008410402	Washer D.4.3 Uni 1751 /Zd	6 req	Current Stock: 15 Our Price: $2.00
53	006204951	This item is no longer available	2 req
54	001306248	This item is no longer available	1 req
55	001306247	Fuel Filter	1 req	Current Stock: 3 Our Price: $115.65
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
