1968-1978 Lamborghini Espada USA Transmission Gears (12.1.24)

Maintenance Parts:

Belts

PN	Item
001604645	Belt Belt	Current Stock: 3 Our Price: $24.72
004009744	Power Steering Belt Power Steering Belt	Avail to order Our Price: $115.85
004504532	Belt Belt	Current Stock: 1 Our Price: $55.61
004608478	Belt Belt	Avail to order Our Price: $113.62

Brakes

PN	Item	Diagram
003207720	E-Brake Pad - Espada - Jarama Handbrake Pad		Avail to order Our Price: $75.95
003206764	Brake Pad Rear - Espada - Miura - Jarama - Sold Each Rear Brake Pad		Avail to order Our Price: $78.63

Common repairs and upgrades

PN	Item	Diagram
001702817	THERMOSTAT VALVE THERMOSTAT VALVE		Avail to order Our Price: $544.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item	Diagram
002104088	Clutch Rod Clutch Rod		Avail to order Our Price: $28.40
001501188	Oil Filter - Miura Countach Espada Jarama Oil Filter Cartridge		Current Stock: 3 Our Price: $48.16

Fuel-Air

PN	Item
001320172	Air Filter - Carbureted Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option	Avail to order Our Price: $502.37
001306247	Fuel Filter Fuel Filter	Current Stock: 3 Our Price: $115.64
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.	Current Stock: 1 Our Price: $130.02

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.09
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.56
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
001605819	Relay Relay	Current Stock: 1 Our Price: $44.66
006617103	3w Bulb 3w Bulb	Avail to order Our Price: $7.14

Gaskets

PN	Item
001526482	Engine Gasket Set - Espada - Jarama Engine Gasket Kit Espada - Jarama	Avail to order Our Price: $1,153.38
001526462	Grommet and Oil Seals Set - Espada - Jarama Grommet and Oil Seals Set Espada - Jarama	Avail to order Our Price: $99.29
0011001010	Front Head Gasket Front Head Gasket	Current Stock: 4 Our Price: $52.11

Ignition

PN	Item	Diagram
001610428	Distributor/Spark Plug Wires - Dual Distributor Ignition System Distributor/Spark Plug Wires		Avail to order Our Price: $1,295.61

Misc

PN	Item
006715235	Windsc.Wip.Blade Windsc.Wip.Blade	Avail to order Our Price: $68.74
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
002409171	DISCONTINUED - NLA Reverse Light Switch	Avail to order Our Price: $236.33
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.37
001719309	URRACO THERMOSTAT Coolant Thermostat	Current Stock: 2 Our Price: $195.00

Open All

Select Group and TAV

< Previous Next >

TAV: 12.1.24 - Transmission Gears

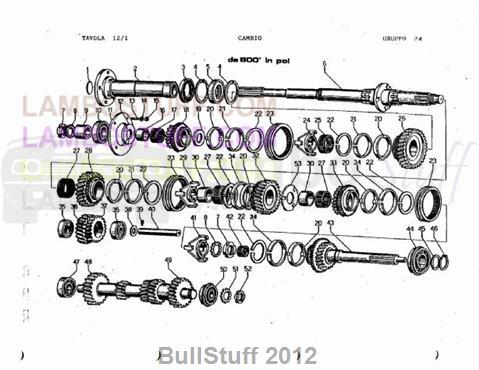

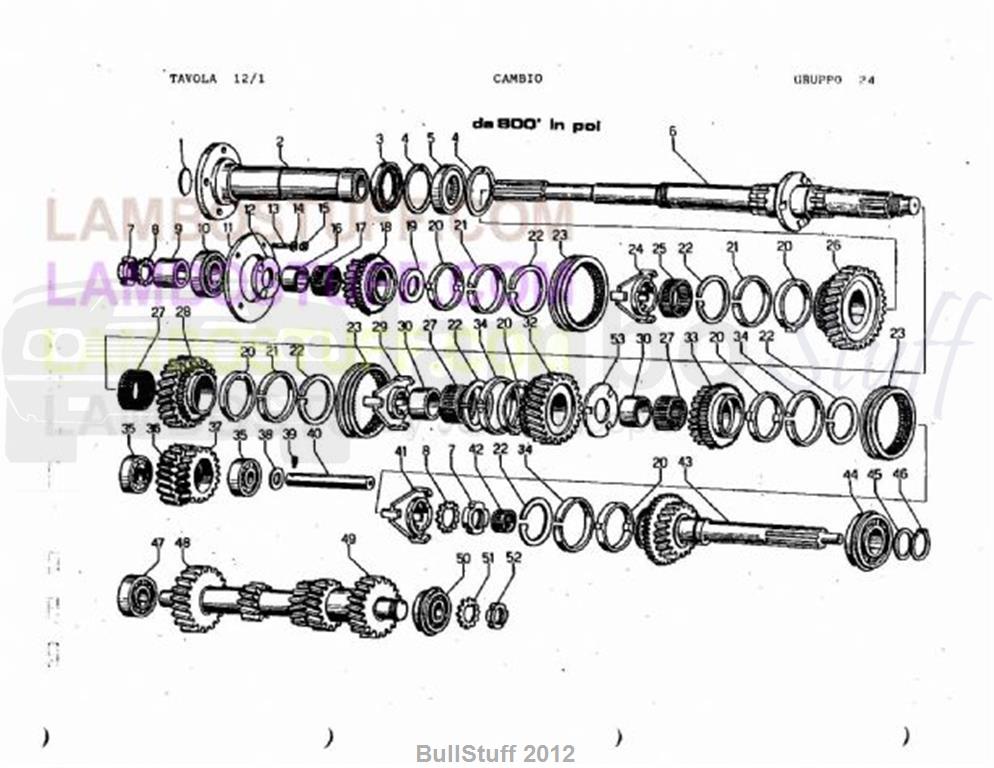

1968-1978 Lamborghini Espada USA Transmission Gears (12.1.24)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Espada Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008933501	Gearbox Outlet Plug	1 req	Avail to order Our Price: $2.91
2	002402589	This item is no longer available	1 req
3	008614203	OIL SEAL	1 req	Avail to order Our Price: $6.19
4	008576601	O-Ring I 62 Uni 3654	2 req	Avail to order Our Price: $2.00
5	008524201	This item is no longer available	1 req
6	002409603	Primary Shaft	1 req	Avail to order Our Price: $846.84
7	008253506	M35x1.5x52 Ring Nut	2 req	Avail to order Our Price: $33.40
8	008413502	Washer Skf Mb7	2 req	Avail to order Our Price: $6.64
9	002404434	Odometer Gear Shim	1 req	Avail to order Our Price: $27.81
10	008503583	This item is no longer available	1 req
11	002401754	Flange	1 req	Avail to order Our Price: $75.59
12	002401734	Washer	1 req	Avail to order Our Price: $466.65
13	008300613	Stud M6x14 Uni 5911 8g/Z	4 req	Avail to order Our Price: $5.75
14	008410803	Washer 8.4x17x0.8 Din 137/B	4 req	Avail to order Our Price: $2.00
15	008200804	Nut	4 req	Current Stock: 7 Our Price: $2.00
16	002409599	5th Speed Roller Bearing Ring	1 req	Avail to order Our Price: $223.64
17	008524501	Bearing	1 req	Avail to order Our Price: $135.52
18	002409600	5th Speed Gear	1 req	Avail to order Our Price: $301.91
19	002409602	5th Speed Shim Adjustment Wash	1 req	Avail to order Our Price: $228.85
20	002402017	Synchroniser Inner Ring	6 req	Avail to order Our Price: $628.71
22	002402003	Synchroniser Retaining Rings	6 req	Avail to order Our Price: $387.64
23	002402087	This item is no longer available	3 req
24	002409601	5th Speed Drive Unit	1 req	Avail to order Our Price: $336.21
25	008525001	Bearing	1 req	Avail to order Our Price: $49.57
26	002401729	Reverse Gear	1 req	Avail to order Our Price: $638.11
27	086311228A	Needle Cage	3 req	Avail to order Our Price: $114.64
28	002401731	1st Speed Gear	1 req	Avail to order Our Price: $1,114.73
29	002402006	This item is no longer available	1 req
30	002401742	O-ring	2 req	Avail to order Our Price: $282.41
32	002401726	Gearbox/Clutch Shaft	1 req	Avail to order Our Price: $872.18
33	002401727	3rd Speed Gear	1 req	Avail to order Our Price: $2,288.92
34	002408805	This item is no longer available	6 req
35	008502002	Scn 6304-2rs Exbln20	2 req	Avail to order Our Price: $70.90
36	002401732	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
37	002401779	This item is no longer available	1 req
38	002401772	Reverse Guide PulleyShim	1 req	Avail to order Our Price: $13.94
39	008700804	Screw 8x1.5x25 5931 8g Zg	1 req	Avail to order Our Price: $2.00
40	002461771	This item is no longer available	1 req
41	002402005	3rd Speed Drive Unit	1 req	Avail to order Our Price: $3,760.36
42	008523005	Bearing	1 req	Avail to order Our Price: $26.69
43	002401728	2nd Speed Gear	1 req	Avail to order Our Price: $3,287.45
44	008500504	This item is no longer available	1 req
45	002401747	Clutch Shaft Shim Adjustment W	1 req	Avail to order Our Price: $72.39
46	008503202	This item is no longer available	1 req
47	008503002	Bearing	1 req	Avail to order Our Price: $31.98
48	002401710	Secondary Shaft	1 req	Avail to order Our Price: $459.21
49	002401709	NLA (No Longer Available)	1 req	*See Description
50	008503003	Bearing	1 req	Avail to order Our Price: $26.02
51	008413001	Washer Skf Mb6	1 req	Current Stock: 10 Our Price: $2.61
52	008253002	30x1.5x45 Self-Locking Ring Nu	1 req	Avail to order Our Price: $50.55
53	002401828	2nd-3rd Speed Washer	1 req	Avail to order Our Price: $82.45
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
