1968-1978 Lamborghini Espada USA Mounting Brackets (13.1.26)

Maintenance Parts:

Belts

PN	Item
004608478	Belt Belt	Avail to order Our Price: $113.58
004504532	Belt Belt	Current Stock: 1 Our Price: $55.72
001604645	Belt Belt	Current Stock: 3 Our Price: $24.80
004009744	Power Steering Belt Power Steering Belt	Avail to order Our Price: $115.81

Brakes

PN	Item	Diagram
003207720	E-Brake Pad - Espada - Jarama Handbrake Pad		Avail to order Our Price: $76.00
003206764	Brake Pad Rear - Espada - Miura - Jarama - Sold Each Rear Brake Pad		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48
001702817	THERMOSTAT VALVE THERMOSTAT VALVE		Avail to order Our Price: $544.03

Drivetrain

PN	Item	Diagram
002104088	Clutch Rod Clutch Rod		Avail to order Our Price: $28.39
001501188	Oil Filter - Miura Countach Espada Jarama Oil Filter Cartridge		Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	Air Filter - Carbureted Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option	Avail to order Our Price: $502.34
001306247	Fuel Filter Fuel Filter	Current Stock: 3 Our Price: $115.65
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.06
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.59
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.14
001605819	Relay Relay	Current Stock: 1 Our Price: $44.63
006617103	3w Bulb 3w Bulb	Avail to order Our Price: $7.18

Gaskets

PN	Item
001526482	Engine Gasket Set - Espada - Jarama Engine Gasket Kit Espada - Jarama	Avail to order Our Price: $1,153.39
001526462	Grommet and Oil Seals Set - Espada - Jarama Grommet and Oil Seals Set Espada - Jarama	Avail to order Our Price: $99.27
0011001010	Front Head Gasket Front Head Gasket	Current Stock: 4 Our Price: $52.22

Ignition

PN	Item	Diagram
001610428	Distributor/Spark Plug Wires - Dual Distributor Ignition System Distributor/Spark Plug Wires		Avail to order Our Price: $1,295.63

Misc

PN	Item
006715235	Windsc.Wip.Blade Windsc.Wip.Blade	Avail to order Our Price: $68.75
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
002409171	DISCONTINUED - NLA Reverse Light Switch	Avail to order Our Price: $236.34
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.16
001719309	URRACO THERMOSTAT Coolant Thermostat	Current Stock: 2 Our Price: $195.00

Open All

Select Group and TAV

< Previous Next >

TAV: 13.1.26 - Mounting Brackets

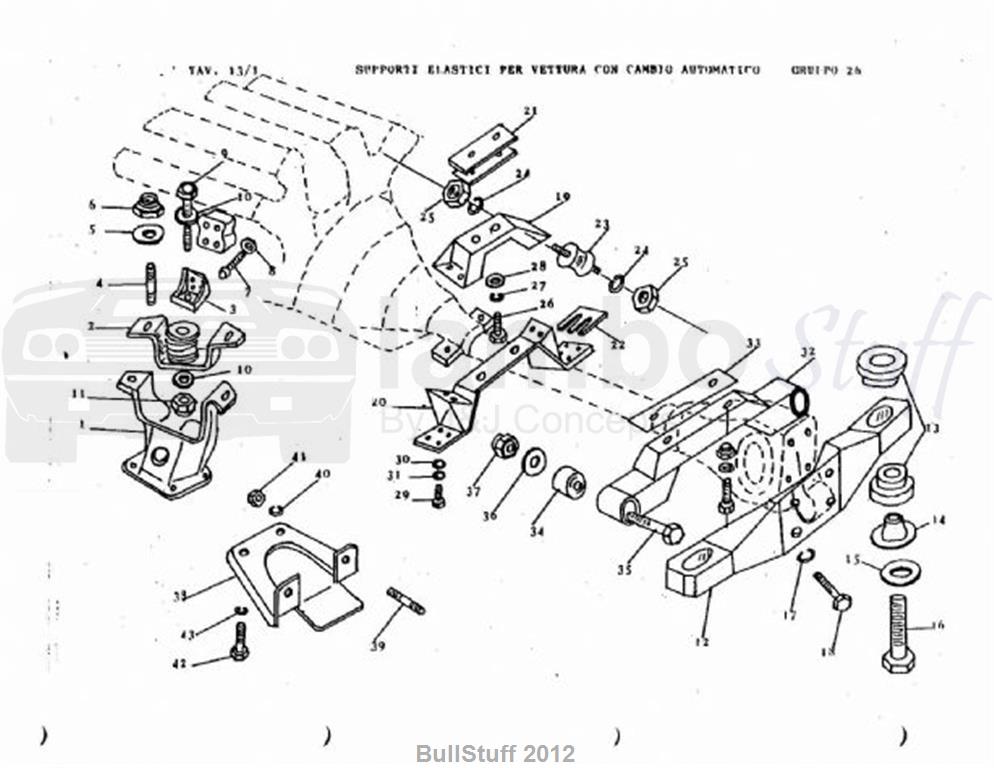

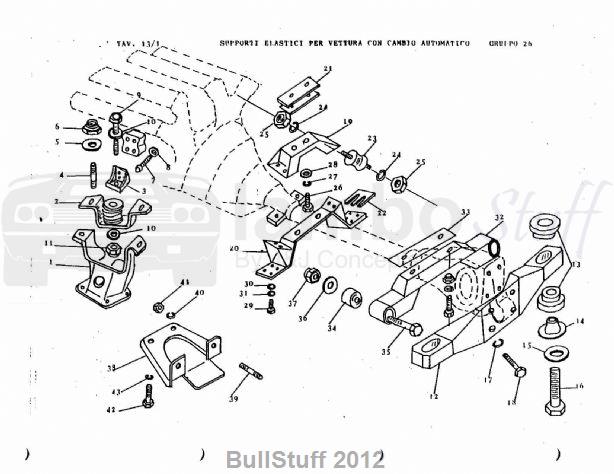

1968-1978 Lamborghini Espada USA Mounting Brackets (13.1.26)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Espada Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0	001810677	Lh Engine Mount To Chassis	1 req	Avail to order Our Price: $407.05
1	001810115	Rh Engine Mount To Chassis	1 req	Avail to order Our Price: $421.92
2	001810117	Vibrachoc	2 req	Avail to order Our Price: $389.15
3	001810116	Engine Mount On Crankcase	2 req	Avail to order Our Price: $121.65
4	008301219	Special Stud M12x20	4 req	Avail to order Our Price: $8.85
5	008401303	Washer	4 req	Avail to order Our Price: $20.13
6	008201212	Nut	4 req	Current Stock: 1 Our Price: $2.04
7	N10517304	12-POINT SOCKET	8 req	Current Stock: 10 Our Price: $2.00
8	WHT000771	SPRING LOCK WASHER	8 req	Current Stock: 10 Our Price: $2.00
9	008101039	Screw M10x100 Uni 5737 8g	2 req	Avail to order Our Price: $2.00
10	008401007	Washer 21.5x10.4x2 Uni 6592/5s	4 req	Avail to order Our Price: $2.00
11	008201008	Nut	2 req	Current Stock: 2 Our Price: $2.00
12	002611239	This item is no longer available	1 req
13	002611176	This item is no longer available	4 req
14	004106738	Rear Frame Container	2 req	Avail to order Our Price: $280.34
15	008411401	Corrugated Washer D.14.2 Uni 3	2 req	Avail to order Our Price: $2.92
16	008101407	Screw M14x55 Uni 5738/8g/Z	2 req	Avail to order Our Price: $6.22
17	WHT000768	SPRING WASHER	4 req	Current Stock: 17 Our Price: $2.14
18	008101045	Screw M10x1.5x85 5737 8gzg	4 req	Avail to order Our Price: $2.00
19	002611174	This item is no longer available	1 req
20	002611175	This item is no longer available	1 req
21	002610089	This item is no longer available	1 req
22	002610620	This item is no longer available	1 req
23	008920801	Genuine Saga SupportRocam F.80	4 req	Avail to order Our Price: $60.78
24	N0152785	WASHER	8 req	Current Stock: 71 Our Price: $2.00
25	008200806	M8 Uni 5588/8g/Z Nut	8 req	Current Stock: 25 Our Price: $2.00
26	008101101	Special Screw 7/16x14unc Font	2 req	Avail to order Our Price: $6.90
27	008401306	Washer D.13x24x3 8g	2 req	Avail to order Our Price: $2.72
28	WHT003055	Washer 13x24x1.2 Din137/B C72	2 req	Current Stock: 10 Our Price: $2.00
29	008100840	Screw M8x1.25x18 Uni5739/	8 req	Current Stock: 7 Our Price: $2.00
30	N90179103	WASHER	8 req	Current Stock: 5 Our Price: $2.00
31	N0152785	WASHER	8 req	Current Stock: 71 Our Price: $2.00
32	002310078	Automatic Gearbox Differential	1 req	Avail to order Our Price: $334.70
33	002303926	Differential Adjustment Shim	1 req	Avail to order Our Price: $10.70
34	008921607	NLA (No Longer Available)	2 req	*See Description
35	008101620	Screw M16x85 Uni 5738 8g	2 req	Avail to order Our Price: $11.96
36	008401614	Allen Screw Washer Rpr 16	2 req	Avail to order Our Price: $23.92
37	008201603	Nut	2 req	Avail to order Our Price: $3.97
38	002610154	This item is no longer available	1 req
39	008300626	Special Stud 1/4X20Fil.	2 req	Avail to order Our Price: $15.17
40	008410603	Washer D.6.4 Uni 1751/Zd	2 req	Avail to order Our Price: $2.00
41	008200610	1/4X20 Special Nut	2 req	Avail to order Our Price: $2.92
42	008100826	Screw M8x16 Uni 5739/8g/Z	2 req	Avail to order Our Price: $2.00
43	N0152785	WASHER	2 req	Current Stock: 71 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
