1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $456.30
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $700.10
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $1,887.62
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $697.64
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $60.68
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $1,887.62
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $502.34
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Gaskets

PN	Item
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $348.60
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $1,098.81
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,850.49

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.16
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $236.34

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

TAV: 9 - Clutch

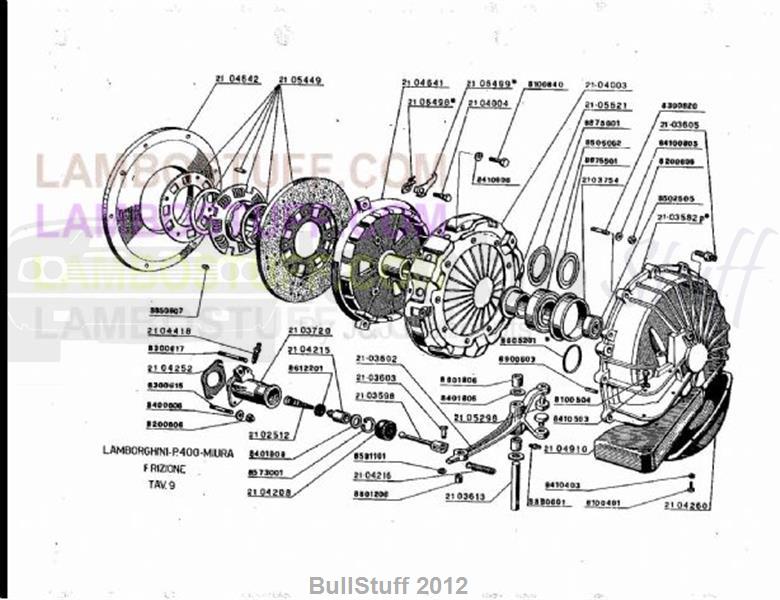

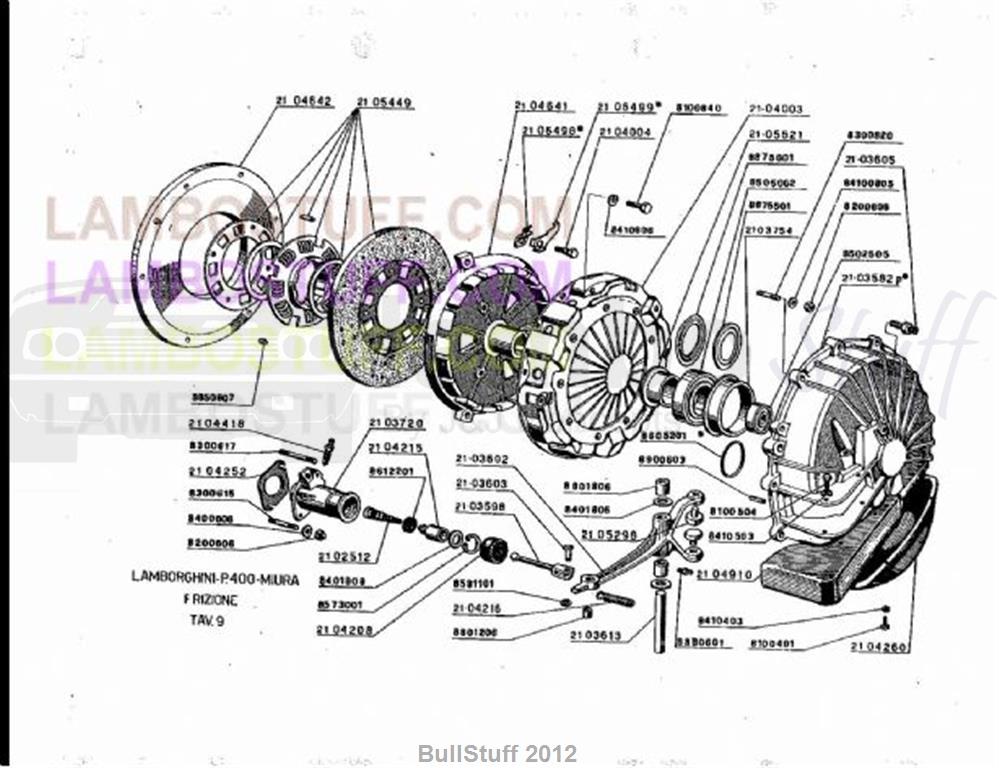

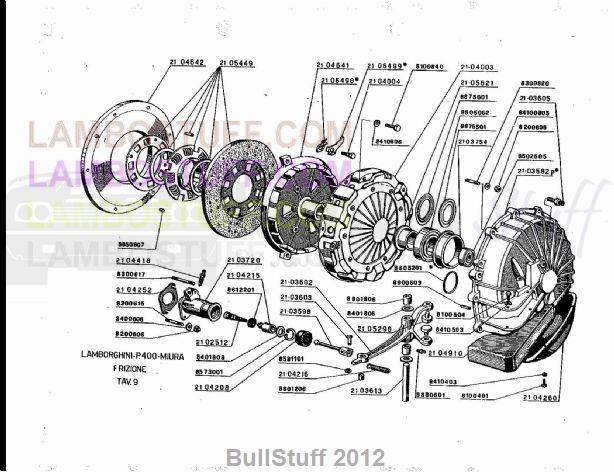

1966-1972 Lamborghini Miura USA Clutch (9)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002104641	CLUTCH FLYWHEEL	1 req	Avail to order Our Price: $4,221.16
2	002105498	This item is no longer available	1 req
3	002106499	BOLT LOCK WASHER	1 req	Avail to order Our Price: $20.84
4	002104004	NLA (NO LONGER AVAILABLE)	1 req	*See Description
5	008100840	SCREW M8X1.25X18 UNI5739/	1 req	Current Stock: 7 Our Price: $0.50
6	N0152785	WASHER	1 req	Current Stock: 71 Our Price: $0.50
7	002104003	MIURA CLUTCH	1 req	Avail to order Our Price: $700.10
8	002105621	CLUTCH PRESSURE PLATE RING	1 req	Avail to order Our Price: $1,021.07
9	008875001	NILOS RING	1 req	Avail to order Our Price: $27.82
10	008505002	BEARING	1 req	Current Stock: 3 Our Price: $123.59
11	008875501	NILOS RING	1 req	Avail to order Our Price: $18.77
12	002103754	O-RING	1 req	Avail to order Our Price: $1,909.91
13	008300820	STUD M8X25 UNI 5911 8G ZD	1 req	Avail to order Our Price: $2.42
14	002103605	CLUTCH ADJUSTMENT SCREW	1 req	Avail to order Our Price: $12.06
15	008400805	COPPER WASHER 8.5X14X1	1 req	Avail to order Our Price: $2.92
16	008200806	M8 UNI 5588/8G/Z NUT	1 req	Current Stock: 25 Our Price: $0.40
17	086311430A	BEARING	1 req	Avail to order Our Price: $65.06
18	002103582	NLA (NO LONGER AVAILABLE)	1 req	*See Description
19	008605201	RING 52 MM OR	1 req	Avail to order Our Price: $5.64
20	008900603	PIN S6X28	1 req	Avail to order Our Price: $6.90
21	290400000	MIURA PRE-ASSEMBLED CLUTCH CYL	1 req	Avail to order Our Price: $1,887.62
22	002104215	CLUTCH CYLINDER PISTON	1 req	Avail to order Our Price: $518.87
23	008612201	RING	1 req	Avail to order Our Price: $24.50
24	002103602	CLUTCH CONTROL FORK	1 req	Avail to order Our Price: $2,028.86
25	002103603	CLUTCH PUSH ROD PIN	1 req	Avail to order Our Price: $21.00
26	002103598	CLUTCH ROD	1 req	Avail to order Our Price: $700.10
27	008801806	BUSHING 18X20X20 MM	1 req	Avail to order Our Price: $107.98
28	008401806	PEDAL WASHER VULKOLLAN 4556084	1 req	Avail to order Our Price: $41.59
29	002105298	PIN	1 req	Avail to order Our Price: $396.87
30	N01020717	HEXAGON HEAD BOLT	1 req	Current Stock: 4 Our Price: $0.80
31	002104910	CLUTCH COVER	1 req	Avail to order Our Price: $275.02
32	002104260	CLUTCH DUST BOOT	1 req	Avail to order Our Price: $727.55
33	008410403	WASHER D.4.3 UNI 1751/Z	1 req	Avail to order Our Price: $7.58
34	008100401	SCREW M4X10 UNI 5739/5S/Z	1 req	Avail to order Our Price: $0.60
35	008880601	HYDRAULIC 273 A GREASE DISPENS	1 req	Current Stock: 8 Our Price: $1.50
36	002103613	CLUTCH LEVER BRACKETSHAFT	1 req	Avail to order Our Price: $98.59
37	008581101	O-RING E 12 UNI 7435-75	1 req	Avail to order Our Price: $6.81
38	002104216	CLUTCH LEVER RETURN SPRING	1 req	Avail to order Our Price: $48.86
39	008801206	BUSHING 12X14X10 MM	1 req	Avail to order Our Price: $5.64
40	002102512	CLUTCH CYLINDER SPRING	1 req	Avail to order Our Price: $37.53
41	008401808	WASHER 18X28	1 req	Avail to order Our Price: $23.92
42	008401808	WASHER 18X28	1 req	Avail to order Our Price: $23.92
43	008573001	O-RING AA 28 I	1 req	Avail to order Our Price: $17.89
44	002104208	CLUTCH CYLINDER RUBBER WASHER	1 req	Avail to order Our Price: $131.08
45	008200806	M8 UNI 5588/8G/Z NUT	1 req	Current Stock: 25 Our Price: $0.40
46	008400806	WASHER 15X8X1.5 UNI 1750 R40/Z	1 req	Current Stock: 5 Our Price: $0.60
47	008300615	STUD 6X22 UNI 5911/8G/Z	1 req	Avail to order Our Price: $23.53
48	002104252	CLUTCH CYLINDER SHIM	1 req	Avail to order Our Price: $16.34
49	008300617	STUD M6X40 UNI 5911 8G/Z	1 req	Avail to order Our Price: $7.29
50	002104418	CLUTCH CYLINDER DRAIN SCREW	1 req	Avail to order Our Price: $12.06
51	008850807	DOWEL 8X12.842	1 req	Avail to order Our Price: $20.13
52	002104642	CLUTCH MOVABLE RING	1 req	Avail to order Our Price: $2,147.71
53	002105449	CLUTCH PLATE	1 req	Avail to order Our Price: $1,887.62
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
