1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $456.30
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $700.10
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $1,887.62
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $697.64
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $60.68
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $1,887.62
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $502.34
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Gaskets

PN	Item
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $348.60
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $1,098.81
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,850.49

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.16
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $236.34

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

TAV: 5 - Transmission

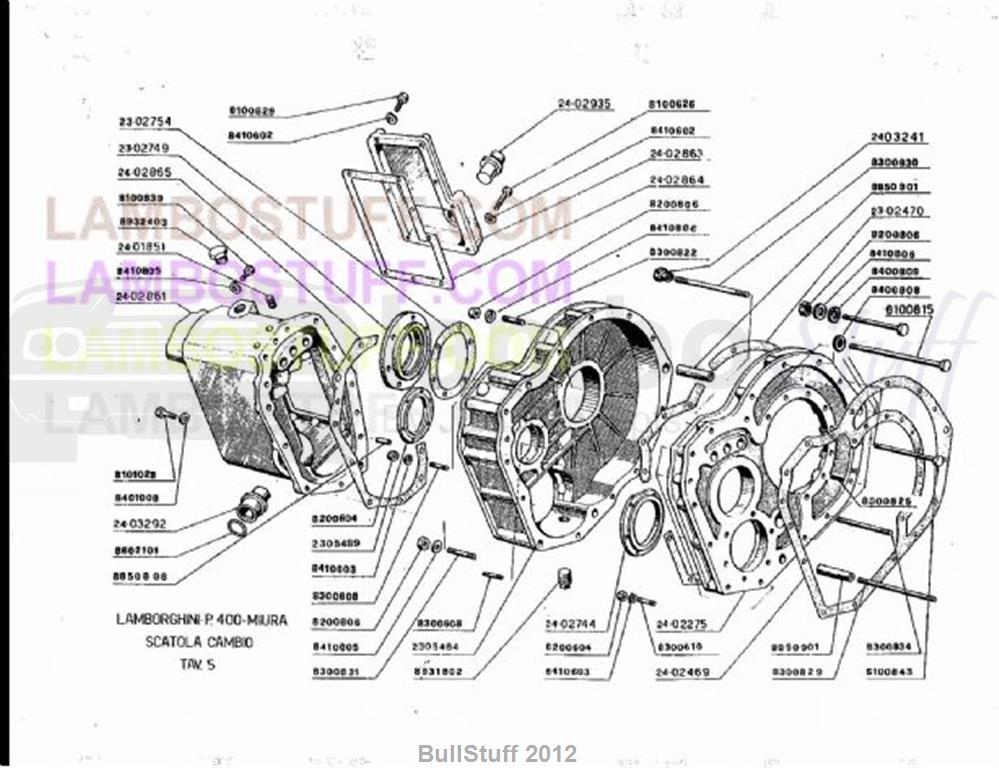

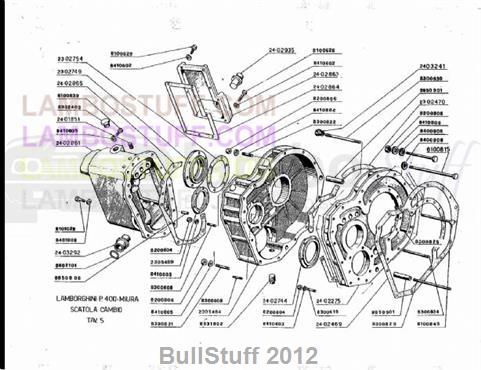

1966-1972 Lamborghini Miura USA Transmission (5)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002402935	REAR ROD BUSHING	1 req	Avail to order Our Price: $272.08
2	008100626	SCREW M6X35 UNI 5737/8G	1 req	Avail to order Our Price: $0.20
3	WHT001197A	WASHER	1 req	Current Stock: 2 Our Price: $0.30
4	002402863	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
5	002402864	GEARBOX COVER SEAL	1 req	Avail to order Our Price: $20.36
6	008200806	M8 UNI 5588/8G/Z NUT	1 req	Current Stock: 25 Our Price: $0.40
7	N0152785	WASHER	1 req	Current Stock: 71 Our Price: $0.50
8	008300822	STUD M8X18 UNI 5911 8G Z	1 req	Avail to order Our Price: $26.31
9	002403241	This item is no longer available	1 req
10	008300830	STUD 8X1.25X110 8G	1 req	Avail to order Our Price: $17.89
11	008850901	REFERENCE PIN 13H6X9C40	1 req	Avail to order Our Price: $23.92
12	002302470	DIFFERENTIAL SHIM SEAL	1 req	Avail to order Our Price: $57.87
13	008200806	M8 UNI 5588/8G/Z NUT	1 req	Current Stock: 25 Our Price: $0.40
14	N0152785	WASHER	1 req	Current Stock: 71 Our Price: $0.50
15	008400809	WASHER 8.5X23X3	1 req	Avail to order Our Price: $6.90
16	008400808	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
17	008100815	SCREW M8X1.25X105 UNI 5737	1 req	Avail to order Our Price: $11.18
18	008300834	STUD M8X80 UNI 5911 8G Z	1 req	Avail to order Our Price: $20.52
19	006100843	This item is no longer available	1 req
20	008850901	REFERENCE PIN 13H6X9C40	1 req	Avail to order Our Price: $23.92
21	008300829	STUD 8X1.25X126 8G	1 req	Avail to order Our Price: $21.68
22	002402275	GEARBOX COVER	1 req	Avail to order Our Price: $1,887.62
23	WHT003165	TAP END STUD	1 req	Current Stock: 3 Our Price: $1.60
24	002402469	GEARBOX COVER SEAL	1 req	Avail to order Our Price: $54.36
25	002402744	SECONDARY PROPELLER SHAFT BEAR	1 req	Avail to order Our Price: $199.83
26	006200604	This item is no longer available	1 req
27	008410603	WASHER D.6.4 UNI 1751/ZD	1 req	Avail to order Our Price: $0.10
28	01S409965	PLUG	1 req	Current Stock: 5 Our Price: $188.37
29	002305484	DIFFERENTIAL BOX LOCK	1 req	Avail to order Our Price: $1,818.87
30	008300608	NLA (NO LONGER AVAILABLE)	1 req	*See Description
31	008300831	STUD M8X20 UNI 5911 8G ZD	1 req	Avail to order Our Price: $16.43
32	WHT001514	SPRING WASHER	1 req	Current Stock: 9 Our Price: $26.80
33	008200806	M8 UNI 5588/8G/Z NUT	1 req	Current Stock: 25 Our Price: $0.40
34	008300608	NLA (NO LONGER AVAILABLE)	1 req	*See Description
35	008410603	WASHER D.6.4 UNI 1751/ZD	1 req	Avail to order Our Price: $0.10
36	002305489	FLANGE	1 req	Avail to order Our Price: $274.31
37	N01100637	HEX.NUT	1 req	Current Stock: 18 Our Price: $0.40
38	WHT003078	REFERENCE PIN 8H7X16C40	1 req	Avail to order Our Price: $47.00
39	008602101	RING 22 MM OR	1 req	Current Stock: 2 Our Price: $2.92
40	002403292	REAR ROD BUSHING	1 req	Avail to order Our Price: $281.02
41	N91116801	WASHER	1 req	Current Stock: 1 Our Price: $8.93
42	008101028	SCREW 10MAX17 5S	1 req	Avail to order Our Price: $6.90
43	002402861	GEARBOX UNIT	1 req	Avail to order Our Price: $3,198.03
44	WHT001514	SPRING WASHER	1 req	Current Stock: 9 Our Price: $26.80
45	002401851	PLUG	1 req	Avail to order Our Price: $76.00
46	008932403	OIL BREATHER PLUG	1 req	Avail to order Our Price: $146.57
47	008100839	SCREW M8X10 UNI 5739/8G Z	1 req	Current Stock: 17 Our Price: $0.50
48	002402865	GEARBOX COVER SEAL	1 req	Avail to order Our Price: $41.01
49	002302749	FLANGE	1 req	Avail to order Our Price: $472.68
50	002302754	SPACER	1 req	Avail to order Our Price: $68.17
51	WHT001197A	WASHER	1 req	Current Stock: 2 Our Price: $0.30
52	N01022217	HEXAGON HEAD BOLT	1 req	Avail to order Our Price: $7.67
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
