1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $491.87
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $84.77

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 7 Our Price: $27.66

Drivetrain

PN	Item
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $2,034.84
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $754.69
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $2,034.84
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $65.44
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $548.16
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $51.86

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $541.53
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $102.16
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $23.72

Gaskets

PN	Item
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $990.43
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $375.72
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,994.85

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $82.84

Sensors

PN	Item	Diagram
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $254.79
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $161.79

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 92 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

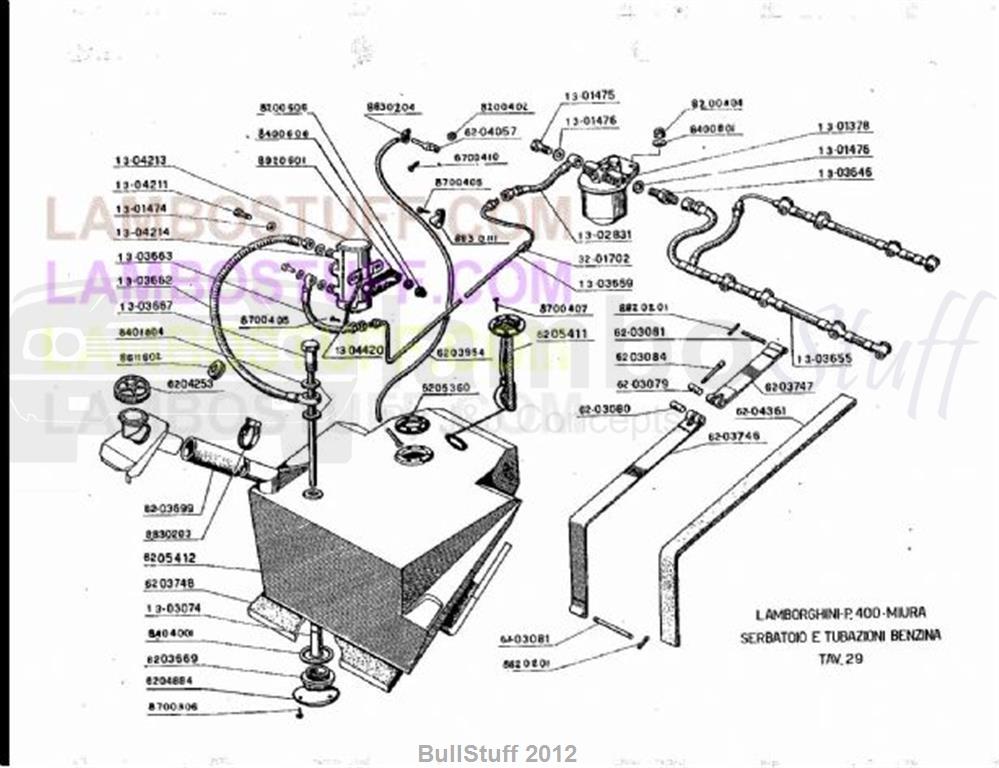

TAV: 29 - Fuel

1966-1972 Lamborghini Miura USA Fuel (29)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008200506	M5X0.8X5 UNI 5587/6S/Z NUT	1 req	Current Stock: 8 Our Price: $6.10
2	N01152427	WASHER	1 req	Current Stock: 16 Our Price: $0.30
3	008920601	SUPP.F/84710 DIS/11627	1 req	Avail to order Our Price: $237.18
4	008630204	This item is no longer available	1 req
5	008200402	M4 BRASS SPECIAL NUT	1 req	Current Stock: 2 Our Price: $2.60
6	006204057	FUEL TANK BREATHER PIPE	1 req	Avail to order Our Price: $80.53
7	008700410	SCREW M4X16 UNI 6109/5S	1 req	Avail to order Our Price: $2.60
8	008700405	LOCK SCREW 4.8X9.5DIN7981/N	1 req	Avail to order Our Price: $0.20
9	008830111	NLA (NO LONGER AVAILABLE)	1 req	*See Description
10	001301475	FUEL FILTER UNION PIPE	1 req	Avail to order Our Price: $168.20
11	001301476	NLA	1 req	*See Description
12	001302831	PIPE	1 req	Avail to order Our Price: $224.36
13	003201702	This item is no longer available	1 req
14	001303659	POMP FILTER RIGID TUBE	1 req	Avail to order Our Price: $437.43
15	008200804	NUT	1 req	Current Stock: 7 Our Price: $1.30
16	N90179103	WASHER	1 req	Current Stock: 5 Our Price: $1.90
17	001301378	NLA (NO LONGER AVAILABLE)	1 req	*See Description
18	001301476	NLA	1 req	*See Description
19	001303646	CARBURETTOR FILTER OUTLET UNIO	1 req	Avail to order Our Price: $157.96
20	006203954	This item is no longer available	1 req
21	006205360	FLOAT DIMMER SEAL	1 req	Current Stock: 13 Our Price: $103.63
22	008700407	SCREW M4X14 UNI 6108/8G/Z	1 req	Avail to order Our Price: $2.60
23	006205411	FUEL SENDER	1 req	Avail to order Our Price: $184.27
24	008820201	SPLIT PIN	1 req	Current Stock: 19 Our Price: $6.83
25	006203081	FUEL TANK CLAMP PIN	1 req	Avail to order Our Price: $23.91
26	006203084	TANK TIEROD	1 req	Avail to order Our Price: $71.34
27	006203079	TANK CLAMP PIN	1 req	Avail to order Our Price: $56.64
28	006203080	TANK CLAMP FILTER PIN	1 req	Avail to order Our Price: $23.91
29	001303655	NLA (NO LONGER AVAILABLE)	1 req	*See Description
30	006204361	This item is no longer available	1 req
31	006203746	CLIP	1 req	Avail to order Our Price: $176.24
32	006203081	FUEL TANK CLAMP PIN	1 req	Avail to order Our Price: $23.91
33	008620201	This item is no longer available	1 req
34	008700306	SCREW KNIP B3.5X16DIN7971	1 req	Avail to order Our Price: $2.60
35	006204884	TANK LOWER PLUG	1 req	Avail to order Our Price: $40.83
36	006203669	PRIMER PIPE PLUG	1 req	Avail to order Our Price: $135.70
37	008404001	COPPER WASHER 40.2X54X1.5	1 req	Avail to order Our Price: $13.66
38	001303074	INTAKE UNION FILTER	1 req	Avail to order Our Price: $599.22
39	006203748	This item is no longer available	1 req
40	006205412	FUEL TANK	1 req	Avail to order Our Price: $10,631.05
41	008830203	CLAMP	1 req	Avail to order Our Price: $10.66
42	006203699	FUEL TANK SLEEVE	1 req	Avail to order Our Price: $81.71
43	008700405	LOCK SCREW 4.8X9.5DIN7981/N	1 req	Avail to order Our Price: $0.20
44	001304420	FUEL PUMP GROUND WIRE	1 req	Avail to order Our Price: $3.01
45	006204253	FUEL TANK PLUG	1 req	Avail to order Our Price: $2,243.13
46	008611602	GROMMET 16X25X1.5 MM	1 req	Avail to order Our Price: $14.80
47	008401804	ANNEALED COPPER WASHER 18.2X30	1 req	Avail to order Our Price: $5.12
48	001303667	This item is no longer available	1 req
49	001303662	PIPE	1 req	Avail to order Our Price: $407.01
50	001303663	PUMP DELIVERY HOSE	1 req	Avail to order Our Price: $180.25
51	001304214	NLA (NO LONGER AVAILABLE)	1 req	*See Description
52	001301474	FIBRE SEAL 14X10X2	1 req	Current Stock: 4 Our Price: $3.99
53	001304211	FUEL PUMP UNION SCREW	1 req	Current Stock: 3 Our Price: $12.61
54	001304213	RED HEAD FUEL PUMP	1 req	Avail to order Our Price: $572.05
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
