1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $456.30
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $700.10
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $1,887.62
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $697.64
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $60.68
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $1,887.62
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $502.34
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Gaskets

PN	Item
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $348.60
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $1,098.81
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,850.49

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.16
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $236.34

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

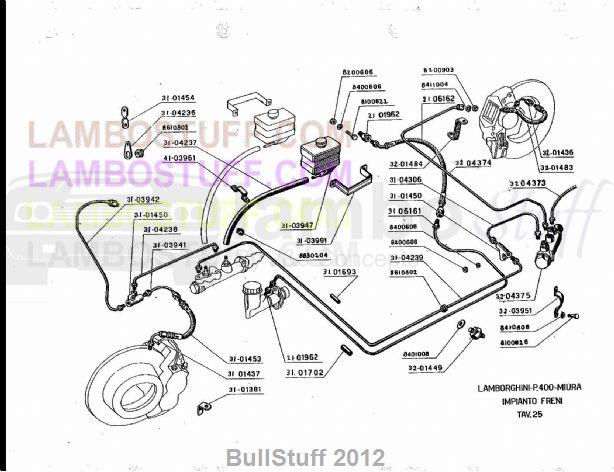

TAV: 25 - Brake System 2

1966-1972 Lamborghini Miura USA Brake System 2 (25)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	N01118312	HEX.HEAD CLAMPING NUT	1 req	Avail to order Our Price: $2.14
2	N01152427	WASHER	1 req	Current Stock: 16 Our Price: $0.30
3	008100822	SCREW M8X60 UNI 57378G/ZD	1 req	Avail to order Our Price: $6.90
4	002101962	UNION MALE-FEMALE	1 req	Avail to order Our Price: $32.28
5	008200903	3/8X24 UNF SPECIAL NUT	1 req	Avail to order Our Price: $6.90
6	008411004	CORRUGATED WASHER	1 req	Avail to order Our Price: $2.92
7	002106162	NLA (NO LONGER AVAILABLE)	1 req	*See Description
8	003201436	PIPE TO REAR CALIPERHOSE	1 req	Avail to order Our Price: $92.57
9	003201483	REAR BRAKE HOSE FLEXIBLE TUBE FR.POS.64047356	1 req	Current Stock: 1 Our Price: $152.39
10	003204373	OVER PRESSURE PIPE TO LH HOSE	1 req	Avail to order Our Price: $78.18
11	003204374	This item is no longer available	1 req
12	003201484	BRAKE HOSE BRACKET	1 req	Avail to order Our Price: $13.91
13	003104306	OVER-PRESSURE/THREE-WAY PIPE	1 req	Avail to order Our Price: $78.18
14	003101450	THREE-WAY UNION	1 req	Avail to order Our Price: $105.60
15	003106161	NLA (NO LONGER AVAILABLE)	1 req	*See Description
16	N01152427	WASHER	1 req	Current Stock: 16 Our Price: $0.30
17	N01118312	HEX.HEAD CLAMPING NUT	1 req	Avail to order Our Price: $2.14
18	003104239	This item is no longer available	1 req
19	008610802	GROMMET 8X18X2 MM	1 req	Avail to order Our Price: $9.40
20	003103947	BRAKE OIL RESERVOIR	1 req	Avail to order Our Price: $60.87
21	003103991	CLAMP	1 req	Avail to order Our Price: $156.07
22	008830204	CLAMP	1 req	Avail to order Our Price: $10.11
23	410721493	BRAKE PIPE PROTECTION RUBBER W	1 req	Avail to order Our Price: $58.16
24	005204375	This item is no longer available	1 req
25	003703951	This item is no longer available	1 req
26	N0152785	WASHER	1 req	Current Stock: 71 Our Price: $0.50
27	008100828	SCREW M8X45 UNI 5739/5S/Z	1 req	Avail to order Our Price: $0.80
28	N91116801	WASHER	1 req	Current Stock: 1 Our Price: $8.93
29	003201449	BRAKE LIGHT CHECK	1 req	Avail to order Our Price: $158.02
30	002101962	UNION MALE-FEMALE	1 req	Avail to order Our Price: $32.28
31	003101702	This item is no longer available	1 req
32	003101453	FRONT BRAKE HOSE FLEXIBLE PIPE FR.ANT.6404736	1 req	Current Stock: 1 Our Price: $112.64
33	003101437	FRONT CALIPER PIPE TO HOSE	1 req	Avail to order Our Price: $95.59
34	003101381	This item is no longer available	1 req
35	003103941	This item is no longer available	1 req
36	003104238	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
37	003101450	THREE-WAY UNION	1 req	Avail to order Our Price: $105.60
38	003103942	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
39	004103961	This item is no longer available	1 req
40	003104237	BRAKE PIPE	1 req	Avail to order Our Price: $39.55
41	008610802	GROMMET 8X18X2 MM	1 req	Avail to order Our Price: $9.40
42	003104236	HOSE MOUNTING PLATE	1 req	Avail to order Our Price: $153.54
43	003101454	BRAKE HOSE BRACKET	1 req	Avail to order Our Price: $13.91
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
