1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $491.87
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $84.77

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 7 Our Price: $27.66

Drivetrain

PN	Item
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $2,034.84
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $754.69
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $2,034.84
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $65.44
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $548.16
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $51.86

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $541.53
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $102.16
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $23.72

Gaskets

PN	Item
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $990.43
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $375.72
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,994.85

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $82.84

Sensors

PN	Item	Diagram
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $254.79
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $161.79

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 92 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

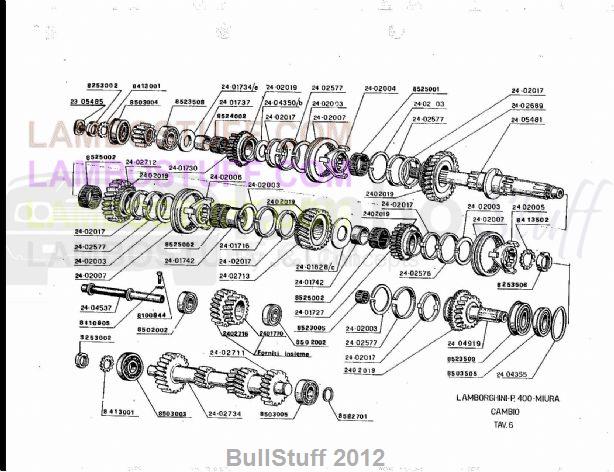

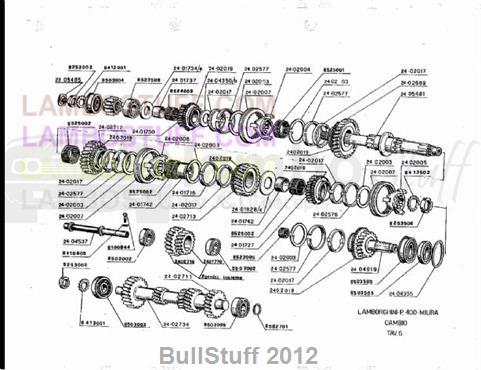

TAV: 6 - Transmission Gears

1966-1972 Lamborghini Miura USA Transmission Gears (6)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002401734	WASHER	1 req	Avail to order Our Price: $420.61
2	002401737	O-RING	1 req	Avail to order Our Price: $83.06
3	008524002	BEARING	1 req	Avail to order Our Price: $53.77
4	002402019	GEAR SYNCHRONISER COUPLING	1 req	Avail to order Our Price: $1,017.42
5	002404350	5TH SPEED SHIM ADJUSTMENT WASH	1 req	Avail to order Our Price: $342.67
6	002402017	SYNCHRONISER INNER RING	1 req	Avail to order Our Price: $677.77
7	002409605	SYNCHRONISER RING	1 req	Current Stock: 4 Our Price: $549.56
8	002402003	SYNCHRONISER RETAINING RINGS	1 req	Avail to order Our Price: $349.43
9	002402007	GEAR ENGAGING SLEEVE	1 req	Avail to order Our Price: $2,467.49
10	002402004	5TH SPEED DRIVE UNIT	1 req	Avail to order Our Price: $4,053.70
11	008525001	BEARING	1 req	Avail to order Our Price: $44.66
12	002402003	SYNCHRONISER RETAINING RINGS	1 req	Avail to order Our Price: $349.43
13	002409605	SYNCHRONISER RING	1 req	Current Stock: 4 Our Price: $549.56
14	002402017	SYNCHRONISER INNER RING	1 req	Avail to order Our Price: $677.77
15	002402689	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
16	002405481	PRIMARY SHAFT	1 req	Avail to order Our Price: $4,886.94
17	002402019	GEAR SYNCHRONISER COUPLING	1 req	Avail to order Our Price: $1,017.42
18	002402017	SYNCHRONISER INNER RING	1 req	Avail to order Our Price: $677.77
19	002402019	GEAR SYNCHRONISER COUPLING	1 req	Avail to order Our Price: $1,017.42
20	002402003	SYNCHRONISER RETAINING RINGS	1 req	Avail to order Our Price: $349.43
21	002402007	GEAR ENGAGING SLEEVE	1 req	Avail to order Our Price: $2,467.49
22	002402005	3RD SPEED DRIVE UNIT	1 req	Avail to order Our Price: $4,053.70
23	008413502	WASHER SKF MB7	1 req	Avail to order Our Price: $6.01
24	002409605	SYNCHRONISER RING	1 req	Current Stock: 4 Our Price: $549.56
25	008253506	M35X1.5X52 RING NUT	1 req	Avail to order Our Price: $30.10
26	002404355	WASHER	1 req	Avail to order Our Price: $32.91
27	002404919	GEARBOX/CLUTCH SHAFT	1 req	Avail to order Our Price: $6,168.43
28	008523509	BEARING	1 req	Avail to order Our Price: $288.98
29	008503502	BEARING	1 req	Avail to order Our Price: $46.70
30	002402003	SYNCHRONISER RETAINING RINGS	1 req	Avail to order Our Price: $349.43
31	002409605	SYNCHRONISER RING	1 req	Current Stock: 4 Our Price: $549.56
32	002402017	SYNCHRONISER INNER RING	1 req	Avail to order Our Price: $677.77
33	002402019	GEAR SYNCHRONISER COUPLING	1 req	Avail to order Our Price: $1,017.42
34	002401828	2ND-3RD SPEED WASHER	1 req	Avail to order Our Price: $74.36
35	002401742	O-RING	1 req	Avail to order Our Price: $304.44
36	086311228A	NEEDLE CAGE	1 req	Avail to order Our Price: $113.45
37	002401727	3RD SPEED GEAR	1 req	Avail to order Our Price: $2,467.49
38	008523005	BEARING	1 req	Avail to order Our Price: $24.08
39	008502002	SCN 6304-2RS EXBLN20	1 req	Avail to order Our Price: $63.95
40	008582701	O-RING E 30 UNI 7435-75	1 req	Current Stock: 9 Our Price: $2.48
41	002409605	SYNCHRONISER RING	1 req	Current Stock: 4 Our Price: $549.56
42	002402017	SYNCHRONISER INNER RING	1 req	Avail to order Our Price: $677.77
43	002401770	REVERSE GUIDE GEAR	1 req	Avail to order Our Price: $336.00
44	002402716	NLA (NO LONGER AVAILABLE)	1 req	*See Description
45	002402711	SECONDARY SHAFT DOUBLE GEAR	1 req	Avail to order Our Price: $1,092.72
46	002402734	SECONDARY SHAFT	1 req	Avail to order Our Price: $3,877.47
47	008413001	WASHER SKF MB6	1 req	Current Stock: 10 Our Price: $2.77
48	008253002	30X1.5X45 SELF-LOCKING RING NU	1 req	Avail to order Our Price: $45.56
49	008110805	This item is no longer available	1 req
50	002404537	REVERSE SHAFT	1 req	Avail to order Our Price: $381.64
51	008100844	SPECIAL SCREW	1 req	Current Stock: 1 Our Price: $22.86
52	008502002	SCN 6304-2RS EXBLN20	1 req	Avail to order Our Price: $63.95
53	002402007	GEAR ENGAGING SLEEVE	1 req	Avail to order Our Price: $2,467.49
54	002402003	SYNCHRONISER RETAINING RINGS	1 req	Avail to order Our Price: $349.43
55	002409605	SYNCHRONISER RING	1 req	Current Stock: 4 Our Price: $549.56
56	002402017	SYNCHRONISER INNER RING	1 req	Avail to order Our Price: $677.77
57	086311228A	NEEDLE CAGE	1 req	Avail to order Our Price: $113.45
58	002402712	1ST SPEED IDLE GEAR	1 req	Avail to order Our Price: $673.30
59	002402019	GEAR SYNCHRONISER COUPLING	1 req	Avail to order Our Price: $1,017.42
60	002401730	5TH SPEED GEAR	1 req	Avail to order Our Price: $1,646.24
61	002402003	SYNCHRONISER RETAINING RINGS	1 req	Avail to order Our Price: $349.43
62	002402019	GEAR SYNCHRONISER COUPLING	1 req	Avail to order Our Price: $1,017.42
63	002305485	PINION RING NUT STOP	1 req	Current Stock: 1 Our Price: $118.45
64	008253002	30X1.5X45 SELF-LOCKING RING NU	1 req	Avail to order Our Price: $45.56
65	008413001	WASHER SKF MB6	1 req	Current Stock: 10 Our Price: $2.77
66	008503006	BEARING	1 req	Avail to order Our Price: $595.37
67	008523508	BEARING	1 req	Avail to order Our Price: $362.90
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
