1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $456.30
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $700.10
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $1,887.62
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $697.64
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $60.68
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $1,887.62
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $502.34
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Gaskets

PN	Item
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $348.60
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $1,098.81
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,850.49

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.16
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $236.34

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

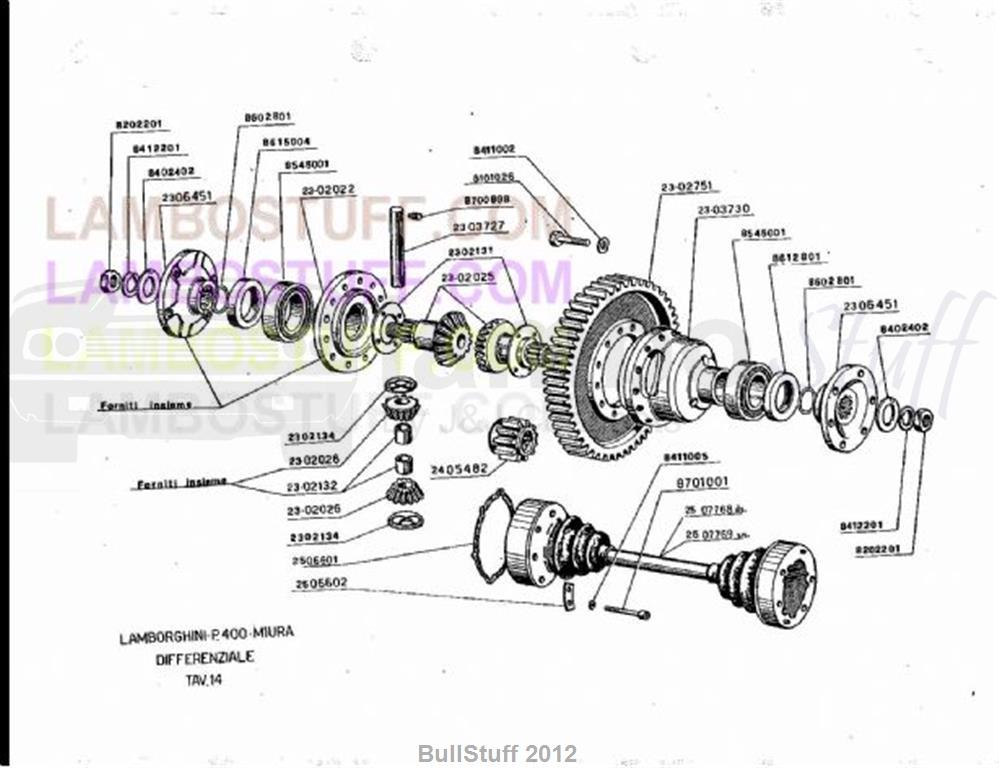

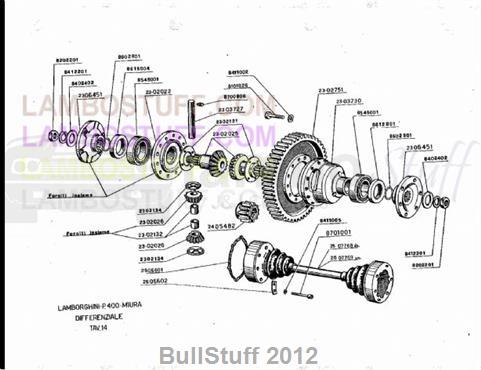

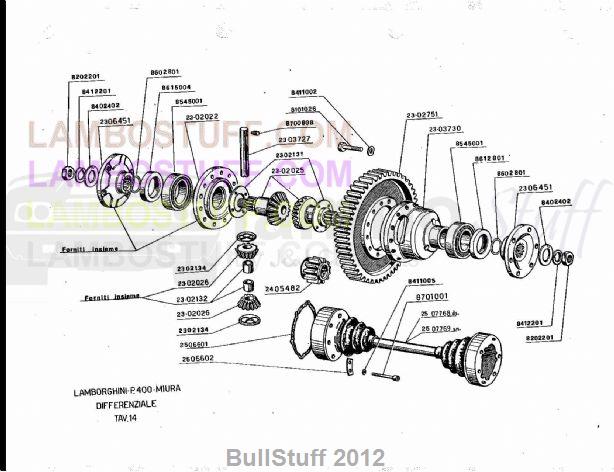

TAV: 14 - Differential

1966-1972 Lamborghini Miura USA Differential (14)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	WHT000768	SPRING WASHER	1 req	Current Stock: 17 Our Price: $2.14
2	008101026	SCREW 10X1X40 CH17 10K	1 req	Avail to order Our Price: $21.68
3	008700808	SCREW M8X16 UNI 592512K	1 req	Current Stock: 5 Our Price: $2.92
4	002303727	SATELLITE GEAR PIN	1 req	Avail to order Our Price: $183.60
5	002302131	PLANETARY GEAR ADJUSTING RING	1 req	Avail to order Our Price: $148.39
6	002302025	DIFFERENTIAL PLANET GEAR	1 req	Avail to order Our Price: $1,324.30
7	002302751	DIFFERENTIAL GEAR 12/49 RATIO	1 req	Avail to order Our Price: $1,334.33
8	002303730	DIFFERENTIAL INTERNAL BOX	1 req	Avail to order Our Price: $2,125.41
9	008545001	BEARING	1 req	Avail to order Our Price: $1,319.84
10	008612801	OIL SEAL	1 req	Avail to order Our Price: $16.34
11	008602801	RING 28 MM OR	1 req	Avail to order Our Price: $3.78
12	002306451	NLA (NO LONGER AVAILABLE)	1 req	*See Description
13	008402402	WASHER 24WD8X4	1 req	Avail to order Our Price: $39.48
14	008412201	GROVER WASHER D22	1 req	Current Stock: 3 Our Price: $2.92
15	008202201	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
16	008411005	WASHER D.10.5 UNI 1751/F	1 req	Avail to order Our Price: $0.10
17	008701001	SCREW M10X60 UNI 5931/8G/Z D	1 req	Current Stock: 2 Our Price: $3.79
18	002507768	NLA (NO LONGER AVAILABLE)	1 req	*See Description
19	002507769	MIURA LH CV DRIVE SHAFT	1 req	Avail to order Our Price: $2,221.45
20	002506602	DRIVE SHAFT PLATE	1 req	Current Stock: 4 Our Price: $124.47
21	002506601	CV DRIVE SHAFT SEAL	1 req	Avail to order Our Price: $26.37
22	002313876	SATELLITE RADIUS RING	1 req	Avail to order Our Price: $55.93
23	002302026	DIFFERENTIAL SATELLITE GEAR	1 req	Avail to order Our Price: $2,214.59
24	002302132	SATELLITE BUSHING	2 req	Avail to order Our Price: $63.23
25	002405482	This item is no longer available	1 req
26	002302026	DIFFERENTIAL SATELLITE GEAR	1 req	Avail to order Our Price: $2,214.59
27	002313876	SATELLITE RADIUS RING	1 req	Avail to order Our Price: $55.93
28	002306451	NLA (NO LONGER AVAILABLE)	1 req	*See Description
29	008402402	WASHER 24WD8X4	1 req	Avail to order Our Price: $39.48
30	008412201	GROVER WASHER D22	1 req	Current Stock: 3 Our Price: $2.92
31	008202201	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
32	008602801	RING 28 MM OR	1 req	Avail to order Our Price: $3.78
33	008615004	NLA (NO LONGER AVAILABLE)	1 req	*See Description
34	008545001	BEARING	1 req	Avail to order Our Price: $1,319.84
35	002302022	DIFFERENTIAL BOX INNER COVER	1 req	Avail to order Our Price: $2,021.39
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
