1966-1972 Miura - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003106765	FRONT BRAKE PADS JARAMA AND MIURA FRONT BRAKE PADS JARAMA AND MIURA		Avail to order Our Price: $456.30
003206764	BRAKE PAD REAR - ESPADA - MIURA - JARAMA - SOLD EACH REAR BRAKE PAD		Avail to order Our Price: $78.62

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002103598	CLUTCH ROD CLUTCH ROD	Avail to order Our Price: $700.10
002105449	CLUTCH PLATE CLUTCH PLATE COMPLETE	Avail to order Our Price: $1,887.62
002126614	ENGINE FLYWHEEL MUIRA ENGINE FLYWHEEL DISCONTINUED - NLA - CONTACT US	Current Stock: 1 Our Price: $697.64
008502505	SEE PN 086311430A BEARING	Avail to order Our Price: $60.68
290400000	MIURA PRE-ASSEMBLED CLUTCH CYL MIURA PRE-ASSEMBLED CLUTCH CYL	Avail to order Our Price: $1,887.62
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $502.34
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01

Gaskets

PN	Item
001526473	GROMMET AND OIL SEALS SET - JALPA - MIURA GROMMET AND OIL SEALS SET JALPA - MIURA	Avail to order Our Price: $348.60
001526493	ENGINE GASKET SET - JALPA - MIURA ENGINE GASKET KIT JALPA AND MIURA SEE ALSO 001526473 GROMMET & OIL SEALS SET	Avail to order Our Price: $1,098.81
001526483	MIURA ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526463 FOR SEALS	Avail to order Our Price: $1,850.49

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY		Avail to order Our Price: $150.16
002409171	DISCONTINUED - NLA REVERSE LIGHT SWITCH		Avail to order Our Price: $236.34

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

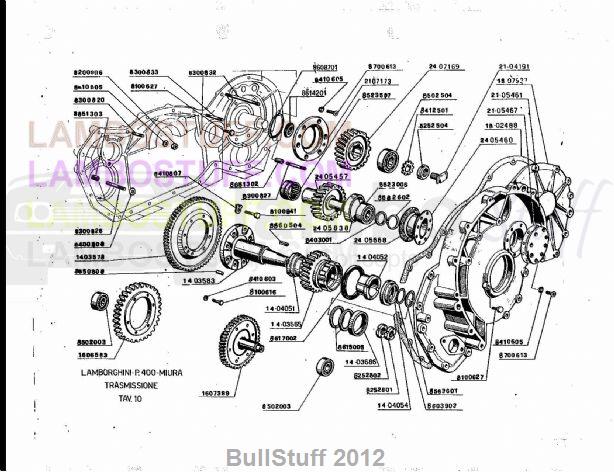

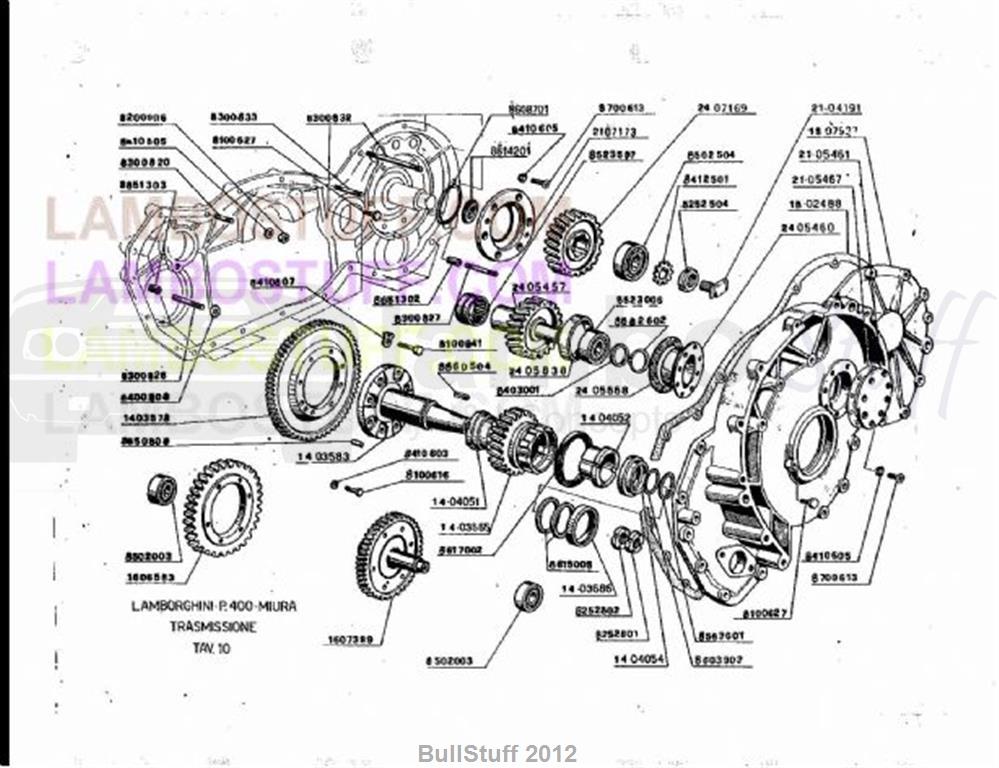

TAV: 10 - Transmission

1966-1972 Lamborghini Miura USA Transmission (10)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Miura Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008608701	OR RING	1 req	Avail to order Our Price: $97.63
2	008410605	CORRUGATED WASHER D 6	1 req	Avail to order Our Price: $2.92
3	008614201	RING 42X52X4 MM	1 req	Avail to order Our Price: $20.52
4	008700613	SCREW M6X14 UNI 5933/8G/ZB	1 req	Avail to order Our Price: $0.20
5	002107173	FLANGE	1 req	Avail to order Our Price: $408.51
6	008523597	This item is no longer available	1 req
7	002407169	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
8	008502504	BEARING	1 req	Avail to order Our Price: $63.11
9	008412501	WASHER SKF MBS	1 req	Avail to order Our Price: $8.85
10	008252504	M25X1.5X7/8G RING NUT	1 req	Avail to order Our Price: $99.46
11	002104191	NLA (NO LONGER AVAILABLE)	1 req	*See Description
12	001807927	This item is no longer available	1 req
13	002105461	COVER	1 req	Avail to order Our Price: $448.76
14	002105467	GASKET	1 req	Avail to order Our Price: $10.31
15	001802488	CRANKCASE/PAN GASKET	1 req	Avail to order Our Price: $62.62
16	002405460	BUSHING	1 req	Avail to order Our Price: $477.06
17	008851302	DOWEL 9X13 C40	1 req	Avail to order Our Price: $15.17
18	008300827	STUD M8X60 UNI 5911 8G Z	1 req	Avail to order Our Price: $11.75
19	WHT002952	HEXAGON HEAD BOLT	1 req	Current Stock: 2 Our Price: $5.34
20	008860504	TAB 5X5X30 12K	1 req	Current Stock: 17 Our Price: $10.02
21	002405457	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
22	002405838	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
23	008403001	WASHER 30X38X2X 38NCD4	1 req	Avail to order Our Price: $29.37
24	008523006	NLA (NO LONGER AVAILABLE)	1 req	*See Description
25	008582602	O-RING E 29 UNI 7435-75	1 req	Avail to order Our Price: $7.10
26	002405668	BOX/COVER SEAL	1 req	Avail to order Our Price: $9.24
27	001404052	BUSHING	1 req	Avail to order Our Price: $723.85
28	008410605	CORRUGATED WASHER D 6	1 req	Avail to order Our Price: $2.92
29	008700613	SCREW M6X14 UNI 5933/8G/ZB	1 req	Avail to order Our Price: $0.20
30	008100627	SCREW M6X1X8 CH12 8G	1 req	Avail to order Our Price: $20.13
31	008583601	O-RING AA 40 E	1 req	Current Stock: 19 Our Price: $1.10
32	008603903	OR RING	1 req	Current Stock: 2 Our Price: $0.70
33	008615005	OIL SEAL	1 req	Current Stock: 1 Our Price: $9.14
34	001403686	NLA (NO LONGER AVAILABLE)	1 req	*See Description
35	008252802	28X1.5 SPECIAL RING NUT	1 req	Avail to order Our Price: $134.39
36	008252801	D.28X1.5 SPECIAL RING NUT	1 req	Avail to order Our Price: $79.15
37	001404054	SPEED GEAR SHIM ADJUSTMENT	1 req	Avail to order Our Price: $717.15
38	008410603	WASHER D.6.4 UNI 1751/ZD	1 req	Avail to order Our Price: $0.10
39	008100616	SCREW M6X16 UNI 5739/5S/Z	1 req	Avail to order Our Price: $0.20
40	001404051	BUSHING	1 req	Avail to order Our Price: $517.32
41	001403565	NLA (NO LONGER AVAILABLE)	1 req	*See Description
42	008617003	OIL SEAL	1 req	Current Stock: 2 Our Price: $14.29
43	008502005	UPPER BEARING	1 req	Avail to order Our Price: $35.98
44	001607389	STARTER MOTOR/CRANKSHAFT GEAR	1 req	Avail to order Our Price: $1,575.47
45	001606583	NLA (NO LONGER AVAILABLE)	1 req	*See Description
46	008502005	UPPER BEARING	1 req	Avail to order Our Price: $35.98
47	001403583	CLUTCH SHAFT JOURNAL	1 req	Avail to order Our Price: $2,028.86
48	008850808	DOWEL 8X18	1 req	Avail to order Our Price: $25.38
49	001403578	CRANKSHAFT STARTER GEAR	1 req	Avail to order Our Price: $6,984.94
50	008400808	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
51	008300825	STUD M8X22 UNI 5911 10K Z	1 req	Avail to order Our Price: $15.24
52	008410807	CRANKSHAFT BOLT PLATE	1 req	Avail to order Our Price: $6.61
53	008851303	DOWEL 13X33	1 req	Avail to order Our Price: $21.20
54	008300820	STUD M8X25 UNI 5911 8G ZD	1 req	Avail to order Our Price: $2.42
55	008410605	CORRUGATED WASHER D 6	1 req	Avail to order Our Price: $2.92
56	008200806	M8 UNI 5588/8G/Z NUT	1 req	Current Stock: 25 Our Price: $0.40
57	WHT003030	TAP END STUD	1 req	Avail to order Our Price: $12.91
58	008100627	SCREW M6X1X8 CH12 8G	1 req	Avail to order Our Price: $20.13
60	008300832	STUD M8X90 UNI 5911 8G Z	1 req	Avail to order Our Price: $13.21
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
