1990 Lamborghini LM002 USA Spec USA Air Conditioning System (038.00)

Maintenance Parts:

Belts

PN	Item
001609853	Alternator Drive Belt - NLA Alternator Drive Belt	Avail to order Our Price: $85.87
001626952	Pump Belt Pump Belt	Avail to order Our Price: $145.82
001726951	NLA (No Longer Available) Pump Belt	Avail to order Our Price: $108.45

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $22.16

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Avail to order Our Price: $81.81
0017002473	Water Pump (2WD w/o Power Stearing) (1991-1994) Coolant Pump 2WD W/o	Avail to order Our Price: $5,017.25
002124587	Cp 2789 Thrust Plate Cp 2789 Thrust Plate	Avail to order Our Price: $2,924.92
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly	Avail to order Our Price: $5,343.04
002127409	Clutch Plate Clutch Plate	Avail to order Our Price: $1,293.04
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948	Avail to order Our Price: $183.18

Fuel-Air

PN	Item
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $377.42
002024398	Fuel Pump Fuel Pump	Current Stock: 1 Our Price: $719.65
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $264.00
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Current Stock: 1 Our Price: $29.72
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Avail to order Our Price: $274.81

Gaskets

PN	Item
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $1,455.22
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $276.57
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit	Avail to order Our Price: $1,392.96
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals	Avail to order Our Price: $951.32

Ignition

PN	Item
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002	Avail to order Our Price: $1,729.80
001627730	NLA (No Longer Available) Rotor	Avail to order Our Price: $1,853.41
001627730R	Rotor Brush 1991 - 1994 Diablos OE Spec - Rotating Brush	Avail to order Our Price: $307.89
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly	Avail to order Our Price: $1,549.34
001630009	Spark Plug - 12mm Spark Plug	Avail to order Our Price: $36.53
0072004164	Key Blank - Door - LM002 Raw Lm Door Key	Current Stock: 13 Our Price: $142.11

Misc

PN	Item
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.87
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002	Current Stock: 1 Our Price: $448.89

Sensors

PN	Item
0017006576	NLA (No Longer Available) WATER THERMOSTAT	Avail to order Our Price: $511.14
004429307	SEE PN 0R1470226 Lambda Sensor	Avail to order Our Price: $409.78
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $658.83
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Current Stock: 1 Our Price: $287.75
002424598	Lm Reversing Switch Lm Reversing Switch	Avail to order Our Price: $109.65

Open All

Select Group and TAV

< Previous Next >

TAV: 038.00 - Air Conditioning System

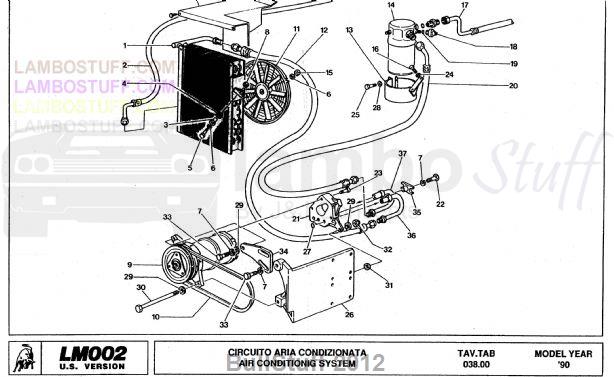

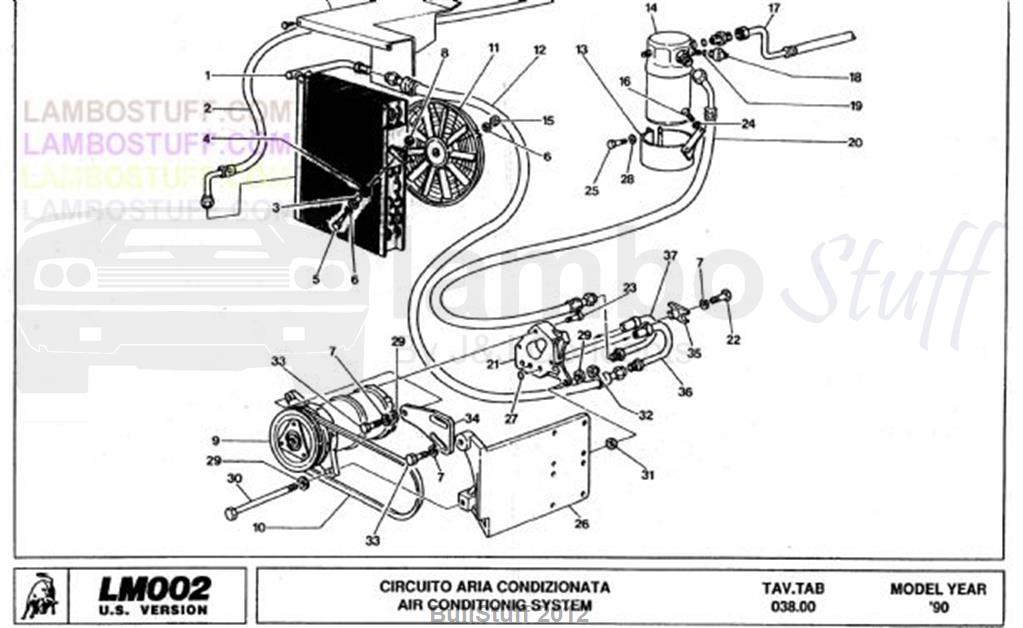

1990 Lamborghini LM002 USA Spec USA Air Conditioning System (038.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	004522943	Condensers	1 req	Avail to order Our Price: $632.77
2	004524971	Evaporator/CondenserPipe Assem	1 req	Avail to order Our Price: $55.62
3	008800602	Bushing 6x8x10 mm	2 req	Current Stock: 1 Our Price: $34.96
4	008610701	Grommet 7x13x2 mm	2 req	Avail to order Our Price: $32.10
5	008100603	Screw M6x25 Uni 5739-8g Zg	2 req	Avail to order Our Price: $2.00
6	N01152427	WASHER	6 req	Avail to order Our Price: $2.00
7	008411005	Washer D.10.5 Uni 1751/F	4 req	Avail to order Our Price: $2.00
8	N01118312	HEX.HEAD CLAMPING NUT	2 req	Current Stock: 4 Our Price: $2.01
9	004527492	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
10	004527789	Compressor Belt	1 req	Avail to order Our Price: $73.05
11	004525642	Fan 27a 12v	1 req	Avail to order Our Price: $763.40
12	004527971	This item is no longer available	1 req
13	004523087	Conditioner Filter Bracket	1 req	Avail to order Our Price: $56.40
14	004522958	NLA (No Longer Available)	1 req	*See Description
15	008200612	SEE PN N02300213	4 req	Current Stock: 23 Our Price: $2.00
16	008100630	Screw M6x14 Uni 5739/8g/Z	2 req	Avail to order Our Price: $2.00
17	004524970	Accumulator/Evaporator Pipe As	1 req	Avail to order Our Price: $165.84
18	004522959	Pressure Switch	1 req	Avail to order Our Price: $87.50
19	008600601	This item is no longer available	1 req
20	004527968	Compressor Rear Cover Pipe	1 req	Avail to order Our Price: $288.07
21	004524179	AC PUMP HOUSING - NLA	1 req	*See Description
22	008101029	Screw M10x70 Uni 5737/10k	1 req	Avail to order Our Price: $22.09
23	008700829	Screw M8x45 Uni 5931/8g/B	3 req	Avail to order Our Price: $6.29
24	008410603	Washer D.6.4 Uni 1751/Zd	2 req	Avail to order Our Price: $2.00
25	N01020717	HEXAGON HEAD BOLT	2 req	Current Stock: 4 Our Price: $2.00
26	004526878	Compressor Bracket	1 req	Avail to order Our Price: $903.50
27	008601601	Ring 16 mm Or	2 req	Avail to order Our Price: $6.29
28	008410502	Washer D.5.3 Uni 1751/Zd	2 req	Current Stock: 33 Our Price: $2.00
29	008401006	Washer 22x10.5x2.5 Uni 1734/5s	3 req	Current Stock: 1 Our Price: $2.00
30	008101067	Screw M10x1.5x215	1 req	Avail to order Our Price: $20.16
31	008401026	Washer 20x10.5x1	1 req	Avail to order Our Price: $13.02
31	008401025	Washer 20x10.5x0.5	1 req	Avail to order Our Price: $36.10
32	008201010	M10Self Locking Nut	1 req	Avail to order Our Price: $2.00
33	008101008	Screw M10x30uni 5739/8g/Zd	2 req	Current Stock: 3 Our Price: $16.08
34	004526877	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
35	004525643	Pipe Retainer	1 req	Avail to order Our Price: $45.11
36	004527969	Compressor Rear Cover Pipe	1 req	Avail to order Our Price: $291.77
37	004527968	Compressor Rear Cover Pipe	1 req	Avail to order Our Price: $288.07
38	009253020	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
