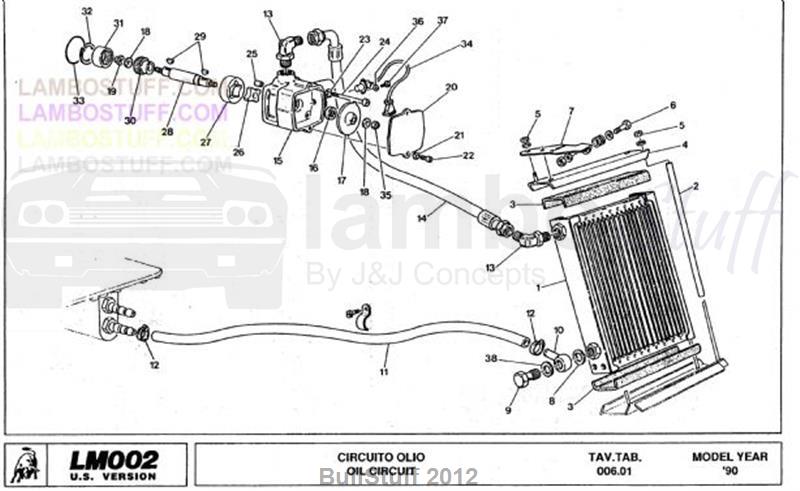

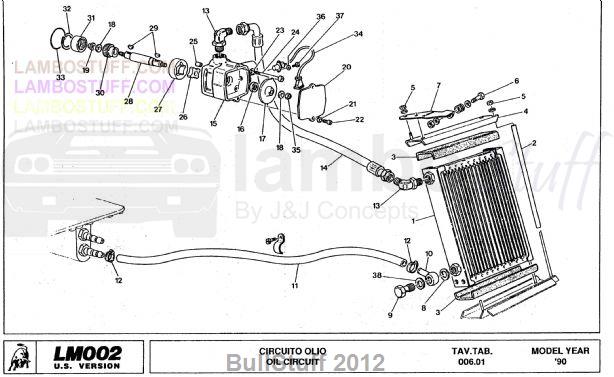

TAV: 006.01 - Oil Circuit

1990 Lamborghini LM002 USA Spec USA Oil Circuit (006.01)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	001521884	Oil Radiator	1 req	Avail to order Our Price: $1,139.06
2	004127945	This item is no longer available	3 req
3	004127946	This item is no longer available	2 req
4	004127943	This item is no longer available	1 req
5	N01118312	HEX.HEAD CLAMPING NUT	4 req	Avail to order Our Price: $2.17
6	008100604	Screw M6x14 Uni 5739/5s/Z	1 req	Avail to order Our Price: $2.91
7	004127944	This item is no longer available	1 req
8	006401804	This item is no longer available	2 req
9	001525022	Eye Fixing Drilled Screw	1 req	Avail to order Our Price: $12.16
10	001522504	Eye Union On Pump	1 req	Avail to order Our Price: $22.44
11	001524905	Oil Return Pipe FromRadiator	1 req	Current Stock: 1 Our Price: $131.65
12	008832003	Clamp	2 req	Avail to order Our Price: $51.52
13	001527888	Union	2 req	Avail to order Our Price: $218.49
14	001527977	Pipe From Low Pressure Pump To	1 req	Avail to order Our Price: $284.02
15	001527680	LOW PRESSURE OIL PUMP	1 req	Avail to order Our Price: $339.44
16	008611604	Oil Seal 16x30x7 mm	1 req	Current Stock: 5 Our Price: $25.50
17	001626268	Phonic Wheel	1 req	Avail to order Our Price: $106.16
18	N90179103	WASHER	2 req	Current Stock: 5 Our Price: $2.00
19	008200821	M8 Self-Locking Nut	1 req	Avail to order Our Price: $3.21
20	001527535	Low Pressure Oil Pump Cover	1 req	Avail to order Our Price: $34.30
21	008410503	Washer Din 137a 5.3x10 Zgd.	2 req	Avail to order Our Price: $2.00
22	N10648502	HEXALOBULAR SOCKET	2 req	Avail to order Our Price: $2.00
23	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
24	008700651	Screw M6x70 Uni 5931/8g/Zd	4 req	Avail to order Our Price: $2.31
25	008850615	Reference Pin 6jx11 C40	2 req	Avail to order Our Price: $21.40
26	001526262	Low Pressure Pump Inner Rotor	1 req	Avail to order Our Price: $371.24
27	001526263	Low Pressure Pump Outer Rotor	1 req	Avail to order Our Price: $384.66
28	001528420	Low Pressure Oil Pump Drive Sh	1 req	Avail to order Our Price: $447.39
29	008860301	Key 3x5x13	2 req	Avail to order Our Price: $2.00
30	001526265	Oil Pump Drive	1 req	Avail to order Our Price: $81.56
31	001624409	P.T.O. Sleeve	1 req	Avail to order Our Price: $288.35
32	008573202	O-Ring I 30 Uni 3654	1 req	Avail to order Our Price: $6.49
33	008606204	Or Ring	1 req	Current Stock: 9 Our Price: $2.00
34	07M905381	Phase Sensor	1 req	Avail to order Our Price: $697.09
35	008200819	8x1x8.5 Uni 7474/5s/ZcNu	1 req	Avail to order Our Price: $6.79
36	008410502	Washer D.5.3 Uni 1751/Zd	2 req	Current Stock: 33 Our Price: $2.00
37	N01020717	HEXAGON HEAD BOLT	2 req	Current Stock: 4 Our Price: $2.00
38	008402007	Annealed Copper Washer D.21x27	1 req	Current Stock: 8 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
