1990 Lamborghini LM002 USA Spec USA Transmission (015.00)

Maintenance Parts:

Belts

PN	Item
001726951	PUMP BELT PUMP BELT NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $114.58
001626952	Pump Belt Pump Belt	Avail to order Our Price: $157.33
001609853	Alternator Drive Belt Alternator Drive Belt	Avail to order Our Price: $90.83

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $23.82

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 20 Our Price: $86.47
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948	Avail to order Our Price: $193.98
002124587	NLA (No Longer Available) Cp 2789 Thrust Plate	Avail to order Our Price: $3,098.98
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,306.11
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly	Avail to order Our Price: $5,655.38
002127409	Clutch Plate Clutch Plate	Avail to order Our Price: $1,367.44

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Current Stock: 4 Our Price: $31.73
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.16
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.49
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $760.98
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $273.87

Gaskets

PN	Item
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $1,545.81
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $292.86
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit	Avail to order Our Price: $1,472.91
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals	Avail to order Our Price: $1,006.24

Ignition

PN	Item
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA for FACTORY we have exact OE Replacement	Current Stock: 2 Our Price: $289.00
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly	Avail to order Our Price: $1,634.99
001630009	Spark Plug - 12mm Spark Plug	Avail to order Our Price: $39.29
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002	Avail to order Our Price: $1,856.21
0072004164	Key Blank - Door - LM002 Raw Lm Door Key	Current Stock: 13 Our Price: $152.86

Misc

PN	Item
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002	Current Stock: 1 Our Price: $481.53
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.20
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $541.02
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.10
002424598	Lm Reversing Switch Lm Reversing Switch	Avail to order Our Price: $117.76
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.22

Open All

Select Group and TAV

< Previous Next >

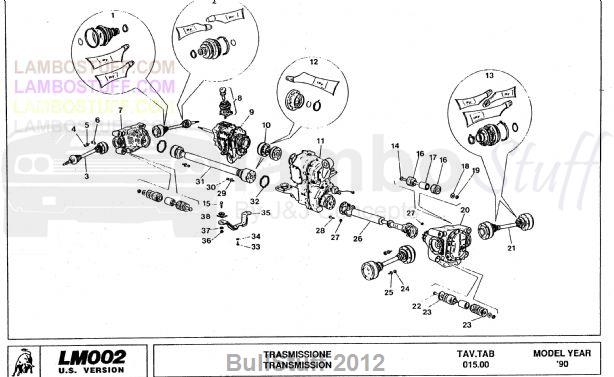

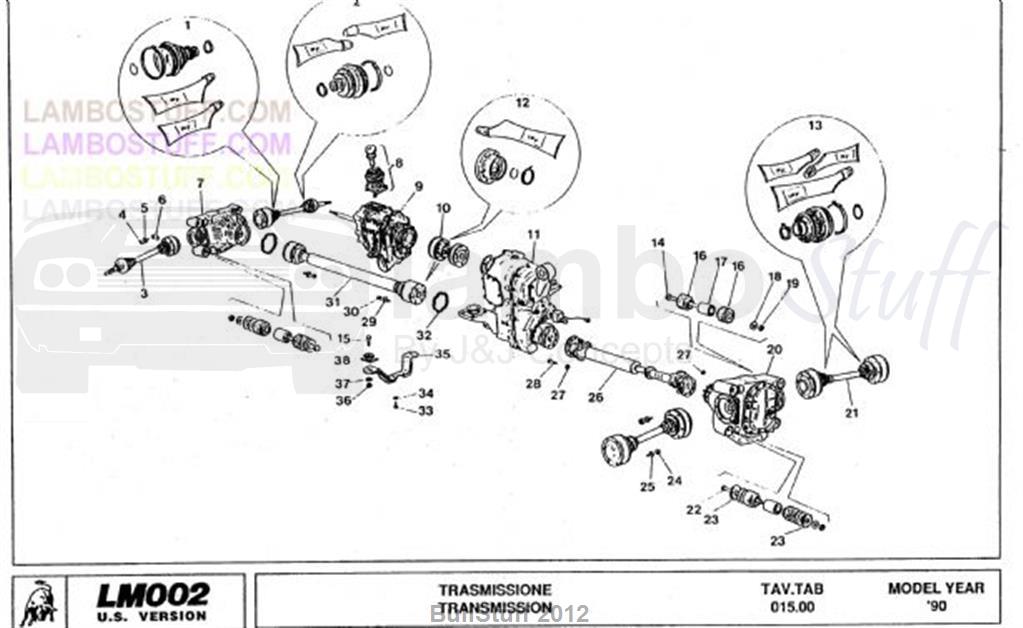

TAV: 015.00 - Transmission

1990 Lamborghini LM002 USA Spec USA Transmission (015.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002527217	NLA (No Longer Available)	2 req	*See Description
2	002527216	NLA (No Longer Available)	2 req	*See Description
3	002523181	Front Drive Shaft Assembly	1 req	Avail to order Our Price: $1,684.78
4	008701205	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	12 req	*See Description
5	WHT003055	Washer 13x24x1.2 Din137/B C72	12 req	Current Stock: 10 Our Price: $2.00
6	002521874	Plate	6 req	Avail to order Our Price: $176.69
7	002325716	FRONT DIFF.	1 req	Avail to order Our Price: $12,613.10
8	002421808	NLA (No Longer Available)	1 req	*See Description
9	002425539	Gearbox	1 req	Avail to order Our Price: $15,669.45
10	002723295	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
11	270025201	Transfer Case Complete	1 req	Avail to order Our Price: $36,296.09
12	002227219	Front Propeller Shaft Kit	2 req	Avail to order Our Price: $739.51
12	002727220	Propeller Shaft Kit	2 req	Current Stock: 1 Our Price: $157.33
13	002527218	NLA (No Longer Available)	4 req	*See Description
14	008101639	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	6 req	*See Description
15	008101626	Screw M16x1.5x70 Uni5738-	2 req	Avail to order Our Price: $2.72
16	002321941	No Longer Available	16 req	Avail to order Our Price: $118.36
17	008921608	Lower LH Arm Estenblock	8 req	Avail to order Our Price: $107.55
18	008401611	Washer 17x29x3 5s Uni 16592	8 req	Avail to order Our Price: $16.43
19	008201609	M16x2 8g/Z Nut	8 req	Avail to order Our Price: $19.64
20	002329388	Rear Differential Complete	1 req	Avail to order Our Price: $18,241.25
21	002523182	Rear Drive Shaft	2 req	Avail to order Our Price: $2,526.74
22	008101636	Screw M16x2x190 Uni 5737-6	2 req	Avail to order Our Price: $20.13
23	002322317	Shim Washer	4 req	Current Stock: 2 Our Price: $46.19
24	008701209	Allen Screw M12x1.25x7810k	24 req	Avail to order Our Price: $23.82
25	WHT003055	Washer 13x24x1.2 Din137/B C72	25 req	Current Stock: 10 Our Price: $2.00
26	001113345	This item is no longer available	1 req
27	008201006	M10Self Locking Nut	16 req	Avail to order Our Price: $8.85
28	008101063	Special Screw M10x1.25x31	8 req	Avail to order Our Price: $35.20
29	WHT003055	Washer 13x24x1.2 Din137/B C72	12 req	Current Stock: 10 Our Price: $2.00
30	008701206	Screw	12 req	Avail to order Our Price: $29.56
31	002224818	Front Propeller Shaft	1 req	Avail to order Our Price: $2,333.27
32	002224839	Seal	2 req	Avail to order Our Price: $7.29
33	008101008	Screw M10x30uni 5739/8g/Zd	4 req	Current Stock: 3 Our Price: $17.19
34	WHT000768	SPRING WASHER	4 req	Current Stock: 17 Our Price: $2.14
35	002421813	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
36	008201603	Nut	2 req	Avail to order Our Price: $3.97
37	008401620	Washer D.60x16.3x5	2 req	Avail to order Our Price: $8.07
38	002421809	BUSH	2 req	Avail to order Our Price: $48.72
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
