1990 Lamborghini LM002 USA Spec USA Fuel System (004.00)

Maintenance Parts:

Belts

PN	Item
001726951	PUMP BELT PUMP BELT NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $114.60
001626952	Pump Belt Pump Belt	Avail to order Our Price: $157.30
001609853	Alternator Drive Belt Alternator Drive Belt	Avail to order Our Price: $90.81

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $23.86

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 21 Our Price: $86.65
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948	Avail to order Our Price: $193.97
002124587	NLA (No Longer Available) Cp 2789 Thrust Plate	Avail to order Our Price: $3,098.96
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,306.12
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly	Avail to order Our Price: $5,655.40
002127409	Clutch Plate Clutch Plate	Avail to order Our Price: $1,367.41

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Avail to order Our Price: $31.69
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.29
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.53
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $762.25
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $273.87

Gaskets

PN	Item
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $1,545.77
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $292.81
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit	Avail to order Our Price: $1,472.94
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals	Avail to order Our Price: $1,006.24

Ignition

PN	Item
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA for FACTORY we have exact OE Replacement	Current Stock: 2 Our Price: $289.00
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly	Avail to order Our Price: $1,634.94
001630009	Spark Plug - 12mm Spark Plug	Avail to order Our Price: $39.29
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002	Avail to order Our Price: $1,856.19
0072004164	Key Blank - Door - LM002 Raw Lm Door Key	Current Stock: 13 Our Price: $152.82

Misc

PN	Item
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002	Current Stock: 1 Our Price: $481.57
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.18
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $295.00
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.09
002424598	Lm Reversing Switch Lm Reversing Switch	Avail to order Our Price: $117.79
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.04

Open All

Select Group and TAV

< Previous Next >

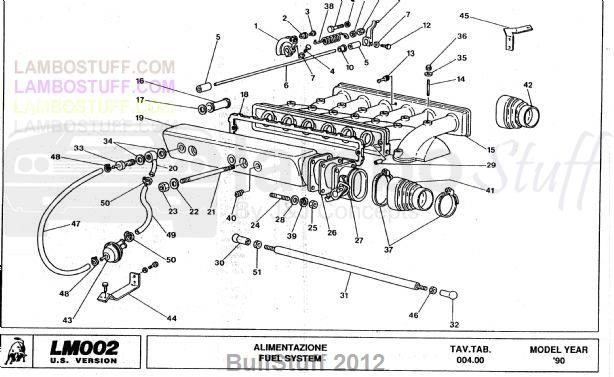

TAV: 004.00 - Fuel System

1990 Lamborghini LM002 USA Spec USA Fuel System (004.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	001310948	Carburettor Rod Pulley	1 req	Avail to order Our Price: $97.21
2	001310949	Carburettor Wire Adjustment Cy	1 req	Avail to order Our Price: $43.39
3	N01020717	HEXAGON HEAD BOLT	1 req	Current Stock: 4 Our Price: $2.00
4	008100618	Screw M6x20 Uni 5739/8g/Zd	1 req	Current Stock: 44 Our Price: $2.00
5	001323136	Shim On Injection Control Shaf	2 req	Avail to order Our Price: $15.96
6	001323135	Injection Control Shaft	1 req	Avail to order Our Price: $38.47
7	008410603	Washer D.6.4 Uni 1751/Zd	3 req	Avail to order Our Price: $2.00
8	008100625	Screw M6x16 Uni 5739/8g/Z	1 req	Avail to order Our Price: $140.00
9	WHT001197A	WASHER	1 req	Current Stock: 2 Our Price: $2.00
10	008801204	Bushing 7x16x18 mm	2 req	Current Stock: 1 Our Price: $10.89
11	001311580	Carburettor Drive Shaft Lever	2 req	Current Stock: 1 Our Price: $386.15
12	008100618	Screw M6x20 Uni 5739/8g/Zd	2 req	Current Stock: 44 Our Price: $2.00
13	001328721	Union	2 req	Avail to order Our Price: $23.42
14	WHT003165	TAP END STUD	10 req	Current Stock: 3 Our Price: $2.00
15	001328605	This item is no longer available	1 req
16	001336467	Shim Between Manifold & Rh/Lh	4 req	Avail to order Our Price: $111.93
17	008401025	Washer 20x10.5x0.5	4 req	Avail to order Our Price: $38.85
18	001323717	Intake Plenum Gasket	2 req	Avail to order Our Price: $57.92
19	001326315	NLA (No Longer Available)	1 req	*See Description
19	001326316	NLA (No Longer Available)	1 req	*See Description
20	001328002	Rh/Lh Cover Union	4 req	Current Stock: 1 Our Price: $68.52
21	008301030	Special Stud M10x20	4 req	Avail to order Our Price: $40.78
22	008401022	Copper Washer D.10.2x14x1	4 req	Current Stock: 18 Our Price: $2.00
23	008201006	M10Self Locking Nut	4 req	Avail to order Our Price: $8.80
24	WHT003028	TAP END STUD	8 req	Avail to order Our Price: $22.23
25	N01100845	HEX.NUT	8 req	Current Stock: 17 Our Price: $2.09
26	001326311	Throttle Body Gasket	2 req	Current Stock: 2 Our Price: $25.62
27	001326181	Left Side Throttle Body	1 req	Avail to order Our Price: $1,300.53
27	001326293	Right Side Throttle Body w/TPS	1 req	Avail to order Our Price: $1,654.91
28	WHT002962	WASHER	8 req	Current Stock: 11 Our Price: $2.00
29	WHT003577	Reference Pin 6h6x16C40	4 req	Avail to order Our Price: $2.09
30	001300804	Head Unit	2 req	Avail to order Our Price: $13.72
31	001328014	Lh Throttle Lever Tierod	1 req	Avail to order Our Price: $402.80
31	001328016	Rh Throttle Lever Tierod	1 req	Avail to order Our Price: $597.86
32	001308536	Three-Way N. Schellen Ys-8 U	2 req	Avail to order Our Price: $9.77
33	001328722	Screw	4 req	Current Stock: 1 Our Price: $188.61
34	003101513	Copper Washer 16.2x24x1	8 req	Avail to order Our Price: $2.00
35	N01152427	WASHER	11 req	Current Stock: 16 Our Price: $2.00
36	008200605	Simmon Nut for urama	11 req	Current Stock: 50 Our Price: $3.06
37	008839901	Clamp	4 req	Avail to order Our Price: $11.93
38	001310961	Filter Carburettor Return Spri	1 req	Current Stock: 1 Our Price: $89.63
38	008200504	M5 Lh. Special Nut	2 req	Avail to order Our Price: $18.56
39	008410906	This item is no longer available	8 req
40	008841402	Heli-Coil M14x1.5x7.1	1 req	Avail to order Our Price: $4.77
41	001327962	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
42	001327963	NLA	1 req	*See Description
43	002021144	Vacuum Limiting Valve	2 req	Avail to order Our Price: $543.99
44	002029299	Rh Limiting Valve Bracket	1 req	Avail to order Our Price: $185.62
45	002029298	Lh Limiting Valve Bracket	1 req	Avail to order Our Price: $152.82
46	N10689901	HEX.NUT	2 req	Current Stock: 5 Our Price: $2.00
47	001330989	This item is no longer available	2 req
48	400127217	SECURING CLIP	4 req	Avail to order Our Price: $2.00
49	001329300	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
50	008830205	Clamp	4 req	Avail to order Our Price: $7.91
51	008200504	M5 Lh. Special Nut	2 req	Avail to order Our Price: $18.56
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
