1990 Lamborghini LM002 USA Spec USA Transfer (Castings) (018.00)

Maintenance Parts:

Belts

PN	Item
001609853	Alternator Drive Belt Alternator Drive Belt	Avail to order Our Price: $90.83
001626952	Pump Belt Pump Belt	Avail to order Our Price: $157.33
001726951	PUMP BELT PUMP BELT NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $114.58

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $23.82

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 20 Our Price: $86.47
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,306.11
002124587	NLA (No Longer Available) Cp 2789 Thrust Plate	Avail to order Our Price: $3,098.98
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly	Avail to order Our Price: $5,655.38
002127409	Clutch Plate Clutch Plate	Avail to order Our Price: $1,367.44
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948	Avail to order Our Price: $193.98

Fuel-Air

PN	Item
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.49
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $760.98
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $273.87
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Current Stock: 4 Our Price: $31.73
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.16

Gaskets

PN	Item
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $1,545.81
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $292.86
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit	Avail to order Our Price: $1,472.91
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals	Avail to order Our Price: $1,006.24

Ignition

PN	Item
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002	Avail to order Our Price: $1,856.21
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA for FACTORY we have exact OE Replacement	Current Stock: 2 Our Price: $289.00
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly	Avail to order Our Price: $1,634.99
001630009	Spark Plug - 12mm Spark Plug	Avail to order Our Price: $39.29
0072004164	Key Blank - Door - LM002 Raw Lm Door Key	Current Stock: 13 Our Price: $152.86

Misc

PN	Item
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002	Current Stock: 1 Our Price: $481.53
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $541.02
002424598	Lm Reversing Switch Lm Reversing Switch	Avail to order Our Price: $117.76
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.10
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.20
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.22

Tools and Tookits

PN	Item	Diagram
wheeltool	Wheel install tool Screws into hub for easy installation.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

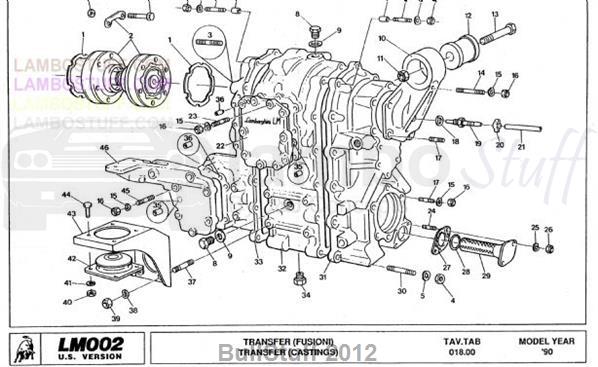

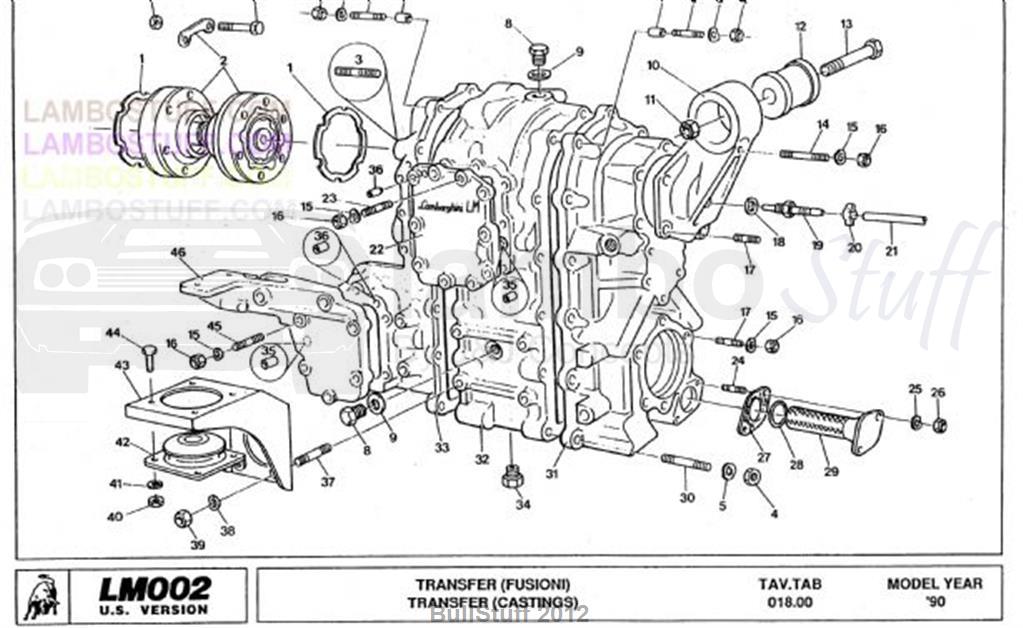

TAV: 018.00 - Transfer (Castings)

1990 Lamborghini LM002 USA Spec USA Transfer (Castings) (018.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002726210	Gasket	2 req	Current Stock: 2 Our Price: $18.18
2	002723205	This item is no longer available	1 req
3	008301021	Special Stud M10x48	2 req	Avail to order Our Price: $26.74
4	N10155210	HEX.NUT	29 req	Current Stock: 38 Our Price: $2.14
5	WHT000768	SPRING WASHER	29 req	Current Stock: 17 Our Price: $2.14
6	008301023	Special Stud M10x36	4 req	Avail to order Our Price: $26.74
7	008851502	This item is no longer available	4 req
8	008931201	Plug D.12x1.25x9 Oil5s	2 req	Avail to order Our Price: $42.01
9	WHT003362	Copper Washer D.12x22x1.5	2 req	Avail to order Our Price: $2.00
10	002721703	Cover	1 req	Avail to order Our Price: $2,073.45
11	N10268603	HEX.HEAD CLAMPING NUT €	1 req	Avail to order Our Price: $7.28
12	008921413	NLA (No Longer Available)	1 req	*See Description
13	008101411	Screw 14x1.5x85 Uni 5738/8	1 req	Current Stock: 1 Our Price: $7.58
14	008300812	Stud M8x75 Uni 5914 8g F	1 req	Avail to order Our Price: $35.77
15	WHT001514	SPRING WASHER	28 req	Current Stock: 9 Our Price: $26.80
16	008200806	M8 Uni 5588/8g/Z Nut	28 req	Current Stock: 25 Our Price: $2.00
17	008300859	Special Stud M8x20	11 req	Avail to order Our Price: $60.09
18	WHT003362	Copper Washer D.12x22x1.5	1 req	Avail to order Our Price: $2.00
19	002721857	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
20	008830903	Clamp	2 req	Avail to order Our Price: $14.00
21	002721833	Hose to Pipe	1 req	Avail to order Our Price: $56.52
22	002722088	This item is no longer available	1 req
23	008300859	Special Stud M8x20	10 req	Avail to order Our Price: $60.09
24	008300636	Special Stud M6x13	2 req	Avail to order Our Price: $16.43
25	WHT001197A	WASHER	2 req	Current Stock: 2 Our Price: $2.00
26	N01100637	HEX.NUT	2 req	Current Stock: 18 Our Price: $2.00
27	002721752	Seal	1 req	Avail to order Our Price: $33.06
28	008602801	Ring 28 mm Or	1 req	Avail to order Our Price: $3.78
29	002721749	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
30	008301022	Special Stud M10x28	23 req	Avail to order Our Price: $14.00
31	002725972	Gearbox Rear Casing	1 req	Avail to order Our Price: $5,179.80
32	002725973	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
33	002725974	This item is no longer available	1 req
34	086301141A	Magnetic Plug 22x1.5	1 req	Avail to order Our Price: $39.91
35	008851202	DOWEL	2 req	Avail to order Our Price: $3.11
36	008850607	Reference Pin 6h6x18C40	2 req	Avail to order Our Price: $6.90
37	008301020	Stud M10x20 Uni 591110-0/Zd	8 req	Avail to order Our Price: $69.43
38	008411005	Washer D.10.5 Uni 1751/F	8 req	Avail to order Our Price: $2.00
39	N10155210	HEX.NUT	8 req	Current Stock: 38 Our Price: $2.14
40	008200806	M8 Uni 5588/8g/Z Nut	8 req	Current Stock: 25 Our Price: $2.00
41	N0152785	WASHER	8 req	Current Stock: 71 Our Price: $2.00
42	005121632	Shock Absorber MountBushing	2 req	Avail to order Our Price: $70.86
43	002721750	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
44	008100840	Screw M8x1.25x18 Uni5739/	8 req	Current Stock: 7 Our Price: $2.00
45	WHT003167	TAP END STUD	6 req	Current Stock: 1 Our Price: $11.36
46	002722872	Traction Control Lever Bracket	1 req	Avail to order Our Price: $2,310.91
47	008101061	Screw 10x1.25x53 10k/Zd	6 req	Avail to order Our Price: $20.52
48	008201029	M10x1.25x8 Uni 5588- Nut	6 req	Avail to order Our Price: $6.81
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
