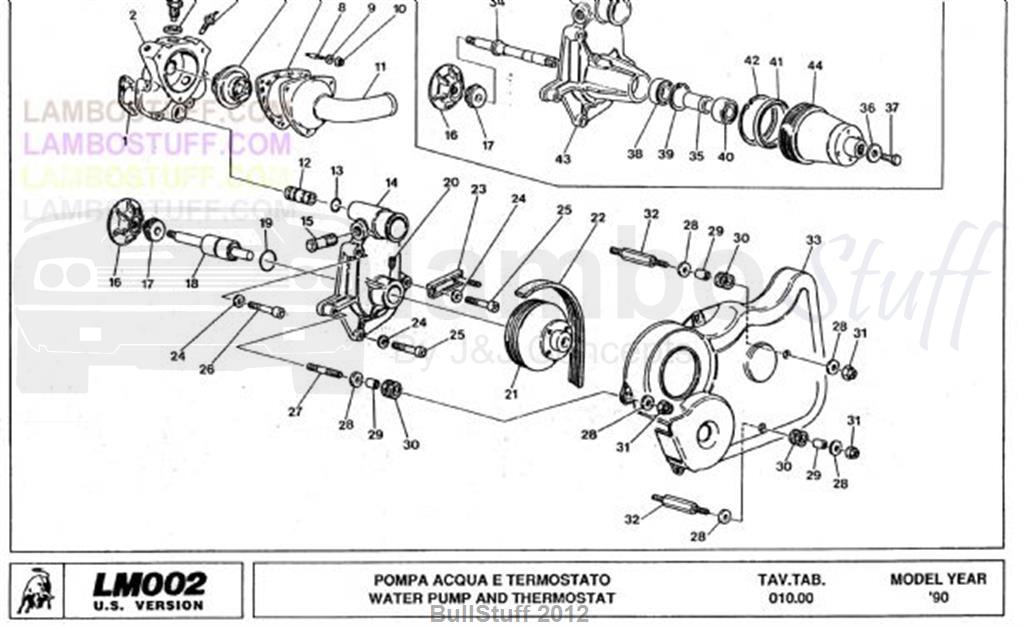

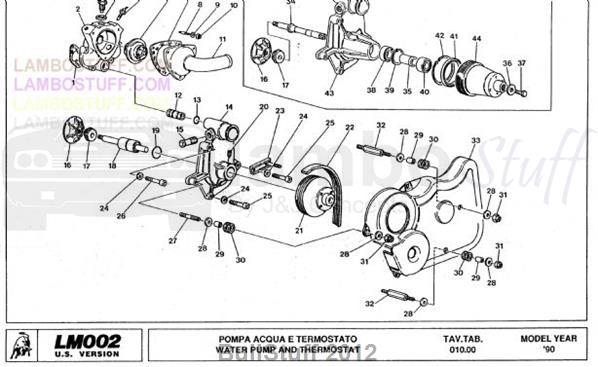

TAV: 010.00 - Water Pump and Thermostat

1990 Lamborghini LM002 USA Spec USA Water Pump and Thermostat (010.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	001721922	Seals Between Casing& Heads	2 req	Avail to order Our Price: $11.53
2	001726730	Outlet Manifold Thermostat	1 req	Avail to order Our Price: $521.82
3	001724221	Thermocouple	1 req	Avail to order Our Price: $141.50
4	N0138492	SEALING WASHER	1 req	Current Stock: 10 Our Price: $3.51
5	002021394	Reservoir Pipe Assembly	1 req	Avail to order Our Price: $445.79
6	0017006576	THERMOSTAT FOR DIABLO	1 req	Current Stock: 3 Our Price: $295.00
7	001726745	Thermostat Cover Seal	1 req	Avail to order Our Price: $42.72
8	008300615	Stud 6x22 Uni 5911/8g/Z	3 req	Avail to order Our Price: $23.56
9	N01152427	WASHER	3 req	Current Stock: 16 Our Price: $2.00
10	008200605	Simmon Nut for urama	3 req	Current Stock: 50 Our Price: $3.06
11	001727941	Thermostat Cover	1 req	Avail to order Our Price: $3,272.54
12	001726729	Coolant Pump Cover Union Pipe	1 req	Avail to order Our Price: $147.30
13	008601801	Ring 19 mm Or	4 req	Avail to order Our Price: $12.42
14	001727949	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
15	001727951	Coolant Pump Cover Thread Fitt	1 req	Avail to order Our Price: $33.70
16	001727733	NLA (No Longer Available)	1 req	*See Description
17	001726539	Mechanical Seal 361	1 req	Avail to order Our Price: $244.50
18	001731150	Coolant Pump Impeller & Pulley	1 req	Avail to order Our Price: $1,064.20
19	WHT003018	O-RING	1 req	Avail to order Our Price: $93.94
20	008700650	Screw M6 Uni 5925-67	1 req	Current Stock: 4 Our Price: $2.76
21	001727386	Coolant Pump & Fan Pulley	1 req	Avail to order Our Price: $52.78
22	001726951	PUMP BELT	1 req	Avail to order Our Price: $114.60
23	001727043	Belt Protection Plate	1 req	Avail to order Our Price: $44.81
24	WHT001514	SPRING WASHER	3 req	Current Stock: 9 Our Price: $26.80
25	008700822	Screw M8x40 Uni 5931/8g Zd	2 req	Avail to order Our Price: $2.00
26	008700836	Screw M8x55 Uni 59318g/Zd	1 req	Avail to order Our Price: $2.00
27	008300602	Stud	1 req	Avail to order Our Price: $7.75
28	WHT002961	WASHER	8 req	Current Stock: 38 Our Price: $2.00
29	001211009	Cover Grommet Shim	5 req	Avail to order Our Price: $10.06
30	008610902	Grommet 14x20x1.5 mm	5 req	Avail to order Our Price: $9.25
31	N01118312	HEX.HEAD CLAMPING NUT	4 req	Avail to order Our Price: $2.17
32	001627049	Alternator/Power Steering Brac	2 req	Avail to order Our Price: $19.23
33	001627027	Auxiliary Drive BeltGuard	1 req	Avail to order Our Price: $381.98
33	001731164	This item is no longer available	1 req
34	001731150	Coolant Pump Impeller & Pulley	1 req	Avail to order Our Price: $1,064.20
35	001731151	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
36	001731160	Coolant Pulley Flat Washer	1 req	Avail to order Our Price: $30.42
37	001731161	Coolant Pump Pulley Bolt	1 req	Avail to order Our Price: $36.68
38	008502009	Bearing	1 req	Current Stock: 10 Our Price: $58.81
39	008575001	O-Ring I 47 Uni 3654	1 req	Current Stock: 10 Our Price: $2.00
40	008512000	Bearing	1 req	Avail to order Our Price: $66.42
41	008508001	Bearing	1 req	Avail to order Our Price: $188.34
42	008579003	O-Ring I 100 Uni 3654	1 req	Avail to order Our Price: $21.40
43	001731158	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
44	001731152	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
