1990 Lamborghini LM002 USA Spec USA Transfer (1st.Idle Shaft) (016.00)

Maintenance Parts:

Belts

PN	Item
001726951	PUMP BELT PUMP BELT NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $114.58
001626952	Pump Belt Pump Belt	Avail to order Our Price: $157.33
001609853	Alternator Drive Belt Alternator Drive Belt	Avail to order Our Price: $90.83

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $23.82

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 20 Our Price: $86.47
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948	Avail to order Our Price: $193.98
002124587	NLA (No Longer Available) Cp 2789 Thrust Plate	Avail to order Our Price: $3,098.98
002127409	Clutch Plate Clutch Plate	Avail to order Our Price: $1,367.44
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly	Avail to order Our Price: $5,655.38
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,306.11

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Current Stock: 4 Our Price: $31.73
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.16
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.49
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $760.98
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $273.87

Gaskets

PN	Item
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit	Avail to order Our Price: $1,472.91
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $1,545.81
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals	Avail to order Our Price: $1,006.24
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $292.86

Ignition

PN	Item
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA for FACTORY we have exact OE Replacement	Current Stock: 2 Our Price: $289.00
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly	Avail to order Our Price: $1,634.99
001630009	Spark Plug - 12mm Spark Plug	Avail to order Our Price: $39.29
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002	Avail to order Our Price: $1,856.21
0072004164	Key Blank - Door - LM002 Raw Lm Door Key	Current Stock: 13 Our Price: $152.86

Misc

PN	Item
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002	Current Stock: 1 Our Price: $481.53
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.20
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $541.02
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.10
002424598	Lm Reversing Switch Lm Reversing Switch	Avail to order Our Price: $117.76
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.22

Open All

Select Group and TAV

< Previous Next >

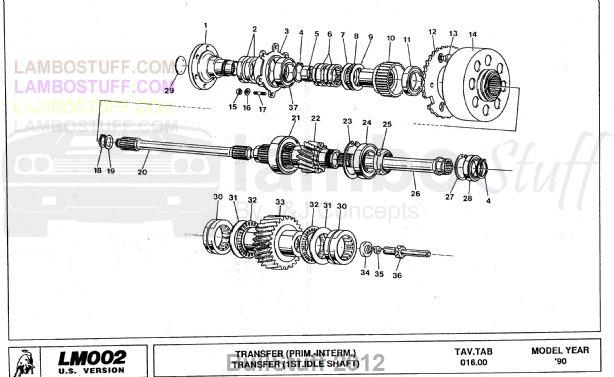

TAV: 016.00 - Transfer (1st.Idle Shaft)

1990 Lamborghini LM002 USA Spec USA Transfer (1st.Idle Shaft) (016.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002721696	Propeller Shaft Flange	1 req	Avail to order Our Price: $1,813.26
2	008605012	This item is no longer available	2 req
3	002721697	This item is no longer available	1 req
4	008584001	O-Ring E 40 Uni 7435-75	2 req	Avail to order Our Price: $10.02
5	008523512	Bearing	1 req	Avail to order Our Price: $24.41
6	008525009	2-Crown Oblique Bearing	2 req	Avail to order Our Price: $487.56
7	008525006	Bearing	1 req	Avail to order Our Price: $126.61
8	008525005	Bearing	1 req	Avail to order Our Price: $75.75
9	008525007	Bearing	1 req	Avail to order Our Price: $50.95
10	002721699	GEAR	1 req	Avail to order Our Price: $2,870.04
11	00854008	This item is no longer available	1 req
12	002721704	Crown Gear	1 req	Avail to order Our Price: $1,319.45
13	002721715	Crown Centring & Fastening Dow	3 req	Avail to order Our Price: $85.47
14	002725285	Satellite Gear Assembly	1 req	Avail to order Our Price: $7,773.42
15	008200806	M8 Uni 5588/8g/Z Nut	6 req	Current Stock: 25 Our Price: $2.00
16	WHT001514	SPRING WASHER	6 req	Current Stock: 9 Our Price: $26.80
17	008300859	Special Stud M8x20	6 req	Avail to order Our Price: $60.09
18	008582401	O-Ring E 24 Uni 7435-75	1 req	Avail to order Our Price: $2.92
19	002723137	Torsion Propeller Shaft Shim A	1 req	Avail to order Our Price: $97.34
20	002721701	Roll Bar	1 req	Avail to order Our Price: $2,870.04
21	008526001	Bearing	1 req	Avail to order Our Price: $300.47
22	002721721	Shaft Z =14	1 req	Avail to order Our Price: $2,870.04
23	008579003	O-Ring I 100 Uni 3654	1 req	Avail to order Our Price: $21.39
24	008505506	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
25	008255502	55x2 Special Ring Nut	1 req	Avail to order Our Price: $112.02
26	002721700	Roll Bar	1 req	Avail to order Our Price: $2,870.04
27	008576801	O-Ring I 68 Uni 3654	1 req	Avail to order Our Price: $16.43
28	008504007	Bearing	1 req	Avail to order Our Price: $126.90
29	008934201	Plug C 1019 D 42x2	1 req	Avail to order Our Price: $2.00
30	008526004	Bearing	2 req	Avail to order Our Price: $611.25
31	008526003	Thrust Bearing	2 req	Avail to order Our Price: $19.64
32	008526002	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
33	002721722	Shaft Z =22	1 req	Avail to order Our Price: $2,870.04
34	002721725	Intermediate Gear Coupling	1 req	Avail to order Our Price: $615.72
35	001520335	Cross Coupling	1 req	Avail to order Our Price: $33.16
36	002723131	Gear	1 req	Avail to order Our Price: $1,714.54
37	01S409561	Bearing	1 req	Avail to order Our Price: $60.69
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
