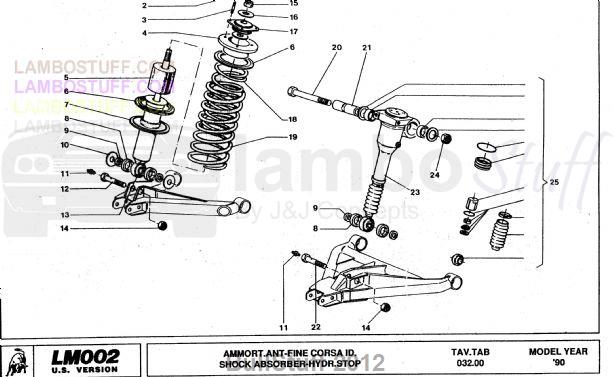

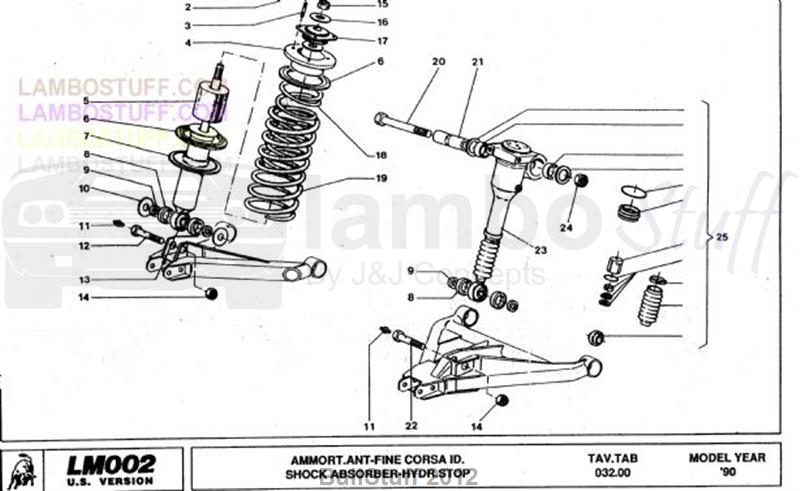

TAV: 032.00 - Shock Absorber-Hydr.Stop

1990 Lamborghini LM002 USA Spec USA Shock Absorber-Hydr.Stop (032.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008200804	Nut	8 req	Current Stock: 7 Our Price: $2.00
2	008400806	Washer 15x8x1.5 Uni 1750 R40/Z	8 req	Current Stock: 5 Our Price: $2.00
3	WHT003167	TAP END STUD	8 req	Current Stock: 1 Our Price: $11.32
4	005121633	Shock Absorber Spring Plate	2 req	Avail to order Our Price: $246.01
5	005125886	NLA (No Longer Available)	2 req	*See Description
6	005121634	Spring Plate Rubber Seal	4 req	Avail to order Our Price: $214.70
7	005121638	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
8	005225882	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	8 req	*See Description
9	005225884	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	8 req	*See Description
10	005224414	Washer	4 req	Avail to order Our Price: $27.29
11	008880601	Hydraulic 273 A Grease Dispens	4 req	Current Stock: 8 Our Price: $2.00
12	008102005	Screw 20x1.5x84 Special	2 req	Avail to order Our Price: $28.71
13	005125879	Joint	2 req	Avail to order Our Price: $97.36
14	008202008	20x17.5 8g/Zp Nut	4 req	Avail to order Our Price: $14.02
15	008201603	Nut	2 req	Avail to order Our Price: $3.95
16	008401624	ROND.D.60X16,3X7	4 req	Avail to order Our Price: $39.40
17	005121632	Shock Absorber MountBushing	2 req	Avail to order Our Price: $70.90
18	005121636	Shock Absorber InnerSpring	2 req	Avail to order Our Price: $1,153.97
19	005121635	Shock Absorber OuterSpring	2 req	Avail to order Our Price: $875.17
20	008102401	H.-H.Special Screw M24x2x128	2 req	Avail to order Our Price: $57.11
21	005122469	This item is no longer available	2 req
22	008102006	NLA (No Longer Available)	2 req	*See Description
23	005127504	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
23	005127505	NLA (No Longer Available)	1 req	*See Description
24	008202408	24x2x21 8g/Zp Nut	2 req	Avail to order Our Price: $36.76
25	005127506	NLA (No Longer Available)	2 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
