1990 Lamborghini LM002 USA Spec USA Pedal Ass. (026.00)

Maintenance Parts:

Belts

PN	Item
001726951	PUMP BELT PUMP BELT NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $114.60
001626952	Pump Belt Pump Belt	Avail to order Our Price: $157.30
001609853	Alternator Drive Belt Alternator Drive Belt	Avail to order Our Price: $90.81

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $23.86

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 21 Our Price: $86.65
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948	Avail to order Our Price: $193.97
002124587	NLA (No Longer Available) Cp 2789 Thrust Plate	Avail to order Our Price: $3,098.96
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,306.12
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly	Avail to order Our Price: $5,655.40
002127409	Clutch Plate Clutch Plate	Avail to order Our Price: $1,367.41

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Avail to order Our Price: $31.69
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.29
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.53
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $762.25
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $273.87

Gaskets

PN	Item
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $1,545.77
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $292.81
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit	Avail to order Our Price: $1,472.94
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals	Avail to order Our Price: $1,006.24

Ignition

PN	Item
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA for FACTORY we have exact OE Replacement	Current Stock: 2 Our Price: $289.00
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly	Avail to order Our Price: $1,634.94
001630009	Spark Plug - 12mm Spark Plug	Avail to order Our Price: $39.29
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002	Avail to order Our Price: $1,856.19
0072004164	Key Blank - Door - LM002 Raw Lm Door Key	Current Stock: 13 Our Price: $152.82

Misc

PN	Item
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002	Current Stock: 1 Our Price: $481.57
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.18
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $295.00
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.09
002424598	Lm Reversing Switch Lm Reversing Switch	Avail to order Our Price: $117.79
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.04

Open All

Select Group and TAV

< Previous Next >

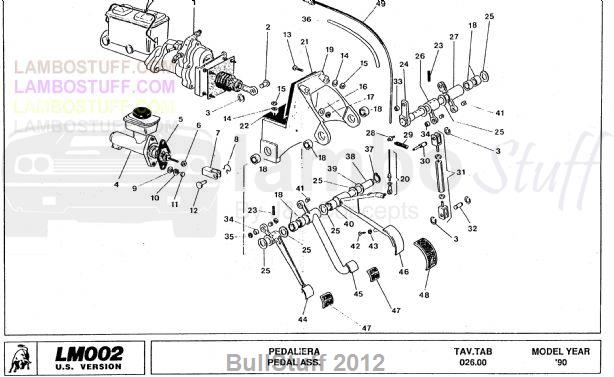

TAV: 026.00 - Pedal Ass.

1990 Lamborghini LM002 USA Spec USA Pedal Ass. (026.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	004223919	NLA (No Longer Available)	1 req	*See Description
2	004222573	Brake Booster Strut Pin	1 req	Avail to order Our Price: $29.82
3	008580802	Circlip 8 11 Din 6799	10 req	Avail to order Our Price: $4.25
4	004222711	Clutch Cylinder	1 req	Current Stock: 1 Our Price: $1,010.70
5	004225715	Seal	1 req	Current Stock: 7 Our Price: $12.04
6	008200811	M8 Uni 5589/8g/ZdNut	1 req	Avail to order Our Price: $6.79
7	410721213	Brake Cylinder Control Fork	1 req	Current Stock: 1 Our Price: $67.75
8	004207085	Brake Cylinder Pin Stopper	1 req	Avail to order Our Price: $85.47
9	008400806	Washer 15x8x1.5 Uni 1750 R40/Z	2 req	Current Stock: 5 Our Price: $2.00
10	N0152785	WASHER	2 req	Current Stock: 71 Our Price: $2.00
11	N01024230	HEXAGON HEAD BOLT	2 req	Current Stock: 4 Our Price: $2.00
12	004210745	Clutch Pedal Fork Pin	1 req	Avail to order Our Price: $42.57
13	008100835	Screw M8x65 Uni 5737/8g	2 req	Current Stock: 20 Our Price: $3.34
14	008400806	Washer 15x8x1.5 Uni 1750 R40/Z	6 req	Current Stock: 5 Our Price: $2.00
15	N0111849	HEX.HEAD CLAMPING NUT	6 req	Current Stock: 5 Our Price: $2.39
16	008401021	Washer 21x11x2 Uni 6592-69	4 req	Avail to order Our Price: $2.91
17	008201008	Nut	4 req	Current Stock: 2 Our Price: $2.00
18	008522205	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	8 req	*See Description
19	004222562	Pedal Board Bracket	1 req	Avail to order Our Price: $599.35
20	004229323	This item is no longer available	1 req
21	004223775	This item is no longer available	1 req
22	004223775	This item is no longer available	1 req
23	008900605	Elastic Pin 6x36/F	4 req	Avail to order Our Price: $2.00
24	004222719	Brake & Clutch PedalTransmissi	1 req	Avail to order Our Price: $457.71
25	008402204	Washer W20dv	8 req	Avail to order Our Price: $20.13
26	004222708	This item is no longer available	1 req
27	004222557	This item is no longer available	1 req
28	008100865	This item is no longer available	1 req
29	002109407	Clutch Cylinder Return Spring	1 req	Avail to order Our Price: $48.68
30	004229002	This item is no longer available	1 req
31	004222571	Brake Pedal Transmission Rod	2 req	Avail to order Our Price: $129.27
32	004229001	This item is no longer available	3 req
33	008521203	Bearing	1 req	Avail to order Our Price: $24.38
34	008521300	This item is no longer available	2 req
35	008401025	Washer 20x10.5x0.5	2 req	Avail to order Our Price: $38.85
36	004227980	This item is no longer available	1 req
37	008582201	O-Ring E 22 Uni 7435-75	1 req	Avail to order Our Price: $2.91
38	004222707	Brake & Clutch PedalBracket Pi	1 req	Avail to order Our Price: $232.59
39	008402205	Washer	1 req	Avail to order Our Price: $2.91
40	008522206	Bearing	1 req	Avail to order Our Price: $48.31
41	008801502	Bushing 15x17x12 mm	4 req	Avail to order Our Price: $17.89
42	N01033520	HEXAGON HEAD BOLT	1 req	Current Stock: 6 Our Price: $2.00
43	N01100845	HEX.NUT	1 req	Current Stock: 17 Our Price: $2.09
44	004229000	This item is no longer available	1 req
45	004226600	Brake Pedal	1 req	Avail to order Our Price: $351.11
46	004226602	Accelerator Pedal Assembly	1 req	Avail to order Our Price: $183.38
47	004201212	Brake Pedal Cover	2 req	Avail to order Our Price: $61.09
48	004203128	Accelerator Pedal Cover Countach	1 req	Avail to order Our Price: $93.34
49	004227981	Accelerator Wire Sheath	1 req	Avail to order Our Price: $29.82
50	003303845	NLA (No Longer Available)	1 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
