1990 Lamborghini LM002 USA Spec USA Transmission Oil System (022.00)

Maintenance Parts:

Belts

PN	Item	Diagram
001626952	Pump Belt Pump Belt		Avail to order Our Price: $145.82
001609853	Alternator Drive Belt - NLA Alternator Drive Belt		Avail to order Our Price: $85.87
001726951	NLA (No Longer Available) Pump Belt		Avail to order Our Price: $108.45

Brakes

PN	Item	Diagram
003126137	Brake Pad Front LM002 - SOLD Individually (1 Pad) Pads		Current Stock: 2 Our Price: $22.16

Drivetrain

PN	Item	Diagram
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.		Avail to order Our Price: $81.81
002128930	NLA (No Longer Available) Spare Part Lm Clutch Cylinder see pn 002136948		Avail to order Our Price: $183.18
002124587	Cp 2789 Thrust Plate Cp 2789 Thrust Plate		Avail to order Our Price: $2,924.92
002127409	Clutch Plate Clutch Plate		Avail to order Our Price: $1,293.04
002126615	Flywheel/Engine Assembly Flywheel/Engine Assembly		Avail to order Our Price: $5,343.04
0017002473	Water Pump (2WD w/o Power Stearing) (1991-1994) Coolant Pump 2WD W/o		Avail to order Our Price: $5,017.25

Fuel-Air

PN	Item	Diagram
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A		Current Stock: 1 Our Price: $29.72
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER		Avail to order Our Price: $274.81
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector		Avail to order Our Price: $377.42
002024398	Fuel Pump Fuel Pump		Current Stock: 1 Our Price: $719.65
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve		Avail to order Our Price: $264.00

Gaskets

PN	Item	Diagram
001526497	NLA (No Longer Available) Engine Gasket Kit see pn 001526477 for seal kit		Avail to order Our Price: $1,392.96
001526477	LM002 EURO - Grommet & Oil Seals Set Grommet & Oil Seals Set		Avail to order Our Price: $1,455.22
001526498	LM002 USA Engine Gasket Set Engine Gasket Kit see pn 001526478 for seals		Avail to order Our Price: $951.32
001526478	Grommet & Oil Seals Set Grommet & Oil Seals Set		Avail to order Our Price: $276.57

Ignition

PN	Item	Diagram
001627730	NLA (No Longer Available) Rotor		Avail to order Our Price: $1,853.41
001628406	Spark Plug Wire Assembly Spark Plug Wire Assembly		Avail to order Our Price: $1,549.34
001630009	Spark Plug - 12mm Spark Plug		Avail to order Our Price: $36.53
001625386	Spark Plug Wires & Bracket Spark Plug Wires & Bracket for LM002		Avail to order Our Price: $1,729.80
0072004164	Key Blank - Door - LM002 Raw Lm Door Key		Current Stock: 13 Our Price: $142.11
001627730R	Rotor Brush 1991 - 1994 Diablos OE Spec - Rotating Brush		Avail to order Our Price: $307.89

Misc

PN	Item	Diagram
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut		Avail to order Our Price: $1.87
900000382	NLA use PN 400093050D for USA replacement		Avail to order Our Price: $190.57
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.		Avail to order Our Price: $190.57
001235193	Chain Tightener Tappet Bracket Chain Tightener Tappet Bracket LM002		Current Stock: 1 Our Price: $448.89

Sensors

PN	Item	Diagram
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor		Current Stock: 1 Our Price: $287.75
0017006576	NLA (No Longer Available) WATER THERMOSTAT		Avail to order Our Price: $511.14
07M905381	Phase Sensor Phase Sensor		Avail to order Our Price: $658.83
004429307	SEE PN 0R1470226 Lambda Sensor		Avail to order Our Price: $409.78
002424598	Lm Reversing Switch Lm Reversing Switch		Avail to order Our Price: $109.65

Open All

Select Group and TAV

< Previous Next >

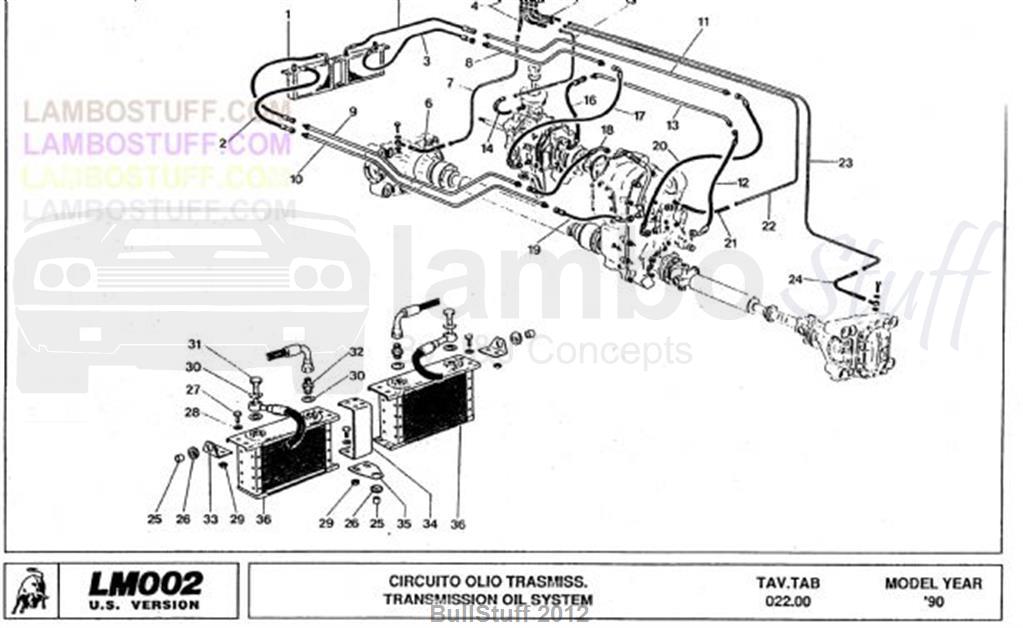

TAV: 022.00 - Transmission Oil System

1990 Lamborghini LM002 USA Spec USA Transmission Oil System (022.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a LM002 Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	002424679	Hose Assembly	2 req	Avail to order Our Price: $24.52
2	002724686	Hose Assembly	1 req	Avail to order Our Price: $371.69
3	002424680	Hose Assembly	1 req	Avail to order Our Price: $60.40
4	002722764	Breather Oil Filter Assembly	1 req	Avail to order Our Price: $650.14
5	002722805	This item is no longer available	4 req
6	002725567	This item is no longer available	1 req
7	002725359	Pipe From Front Differential T	1 req	Avail to order Our Price: $126.85
8	002424678	This item is no longer available	1 req
9	002726053	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
10	002726052	Oil Delivery Copper Pipe From	1 req	Avail to order Our Price: $152.77
11	002424681	Oil Delivery Pipe From Pump	1 req	Avail to order Our Price: $53.47
12	002424792	Oil Inlet Pipe Assembly	1 req	Avail to order Our Price: $32.38
13	002424677	Gearbox Oil Inlet Pipe	1 req	Avail to order Our Price: $40.32
14	002721832	This item is no longer available	1 req
15	002721844	Pipe From Gearbox ToOil Filter	1 req	Avail to order Our Price: $153.69
16	002424791	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
17	002424812	Pipe Assembly	1 req	Avail to order Our Price: $101.65
18	002724790	Oil Return Pipe Assembly	1 req	Current Stock: 1 Our Price: $264.78
19	002424792	Oil Inlet Pipe Assembly	1 req	Avail to order Our Price: $32.38
20	002424811	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
21	002721833	Hose to Pipe	1 req	Avail to order Our Price: $53.43
22	002721845	Oil Filter Pipe	1 req	Avail to order Our Price: $152.77
23	002721846	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
24	002721834	This item is no longer available	1 req
25	008050605	This item is no longer available	3 req
26	008610701	Grommet 7x13x2 mm	3 req	Avail to order Our Price: $32.10
27	008100620	Screw M6x12 Uni 5739/5s/Z	12 req	Avail to order Our Price: $6.29
28	N01152427	WASHER	12 req	Avail to order Our Price: $2.00
29	N01100632	HEX.NUT	12 req	Avail to order Our Price: $4.67
30	008401618	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	6 req	*See Description
31	002422821	This item is no longer available	2 req
32	002424682	Gearbox Oil RadiatorNipple	2 req	Current Stock: 1 Our Price: $3.37
33	002722829	SUPPORT	2 req	Avail to order Our Price: $62.05
34	002722827	Sheet Steel	1 req	Avail to order Our Price: $31.06
35	002723827	Bracket	1 req	Avail to order Our Price: $25.17
36	002721896	Genuine Setrab 216 Oil Radiato	2 req	Avail to order Our Price: $735.57
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
