1989 Countach 25th - USA

Group :

Tav :

Maintenance Parts:

Brakes

PN	Item	Diagram
003113912	BRAKE PAD BRAKE PAD SET NLA FROM LAMBORGHINI WAREHOUSE - SECONDARY SOURCE		Avail to order Our Price: $42.78

Common repairs and upgrades

PN	Item
007021195	SHOCK ABSORBER COUNTACH DOOR SHOCK ABSORBER WITHOUT INTERNAL PARTS YOU MAY ALSO NEED N02214812 X1 HEX.HEAD 007021193 X1 SHOCK ABSOR.FIX.PIN TO DO 007021208 X1 SHOCK ABSORBER SECURPIN A 008580801 X1 O-RING E 8 UNI 7535-75 N01118410 X1 HEX.HEAD CLAMPING NUT WHT002962 X3 WASHER	Current Stock: 7 Our Price: $112.28
007029005	BONNET LIFTER BONNET LIFTER	Current Stock: 4 Our Price: $101.97
007029006	TRUNK LIFTER STRUT TRUNK LIFTER WITH STAB.	Current Stock: 4 Our Price: $79.09
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $25.41

Drivetrain

PN	Item
001505914	OIL FILTER - DIABLO - LM002 - COUNTACH - URRACO - JALPA OIL CARTRIDGE. NOTE: THESE ARE ORDERED DIRECTLY FROM THE FACTORY. BRAND/MODEL/COLOR MAY DIFFER FROM THE PICTURE. WE HAVE NO CONTROL AS TO WHAT IS SENT WHEN THEY ARE ORDERED.	Current Stock: 20 Our Price: $93.81
002136948	SLAVE CLUTCH CYLINDER DIABLO / COUNTACH SLAVE CLUTCH CYLINDER	Current Stock: 3 Our Price: $145.71
002121294	CLUTCH MECHANISM CLUTCH MECHANISM NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $7,591.82
002121675	COUNTACH THOWOUT BEARING THRUST SLEEVE	Current Stock: 1 Our Price: $7,657.29
001529245	COUNTACH 25TH USA GASKET KIT COUNTACH USA GASKET KIT SEE 001529243 FOR GROMMETS AND SEALS	Avail to order Our Price: $2,417.78

Fuel-Air

PN	Item
07M133843	AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO PLEASE CHECK YOUR PART MANUAL FOR A DESCRIPTION FOR PERFORMANCE FILTERS SEE PN: 07M133843A	Current Stock: 2 Our Price: $35.79
002021140	WARM UP REGULATOR / HEAT REGULATOR WARM UP REGULATOR / HEAT REGULATOR	Avail to order Our Price: $1,534.10
002021172	FREQUENCY VALVE FREQUENCY VALVE BOSCH 0280150300 (028 0150 300)	Avail to order Our Price: $946.16
002021173	FUEL DAMPERS FUEL DAMPERS	Avail to order Our Price: $460.23
001628130	NLA (NO LONGER AVAILABLE) RELAY/PRINTED BOARD BOX UNIT. THIS UNIT IS NOT LONGER AVAILABLE FROM THE FACTORY.	Avail to order Our Price: $1,336.22
002021141	COUNTACH EFI FUEL INJECTION PUMP FUEL PUMP	Avail to order Our Price: $799.00
002021142B	FUEL FILTER - COUNTACH - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL FILTER USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE. AS OF 1-3-2024 DOESN'T SHOW AVAILABILITY	Avail to order Our Price: $30.48
002021145	ACCUMULATOR ACCUMULATORS	Current Stock: 1 Our Price: $696.32
002021146	COLD START INJECTOR STARTER INJECTOR	Current Stock: 4 Our Price: $380.40
002021147	FUEL INJECTOR FOR COUNTACH FUEL INJECTOR FOR COUNTACH	Current Stock: 11 Our Price: $282.36
002021170	COUNTACH FUEL DISTRIBUTOR FUEL DISTRIBUTOR 0438100106 (043 8100 106)	Avail to order Our Price: $6,302.33
002021173b	FUEL DAMPERS - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL REGULATOR USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE.	Avail to order Our Price: $267.03
002021174	COUNTACH INJECTION EFI ECU ECU	Avail to order Our Price: $4,205.56
002021176	LAMBDA O2 SENSOR LAMBDA SENSOR *MAY NEED TO USE YOUR EXISTING CONNECTOR	Current Stock: 4 Our Price: $765.73
002021176OE	LAMBDA SENSORS LAMDA SENSORS	Current Stock: 2 Our Price: $99.14
006223973	FUEL FILTER CARTRIDGE FUEL FILTER CARTRIDGE	Avail to order Our Price: $47.21
07M133843A	AIR FILTER - SPORT PERFORMANCE FILTER PERFORMANCE FILTER REPLACEMENT FOR 07M133843 AIR FILTER - MURCIELAGO SV LP 670-4	Avail to order Our Price: $884.45
07M133843KN	K&N AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO K&N'S REPLACEMENT AIR FILTERS ARE DESIGNED TO INCREASE HORSEPOWER AND ACCELERATION WHILE PROVIDING EXCELLENT FILTRATION. THESE FILTERS ARE WASHABLE AND REUSABLE AND ARE CUSTOM DESIGNED TO FIT INTO YOUR EXISTING FACTORY AIR BOX. THEIR DROP-IN DESIGN MEANS ADDING PERFORMANCE IS SIMPLE.	Avail to order Our Price: $55.37
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $18.04

Fuses-Bulbs-Relays

PN	Item
006617095	LICENSE PLATE LAMP REPLACEMENT BULB LICENSE PLATE LAMP REPLACEMENT BULB	Current Stock: 42 Our Price: $9.86
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $12.04
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $8.80
006319225	FOGLIGHT REPLACEMENT BULB FOGLIGHT REPLACEMENT BULB	Current Stock: 4 Our Price: $91.26
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.43
007021256	POWER DOOR LOCK ECU/RELAY CONTROL UNIT DEADLOCK ELECTR. C. U.	Current Stock: 1 Our Price: $394.11

Gaskets

PN	Item
001526489	ENGINE GASKET SET - COUNTACH QUATRO 5000 CARBURETED ENGINE GASKET KIT - COUNTACH QUATRO 5000 CARBURETED SEE PN 001526469 FOR SEALS	Avail to order Our Price: $2,417.78
001526469	GROMMET AND OIL SEALS SET - COUNTACH QUATRO 5000 CARBURETED GROMMET AND OIL SEALS SET COUNTACH QUATRO 5000 CARBURETED	Avail to order Our Price: $169.24
001529244	COUNTACH 25TH EURO - GASKET KIT COUNTACH EUROPE GASKET KIT SEE PN 001529243 FOR SEALS KIT	Avail to order Our Price: $2,425.84
001529243	COUNTACH GROMMET KIT - EURO/USA COUNTACH GROMMET KIT	Avail to order Our Price: $211.95

Ignition

PN	Item	Diagram
001630009	SPARK PLUG - 12MM SPARK PLUG		Avail to order Our Price: $34.85
001611403	COUNTACH WIRING HARNESS COUNTACH WIRING HARNESS		Avail to order Our Price: $3,118.93

Misc

PN	Item
006111300	LONG WIPER BLADE LONG WIPER BLADE	Current Stock: 1 Our Price: $48.07
006128790	WIPER SHORT BLADE 13 INCH WIPER SHORT BLADE (PREVIOUS PN 006111019)	Current Stock: 2 Our Price: $17.85
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.53
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $82.84
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $417.39

Sensors

PN	Item
004526663	CABIN AIR TEMPERATURE SENSOR TEMPERATURE SENSOR	Avail to order Our Price: $2,127.64
002409895	REVERSE SWITCH REVERSE SWITCH NLA FROM FACTORY PLEASR CONTACT US FOR CURRENT PRICE AND AVAILABILITY	Avail to order Our Price: $138.79
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $162.79
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $265.15
002021143	THERMOSTAT SWITCH - EFI COUNTACH ONLY ORIGINAL OEM THERMOSTAT SWITCH - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $946.16
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $573.96
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $214.18

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 93 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

TAV: 011.00 - Cooling System

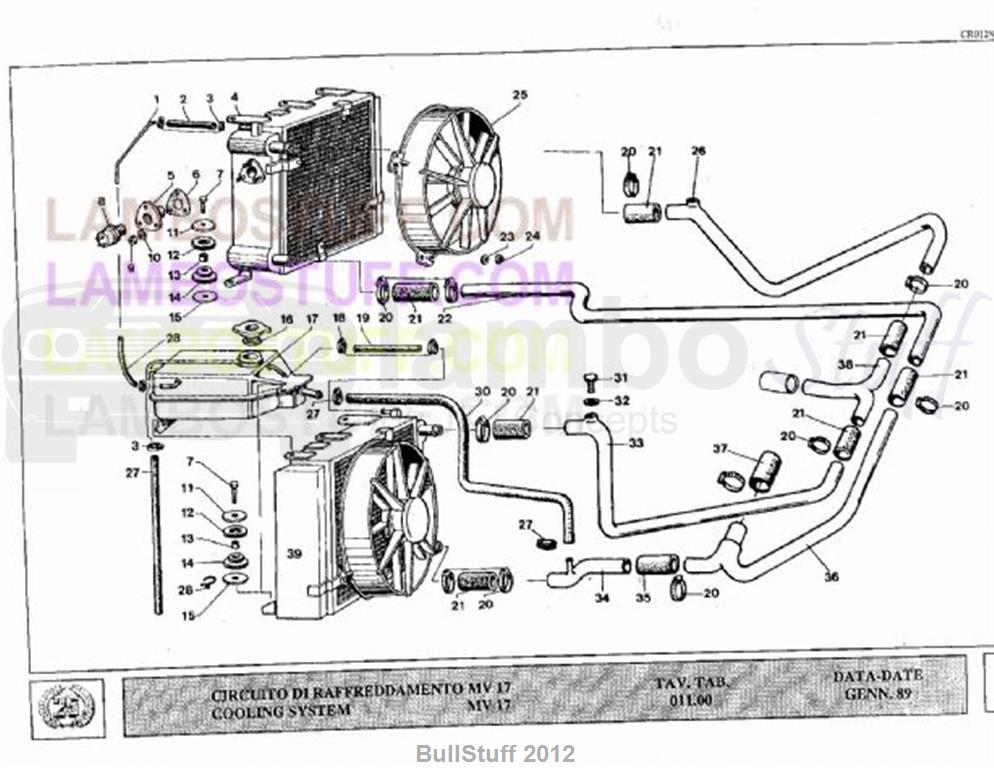

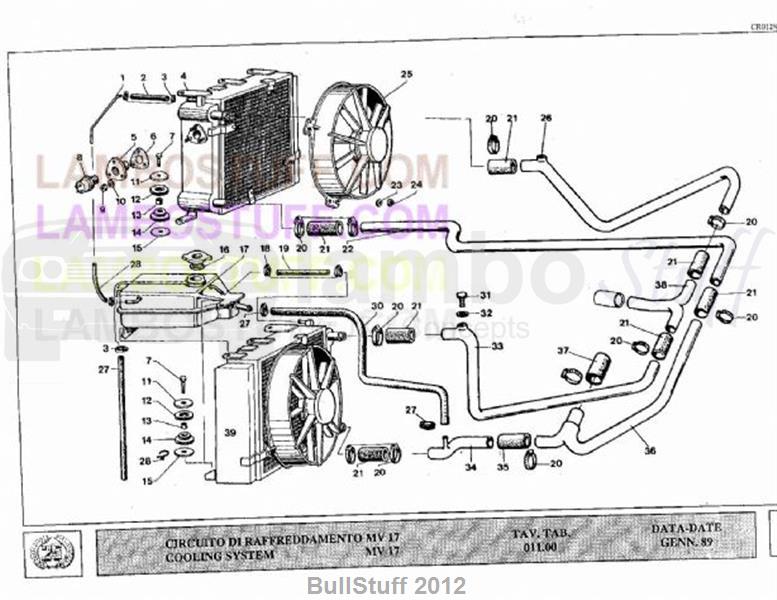

1989 Lamborghini Countach 25th USA Cooling System (011.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	001710067	RH RADIATOR/SUPPLEMENTARY RESE	1 req	Avail to order Our Price: $160.06
2	001711395	RH RADIATOR PIPE/CHASSIS PIPE	1 req	Avail to order Our Price: $31.68
3	008830204	CLAMP	4 req	Avail to order Our Price: $8.93
4	001721919	NLA (NO LONGER AVAILABLE)	1 req	*See Description
4	001728844	RH RADIATOR	1 req	Avail to order Our Price: $4,505.13
5	001724564	RADIATOR THERMAL CONTACT FLANG	1 req	Avail to order Our Price: $180.53
6	001724511	FAN MOTOR THERMOCOUPLE SEAL	1 req	Current Stock: 3 Our Price: $27.40
7	008100831	SCREW M8X30 UNI 5737/8G/Z	8 req	Avail to order Our Price: $0.31
8	001724565	FAN MOTOR THERMAL CONTACT	1 req	Avail to order Our Price: $265.15
9	008200402	M4 BRASS SPECIAL NUT	3 req	Current Stock: 2 Our Price: $2.58
10	008410402	WASHER D.4.3 UNI 1751 /ZD	3 req	Current Stock: 15 Our Price: $0.05
11	WHT001942	WASHER	6 req	Current Stock: 13 Our Price: $3.98
12	WHT001189	RUBBER WASHER MOUNT	8 req	Current Stock: 6 Our Price: $7.76
13	001701592	RADIATOR SHIM	8 req	Current Stock: 8 Our Price: $31.27
14	001701495	SUPPLEMENTARY RESERVOIR BRACKET	8 req	Current Stock: 9 Our Price: $63.35
15	WHT001942	WASHER	8 req	Current Stock: 13 Our Price: $3.98
16	001704296	COOLANT CAP	1 req	Avail to order Our Price: $168.44
17	001729183	NLA (NO LONGER AVAILABLE)	1 req	*See Description
18	008830204	CLAMP	4 req	Avail to order Our Price: $8.93
19	001710068	LH RADIATOR SUPPLEMENTARY	2 req	Avail to order Our Price: $15.41
20	WHT003080	STAINLESS STEEL CLAMP	18 req	Avail to order Our Price: $7.37
21	001724298	RADIATOR CONNECTING SLEEVE	7 req	Avail to order Our Price: $84.91
22	001728258	COOLANT OUTLET PIPE FROM RH RA	1 req	Avail to order Our Price: $43.18
23	WHT003040	WASHER	8 req	Current Stock: 2 Our Price: $9.31
24	N0211963	HEX.HEAD CLAMPING	8 req	Avail to order Our Price: $0.90
25	001728661	INTAKE FAN	1 req	Avail to order Our Price: $539.58
26	001728738	This item is no longer available	1 req
26	001728833	PIPE FROM THREE-WAY TO RH RADI	1 req	Avail to order Our Price: $45.23
27	001710069	SUPPLEMENTARY RESERVOIR DRAIN	1 req	Current Stock: 1 Our Price: $82.69
28	WHT003080	STAINLESS STEEL CLAMP	2 req	Avail to order Our Price: $7.37
29	008830204	CLAMP	3 req	Avail to order Our Price: $8.93
30	001724300	PIPE FROM THREE-WAY TO SUPPLEM	1 req	Avail to order Our Price: $47.74
31	008100864	SPECIAL SCREW M8X10	2 req	Avail to order Our Price: $3.37
32	008400802	COPPER WASHER 8.4X16X1.5	2 req	Avail to order Our Price: $1.53
33	001728739	This item is no longer available	1 req
33	001728834	PIPE FROM THREE-WAY TO LH RADI	1 req	Avail to order Our Price: $45.23
34	001728283	COOLANT OUTLET PIPE FROM LH RA	1 req	Avail to order Our Price: $280.37
35	001728294	LH RADIATOR OUTLET/REAR THREE-	1 req	Current Stock: 3 Our Price: $425.53
36	001728275	THREE-WAY PIPE ON COOLANT PUMP	0 req	Avail to order Our Price: $80.15
37	001728295	THREE-WAY COOLANT PUMP PIPE	0 req	Current Stock: 1 Our Price: $51.31
38	001728737	COOLANT OUTLET THREE0	0 req	Avail to order Our Price: $88.34
39	001728845	LH RADIATOR	0 req	Avail to order Our Price: $4,505.13
39	001728845	LH RADIATOR	0 req	Avail to order Our Price: $4,505.13
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
