1989 Lamborghini Countach 25th USA Axle

Maintenance Parts:

Brakes

PN	Item	Diagram
003113912	Brake Pad Brake Pad Set NLA from Lamborghini warehouse - Secondary Source		Avail to order Our Price: $48.23

Common repairs and upgrades

PN	Item
007021195	Shock Absorber Countach Door Shock Absorber Without Internal Parts you may also need N02214812 x1 HEX.HEAD 007021193 x1 SHOCK ABSOR.FIX.PIN TO DO 007021208 x1 SHOCK ABSORBER SECURPIN A 008580801 x1 O-RING E 8 UNI 7535-75 N01118410 x1 HEX.HEAD CLAMPING NUT WHT002962 x3 WASHER	Current Stock: 7 Our Price: $126.61
007029005	Bonnet Lifter Bonnet Lifter	Current Stock: 4 Our Price: $114.94
007029006	Trunk Lifter Strut Trunk Lifter With Stab.	Current Stock: 4 Our Price: $89.17
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 20 Our Price: $86.47
002136948	Slave Clutch Cylinder Diablo / Countach Slave Clutch Cylinder	Current Stock: 5 Our Price: $134.36
002121294	CLUTCH MECHANISM Clutch Mechanism NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $7,000.52
002121675	COUNTACH THOWOUT BEARING Thrust Sleeve	Current Stock: 1 Our Price: $8,632.38
001529245	COUNTACH 25th USA Gasket Kit Countach USA Gasket Kit See 001529243 for Grommets and seals	Avail to order Our Price: $2,229.43

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Current Stock: 4 Our Price: $31.73
002021140	WARM UP REGULATOR / HEAT REGULATOR WARM UP REGULATOR / HEAT REGULATOR	Avail to order Our Price: $1,729.41
002021172	Frequency Valve Frequency Valve Bosch 0280150300 (028 0150 300)	Avail to order Our Price: $872.46
002021173	Fuel Dampers Dampers	Avail to order Our Price: $518.87
002021146	Cold Start Injector Starter Injector	Current Stock: 4 Our Price: $350.83
002021170	Countach Fuel Distributor Fuel Distributor 0438100106 (043 8100 106)	Avail to order Our Price: $5,811.46
002021174	Countach Injection EFI ECU ECU	Avail to order Our Price: $4,741.13
002021141	Countach EFI Fuel Injection Pump Fuel Pump	Avail to order Our Price: $799.00
002021147	Countach Fuel Injector Injector	Current Stock: 11 Our Price: $318.36
002021176	Lambda O2 Sensor Lambda Sensor *may need to use your existing connector	Current Stock: 4 Our Price: $863.20
001628130	NLA (No Longer Available) Relay/Printed Board Box Unit. This unit is not longer available from the factory.	Avail to order Our Price: $1,232.20
002021142B	Fuel Filter - Countach - For Fuel Injected EFI This is the original and SAME fuel filter used on all Countach EFI systems. It has a different part number, in order to que the order from another vendor rather than the Factory. We would be more than happy to get it from Italy, but it will be the same pump and much more expensive. As of 1-3-2024 doesn't show availability	Avail to order Our Price: $38.79
002021145	Accumulator Accumulators	Current Stock: 1 Our Price: $642.13
002021173b	Fuel Dampers - For Fuel Injected EFI This is the original and SAME fuel regulator used on all Countach EFI systems. It has a different part number, in order to que the order from another vendor rather than the Factory. We would be more than happy to get it from Italy, but it will be the same pump and much more expensive.	Avail to order Our Price: $339.85
002021176OE	Lambda Sensors Original Equipment Lambda Sensors	Current Stock: 2 Our Price: $126.18
006223973	Fuel Filter Cartridge Fuel Filter Cartridge	Avail to order Our Price: $53.19
07M133843A	Air Filter - SPORT PERFORMANCE FILTER Performance filter replacement for 07M133843 Air Filter - Murcielago SV LP 670-4	Avail to order Our Price: $782.63
07M133843KN	K&N Air Filter - LM002, Countach, Diablo, Murcielago K&N's replacement air filters are designed to increase horsepower and acceleration while providing excellent filtration. These filters are washable and reusable and are custom designed to fit into your existing factory air box. Their drop-in design means adding performance is simple.	Avail to order Our Price: $70.48
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $16.01

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.06
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.59
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
006319225	55w Bulb foglight 55w Bulb	Current Stock: 4 Our Price: $102.88
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.14
007021256	Power door lock ECU/relay Control Unit Deadlock Electr. C. U.	Current Stock: 1 Our Price: $444.29

Gaskets

PN	Item
001526489	Engine Gasket Set - Countach Quatro 5000 Carbureted Engine Gasket Kit - Countach Quatro 5000 Carbureted see pn 001526469 for seals	Avail to order Our Price: $2,229.43
001526469	Grommet and Oil Seals Set - Countach Quatro 5000 Carbureted Grommet and Oil Seals Set Countach Quatro 5000 Carbureted	Avail to order Our Price: $156.07
001529244	Countach 25th EURO - Gasket Kit Countach Europe Gasket Kit see PN 001529243 for seals kit	Avail to order Our Price: $2,236.89
001529243	Countach Grommet Kit - EURO/USA Countach Grommet Kit	Avail to order Our Price: $195.43

Ignition

PN	Item	Diagram
001630009	Spark Plug - 12mm Spark Plug		Avail to order Our Price: $39.29
001611403	Countach Wiring Harness Countach Wiring Harness		Avail to order Our Price: $2,876.02

Misc

PN	Item
006111300	Long Wiper Blade Long Wiper Blade	Current Stock: 1 Our Price: $54.16
006128790	Wiper Short Blade 13 inch Wiper Short Blade (Previous PN 006111019)	Current Stock: 2 Our Price: $20.13
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98

Sensors

PN	Item
004526663	Cabin Air Temperature Sensor Temperature Sensor	Avail to order Our Price: $1,961.97
002409895	REVERSE SWITCH REVERSE SWITCH NLA FROM FACTORY PLEASR CONTACT US FOR CURRENT PRICE AND AVAILABILITY	Avail to order Our Price: $127.96
001801333	OIL & COOLANT TEMPERATURE THERMOMETER Oil & Coolant Temperature Thermometer NLA from factory. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.16
002021143	Thermostat Switch - EFI Countach only Original OEM Thermostat Switch - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $872.46
001724565	Fan Motor Thermal Contact Fan Motor Thermal Contact	Avail to order Our Price: $244.48
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $647.04
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $177.89

Open All

Select Group and TAV

< Previous Next >

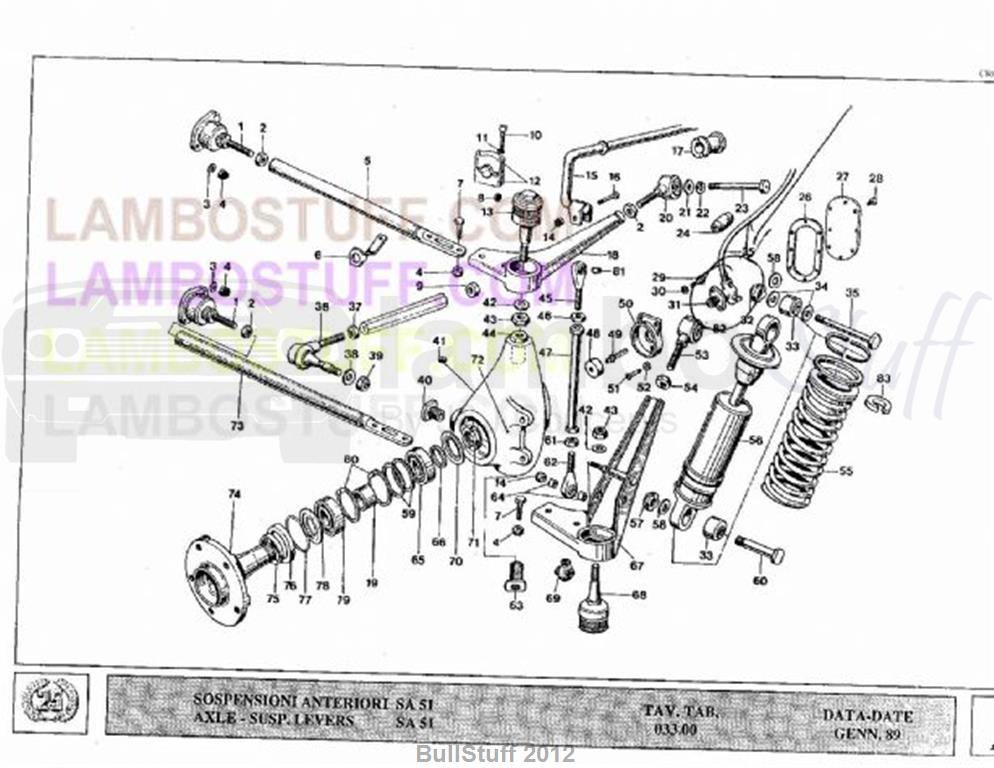

TAV: 033.00 - Axle - Susp, Levers

1989 Lamborghini Countach 25th USA Axle - Susp, Levers (033.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0	005124415	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
1	005109558	Joint	4 req	Avail to order Our Price: $494.98
2	008201411	M14 Uni 5589 8g/ZNut	6 req	Avail to order Our Price: $19.64
3	N90179103	WASHER	8 req	Current Stock: 5 Our Price: $2.00
4	008200804	Nut	16 req	Current Stock: 7 Our Price: $2.00
5	005109519	Upper Arm Strut	2 req	Avail to order Our Price: $287.73
6	005112900	Odometer Wire Bracket	1 req	Avail to order Our Price: $127.68
7	N01024230	HEXAGON HEAD BOLT	8 req	Current Stock: 4 Our Price: $2.00
8	N01118312	HEX.HEAD CLAMPING NUT	2 req	Avail to order Our Price: $2.14
9	008201412	M14x1.5 Lh Special Nut	2 req	Avail to order Our Price: $21.39
10	008700609	Screw 6x45 Uni 5931/8g/Zd	4 req	Avail to order Our Price: $2.00
11	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
12	005113584	Front Torsion Bar Bracket	2 req	Avail to order Our Price: $116.79
13	005109534	Upper Joint	2 req	Avail to order Our Price: $1,580.34
14	N0111849	HEX.HEAD CLAMPING NUT	4 req	Current Stock: 5 Our Price: $2.43
15	005120163	Front Torsion Bar	1 req	Avail to order Our Price: $755.94
16	008100807	Screw M8x40 Uni 5737/8g Zd	2 req	Avail to order Our Price: $2.00
17	005112931	Front Torsion Bar Bushing	2 req	Avail to order Our Price: $109.83
18	005109515	Rh Upper Front Arm	1 req	Avail to order Our Price: $298.24
18	005109516	Lh Upper Front Arm	1 req	Avail to order Our Price: $298.24
19	005112863	Spacer	2 req	Avail to order Our Price: $579.94
20	005109521	Suspension Joint	2 req	Avail to order Our Price: $332.21
21	008401421	Washer D.14.5x30x1 Uni 4721	8 req	Current Stock: 34 Our Price: $2.00
22	008411502	Snap Ring 24x15x3 Uni 1751 C72	2 req	Avail to order Our Price: $2.92
23	008101409	Special Screw M14x75	2 req	Avail to order Our Price: $33.45
24	005110524	Odometer Wire Washer	1 req	Avail to order Our Price: $29.66
25	005119040	Odometer Wire	1 req	Avail to order Our Price: $628.75
26	005113312	Hub Holder Cover Seal	1 req	Current Stock: 8 Our Price: $8.17
27	005113311	Hub Holder Cover	1 req	Avail to order Our Price: $62.53
28	008700419	Screw 4x12 Uni 6107/8g/Z	8 req	Avail to order Our Price: $2.92
29	N90612002	PAN HEAD BOLT	2 req	Current Stock: 37 Our Price: $2.00
30	WHT001197A	WASHER	2 req	Current Stock: 2 Our Price: $2.00
31	005121977	ODOMETER GEAR	1 req	Avail to order Our Price: $1,865.32
32	008251702	M17x1x28 Self-Locking Ring Nut	4 req	Avail to order Our Price: $4.47
33	008921704	Shock Absorber Estenblock	4 req	Avail to order Our Price: $145.18
34	008401710	Flat Washer 17x34x1	8 req	Current Stock: 21 Our Price: $48.33
35	008101701	Special Screw M17x140	4 req	Avail to order Our Price: $79.15
36	005113897	Steering Arm Joint On Hub Hold	2 req	Avail to order Our Price: $404.24
37	008201220	Nut	2 req	Current Stock: 8 Our Price: $2.04
38	008401226	LH Lever Joint Washer	2 req	Avail to order Our Price: $32.77
39	008201219	M12x1.75x11.8 Nut	2 req	Current Stock: 3 Our Price: $4.47
40	005113899	Steering Lever JointSleeve	2 req	Current Stock: 3 Our Price: $301.93
41	008930901	Taper Gas Plug 1/8	2 req	Avail to order Our Price: $11.96
42	008401420	Washer 14.5x36x4 38ncd4	4 req	Avail to order Our Price: $23.92
43	008201406	Nut	0 req	Current Stock: 8 Our Price: $2.00
44	005112861	Hub Holder Upper Joint Sleeve	0 req	Avail to order Our Price: $761.88
45	417801931A	STRAP JOINT	0 req	Avail to order Our Price: $284.41
46	008201014	M10x1x6 Uni 5589/5s/Z Nut	0 req	Current Stock: 1 Our Price: $7.20
47	005109781	Front Torsion Bar Tierod	0 req	Avail to order Our Price: $350.36
48	005109749	Odometer Gear	0 req	Avail to order Our Price: $182.83
49	005109748	Odometer Spindle	0 req	Avail to order Our Price: $130.68
50	005109747	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	0 req	*See Description
51	008700622	Screw M6x18 Uni 61095s/Z	0 req	Avail to order Our Price: $6.90
52	N01118312	HEX.HEAD CLAMPING NUT	0 req	Avail to order Our Price: $2.14
53	005109532	Lower Joint Sleeve	0 req	Current Stock: 1 Our Price: $582.95
54	008201811	M18 Uni 5589 8g Nut	0 req	Avail to order Our Price: $8.85
55	005119297	Front Suspension Spring	0 req	Current Stock: 2 Our Price: $905.01
56	005119515	Front Shock Absorber	0 req	Avail to order Our Price: $3,622.87
57	008251702	M17x1x28 Self-Locking Ring Nut	0 req	Avail to order Our Price: $4.47
58	008401708	Washer 17.5x26x3 Aq42	0 req	Current Stock: 1 Our Price: $2.92
59	005113583	Spacer	0 req	Avail to order Our Price: $15.85
60	008101704	Special Screw M17z1z56	0 req	Avail to order Our Price: $14.10
61	008201016	10x1x6 S Left Nut	0 req	Avail to order Our Price: $26.55
62	005227295	Ball Joint (reverse thread)	0 req	Avail to order Our Price: $151.61
63	005112862	Hub Holder Lower Joint Sleeve	0 req	Avail to order Our Price: $315.35
64	005227297	Ball Joint Bushing	0 req	Current Stock: 2 Our Price: $32.28
65	008503508	Bearing	0 req	Avail to order Our Price: $334.70
66	005112865	Front Hub Ring Nut Washer	0 req	Avail to order Our Price: $280.34
67	005112889	Rh Lower Arm	0 req	Avail to order Our Price: $1,107.35
67	005112890	Lh Lower Arm	0 req	Avail to order Our Price: $1,107.35
68	005109520	Lower Joint	0 req	Avail to order Our Price: $447.38
69	005109714	Sway bar joint Boot	0 req	Avail to order Our Price: $30.63
70	008874301	Nilos Ring	0 req	Avail to order Our Price: $53.48
71	008253501	RING NUT	0 req	Avail to order Our Price: $68.75
72	005112846	Lh Front Hub Holder	0 req	Avail to order Our Price: $2,243.81
72	005112847	Rh Front Hub Holder	0 req	Avail to order Our Price: $2,243.81
73	005109527	Lower Arm Tierod Assembly	0 req	Current Stock: 1 Our Price: $891.75
74	005128278	SEE PN 005138092 AND 008615601	0 req	Avail to order Our Price: $738.05
75	005119292	Hub Shim	0 req	Avail to order Our Price: $333.24
76	008615201	Oil Seal 72x52x10 mm	0 req	Current Stock: 1 Our Price: $31.12
77	WHT003573	O-Ring Ring	0 req	Current Stock: 4 Our Price: $2.82
78	008873502	Nilos Ring	0 req	Avail to order Our Price: $29.76
79	008523505	Bearing	0 req	Avail to order Our Price: $262.32
80	008577601	O-Ring I 27 Uni 3654	0 req	Current Stock: 16 Our Price: $3.89
81	005227293	This item is no longer available	0 req
82	005109529	Joint	0 req	Avail to order Our Price: $178.14
83	005129279	Shock Absorber Top Shim	0 req	Avail to order Our Price: $191.56
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
