1994 Lamborghini Diablo SE USA Electrical System (61.02.00)

Maintenance Parts:

Belts

PN	Item
001731857	Coolant Pump Alternator Belt after VIN 12583 Coolant Pump Alternator Belt	Current Stock: 1 Our Price: $122.08
004529536	Compressor Belt Until Compressor Belt	Avail to order Our Price: $211.71
004534071	Compressor Belt Compressor Belt	Avail to order Our Price: $142.47
001736517	Coolant Pump Alternator Belt (From SE VIN 12043) Coolant Pump Alternator Belt	Avail to order Our Price: $323.81

Brakes

PN	Item
003135292	Brake Pads Front - Jalpa - Early Diablo - Per Rotor Front Brake Pads	Avail to order Our Price: $524.67
003235293	Brake Pad Rear -Early Diablo - Sold Each Rear Brake Pad 1991-1993 Diablo and 1994 Diablo SE	Avail to order Our Price: $1,052.31
003331672	Ebrake Pads Set (1 pair) E Brake Pads Set (1 pair)	Avail to order Our Price: $202.76

Common repairs and upgrades

PN	Item
006329689	HIGH BEAM HEADLIGHT HIGH BEAM HEADLIGHT	Avail to order Our Price: $535.96
0079004387	SHOCK ABSORBER SHOCK ABSORBER FOR ANTERIOR COWLING	Current Stock: 2 Our Price: $139.79
0092004388	shock absorber for engine cowling shock absorber for engine cowling	Current Stock: 4 Our Price: $253.09
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
002132598	Clutch Mechanism - Early Diablo Clutch Mechanism	Avail to order Our Price: $1,674.86
002129353	THRUST SLEEVE THRUST SLEEVE - NLA (No Longer AVAILABLE) FROM FACTORY. PLEASE CHECK WITH US FOR ALTERNATIVES	Avail to order Our Price: $1,630.19
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,306.12
0017002474	Water Pump (2WD With Power Steering) (1991-1994) Coolant Pump 2WD With	Current Stock: 1 Our Price: $6,101.30
002132599	CLUTCH PRESSURE PLATE - DIABLO CLUTCH PLATE - NLA (No Longer AVAILABLE) FROM FACTORY. PLEASE CHECK WITH US FOR ALTERNATIVES - ABOUT 2 WEEK LEAD TIME	Avail to order Our Price: $1,850.00
002136948	Slave Clutch Cylinder Diablo / Countach Slave Clutch Cylinder	Current Stock: 5 Our Price: $134.59
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $350.78
0R1320001	NLA (No Longer Available) SPEED SENSOR KIT	Avail to order Our Price: $940.84
002132599K	1991 - 1994 Diablo Clutch Disk - KEVLAR HI-PERF 1991 - 1994 Diablo Clutch Disk - KEVLAR HI-PERF - Clutchtex - TZ-3022 T3	Avail to order Our Price: $900.97
005129802	Front Shock Absorber Front Shock Absorber	Current Stock: 4 Our Price: $1,159.75
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Avail to order Our Price: $104.15

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Avail to order Our Price: $31.69
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.29
AMAIRD	Hi-Performance aFe Air Filter - Diablo/Murcielago - SPORT Air Filter Murcielago - Diablo After Market aFe Air Filter 30-10133	Current Stock: 1 Our Price: $145.65
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.53
07M906031	Fuel Injector (sold ea) Please Check your Part Manual for a Description	Avail to order Our Price: $1,365.20
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $762.25
002027648R	Pressure Regulator Valve OE SPEC Pressure Regulator Valve	Avail to order Our Price: $273.87
07M133843A	Air Filter - SPORT PERFORMANCE FILTER Performance filter replacement for 07M133843 Air Filter - Murcielago SV LP 670-4	Avail to order Our Price: $782.61
07M133843KN	K&N Air Filter - LM002, Countach, Diablo, Murcielago K&N's replacement air filters are designed to increase horsepower and acceleration while providing excellent filtration. These filters are washable and reusable and are custom designed to fit into your existing factory air box. Their drop-in design means adding performance is simple.	Avail to order Our Price: $70.48

Fuses-Bulbs-Relays

PN	Item
006030676	Light Relay Light Relay	Current Stock: 3 Our Price: $184.13
006034961	Relay Relay	Current Stock: 4 Our Price: $25.86
006036296	NLA (No Longer Available) Relay	Avail to order Our Price: $24.68
006036297	NLA (No Longer Available) Relay	Avail to order Our Price: $46.74
006311155	Relay Relay	Avail to order Our Price: $67.32
006329694	Bulb Headlight Bulb headlight	Avail to order Our Price: $63.82
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.56
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.09
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
410947413	RED DOOR LIGHT RED DOOR LIGHT - NLA (No Longer Available) TO ORDER FROM FACTORY PLEASE CONTACT US FOR OTHER OPTIONS.	Avail to order Our Price: $92.91

Gaskets

PN	Item
001536079	Engine Gasket Set Diablo SE S.E. Engine Gasket Kit- See PN 1536080 for Grommet and oil Kit	Avail to order Our Price: $2,980.05
001536080	Grommet and Oil Seals Set - Diablo SE Grommet and Oil Seals Set - Diablo SE	Avail to order Our Price: $282.41
0R1320002	Diablo REAR Differential Seal Kit Dif Seal Kit	Current Stock: 1 Our Price: $48.53
600940141L	latch Gasket Left latch Gasket Set Left This is the rubber/plastic gasket that is located on the Left side between the outer door latch and the door frame	Current Stock: 5 Our Price: $24.28

Ignition

PN	Item
001630289	Spark Plug - Diablo Spark Plug	Current Stock: 50 Our Price: $32.83
DiabloWireSet	Spark Plug Wires 1991-1995 Diablo - Aftermarket Spark Plug Wires 1991 through 1995 ONLY for systems using a Distributor cap	Avail to order Our Price: $820.50
001627728	DISTRIBUTOR CAP !991-1993 DIABLO Cap Distributor Cap 1991 - 1993 NO LONGER AVAILABLE TO ORDER FROM FACTORY THIS IS OE SPEC OPTION	Current Stock: 3 Our Price: $340.00
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA for FACTORY we have exact OE Replacement	Current Stock: 2 Our Price: $289.00
001630792N	Coil pack OE SPEC REPLACEMENT Coil pack OE SPEC REPLACEMENT	Avail to order Our Price: $1,957.58

Misc

PN	Item
009420126	WINDSHIELD WIPER BLADE WINDSHIELD WIPER BLADE	Avail to order Our Price: $36.40
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98

Sensors

PN	Item
001327641	Potentiometer TPS Throttle Position Sensor Diablos Potentiometer	Avail to order Our Price: $199.79
001536755	OIL TEMPERATURE THERMOSTAT OIL TEMPERATURE THERMOSTAT - also used on Diablo 91-93 2wd and 94	Current Stock: 1 Our Price: $544.18
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $295.00
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $136.52
004526663	Cabin Air Temperature Sensor Temperature Sensor	Avail to order Our Price: $1,965.17
07L919501A	Water Temperature Sensor Water Temperature Sensor	Current Stock: 3 Our Price: $375.18
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.09
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.18
001724565	Fan Motor Thermal Contact Fan Motor Thermal Contact	Avail to order Our Price: $244.50
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.04

Tools and Tookits

PN	Item	Diagram
004129973	DIABLO FRONT TOW HITCH ASSEMBLY DIABLO FRONT TOW HITCH ASSEMBLY		Avail to order Our Price: $1,525.98

Open All

Select Group and TAV

< Previous Next >

TAV: 61.02.00 - Electrical System

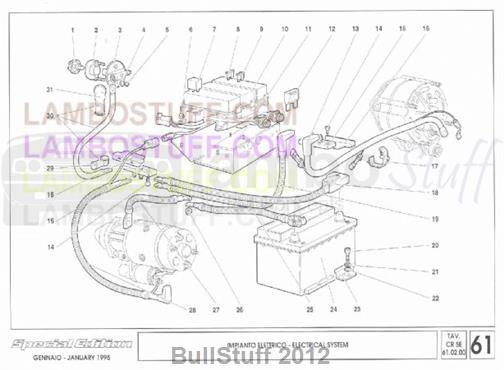

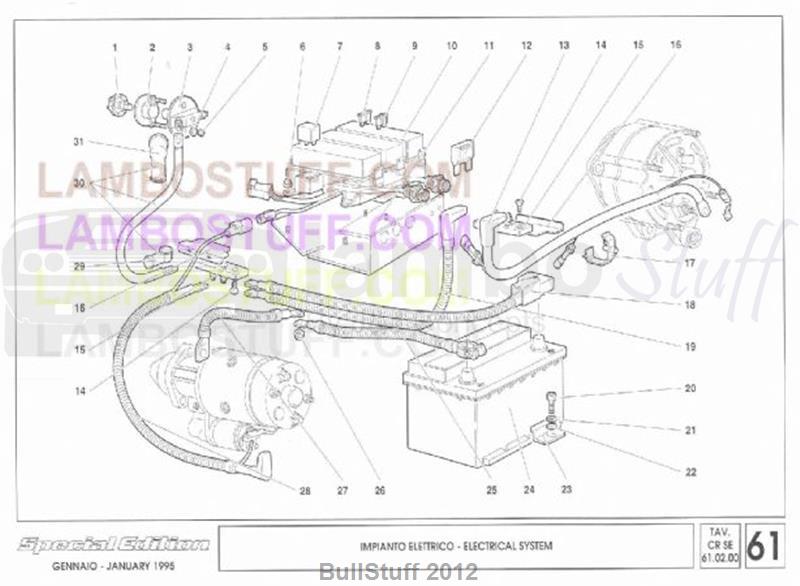

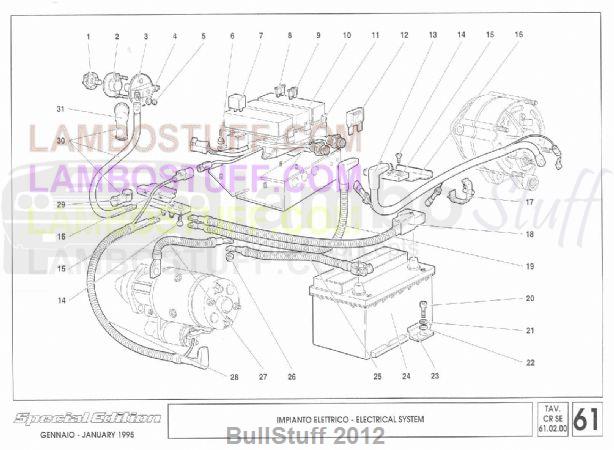

1994 Lamborghini Diablo SE USA Electrical System (61.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	005931167	Battery Disconnect Knob	1 req	Avail to order Our Price: $104.67
2	005931299	Battery Disconnect Flange	1 req	Current Stock: 1 Our Price: $272.10
3	005931163	Battery Disconnect	1 req	Avail to order Our Price: $273.58
4	WHT001187	Washer 10x5.3x1 Uni 6952 Cat-A	2 req	Current Stock: 8 Our Price: $2.00
5	N0211963	HEX.HEAD CLAMPING	2 req	Avail to order Our Price: $2.00
6	008200605	Simmon Nut for urama	3 req	Current Stock: 50 Our Price: $3.06
7	006036296	NLA (No Longer Available)	6 req	*See Description
7	006036297	NLA (No Longer Available)	2 req	*See Description
7	006034540	Diode Box	1 req	Current Stock: 9 Our Price: $22.74
8	001626192	Blade Fuse 5a Beige	1 req	Current Stock: 20 Our Price: $2.00
8	001626697	Blade Fuse 10 A. Red	4 req	Current Stock: 20 Our Price: $2.00
8	001626193	Diablo Blade Fuse 15a Cobalt Blue	2 req	Current Stock: 20 Our Price: $2.00
8	001633966	25 A Blade Fuse	4 req	Current Stock: 18 Our Price: $2.00
9	006134479	Drl Diode Holder	1 req	Avail to order Our Price: $47.41
10	006135123	Rear Relay Box Wiring	1 req	Avail to order Our Price: $3,255.01
11	006134959	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
12	006036271	40a Maxi Fuse	1 req	Avail to order Our Price: $11.08
12	006036272	80a Maxi Fuse	1 req	Avail to order Our Price: $31.61
12	006036273	100a Maxi Fuse	1 req	Avail to order Our Price: $31.61
13	006133727	Alternator/Joint Wiring	1 req	Avail to order Our Price: $738.00
14	008700801	Screw M8x16 Uni 5933/5s/Z	4 req	Current Stock: 18 Our Price: $2.00
15	001606170	BATTERY WIRE TERMINALS	2 req	Avail to order Our Price: $62.68
16	006132457	Base Positioning Reference Pla	2 req	Avail to order Our Price: $7.91
17	008832006	Peg	3 req	Avail to order Our Price: $3.43
18	006135926	Battery-Joint 2 Wire	1 req	Current Stock: 1 Our Price: $227.37
19	006135927	Joint 1-Joint 2 Wire	1 req	Current Stock: 1 Our Price: $168.48
20	008700815	Screw	1 req	Current Stock: 18 Our Price: $2.00
21	008410819	Snap Ring D.8 Din 7980	1 req	Current Stock: 8 Our Price: $2.68
22	WHT002962	WASHER	1 req	Current Stock: 11 Our Price: $2.00
23	004130608	Battery Mounting Plate	1 req	Avail to order Our Price: $32.41
24	005935560	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
25	006135925	Battery-Chassis Wire	1 req	Avail to order Our Price: $207.99
26	008200824	8x1.25 Din 6923 6s/Z Nut	1 req	Avail to order Our Price: $2.00
27	006130080	Starter Motor/Chassis Wire	1 req	Avail to order Our Price: $309.16
28	006133726	Battery/Starter Motor Wire	1 req	Avail to order Our Price: $466.65
29	006134287	Point Joint Cap	1 req	Avail to order Our Price: $42.72
30	006133728	Battery Disconnect/Joint Wire	1 req	Avail to order Our Price: $59.27
31	006132132	Power Joint Cap	1 req	Avail to order Our Price: $4.47
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
