1974 - 1978 Countach LP400 - USA

Group :

Tav :

Maintenance Parts:

Belts

PN	Item	Diagram
004504532	BELT BELT FOR AIR CONDITIONER WE HAVE SOURCE IT IS NLA FROM LAMBORGHINI		Current Stock: 5 Our Price: $50.00

Common repairs and upgrades

PN	Item
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 6 Our Price: $28.84
007021195	SHOCK ABSORBER COUNTACH DOOR SHOCK ABSORBER WITHOUT INTERNAL PARTS YOU MAY ALSO NEED N02214812 X1 HEX.HEAD 007021193 X1 SHOCK ABSOR.FIX.PIN TO DO 007021208 X1 SHOCK ABSORBER SECURPIN A 008580801 X1 O-RING E 8 UNI 7535-75 N01118410 X1 HEX.HEAD CLAMPING NUT WHT002962 X3 WASHER	Current Stock: 3 Our Price: $113.61
007029006	TRUNK LIFTER STRUT TRUNK LIFTER WITH STAB.	Current Stock: 2 Our Price: $80.04
007029005	BONNET LIFTER BONNET LIFTER	Current Stock: 4 Our Price: $103.15

Drivetrain

PN	Item
004219984	MASTER CLUTCH CYLINDER CLUTCH CYLINDER CONTROL ASSEMBLY	Current Stock: 1 Our Price: $320.63
002109861	NLA (NO LONGER AVAILABLE) ENGINE FLYWHEEL	Avail to order Our Price: $2,805.30
002109864	THRUST BEARING THRUST BEARING	Avail to order Our Price: $6,773.06
002109862	CLUTCH PLATE CLUTCH PLATE	Current Stock: 1 Our Price: $1,284.48
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 3 Our Price: $43.87

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $546.34
002021146	COLD START INJECTOR STARTER INJECTOR	Current Stock: 4 Our Price: $381.54
002021174	COUNTACH INJECTION EFI ECU ECU	Avail to order Our Price: $4,259.93
002021141RE	COUNTACH EFI FUEL INJECTION PUMP FUEL PUMP	Avail to order Our Price: $799.00
002021147	FUEL INJECTOR FOR COUNTACH FUEL INJECTOR FOR COUNTACH	Current Stock: 11 Our Price: $285.72
002021176	LAMBDA O2 SENSOR LAMBDA SENSOR *MAY NEED TO USE YOUR EXISTING CONNECTOR	Current Stock: 4 Our Price: $774.05
002021141	COUNTACH EFI FUEL INJECTION PUMP COUNTACH FUEL INJECTION INLINE FUEL PUMP	Avail to order Our Price: $1,441.65
002021142B	FUEL FILTER - COUNTACH - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL FILTER USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE. AS OF 1-3-2024 DOESN'T SHOW AVAILABILITY	Avail to order Our Price: $31.41
002021173b	FUEL DAMPERS - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL REGULATOR USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE.	Current Stock: 1 Our Price: $275.18
002021176OE	LAMBDA SENSORS LAMDA SENSORS	Current Stock: 2 Our Price: $102.17
002021170	COUNTACH FUEL DISTRIBUTOR FUEL DISTRIBUTOR 0438100106 (043 8100 106)	Avail to order Our Price: $6,326.69
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $105.28
002021172	FREQUENCY VALVE FREQUENCY VALVE BOSCH 0280150300 (028 0150 300)	Avail to order Our Price: $949.81
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 2 Our Price: $23.90
002021173	FUEL DAMPERS FUEL DAMPERS	Avail to order Our Price: $464.98
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $15.31

Fuses-Bulbs-Relays

PN	Item
006617095	LICENSE PLATE LAMP REPLACEMENT BULB LICENSE PLATE LAMP REPLACEMENT BULB	Current Stock: 42 Our Price: $9.99
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $12.19
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $8.88
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.35
006311155	RELAY RELAY	Avail to order Our Price: $60.38
006311154	RELAY RELAY	Avail to order Our Price: $50.32
006617093	12V 5W BULB 12V 5W BULB	Avail to order Our Price: $18.24
006309758	CYLINDER BULB 6411/12V 10W CYLINDER BULB 6411/12V 10W	Avail to order Our Price: $10.69

Gaskets

PN	Item	Diagram
001526487	NLA (NO LONGER AVAILABLE) ENGINE GASKET KIT SEE PN 001526467 FOR SEALS KIT		Avail to order Our Price: $1,742.61
001526467	NLA (NO LONGER AVAILABLE) GROMMET & OIL SEALS SET		Avail to order Our Price: $143.99

Ignition

PN	Item	Diagram
001610428	DISTRIBUTOR/SPARK PLUG WIRES - DUAL DISTRIBUTOR IGNITION SYSTEM DISTRIBUTOR/SPARK PLUG WIRES		Avail to order Our Price: $1,162.38
001611403	COUNTACH WIRING HARNESS COUNTACH WIRING HARNESS		Avail to order Our Price: $3,131.99

Misc

PN	Item
006128790	WIPER SHORT BLADE 13 INCH WIPER SHORT BLADE (PREVIOUS PN 006111019)	Current Stock: 1 Our Price: $18.08
006111300	LONG WIPER BLADE LONG WIPER BLADE	Avail to order Our Price: $48.67
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.57
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $417.39
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $82.84

Sensors

PN	Item
002409895	REVERSE SWITCH REVERSE SWITCH NLA FROM FACTORY PLEASR CONTACT US FOR CURRENT PRICE AND AVAILABILITY	Avail to order Our Price: $139.21
002021143	THERMOSTAT SWITCH - EFI COUNTACH ONLY ORIGINAL OEM THERMOSTAT SWITCH - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $949.81
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $266.14
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $194.30
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $580.56

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 88 Our Price: $15.72

Open All

Select Group and TAV

< Previous Next >

TAV: 16 - Gearbox

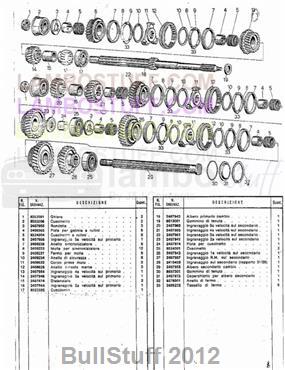

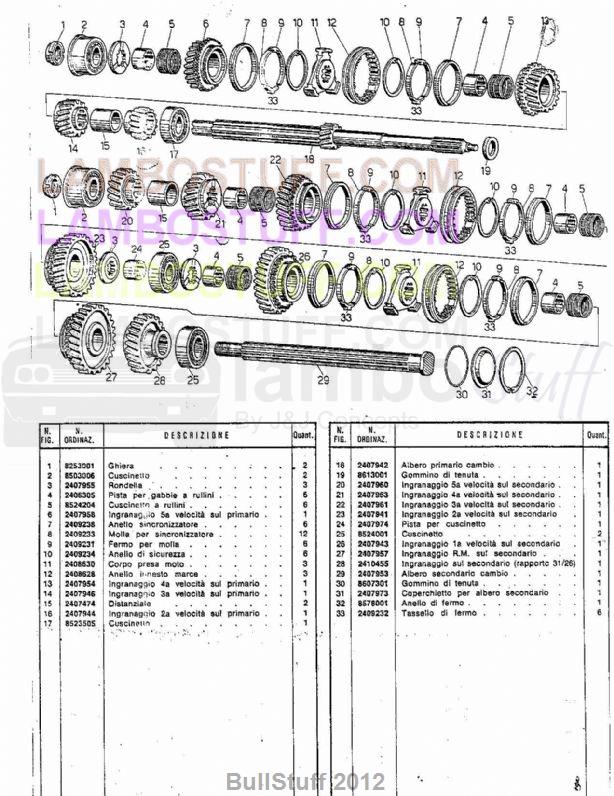

1974 - 1978 Lamborghini Countach LP400 USA Gearbox (16)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008253001	M30X1.5X44 RING NUT	2 req	Avail to order Our Price: $62.11
2	008503006	BEARING	2 req	Avail to order Our Price: $727.27
3	002407955	1-2-5 SPEED SHIM ADJUSTMENT WA	3 req	Avail to order Our Price: $224.08
4	002406305	NEEDLE CAGE TRACK	6 req	Avail to order Our Price: $843.04
5	008524204	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	6 req	*See Description
6	002407958	5TH SPEED GEAR ON PRIMARY	1 req	Avail to order Our Price: $693.54
7	002409238	SYNCHRONISER RING	6 req	Avail to order Our Price: $446.74
8	002409233	SYNCHRONISER RING INNER SPRING	12 req	Avail to order Our Price: $369.73
9	002409231	SYNCHRONISER SPRING BLOCK	6 req	Avail to order Our Price: $24.53
10	002409234	SYNCHRONISER SAFETY RING	6 req	Avail to order Our Price: $24.53
11	002408630	GEARBOX DRIVE UNIT	3 req	Avail to order Our Price: $1,011.73
12	002408628	GEAR ENGAGING RING	3 req	Avail to order Our Price: $6,436.65
13	002407954	4TH SPEED GEAR ON PRIMARY	1 req	Avail to order Our Price: $601.32
14	002407946	3RD SPEED GEAR ON PRIMARY	1 req	Avail to order Our Price: $680.57
15	002407474	GEAR SHIM ON SECONDARY	2 req	Current Stock: 4 Our Price: $113.22
16	002407944	2ND SPEED GEAR ON PRIMARY	1 req	Avail to order Our Price: $1,255.86
17	008523505	BEARING	1 req	Avail to order Our Price: $285.73
18	002407942	PRIMARY SHAFT	1 req	Avail to order Our Price: $1,422.15
19	008613001	OIL SEAL	1 req	Avail to order Our Price: $16.12
20	002407960	5TH SPEED GEAR ON SECONDARY	1 req	Avail to order Our Price: $603.91
21	002407963	4TH SPEED GEAR ON SECONDARY	1 req	Avail to order Our Price: $614.29
22	002407961	3RD SPEED GEAR ON SECONDARY	1 req	Avail to order Our Price: $603.91
23	002407941	2ND SPEED GEAR ON SECONDARY	1 req	Avail to order Our Price: $2,461.17
24	002407974	INTERMEDIATE SHIM BEARING TRAC	1 req	Avail to order Our Price: $372.76
25	008524001	BEARING	2 req	Avail to order Our Price: $183.12
26	002407943	1ST SPEED GEAR ON SECONDARY	1 req	Avail to order Our Price: $1,980.62
27	002407957	REVERSE SECONDARY IDLE GEAR	1 req	Avail to order Our Price: $710.45
28	002410455	TRANSMISSION GEAR 31/26/C RATI	1 req	Avail to order Our Price: $1,695.55
29	002407953	NLA (NO LONGER AVAILABLE)	1 req	*See Description
30	008607301	RING 73 MM OR	1 req	Current Stock: 1 Our Price: $1.20
31	002407973	COVER	1 req	Avail to order Our Price: $78.86
32	N0123501	RETAINER RING	1 req	Current Stock: 7 Our Price: $8.19
33	002409232	SYNCHRONISER RING BLOCK	6 req	Avail to order Our Price: $55.04
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
