TAV: 26.02.00 - REAR DIFFERENTIAL

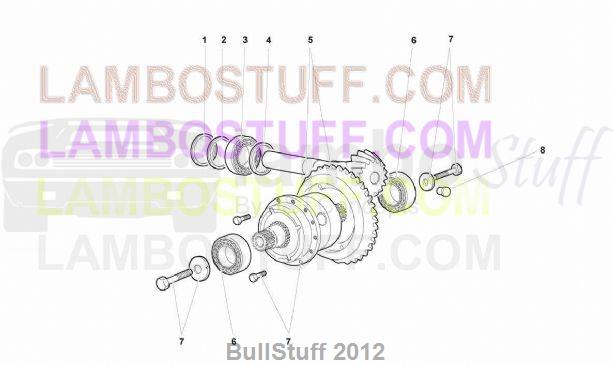

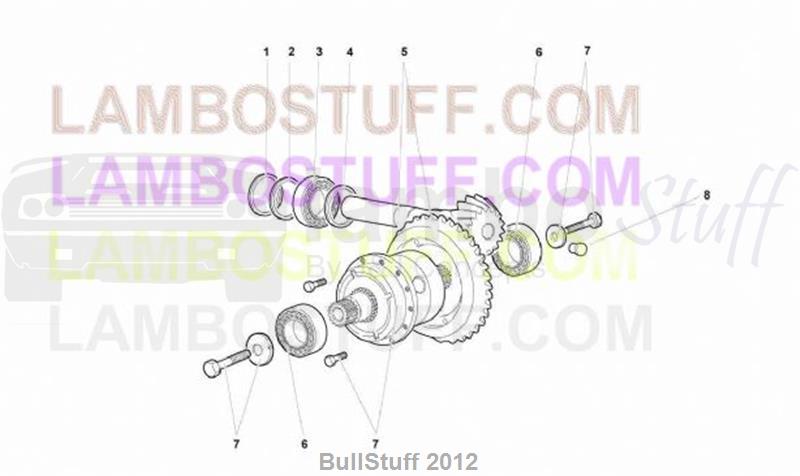

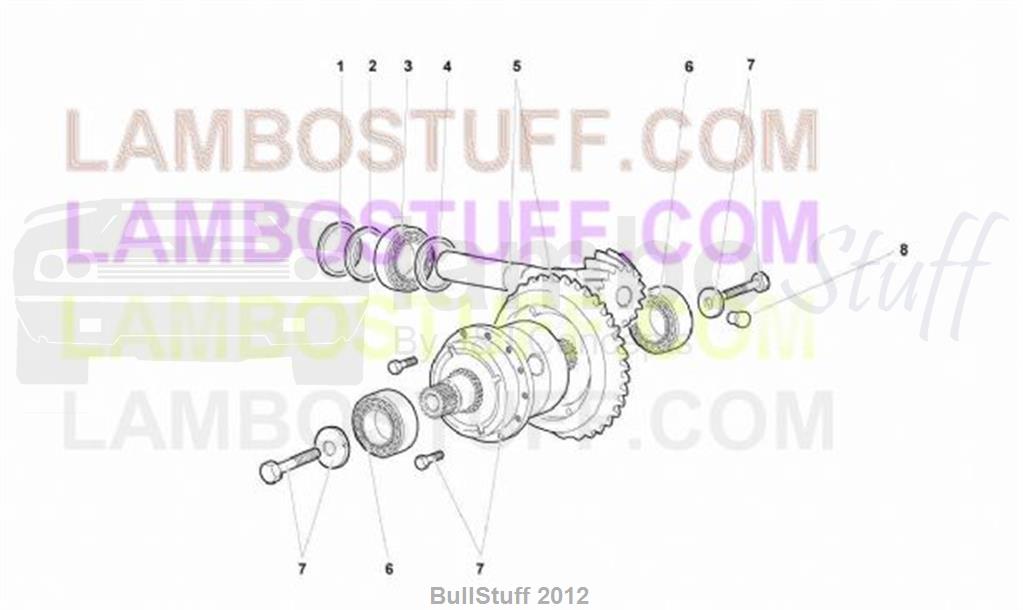

2003 Lamborghini MURCIELAGO COUPE USA REAR DIFFERENTIAL (26.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Murcielago Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	0B9517213D	DISTANCE RING 0.15 MM SHIM	1 req	Avail to order Our Price: $14.15
1	0B9517213C	DISTANCE RING 0.2 MM SHIM	1 req	Avail to order Our Price: $3.35
1	0B9517213B	DISTANCE RING 0.25 MM SHIM	1 req	Avail to order Our Price: $4.69
1	0B9517213A	DISTANCE RING 0.3 MM SHIM	1 req	Avail to order Our Price: $4.69
1	0B9517213	DISTANCE RING 0.5 MM SHIM	1 req	Avail to order Our Price: $7.08
2	0B9517201	DISTANCE RING SPACER	1 req	Avail to order Our Price: $67.08
3	008545504	NO DESCRIPTION - PLEASE CHECK YOUR BOOK BEARING	1 req	Avail to order Our Price: $183.87
4	0B9517609D	SPACER RING 0.15 MM SHIM	1 req	Avail to order Our Price: $7.08
4	0B9517609C	SPACER RING 0.2 MM SHIM	1 req	Avail to order Our Price: $4.24
4	0B9517609B	SPACER RING 0.25 MM SHIM	1 req	Avail to order Our Price: $4.24
4	0B9517609A	SPACER RING 0.3 MM SHIM	1 req	Avail to order Our Price: $4.24
4	0B9517609	SPACER RING 0.5 MM SHIM	1 req	Avail to order Our Price: $5.66
5	0B9517141	GEAR SET BEVEL GEAR PAIR	1 req	Avail to order 1 Used Available Our Price: $3,811.23
6	008545005	REAR DIFF BEARING BEARING	3 req	Avail to order Our Price: $251.61
7	0B9517021	REAR DIFFERENTIAL DIFFERENTIAL SET	1 req	Avail to order Our Price: $8,002.09
8	008933601	PLUG PLUG	1 req	Current Stock: 1 Our Price: $23.42
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.

Already registered?

Don't Have an Account?

Need Help?

Popular Help Topics

Lamborghini Parts Diagrams

2003 MURCIELAGO COUPE - USA

Maintenance Parts:

Belts

Brakes

Common repairs and upgrades

Drivetrain

Fuel-Air

Fuses-Bulbs-Relays

Gaskets

Ignition

Misc

Sensors

Tools and Tookits

Select Group and TAV

TAV: 26.02.00 - REAR DIFFERENTIAL

TAV: 26.02.00 - REAR DIFFERENTIAL
