TAV: 61.03.00 - Electrical System

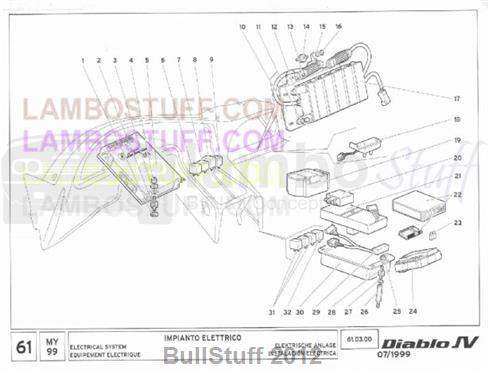

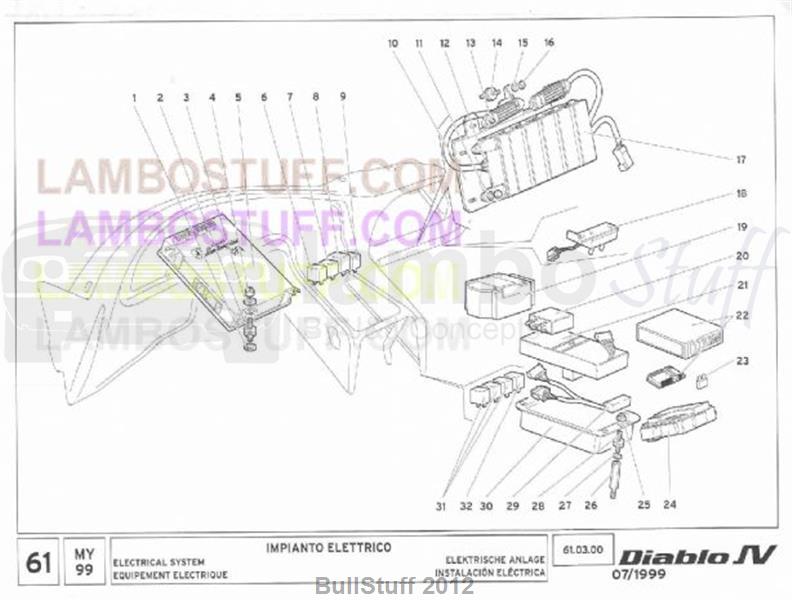

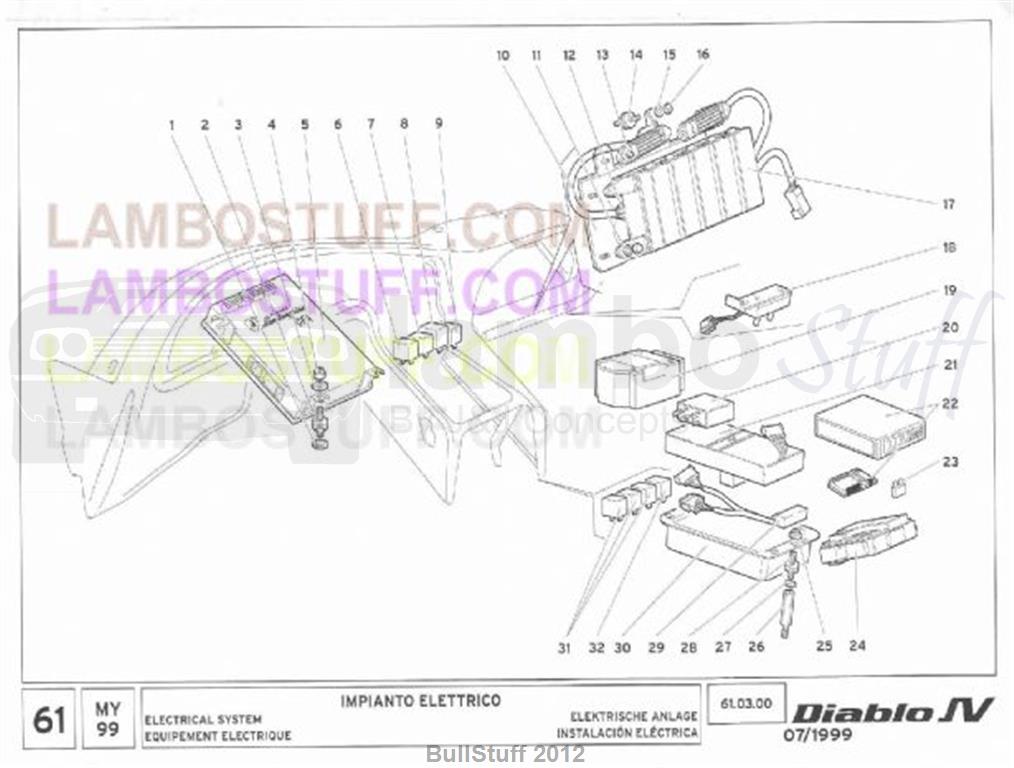

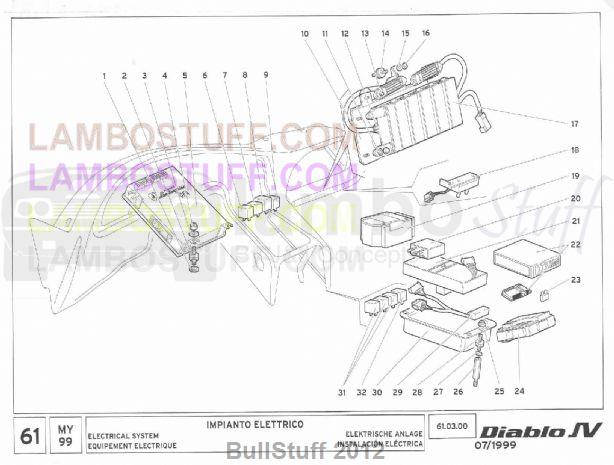

1999 Lamborghini Diablo SV USA Electrical System (61.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	WHT002963	SPRING LOCK WASHER	3 req	Current Stock: 26 Our Price: $0.10
2	008920602	RUBBER SUPPORT	3 req	Avail to order Our Price: $15.83
3	WHT002961	WASHER	3 req	Current Stock: 38 Our Price: $0.40
4	N01118312	HEX.HEAD CLAMPING NUT	3 req	Avail to order Our Price: $2.14
5	0020002640	GFA 132SV EU ECU	1 req	Avail to order Our Price: $37,287.55
5	0020002642	NLA (NO LONGER AVAILABLE)	1 req	*See Description
5	0020002641	GFA 132SV PB ECU	1 req	Avail to order Our Price: $8,211.88
6	006311155	RELAY	1 req	Avail to order Our Price: $67.29
7	006036297	NLA (NO LONGER AVAILABLE)	1 req	*See Description
8	006030676	LIGHT RELAY	1 req	Current Stock: 3 Our Price: $184.17
9	006036296	NLA (NO LONGER AVAILABLE)	1 req	*See Description
10	0061003075	ELECTRICAL COMPONENT	1 req	Avail to order Our Price: $234.06
11	N01152427	WASHER	4 req	Current Stock: 16 Our Price: $0.30
12	008200605	SIMMON NUT FOR URAMA	4 req	Current Stock: 50 Our Price: $3.10
13	WHT002959	CLAMPING NUT	4 req	Current Stock: 5 Our Price: $0.90
14	008920603	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
15	WHT002961	WASHER	1 req	Current Stock: 38 Our Price: $0.40
16	N01118312	HEX.HEAD CLAMPING NUT	1 req	Avail to order Our Price: $2.14
17	006137052	RELAY & FUSEBOX WIRING	1 req	Avail to order Our Price: $1,063.03
17	006137443	RELAY & FUSEBOX WIRING	1 req	Avail to order Our Price: $1,334.33
17	006138342	CENTRAL RELAY BOX WIRING	1 req	Avail to order Our Price: $1,396.95
18	006136981	KONI DIAGNOSTIC CONNECTOR BOX	1 req	Avail to order Our Price: $275.87
19	006037932	ELECTRICAL CENTRE AIRBAG 99L00100	1 req	Avail to order Our Price: $804.12
20	005938137	CENTRAL DOOR LOCKINGECU	1 req	Avail to order Our Price: $802.13
21	006036175	LOW TYRE UNIT	1 req	Current Stock: 5 Our Price: $1,007.89
22	0061001923	MED 2000 ECU KIT	1 req	Avail to order Our Price: $833.44
23	001629258	BLADE FUSE	1 req	Current Stock: 18 Our Price: $0.70
24	418959875	WINDOW ECU	1 req	Current Stock: 6 Our Price: $2,426.72
25	N01508213	HEXAGON FLANGE NUT	2 req	Current Stock: 4 Our Price: $0.20
26	001128397	LH/RH UPPER COVER BOLT	2 req	Avail to order Our Price: $41.13
27	WHT002963	SPRING LOCK WASHER	2 req	Current Stock: 26 Our Price: $0.10
28	008920602	RUBBER SUPPORT	2 req	Avail to order Our Price: $15.83
29	006137314	LOW TYRE FRONT	1 req	Avail to order Our Price: $420.47
30	005134572	CENTRAL.KONI OFF-12-2029E	1 req	Avail to order Our Price: $2,624.02
31	006038007	RELAY	3 req	Avail to order Our Price: $14.29
32	006311155	RELAY	1 req	Avail to order Our Price: $67.29
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
