TAV: 62.03.01 - Fuel System

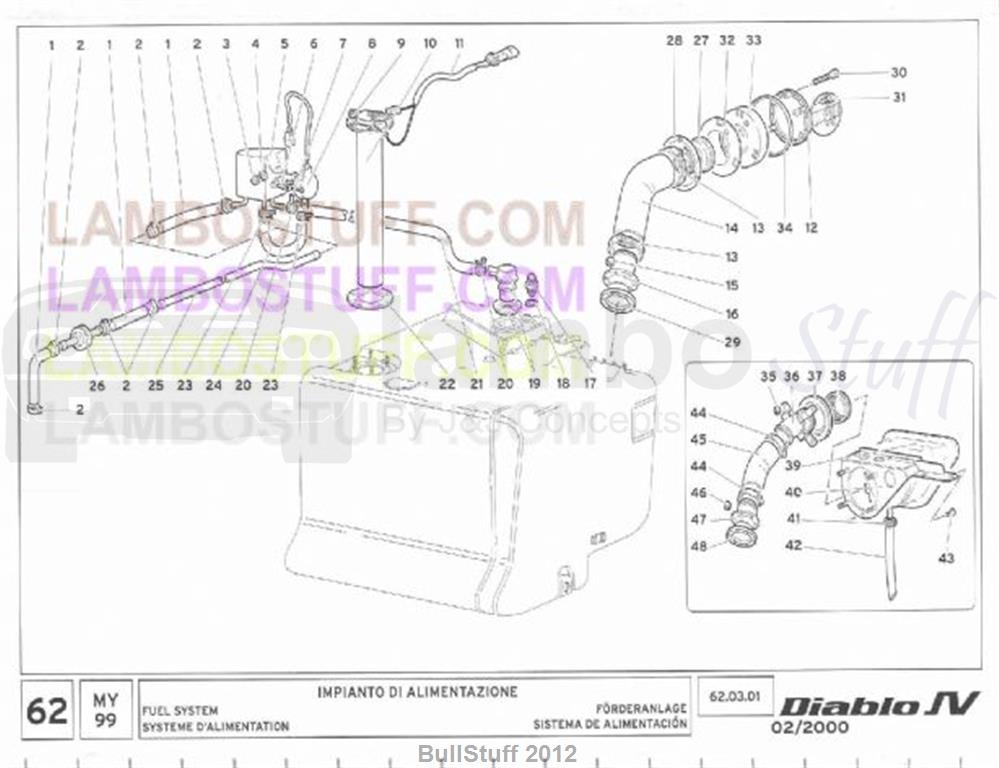

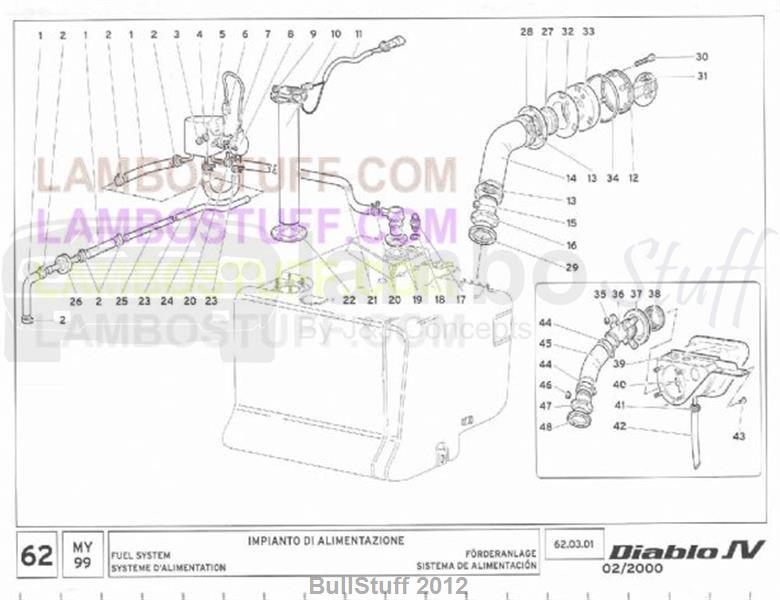

1999 Lamborghini Diablo SV USA Fuel System (62.03.01)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	0062001398	Hose	3 req	Current Stock: 12 Our Price: $15.59
2	008831528	Clamp	6 req	Avail to order Our Price: $9.30
3	N01118312	HEX.HEAD CLAMPING NUT	1 req	Avail to order Our Price: $2.17
4	N01152427	WASHER	1 req	Current Stock: 16 Our Price: $2.00
5	0062001351	Petrol Vapour Canister	1 req	Avail to order Our Price: $320.30
6	0062001396	Rubber Bushing	2 req	Avail to order Our Price: $2.39
7	008700346	Screw	2 req	Avail to order Our Price: $2.00
8	0062001689	Wired Sensor	1 req	Avail to order Our Price: $756.54
9	N0211963	HEX.HEAD CLAMPING	5 req	Avail to order Our Price: $2.00
10	006229648	Fuel Level Sender	1 req	Avail to order Our Price: $398.99
11	006135126	Fuel Float Wiring	1 req	Avail to order Our Price: $11.18
12	009490521	NLA (No Longer Available)	1 req	*See Description
13	WHT003080	Stainless Steel Clamp	2 req	Avail to order Our Price: $6.48
14	006235263	Fuel Pipe Sleeve	1 req	Current Stock: 2 Our Price: $363.78
15	WHT002959	CLAMPING NUT	6 req	Current Stock: 5 Our Price: $2.00
16	006235861	Fuel Tank Filler	1 req	Avail to order Our Price: $157.30
17	0062001267	Fitting	1 req	Current Stock: 4 Our Price: $39.44
18	N0138492	SEALING WASHER	1 req	Current Stock: 10 Our Price: $3.51
19	0062001272	Roll-Over Valve 2011	1 req	Avail to order Our Price: $395.10
20	WHT003100	cleamp	2 req	Avail to order Our Price: $7.08
21	0062001160	Tubo in gomma da valvola roll over a separ.vapori	1 req	Avail to order Our Price: $16.18
22	006229649	Fuel Level Gauge Flange Seal	1 req	Avail to order Our Price: $17.32
23	400127217	SECURING CLIP	2 req	Avail to order Our Price: $2.00
24	0062001397	Tank Pressure SensorPipe	1 req	Avail to order Our Price: $6.79
25	006237081	Three-Way Canister Pipe	1 req	Avail to order Our Price: $52.19
26	0062001313	Valve	1 req	Avail to order Our Price: $37.13
27	009490529	Unleaded Fuel Cap Adapter	1 req	Avail to order Our Price: $134.64
27	009490531	This item is no longer available	1 req
28	009490523	Fuel Filler Retaining Ring	1 req	Avail to order Our Price: $20.88
29	006205360	Float Dimmer Seal	1 req	Current Stock: 14 Our Price: $114.96
30	008740505	Stainless Steel Screw M5x0.8x3	3 req	Avail to order Our Price: $2.00
31	008740512	Dowel M5x0.8x10 Uni 5931	3 req	Avail to order Our Price: $2.00
32	009490528	Seal	1 req	Avail to order Our Price: $4.25
33	009490526	Filler Cap Housing	1 req	Avail to order Our Price: $40.11
34	009490527	Filler Cap Housing Seal	1 req	Avail to order Our Price: $100.20
35	WHT003112	HEXAGON FLANGE NUT	4 req	Current Stock: 7 Our Price: $2.00
36	006237498	Fuel Filler - Upper side	1 req	Avail to order Our Price: $602.33
36	0062001582	Fuel Filler - Upper side	1 req	Avail to order Our Price: $591.89
37	009409215	Windscreen Washer Bag Seal	1 req	Avail to order 1 Used Available Our Price: $38.24
38	400201587A	Gas Cap - Diablo, Murci, Gallardo	1 req	Current Stock: 1 Our Price: $1,006.40
39	0066001581	Fuel Filler Compart.Panel	1 req	Avail to order Our Price: $128.07
40	0066001339	Fuel Flap Actuator Bracket	1 req	Current Stock: 1 Our Price: $277.31
41	008832205	Clamp	1 req	Avail to order Our Price: $24.09
42	009490516	Filler Compartment Drain Pipe	1 req	Avail to order Our Price: $15.51
43	WHT000757	SCREW	3 req	Avail to order Our Price: $5.44
44	WHT003080	Stainless Steel Clamp	2 req	Avail to order Our Price: $6.48
45	006237500	UPPER/LOWER FILLER SLEEVE	1 req	Avail to order Our Price: $468.15
46	WHT002959	CLAMPING NUT	6 req	Current Stock: 5 Our Price: $2.00
47	006237497	Fuel Filler	1 req	Current Stock: 1 Our Price: $149.84
48	006205360	Float Dimmer Seal	1 req	Current Stock: 14 Our Price: $114.96
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
