TAV: 109.01.00 - LOWER HEAD TIMING SYSTEM

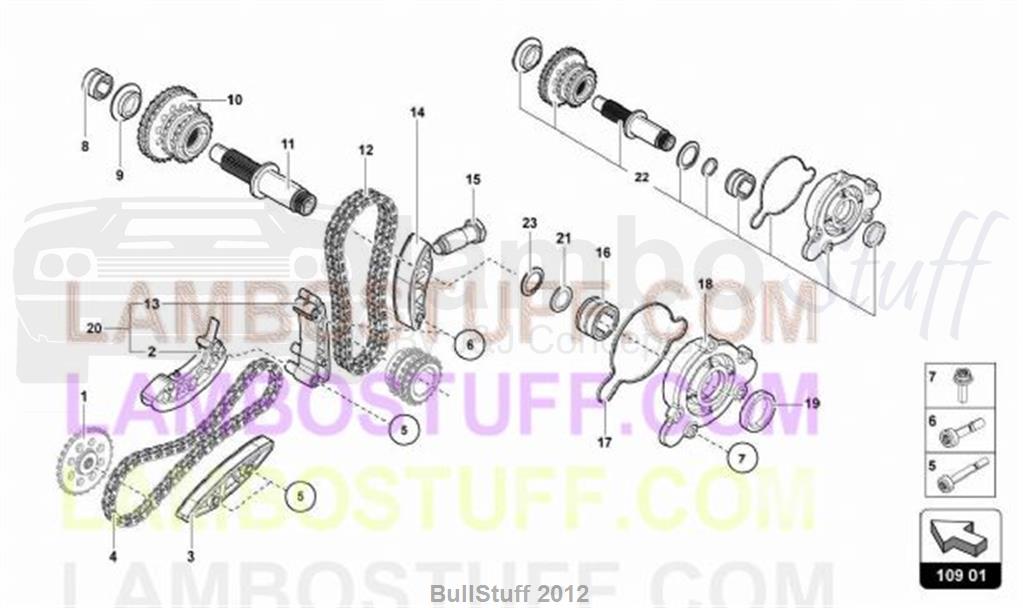

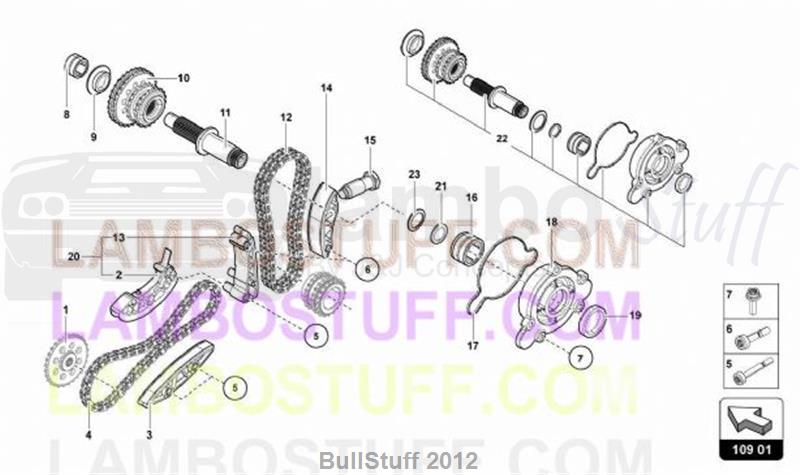

2012 Lamborghini AVENTADOR LP700-4 COUPE AUSTRALIA LOWER HEAD TIMING SYSTEM (109.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1		GEAR WHEEL (NOT AVAILABLE)	0 req
2		CHAIN TIGHTENER (CANNOT BE SOLD SEE REF. 20)	0 req
3	07M115235B	GUIDE RAIL SHOE	1 req	Avail to order Our Price: $131.51
4	07M109120B	ROLLER CHAIN LOWER TIMING CHAIN	1 req	Avail to order Our Price: $167.08
5	WHT005010	12-POINT SOCKET SCREW M8X60	3 req	Avail to order Our Price: $47.64
6	WHT005401	MULTI-TOOTH SOCKET FIT BOLT SCREW M8X44	2 req	Avail to order Our Price: $61.50
7	N10689302	12-POINT SOCKET FLANGE BOLT SCREW M8X25	5 req	Avail to order Our Price: $2.93
8		BEARING (NOT AVAILABLE)	0 req
9	07M109350B	SPACER RING DIST.ALBERO INTERM SPACER (FROM VIN CLA00912)	1 req	Avail to order Our Price: $113.26
9		SPACER (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
10	07M109567D	DOUBLE GEAR ROCCHETTO INTERMED GEAR (FROM VIN CLA00912)	1 req	Avail to order Our Price: $488.59
10		GEAR (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
11	07M109225G	DRIVE FLANGE SHAFTALBERO INTERMEDIO SHAFT (FROM VIN CLA00912)	1 req	Avail to order Our Price: $729.14
11		SHAFT (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
12	07M109229A	BUSH CHAIN CHAIN	1 req	Avail to order Our Price: $301.39
13		SHOE (CANNOT BE SOLD SEE REF. 20)	0 req
14	07M109077C	SPROCKET SHOE	1 req	Avail to order Our Price: $125.89
15	03F109507B	CHAIN TENSIONER CHAIN TIGHTENER WITH SEAL RING	1 req	Avail to order Our Price: $76.35
16	07M109248	BUSH BEARING (FROM VIN CLA00912)	1 req	Avail to order Our Price: $204.05
16		BEARING (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
17	07M103147	Gasket GASKET (FROM VIN CLA00912)	1 req	Avail to order Our Price: $28.03
17		GASKET (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
18	07M103171F	SEALING FLANGE COVER (FROM VIN CLA00912)	1 req	Avail to order Our Price: $425.00
18		COVER (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
19	07M103070	SEAL OIL SEAL (FROM VIN CLA00912)	1 req	Avail to order Our Price: $58.13
19		OIL SEAL (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
20	07M109498	CHAIN TENSIONER ASSEMBLY CHAIN TIGHTENER+SHOE	1 req	Avail to order Our Price: $332.28
21	07M109133C	BRACKET WASHER (FROM VIN CLA00912)	1 req	Avail to order Our Price: $13.34
21		WASHER (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
22	0R8340065	TIMING SHAFT KIT KIT (UPGRADE KIT UP TO VIN CLA00911 - INCLUDES REF 9-10-11-16-17-18-19-21-23)	1 req	Avail to order Our Price: $1,132.56
23	07M109264A	BEARING BEARING (FROM VIN CLA00912)	1 req	Avail to order Our Price: $31.40
23		BEARING (UNTIL THE VIN CLA00911 BUY REF. 22)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
