TAV: 837.01.00 - DOORS

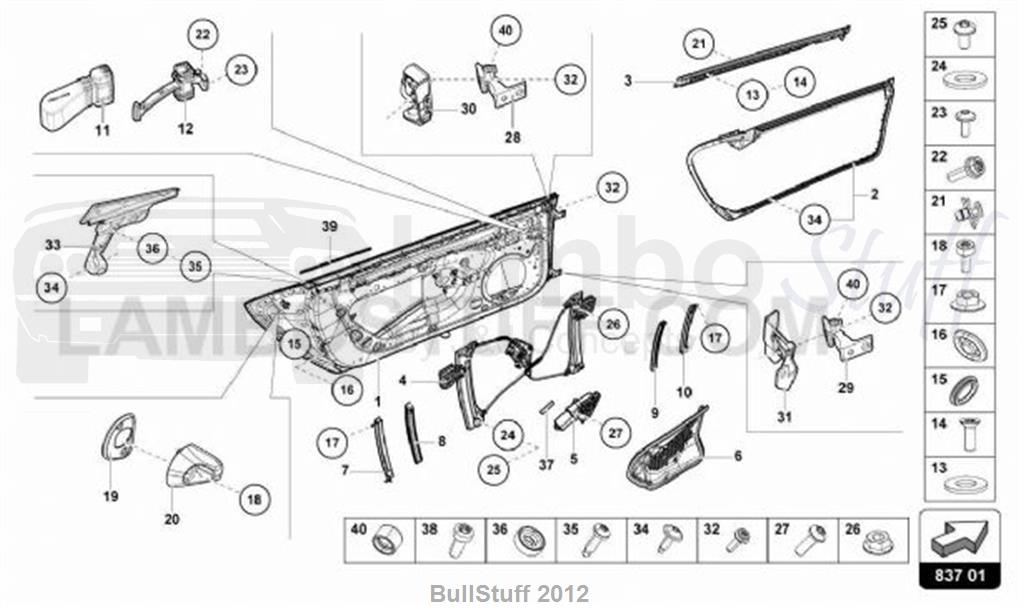

2021 Lamborghini HURACAN EVO SPYDER USA DOORS (837.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4T7831051C	DOOR-IN-WHITE DOOR (LEFT)	1 req	Avail to order Our Price: $6,099.17
1	4T7831052C	DOOR-IN-WHITE DOOR (RIGHT)	1 req	Avail to order Our Price: $6,099.17
2	4T0837911C	DOOR SEAL ESTERNA DOOR SEAL (LEFT OUTER)	1 req	Avail to order Our Price: $290.61
2	4T0837912C	DOOR SEAL RH DOOR SEAL (RIGHT OUTER)	1 req	Avail to order Our Price: $290.61
3	4T7837477A	WIN. WEATHERSTRIP WINDOW APERTURE SEAL (LEFT)	1 req	Avail to order Our Price: $264.78
3	4T7837478A	WIN. WEATHERSTRIP WINDOW APERTURE SEAL (RIGHT)	1 req	Avail to order Our Price: $264.78
4	4T0837397C	WINDOW LIFT WINDOW REGULATOR WITHOUT MOTOR (UNTIL VIN HLA06645 ORDER ALSO RIGHT PART-LEFT)	1 req	Avail to order Our Price: $1,047.63
4	4T0837398C	WINDOW LIFT WINDOW REGULATOR WITHOUT MOTOR (UNTIL VIN HLA06645 ORDER ALSO LEFT PART-RIGHT)	1 req	Avail to order Our Price: $1,047.63
5	8K0959801B	MOTOR,WINDOW WINDOW REGULATOR MOTOR (LEFT)	1 req	Avail to order Our Price: $180.11
5	8K0959802B	MOTOR,WINDOW WINDOW REGULATOR MOTOR (RIGHT)	1 req	Avail to order Our Price: $200.92
6	4T0837917	WATER DEFLECT RIPARO ACQUA DOOR SEAL (LEFT)	1 req	Avail to order Our Price: $35.24
6	4T0837918	WATER DEFLECT RIPARO ACQUA DOOR SEAL (RIGHT)	1 req	Avail to order Our Price: $35.24
7	4T0837405	GUIDE RAIL WINDOW GUIDE (LEFT)	1 req	Avail to order Our Price: $76.50
7	4T0837406	GUIDE RAIL WINDOW GUIDE (RIGHT)	1 req	Avail to order Our Price: $76.50
8	4T0837933B	WINDOW GUIDE SEAL (LEFT A. RIGHT REAR)	2 req	Avail to order Our Price: $45.71
9	4T0837349B	COVER SEAL (LEFT A. RIGHT FRONT)	2 req	Avail to order Our Price: $25.62
10	4T0831619	GUIDE RAIL VORN WINDOW GUIDE (WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-LEFT)	1 req	Avail to order Our Price: $76.50
10	4T0831620	GUIDE RAIL VORN WINDOW GUIDE (WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-RIGHT)	1 req	Avail to order Our Price: $76.50
11	8V0837267	COVER,DOOR AUSSEN COVER (LEFT A. RIGHT FRONT)	2 req	Avail to order Our Price: $4.81
12	8S0837249	DOOR ARRESTER DOOR CATCH (LEFT A. RIGHT FRONT)	2 req	Avail to order Our Price: $34.81
13	WHT000778	SPRING LOCK WASHER WASHER (30X36X1)	8 req	Current Stock: 15 Our Price: $2.00
14	N10459201	screw M5x12.0CH HEXAGON SOCKET HEAD BOLT (M5X12)	8 req	Avail to order Our Price: $2.00
15	4H0839111	GROMMET COVER CAP (16,2)	4 req	Avail to order Our Price: $2.00
16	1Z0971904A	PLUG BUNGS	4 req	Avail to order Our Price: $2.00
17	N90663602	HEX.NUT W/ FLANGE HEX. NUT WITH WASHER (M5)	4 req	Current Stock: 16 Our Price: $2.00
18	N91203201	12-POINT SOCKET M8X22 FLAT HEAD MULTI-POINT SOCKET BOLT (M8X22)	2 req	Avail to order Our Price: $2.23
19	4T7831431	SEAL,HINGE DOOR SEAL (LEFT)	1 req	Avail to order Our Price: $10.98
19	4T7831432	SEAL,HINGE DOOR SEAL (RIGHT)	1 req	Avail to order Our Price: $10.98
20	4T7831121	REINF.DOOR HANDLE REINFORCEMENT FOR DOOR HANDLE (LEFT)	1 req	Avail to order Our Price: $315.01
20	4T7831122	REINF.DOOR HANDLE REINFORCEMENT FOR DOOR HANDLE (RIGHT)	1 req	Avail to order Our Price: $318.60
21	22	CLIP	0 req
22	N91084201	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M8X25)	4 req	Avail to order Our Price: $3.16
23	WHT003237	HEXALOBULAR SOCKETM6X12 HEXAGON SOCKET FLAT HEAD BOLT (M6X12)	6 req	Avail to order Our Price: $2.00
24	N01166623	WASHER WASHER (6,4X18X1,6)	4 req	Avail to order Our Price: $2.00
25	N10124308	screw OVAL HEXAGON SOCKET HEAD BOLT (M6X20)	4 req	Current Stock: 33 Our Price: $1.87
26	WHT000127	FLANGE NUT HEXAGON NUT (M8)	4 req	Avail to order Our Price: $17.59
27	8Z0837691C	SCREW HEXAGON SOCKET HEAD PANEL BOLT (5X22)	6 req	Current Stock: 4 Our Price: $2.00
28	4G0831401A	DOOR HINGE DOOR HINGE (LEFT UPPER)	1 req	Avail to order Our Price: $39.90
28	4G0831402A	DOOR HINGE DOOR HINGE (RIGHT UPPER)	1 req	Avail to order Our Price: $39.90
29	4G0831401B	DOOR HINGE DOOR HINGE (LEFT LOWER)	1 req	Avail to order Our Price: $46.58
29	4G0831402B	DOOR HINGE DOOR HINGE (RIGHT LOWER)	1 req	Avail to order Our Price: $46.58
30	4T0831329B	HINGE REINF. HINGE REINFORCEMENT (LEFT UPPER)	1 req	Avail to order Our Price: $81.38
30	4T0831330B	HINGE REINF. HINGE REINFORCEMENT (RIGHT UPPER)	1 req	Avail to order Our Price: $81.38
31	4T0831333B	REINFORCEMENT SCHARNIER UNTEN HINGE REINFORCEMENT (LEFT LOWER)	1 req	Avail to order Our Price: $81.38
31	4T0831334B	REINFORCEMENT SCHARNIER UNTEN HINGE REINFORCEMENT (RIGHT LOWER)	1 req	Avail to order Our Price: $81.38
32	8H0831701	SCREW HEX SOCKET HEAD COLLARED BOLT (M10X34)	4 req	Current Stock: 3 Our Price: $1.94
33	4T7837901B	TRIM TRIM FOR DOOR WINDOW FRAME (LEFT)	1 req	Avail to order Our Price: $774.96
33	4T7837902B	TRIM TRIM FOR DOOR WINDOW FRAME (RIGHT)	1 req	Avail to order Our Price: $774.96
34	N91138701	DUO BOLT W.WASHER M5X30-S1 HEXAGON BOLT WITH INNER HEX ROUND HEAD (COMBI) (M5X30)	2 req	Avail to order Our Price: $2.00
35	N10595002	HEXALOBULAR SOCKET ROUND HD. SCREW (M5X18)	4 req	Avail to order Our Price: $2.00
36	4T7837173	CLAMP DOOR TRIANGLE BUSH BUSH	4 req	Avail to order Our Price: $36.24
37	433857445C	INTERMEDIATE LAYER55.00X25.00 INSULATION STRIP (55X1X25)	2 req	Avail to order Our Price: $17.80
38	X	CLIP	0 req
39	4T7868382	SEAL PART SEAL	2 req	Avail to order Our Price: $18.23
40	8T0837947	COVER COVER CAP	4 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
