2021 Lamborghini HURACAN EVO SPYDER USA COMPLETE CYLINDER HEAD (103.06.00)

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G		Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series	Current Stock: 7 Our Price: $89.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36

Fuel-Air

PN	Item
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
4S0906262F	LAMBDA PROBE BACK RIGHT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $571.69
4S0906262G	LAMBDA PROBE BACK LEFT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $343.91
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98

Open All

Select Group and TAV

< Previous Next >

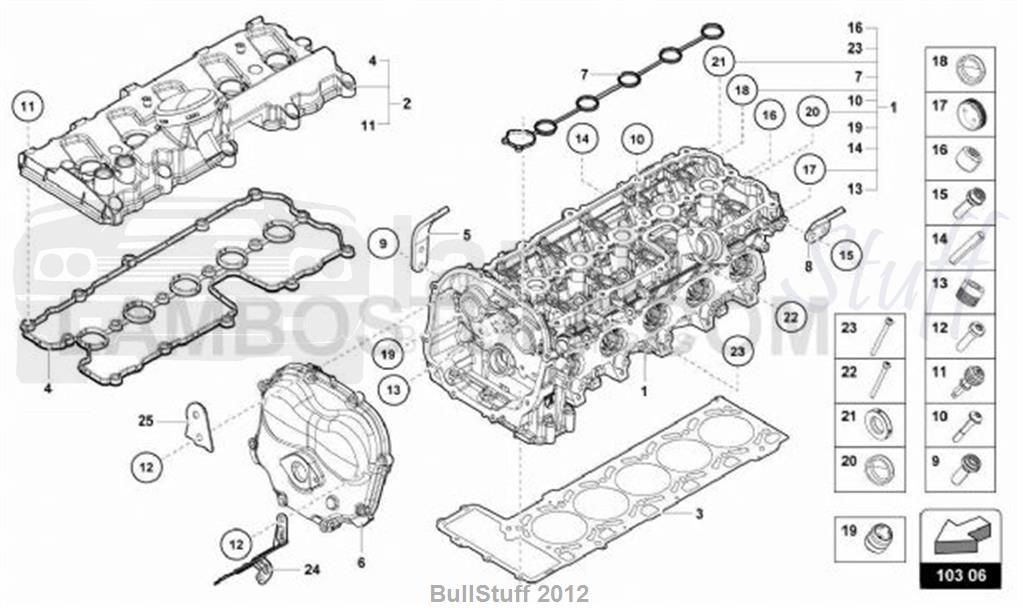

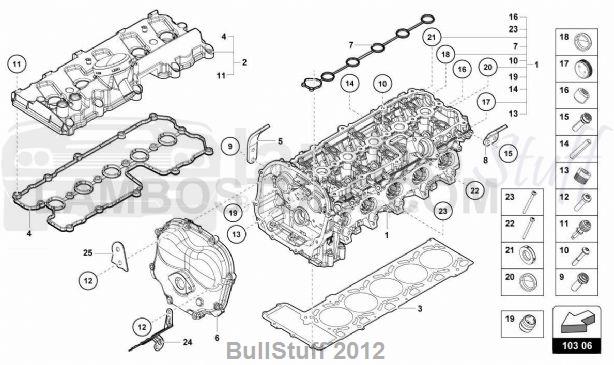

TAV: 103.06.00 - COMPLETE CYLINDER HEAD

2021 Lamborghini HURACAN EVO SPYDER USA COMPLETE CYLINDER HEAD (103.06.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	07L103063BH	CYLINDER HEAD, COMPLETE LH COMPLETE CYLINDER HEAD (CYLINDERS 6-10 LEFT)	1 req	Avail to order Our Price: $9,199.35
2	07L103471AC	CYLINDER HEAD COVER WITH CYLINDER HEAD COVER WITH GASKET (LEFT)	1 req	Avail to order Our Price: $637.19
3	07L103383BA	CYLINDER HEAD GASKET CYLINDER HEAD GASKET (CYLINDERS 6-10 LEFT)	1 req	Avail to order Our Price: $181.64
4	07L103483J	GASKET SEAL	1 req	Avail to order Our Price: $53.60
5	07L103390M	TRANSPORT SHACKLE TRANSPORTATION SHACKLE	1 req	Avail to order Our Price: $19.81
6	07L109285K	COVER COVER (LEFT)	1 req	Avail to order Our Price: $188.34
7	07L103649A	GASKET SEAL (CYLINDERS 6-10)	1 req	Avail to order Our Price: $23.83
8	07L103390R	TRANSPORT SHACKLE TRANSPORTATION SHACKLE	1 req	Avail to order Our Price: $7.37
9	N91084201	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M8X25)	1 req	Avail to order Our Price: $3.43
10	N91127602	HEXALOBULAR SOCKET HEXAGON SOCKET FLAT HEAD BOLT (M6X35X16)	1 req	Avail to order Our Price: $2.01
11	06B103831J	DECOUPLING ELEMENT HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE	8 req	Current Stock: 10 Our Price: $10.65
12	N91068001	PAN HEAD SCREW HEXAGON SOCKET FLAT HEAD BOLT (M6X28)	8 req	Avail to order Our Price: $2.00
13	07L109291	PLUG BUNGS	1 req	Avail to order Our Price: $13.78
14	N0145555	TAP END STUD THREADED PIN (M8X44)	1 req	Avail to order Our Price: $3.73
15	N91139201	12-POINT SOCKET SCREW WITH INT. SERRATIONS (M8X20)	1 req	Avail to order Our Price: $2.09
16	N10630302	SEALING PLUG SEALING PLUG (M10X1)	1 req	Avail to order Our Price: $3.73
17	06B103113C	COVER PLUG END CAP (26)	1 req	Avail to order Our Price: $9.31
18	N0119078	COVER END CAP (14)	1 req	Avail to order Our Price: $2.00
19	079103175F	CHECK VALVE NON-RETURN VALVE	1 req	Avail to order Our Price: $66.47
20	036103113A	COVER END CAP (36,6)	1 req	Avail to order Our Price: $9.31
21	06D103377	WASHER WASHER	1 req	Avail to order Our Price: $6.11
22	WHT001411	CYLINDER HEAD SCRW SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M10X138)	1 req	Avail to order Our Price: $5.07
23	N10720801	HEXALOBULAR SOCKET ROUND-HEAD SCREW	1 req	Avail to order Our Price: $2.00
24		ARM (NOT AVAILABLE)	0 req
25		ARM (NOT AVAILABLE)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
