1999 Lamborghini Diablo 2WD-4WD USA Engine Hood (92.01.00)

Maintenance Parts:

Belts

PN	Item	Diagram
001736516	Coolant Pump Alternator Belt Coolant Pump Alternator Belt		Avail to order Our Price: $199.17
004534071	Compressor Belt Compressor Belt		Avail to order Our Price: $142.47

Brakes

PN	Item	Diagram
410615115D	E-Brake Pad - Late Diablo - Murcielago Sold Each E-Brake Pad Murcielago and late Diablo Sold Each		Current Stock: 3 Our Price: $57.73
0032000561	Brake Pad Kit -Front - Late Diablo - Murcielago -4 Pads - 2 Per Rotor Brake Pad Kit 4 Pads per kit. Front same part number. For Full set of Front , need qty 2.		Current Stock: 1 Our Price: $1,154.57

Common repairs and upgrades

PN	Item
006329689	HIGH BEAM HEADLIGHT HIGH BEAM HEADLIGHT	Avail to order Our Price: $535.96
0079004387	SHOCK ABSORBER SHOCK ABSORBER FOR ANTERIOR COWLING	Current Stock: 2 Our Price: $139.79
0092004388	shock absorber for engine cowling shock absorber for engine cowling	Current Stock: 4 Our Price: $253.09
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58

Drivetrain

PN	Item
002137138	Balanced Assembly (Pressure Plate and flywheel) - Late Model Diablo Balanced Clutch 002137138 Clutch wheel sold seperately	Avail to order Our Price: $2,170.01
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Current Stock: 21 Our Price: $86.65
002135367	Throw Out Bearing - Late Diablo Thrust Bearing Valeo952112lo	Avail to order Our Price: $515.75
0017001862	WATER PUMP COMPLETE 1995 2001 - READ DESCRIPTION WATER PUMP COMPLETE 1995 2001 - READ DESCRIPTION HOWEVER THERE ARE TWO PULLEY TYPES, YOU MUST DOUBLE CHECK HOW YOUR POWER STEERING IS CONNECTED. THE OTHER VERSION IS PN 0017002472	Avail to order Our Price: $4,079.91
0017002472	Water Pump 1995 2001 - READ DESCRIPTION Coolant Pump Complete - This Pump fits Diablos from 1995 to 2001 - HOWEVER there are TWO pulley types, you must double check how your power steering is connected. The other version is PN 0017001862	Avail to order Our Price: $3,329.34
002134687a	1995 - 2001 Diablo Clutch Rod This is an aftermarket Clutch rod upgrade for Diablo's manufactured after 1994 (1995 - 2001) These rods are very prone to breakage. For full article and installation visit: http://lamboweb.com/Repairs_Section/Diablo_Repairs_Broken_Clutch_Rod.htm http://www.lamboweb.com/Repairs_Section/Repairs_Clutch_Connecting_Rod.htm	Avail to order Our Price: $631.15
002136948	Slave Clutch Cylinder Diablo / Countach Slave Clutch Cylinder	Current Stock: 5 Our Price: $134.59
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $350.78
001434600	Oversize Thrust Washer Oversize Thrust Washer	Avail to order Our Price: $77.14
001434601	Oversized Shoulder Washer Oversized Shoulder Washer	Avail to order Our Price: $77.14
002135365R	CLUTCH DIABLO 1995 and up - Reconditioned CLUTCH DIABLO 1995 and up - Reconditioned PRESSURE PLATE ONLY	Current Stock: 1 Our Price: $678.73
005129802	Front Shock Absorber Front Shock Absorber	Current Stock: 4 Our Price: $1,159.75
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Avail to order Our Price: $104.15

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Avail to order Our Price: $31.69
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.29
AMAIRD	Hi-Performance aFe Air Filter - Diablo/Murcielago - SPORT Air Filter Murcielago - Diablo After Market aFe Air Filter 30-10133	Current Stock: 1 Our Price: $145.65
002024396	FUEL INJECTOR (Sold Ea) Manifold Upper CoverInjector	Avail to order Our Price: $405.53
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $762.25
07M133843A	Air Filter - SPORT PERFORMANCE FILTER Performance filter replacement for 07M133843 Air Filter - Murcielago SV LP 670-4	Avail to order Our Price: $782.61
07M133843KN	K&N Air Filter - LM002, Countach, Diablo, Murcielago K&N's replacement air filters are designed to increase horsepower and acceleration while providing excellent filtration. These filters are washable and reusable and are custom designed to fit into your existing factory air box. Their drop-in design means adding performance is simple.	Avail to order Our Price: $70.48

Fuses-Bulbs-Relays

PN	Item
006137479	250a Maxi Fuse 250a Maxi Fuse	Current Stock: 3 Our Price: $12.71
006329450	Bulb Headlight Bulb Headlight	Current Stock: 1 Our Price: $32.51
006329694	Bulb Headlight Bulb headlight	Avail to order Our Price: $63.82
006329695	BULB FOR FOGLIGHT BULB FOR FOGLIGHT	Current Stock: 1 Our Price: $19.36
006329696	Bulb 5w Front Turn Signal 5w Bulb front turn signal	Current Stock: 6 Our Price: $3.35
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.56
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.09
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
005937770	Relay Relay for late model Diablos	Current Stock: 10 Our Price: $41.54
006030676	Light Relay Light Relay	Current Stock: 3 Our Price: $184.13
006036296	NLA (No Longer Available) Relay	Avail to order Our Price: $24.68
006036297	NLA (No Longer Available) Relay	Avail to order Our Price: $46.74
006038006	Micro Relay Micro Relay	Avail to order Our Price: $22.30
006038007	Relay Relay	Avail to order Our Price: $14.25
006138003	DRL relay DRL relay	Avail to order Our Price: $37.23
006138010	80 A Fuse 80 A Fuse	Current Stock: 6 Our Price: $58.52
006311154	RELAY RELAY	Avail to order Our Price: $56.14
006311155	Relay Relay	Avail to order Our Price: $67.32
006329698	Bulb Bulb	Avail to order Our Price: $9.02
410947413	RED DOOR LIGHT RED DOOR LIGHT - NLA (No Longer Available) TO ORDER FROM FACTORY PLEASE CONTACT US FOR OTHER OPTIONS.	Avail to order Our Price: $92.91

Gaskets

PN	Item
0011005351	Engine Gasket Set - Diablo 1998-1999 until VIN 2219 Engine Gasket Set - Diablo 1998-1999 until VIN 2219 See PN 15002553 for Grommet and oil seal set	Avail to order Our Price: $3,329.34
0011005352	Engine Gasket Set Diablo 1998-1999 after VIN 2219 Engine Gasket Set Diablo 1998-1999 after VIN 2219 See PN 15002553 for Grommet and Oil seal set	Avail to order Our Price: $3,611.73
001535287	Engine Gasket Set Diablo VT / SV / Roadster DOES NOT INCLUDE VALVE GUIDES PN 07M109675 Diablo VT Gasket Kit See PN 1535288 for the Grommet and oil seal set	Avail to order Our Price: $2,489.56
0015002552	Engine Gasket Set - Diablo VT 1998 See PN 0015002553 for the Grommet and oil seal set	Avail to order Our Price: $1,924.77
0015002553	GROMMET & OIL SEALS SET - DIABLO VT 1998 GROMMET & OIL SEALS SET - DIABLO VT 1998	Avail to order Our Price: $237.46
0R1320002	Diablo REAR Differential Seal Kit Dif Seal Kit	Current Stock: 1 Our Price: $48.53
600940141L	latch Gasket Left latch Gasket Set Left This is the rubber/plastic gasket that is located on the Left side between the outer door latch and the door frame	Current Stock: 5 Our Price: $24.28

Ignition

PN	Item
001630289	Spark Plug - Diablo Spark Plug	Current Stock: 50 Our Price: $32.83
DiabloWireSet	Spark Plug Wires 1991-1995 Diablo - Aftermarket Spark Plug Wires 1991 through 1995 ONLY for systems using a Distributor cap	Avail to order Our Price: $820.50
DiabloWireSet2	Spark Plug Wires 1996 and up Diablo - Aftermarket Spark Plug Wires for Diablos with coil pack	Avail to order Our Price: $1,650.70

Misc

PN	Item
0071003278	Wiper Blade wiper blade	Avail to order Our Price: $40.55
009420126	WINDSHIELD WIPER BLADE WINDSHIELD WIPER BLADE	Avail to order Our Price: $36.40
006134045	DIAGNOSIS RESET CONNECTOR DIAGNOSIS RESET CONNECTOR ALSO SEE 006134045	Current Stock: 1 Our Price: $327.73
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98

Sensors

PN	Item
001327641	Potentiometer TPS Throttle Position Sensor Diablos Potentiometer	Avail to order Our Price: $199.79
001536755	OIL TEMPERATURE THERMOSTAT OIL TEMPERATURE THERMOSTAT - also used on Diablo 91-93 2wd and 94	Current Stock: 1 Our Price: $544.18
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (No Longer Available) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $295.00
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $136.52
0042001192	Brake Switch 11721.0 Switch 11721.0	Current Stock: 2 Our Price: $28.18
004526663	Cabin Air Temperature Sensor Temperature Sensor	Avail to order Our Price: $1,965.17
07L919501A	Water Temperature Sensor Water Temperature Sensor	Current Stock: 3 Our Price: $375.18
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.09
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.18
001724565	Fan Motor Thermal Contact Fan Motor Thermal Contact	Avail to order Our Price: $244.50
0051001139	NLA (No Longer Available) ABS Sensor Wheel Speed Sensor - Diablo/Murcielago	Avail to order Our Price: $294.46
086927321	Crank/Flywheel/Timing Sensor ELECTROMAGNETIC PROBE	Avail to order Our Price: $130.42
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.04

Tools and Tookits

PN	Item	Diagram
004129973	DIABLO FRONT TOW HITCH ASSEMBLY DIABLO FRONT TOW HITCH ASSEMBLY		Avail to order Our Price: $1,525.98

Open All

Select Group and TAV

< Previous Next >

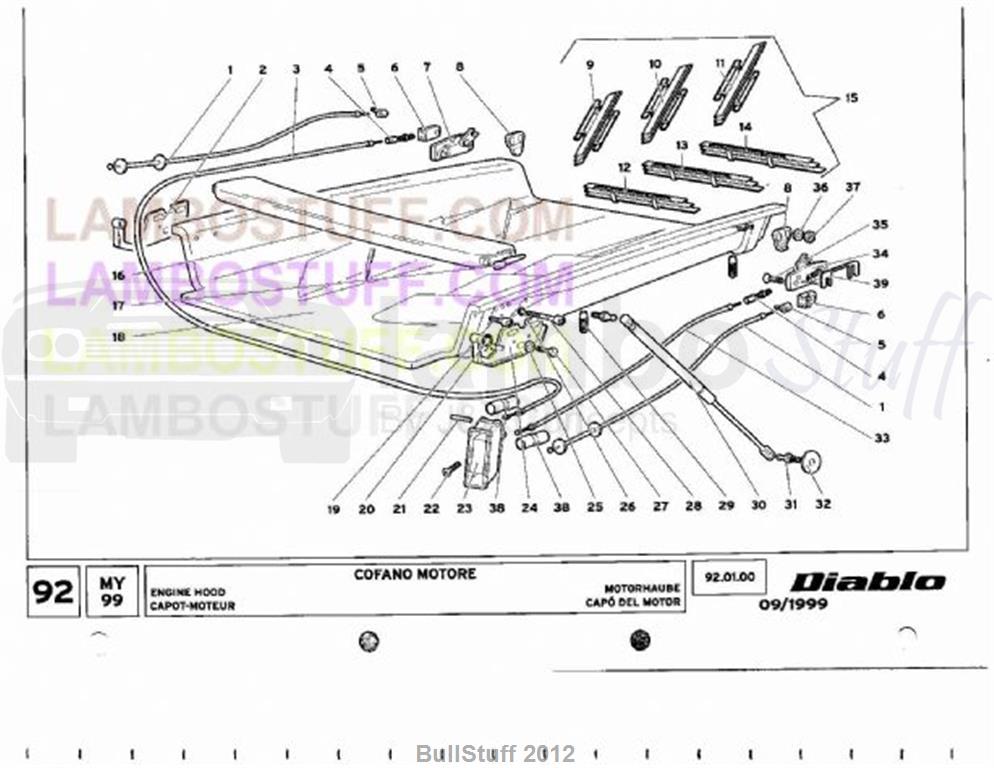

TAV: 92.01.00 - Engine Hood

1999 Lamborghini Diablo 2WD-4WD USA Engine Hood (92.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	009460003	Bonnet Emergency Lock Wire	2 req	Avail to order Our Price: $28.76
2	009460322	Deck Lid Hinge RH	1 req	Avail to order Our Price: $81.15
3	009460006	DECK LID CABLE SX	1 req	Avail to order Our Price: $51.50
4	410827421	Bonnet Lock Wire Adjustment	2 req	Avail to order Our Price: $6.55
5	009460210	Wire Clamp	2 req	Current Stock: 1 Our Price: $36.39
6	410814333	Bonnet Lock Wire Retainer	2 req	Avail to order Our Price: $365.49
7	009460200	RH DECK LID LATCH	1 req	Current Stock: 1 Our Price: $755.90
8	009460201	Deck Lid Striker	2 req	Avail to order Our Price: $139.12
9	0092004334	This item is no longer available	1 req
10	0092004336	This item is no longer available	1 req
11	0092004338	This item is no longer available	1 req
12	092004335	This item is no longer available	1 req
13	0092004337	This item is no longer available	1 req
14	0092004339	This item is no longer available	1 req
15	0092004333	VT Grill Kit	1 req	Avail to order Our Price: $2,221.46
16	009460101	Engine Bonnet Spoiler	1 req	Current Stock: 1 Our Price: $2,750.73
17	009460100	Bonnet Panel Seal	2 req	Avail to order Our Price: $71.42
18	009460000	Bonnet Assy	1 req	Avail to order Our Price: $12,501.26
19	008700547	Screw M5x16 Uni 5931/8g/B	2 req	Avail to order Our Price: $2.00
20	008580801	O-Ring E 8 Uni 7535-75	2 req	Current Stock: 3 Our Price: $2.00
21	008850304	Pin 3 H8 L=25 Uni 177	1 req	Current Stock: 23 Our Price: $2.31
22	WHT003091	Screw M5x16 Uni 5933/Z Black	1 req	Current Stock: 7 Our Price: $2.00
23	410823537	Internal Door Handle sold ea	1 req	Avail to order Our Price: $1,359.24
24	009460323	Deck Lid Hinge LH	1 req	Avail to order Our Price: $128.87
25	WHT003042	WASHER	6 req	Avail to order Our Price: $29.03
26	008400510	Washer Uni 1734 5.3x11x1 B	2 req	Avail to order Our Price: $2.00
27	008100656	Screw 16x6x1 Uni 5739/Z.Ne	6 req	Avail to order Our Price: $5.08
28	008700549	Screw M5x35 Uni 5931/8g/B	2 req	Avail to order Our Price: $2.31
29	009460214	RUBBER CAP FOR BATTERY REG	4 req	Avail to order Our Price: $8.71
30	0092004388	shock absorber for engine cowling	2 req	Current Stock: 4 Our Price: $253.09
31	009459305	Strut Pin	4 req	Current Stock: 8 Our Price: $2.83
32	WHT001942	WASHER	2 req	Current Stock: 13 Our Price: $3.51
33	009460007	DECK LID CABLE DX	1 req	Avail to order Our Price: $51.50
34	009460202	DECK LID CABLE DX	1 req	Current Stock: 1 Our Price: $453.25
35	008700613	Screw M6x14 Uni 5933/8g/Zb	4 req	Avail to order Our Price: $2.00
36	N01152427	WASHER	4 req	Current Stock: 16 Our Price: $2.00
37	N02300213	PREV.TORQUE TYPE	4 req	Avail to order Our Price: $2.39
38	410837801A	PROTECTIVE COVER	2 req	Current Stock: 3 Our Price: $54.94
39	009460215	Bonnet Lock Shim	req	Current Stock: 3 Our Price: $4.70
39	009460216	Bonnet Lock Shim	req	Current Stock: 1 Our Price: $6.79
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
