TAV: 12.01.00 - Timing System

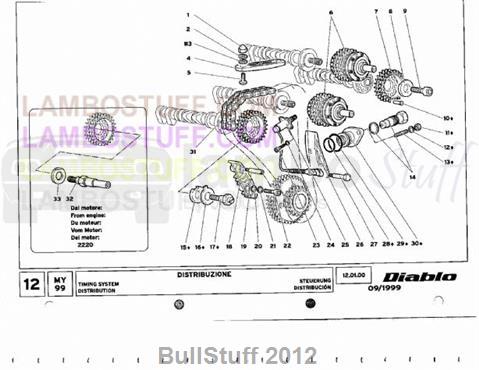

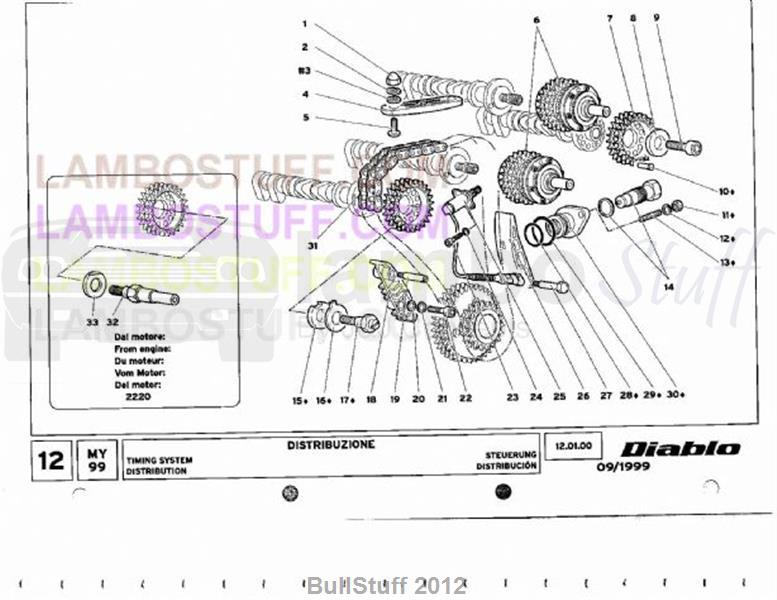

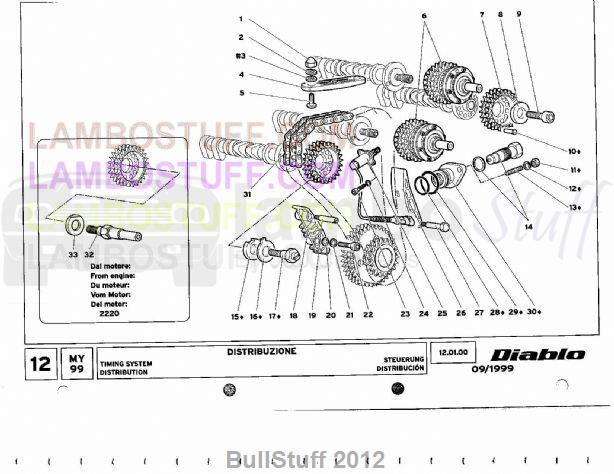

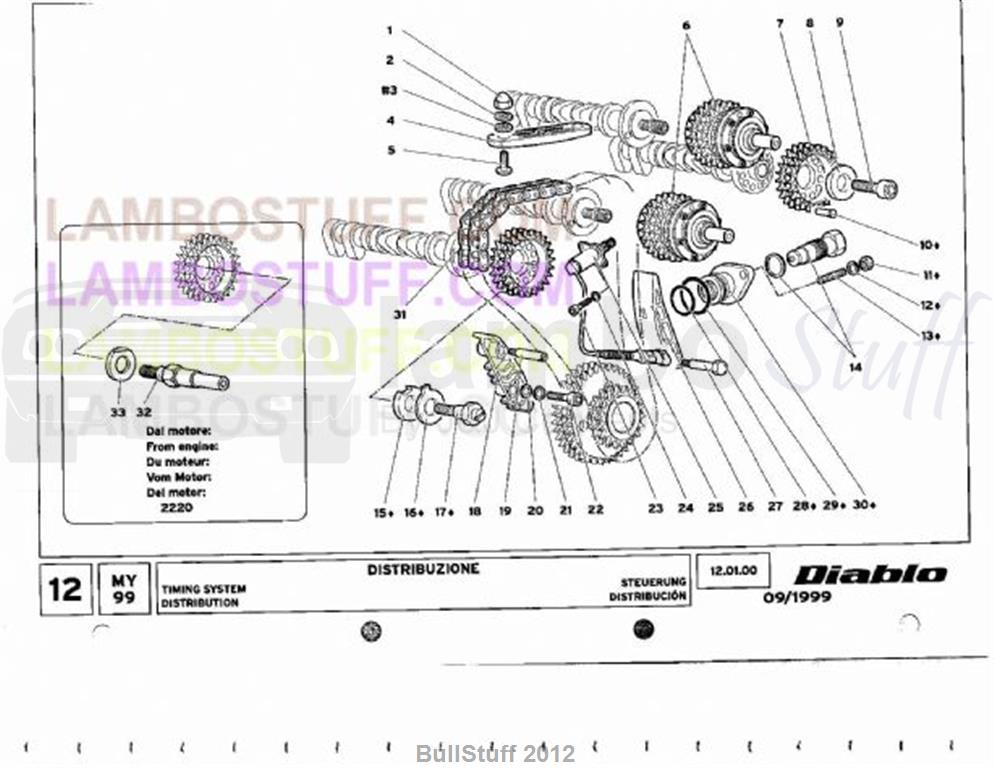

1999 Lamborghini Diablo 2WD-4WD USA Timing System (12.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008200605	Simmon Nut for urama	4 req	Current Stock: 50 Our Price: $3.06
2	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
3	WHT003041	Soft Copper Washer 6.4x12x1.5	4 req	Current Stock: 14 Our Price: $2.00
4	07M109513	Rh/Lh Head Upper Chain Guide	2 req	Avail to order Our Price: $824.78
5	008700682	Screw M6x20 Din 7380	4 req	Avail to order Our Price: $2.00
6	07M109083	Omg 351260 Timing Variator	2 req	Avail to order Our Price: $6,558.00
7	001232198	Timing Shaft Drive Gears	2 req	Current Stock: 1 Our Price: $687.31
8	001237892	Washer	1 req	Avail to order Our Price: $70.76
9	008701031	Screw	1 req	Avail to order Our Price: $11.85
10	001201964	Dowel	2 req	Avail to order Our Price: $53.31
11	N01100637	HEX.NUT	4 req	Current Stock: 18 Our Price: $2.00
12	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
13	008300613	Stud M6x14 Uni 5911 8g/Z	4 req	Avail to order Our Price: $5.75
14	07M109255	HYRAULIC TENSIONER	2 req	Avail to order Our Price: $912.61
15	001219761	Washer	1 req	Avail to order Our Price: $108.25
16	001219762	Screw Lock Plate	1 req	Avail to order Our Price: $51.29
17	001233315	TDC Drive Gear Screw	1 req	Avail to order Our Price: $141.79
18	07M109469	Upper Chain Fixed Guide	2 req	Current Stock: 1 Our Price: $53.52
19	07M109224	Fixed Guide Pin	2 req	Avail to order Our Price: $59.41
20	WHT002962	WASHER	2 req	Current Stock: 11 Our Price: $2.00
21	008410820	Snap Ring D.8 Din 7980	2 req	Current Stock: 50 Our Price: $2.00
22	WHT003071	Screw M8x35 Uni 59318g/B	2 req	Avail to order Our Price: $7.37
23	008700605	Screw M6x10 Uni 59318g/Z	4 req	Avail to order Our Price: $2.00
24	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
25	0012001214	Solenoid Valve Complete	2 req	Avail to order Our Price: $2,831.42
26	07M109508	Upper Chain Tightener Guide	2 req	Avail to order Our Price: $254.59
27	07M109225A	TIGHTENING GUIDE PIN	2 req	Current Stock: 2 Our Price: $55.75
28	008602602	Ring 27 mm Or	2 req	Current Stock: 19 Our Price: $2.00
29	008603702	Or Ring	2 req	Current Stock: 14 Our Price: $2.00
30	001132218	Tightener Fitting	2 req	Avail to order Our Price: $497.97
31	07M109231C	UPPER TIMING CHAIN	2 req	Avail to order Our Price: $546.38
32	0012003892	Shaft	1 req	Avail to order Our Price: $228.85
33	0012003956	Washer	1 req	Avail to order Our Price: $24.31
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
