TAV: 62.03.00 - Fuel System

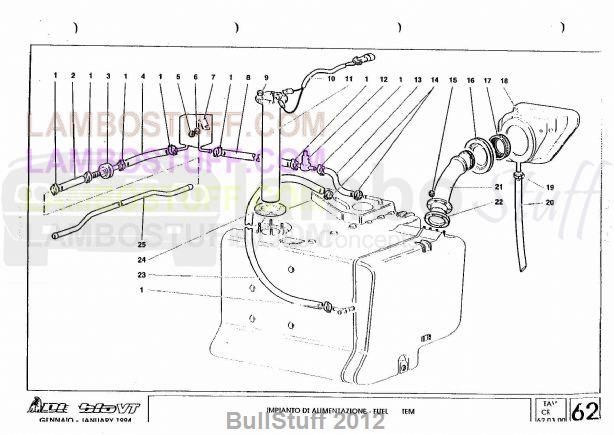

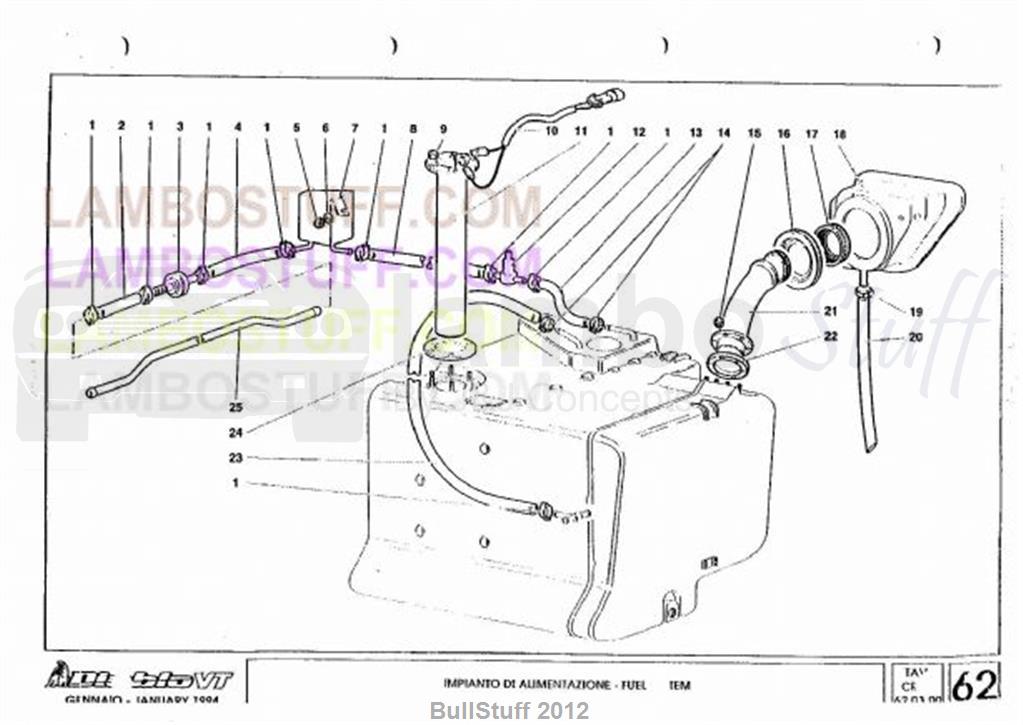

1994 Lamborghini Diablo VT USA Fuel System (62.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008830902	NLA (No Longer Available)	8 req	*See Description
2	006231442	Over-Pressure Valve/Copper Pip	1 req	Avail to order Our Price: $8.28
3	006229379	BREATHER VALVE	1 req	Avail to order Our Price: $152.82
4	006233893	Fuel Vapour Separator Pipe	1 req	Avail to order Our Price: $51.07
5	N01118312	HEX.HEAD CLAMPING NUT	1 req	Avail to order Our Price: $2.17
6	N01152427	WASHER	1 req	Current Stock: 16 Our Price: $2.00
7	006233841	Fuel Vapour Separator	1 req	Avail to order Our Price: $459.21
8	006230437	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
9	N0211963	HEX.HEAD CLAMPING	5 req	Avail to order Our Price: $2.00
10	006133765	Fuel Float Wiring	1 req	Avail to order Our Price: $55.77
11	006229648	Fuel Level Sender	1 req	Avail to order Our Price: $398.99
12	006230531	Safety Valve	1 req	Avail to order Our Price: $343.66
13	006230438	Fuel Tank/Safety Valve Pipe	1 req	Avail to order Our Price: $16.71
14	008831117	Clamp	2 req	Avail to order Our Price: $8.47
15	WHT002959	CLAMPING NUT	6 req	Current Stock: 5 Our Price: $2.00
16	009409215	Windscreen Washer Bag Seal	1 req	Avail to order 1 Used Available Our Price: $38.24
17	0062001608	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
18	009490518	Filler Compartment Internal Pa	1 req	Avail to order Our Price: $912.59
19	008832205	Clamp	1 req	Avail to order Our Price: $24.09
20	009490516	Filler Compartment Drain Pipe	1 req	Avail to order Our Price: $15.51
21	006221128	Fuel Filler	1 req	Avail to order Our Price: $1,999.09
22	006205360	Float Dimmer Seal	1 req	Current Stock: 14 Our Price: $114.96
23	006230215	Three-Way/Tank Pipe	1 req	Avail to order Our Price: $156.55
24	006229649	Fuel Level Gauge Flange Seal	1 req	Avail to order Our Price: $17.32
25	006231441	Hose-To-Hose Copper Pipe	1 req	Avail to order Our Price: $544.18
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
