1994 Diablo VT - USA

Group :

Tav :

Maintenance Parts:

Belts

PN	Item	Diagram
004534071	COMPRESSOR BELT COMPRESSOR BELT		Current Stock: 2 Our Price: $153.37
001736517	COOLANT PUMP ALTERNATOR BELT (FROM SE VIN 12043) COOLANT PUMP ALTERNATOR BELT		Avail to order Our Price: $348.45

Brakes

PN	Item
003136085	BRAKE PAD KIT FRONT - DIABLO DIABLO BRAKE PAD KIT	Avail to order Our Price: $1,085.86
003236088	BRAKE PAD KIT REAR - DIABLO BRAKE PAD KIT REAR - DIABLO - FULL SET FOR REAR	Avail to order Our Price: $789.90
003334931	NLA (NO LONGER AVAILABLE) E-BRAKE PAD	Avail to order Our Price: $431.02

Common repairs and upgrades

PN	Item
006329689	HIGH BEAM HEADLIGHT HIGH BEAM HEADLIGHT NLA FROM FACTORY PLEASE CONTACT US FOR CURRENT PRICE AND AVAILABILITY.	Avail to order Our Price: $483.83
0079004387	SHOCK ABSORBER SHOCK ABSORBER FOR ANTERIOR COWLING	Current Stock: 2 Our Price: $150.50
0092004388	SHOCK ABSORBER FOR ENGINE COWLING SHOCK ABSORBER FOR ENGINE COWLING	Current Stock: 4 Our Price: $228.45
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 7 Our Price: $27.66

Drivetrain

PN	Item
002132598	CLUTCH MECHANISM - EARLY DIABLO CLUTCH MECHANISM NLA FROM FACTORY PLEASE CHECK WITH US FOR CURRENT PRICE, AVAILABILITY AND ALTERNATIVE OPTIONS	Avail to order Our Price: $1,511.84
002129353	THRUST SLEEVE THRUST SLEEVE - NLA FROM FACTORY PLEASE CHECK WITH US FOR CURRENT PRICE, AVAILABILITY AND ALTERNATIVE OPTIONS	Avail to order Our Price: $1,471.57
001505914	OIL FILTER - DIABLO - LM002 - COUNTACH - URRACO - JALPA OIL CARTRIDGE. NOTE: THESE ARE ORDERED DIRECTLY FROM THE FACTORY. BRAND/MODEL/COLOR MAY DIFFER FROM THE PICTURE. WE HAVE NO CONTROL AS TO WHAT IS SENT WHEN THEY ARE ORDERED.	Current Stock: 20 Our Price: $93.28
0017002473	WATER PUMP (2WD W/O POWER STEARING) (1991-1994) WATER PUMP (2WD W/O POWER STEARING) (1991-1994)	Avail to order Our Price: $5,720.09
0017002474	WATER PUMP (2WD WITH POWER STEERING) (1991-1994) COOLANT PUMP 2WD WITH	Current Stock: 1 Our Price: $6,577.25
002132599	CLUTCH PRESSURE PLATE - DIABLO CLUTCH PLATE - NLA FROM FACTORY PLEASE CHECK WITH US FOR CURRENT PRICE, AVAILABILITY AND ALTERNATIVE OPTIONS	Avail to order Our Price: $1,850.00
002136948	SLAVE CLUTCH CYLINDER DIABLO / COUNTACH SLAVE CLUTCH CYLINDER	Current Stock: 3 Our Price: $144.85
004219984	MASTER CLUTCH CYLINDER CLUTCH CYLINDER CONTROL ASSEMBLY	Current Stock: 2 Our Price: $378.11
0R1320001	NLA (NO LONGER AVAILABLE) SPEED SENSOR KIT	Avail to order Our Price: $1,014.26
002132599K	1991 - 1994 DIABLO CLUTCH DISK - KEVLAR HI-PERF 1991 - 1994 DIABLO CLUTCH DISK - KEVLAR HI-PERF - CLUTCHTEX - TZ-3022 T3	Avail to order Our Price: $707.92
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Current Stock: 13 Our Price: $201.60

Fuel-Air

PN	Item
07M133843	AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO PLEASE CHECK YOUR PART MANUAL FOR A DESCRIPTION FOR PERFORMANCE FILTERS SEE PN: 07M133843A	Current Stock: 14 Our Price: $28.63
400201511A	FUEL FILTER - DIABLO - GALLARDO - MURCIELAGO FUEL FILTER	Current Stock: 9 Our Price: $264.73
AMAIRD	HI-PERFORMANCE AFE AIR FILTER - DIABLO/MURCIELAGO - SPORT AIR FILTER MURCIELAGO - DIABLO AFTER MARKET AFE AIR FILTER 30-10133	Current Stock: 1 Our Price: $114.44
002024396	FUEL INJECTOR (SOLD EA) MANIFOLD UPPER COVERINJECTOR	Avail to order Our Price: $365.53
002024398	FUEL PUMP FUEL PUMP	Current Stock: 6 Our Price: $820.33
07M133843A	AIR FILTER - SPORT PERFORMANCE FILTER PERFORMANCE FILTER REPLACEMENT FOR 07M133843 AIR FILTER - MURCIELAGO SV LP 670-4	Avail to order Our Price: $706.90
07M133843KN	K&N AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO K&N'S REPLACEMENT AIR FILTERS ARE DESIGNED TO INCREASE HORSEPOWER AND ACCELERATION WHILE PROVIDING EXCELLENT FILTRATION. THESE FILTERS ARE WASHABLE AND REUSABLE AND ARE CUSTOM DESIGNED TO FIT INTO YOUR EXISTING FACTORY AIR BOX. THEIR DROP-IN DESIGN MEANS ADDING PERFORMANCE IS SIMPLE.	Avail to order Our Price: $55.37

Fuses-Bulbs-Relays

PN	Item
006030676	LIGHT RELAY LIGHT RELAY	Current Stock: 3 Our Price: $165.97
006311155	RELAY RELAY	Avail to order Our Price: $60.68
006329694	HEADLIGHT BULB HEADLIGHT BULB	Avail to order Our Price: $57.51
006329695	BULB FOR FOGLIGHT BULB FOR FOGLIGHT	Current Stock: 1 Our Price: $17.49
006329696	FRONT TURN SIGNAL BULB FRONT TURN SIGNAL BULB	Current Stock: 6 Our Price: $3.01
006329698	BULB BULB	Avail to order Our Price: $8.13
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $12.20
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $8.94
006617095	LICENSE PLATE LAMP REPLACEMENT BULB LICENSE PLATE LAMP REPLACEMENT BULB	Current Stock: 42 Our Price: $10.00
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.12
410947413	RED DOOR LIGHT RED DOOR LIGHT - NLA (NO LONGER AVAILABLE) TO ORDER FROM FACTORY PLEASE CONTACT US FOR OTHER OPTIONS.	Avail to order Our Price: $91.93

Gaskets

PN	Item
001535287	ENGINE GASKET SET DIABLO VT / SV / ROADSTER DOES NOT INCLUDE VALVE GUIDES PN 07M109675 DIABLO VT GASKET KIT SEE PN 1535288 FOR THE GROMMET AND OIL SEAL SET	Avail to order Our Price: $2,683.81
001535288	GROMMET AND OIL SEALS SET - DIABLO VT / SV / ROADSTER GROMMET AND OIL SEALS SET - DIABLO VT / SV / ROADSTER	Avail to order Our Price: $325.30
0015002552	ENGINE GASKET SET - DIABLO VT 1998 SEE PN 0015002553 FOR THE GROMMET AND OIL SEAL SET	Avail to order Our Price: $2,074.93
0R1320002	DIABLO REAR DIFFERENTIAL SEAL KIT DIF SEAL KIT	Current Stock: 1 Our Price: $43.77

Ignition

PN	Item
001630289	SPARK PLUG - DIABLO SPARK PLUG	Current Stock: 38 Our Price: $29.61
DiabloWireSet	SPARK PLUG WIRES 1991-1995 DIABLO - AFTERMARKET SPARK PLUG WIRES 1991 THROUGH 1995 ONLY FOR SYSTEMS USING A DISTRIBUTOR CAP	Avail to order Our Price: $644.69
001627730	DIABLO IGNITION ROTOR DIABLO IGNITION ROTOR - NLA FOR FACTORY WE HAVE EXACT OE REPLACEMENT	Current Stock: 1 Our Price: $289.00
001630792N	COIL PACK OE SPEC REPLACEMENT COIL PACK OE SPEC REPLACEMENT	Avail to order Our Price: $1,538.13
006134023	SPARK PLUG WIRES SPARK PLUG WIRES ONLY FOR SYSTEMS USING DISTRIBUTOR CAP. NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY DEPENDING ON PRODUCTION YEAR MAY REQUIRE DIFFERENT SET: SEE PN: 006134279 & 001134281	Avail to order Our Price: $583.96

Misc

PN	Item
009420126	WINDSHIELD WIPER BLADE WINDSHIELD WIPER BLADE	Current Stock: 1 Our Price: $32.87
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.53
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $82.84
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $417.39

Sensors

PN	Item
001327641	POTENTIOMETER TPS THROTTLE POSITION SENSOR DIABLO POTENTIOMETER TPS THROTTLE POSITION SENSOR DIABLO	Avail to order Our Price: $180.12
001536755	OIL TEMPERATURE THERMOSTAT OIL TEMPERATURE THERMOSTAT - ALSO USED ON DIABLO 91-93 2WD AND 94	Current Stock: 1 Our Price: $490.50
0017006576	THERMOSTAT FOR DIABLO WATER THERMOSTAT - -NLA (NO LONGER AVAILABLE) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES	Current Stock: 3 Our Price: $583.24
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $263.59
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $123.23
004526663	CABIN AIR TEMPERATURE SENSOR TEMPERATURE SENSOR	Avail to order Our Price: $2,115.02
07L919501A	WATER TEMPERATURE SENSOR WATER TEMPERATURE SENSOR	Current Stock: 3 Our Price: $371.24
07M905381	PHASE SENSOR PHASE SENSOR	Avail to order Our Price: $751.44
0R1470226	LAMBDA (O2 OXYGEN) SENSOR - DIABLO - EARLY MURCIELAGO LAMBDA (O2 OXYGEN) SENSOR - DIABLO - EARLY MURCIELAGO	Current Stock: 9 Our Price: $320.65

Tools and Tookits

PN	Item	Diagram
004129973	DIABLO FRONT TOW HITCH ASSEMBLY DIABLO FRONT TOW HITCH ASSEMBLY		Avail to order Our Price: $1,377.52
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 92 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

TAV: 17.02.00 - Water Cooling System

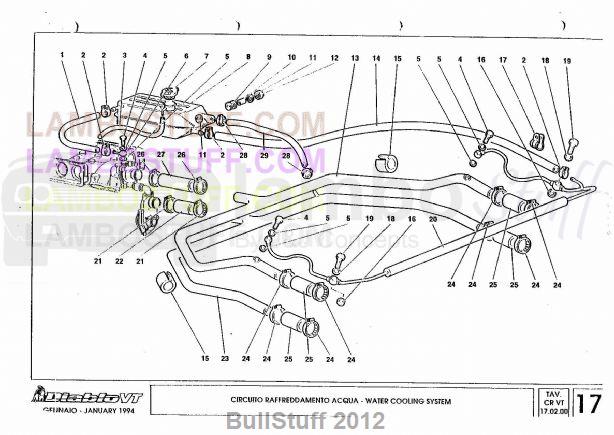

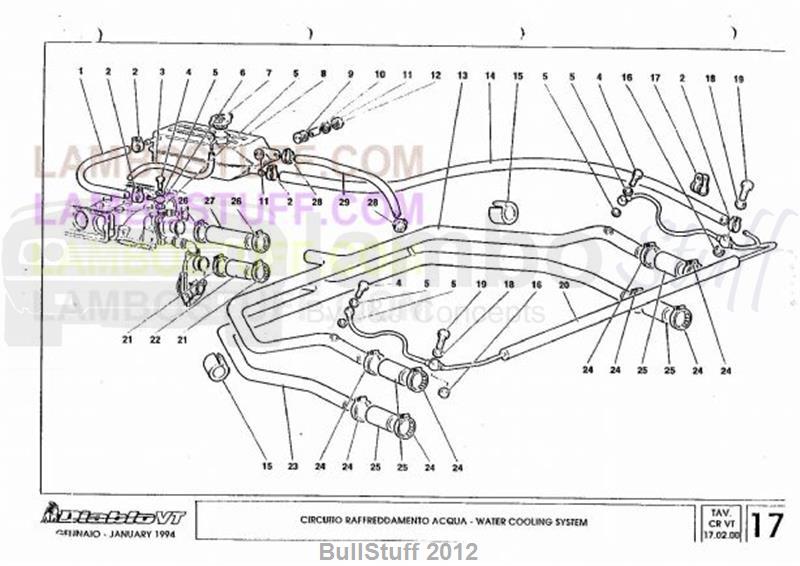

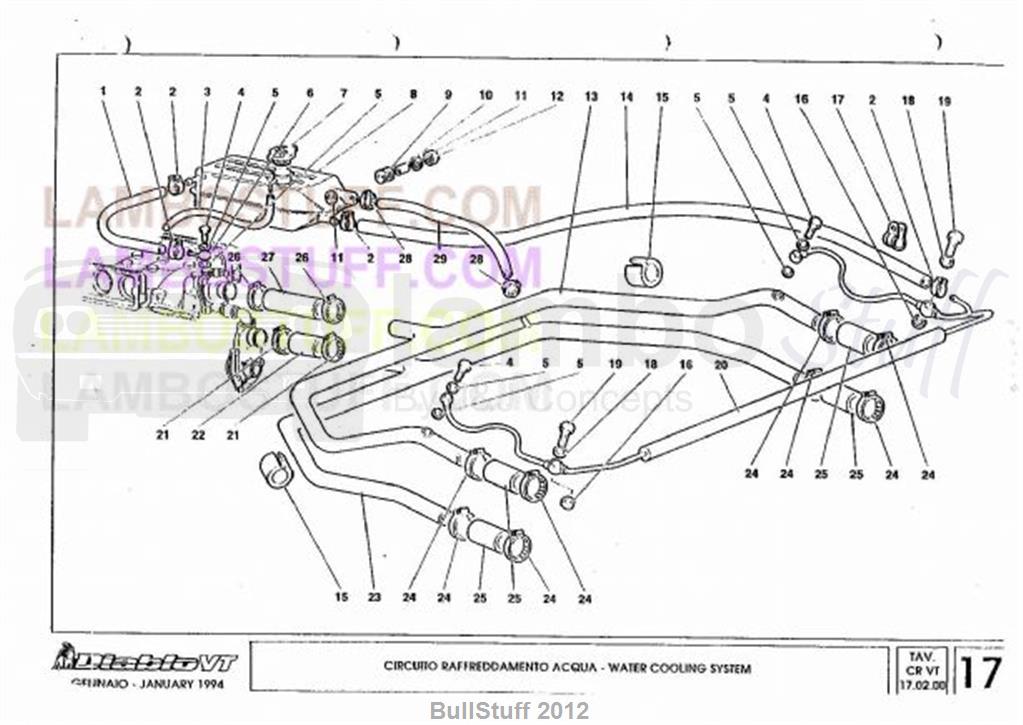

1994 Lamborghini Diablo VT USA Water Cooling System (17.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	07M121500	THERMOSTAT RESERVOIR PIPE	1 req	Avail to order Our Price: $45.25
2	N91130601	HOSE CLIP	4 req	Current Stock: 2 Our Price: $38.97
3	001731993	NOURICE COOLANT DRAIN PIPE	1 req	Avail to order Our Price: $14.07
4	001733423	BREATHER DRILLED SCREW	3 req	Avail to order Our Price: $57.88
5	008400818	COPPER WASHER	6 req	Current Stock: 9 Our Price: $1.55
6	001733714	UNION ON THERMOSTAT CASING	1 req	Avail to order Our Price: $29.28
7	001734185	COOLANT TANK CAP	1 req	Current Stock: 1 Our Price: $149.16
8	001733712	COOLANT RESERVOIR TANK	1 req	Current Stock: 1 Our Price: $1,679.84
9	07L121585	GROMMET	1 req	Avail to order Our Price: $20.10
10	008800602	BUSHING 6X8X10 MM	1 req	Avail to order Our Price: $33.84
11	WHT002961	WASHER	2 req	Current Stock: 38 Our Price: $0.50
12	N01118312	HEX.HEAD CLAMPING NUT	1 req	Avail to order Our Price: $2.12
13	001732809	THERMOSTAT VALVE/RADIATOR PIPE	1 req	Avail to order Our Price: $786.74
14	001733426	NOURICE CONNECTION PIPE	1 req	Avail to order Our Price: $20.33
15	07L121199	HANDLE.PROTECTION.WATER PIPE	4 req	Avail to order Our Price: $21.25
16	001733425	COOLANT RADIATOR BOLT WASHER	2 req	Avail to order Our Price: $24.98
17	008831515	CLAMP	1 req	Avail to order Our Price: $10.71
18	008401022	COPPER WASHER D.10.2X14X1	2 req	Current Stock: 18 Our Price: $0.40
19	001733424	RH/LH UPPER COOLANT RADIATOR B	2 req	Avail to order Our Price: $131.75
20	001733417	REAR COOLANT BREATHER PIPE ASS	1 req	Avail to order Our Price: $5,536.86
21	WHT003080	STAINLESS STEEL CLAMP	2 req	Avail to order Our Price: $6.37
22	07M121057	RADIATOR COOLANT OUTLET	1 req	Avail to order Our Price: $105.21
23	001730569	RADIATOR COOLANT OUTLET/COOLAN	1 req	Current Stock: 1 Our Price: $985.06
24	008833001	CLAMP	8 req	Avail to order Our Price: $10.57
25	07M121074	RADIATOR / COOLANT PIPE SLEEVE	4 req	Avail to order Our Price: $42.51
26	N0245022	HOSE CLIP	2 req	Avail to order Our Price: $5.93
27	001732812	THERMOSTAT CONNECTING SLEEVE	1 req	Avail to order Our Price: $133.18
28	WHT003075	CLAMP	2 req	Avail to order Our Price: $16.29
29	001731848	NOURICE/PIPE	1 req	Avail to order Our Price: $147.44
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
