1984 Lamborghini Countach 5000s USA Radiator and Cooling System (9)

Maintenance Parts:

Belts

PN	Item	Diagram
001613915	Alternator Drive Belt Alternator Drive Belt		Avail to order Our Price: $625.53

Brakes

PN	Item	Diagram
003113912	Brake Pad Front and Rear Countach Brake Pad		Avail to order Our Price: $44.90

Drivetrain

PN	Item
001501188	Oil Filter - Miura Countach Espada Jarama Oil Filter Cartridge	Avail to order Our Price: $45.47
002109862	Clutch Plate Clutch Plate	Current Stock: 2 Our Price: $1,332.37
002109861	NLA (No Longer Available) Engine Flywheel	Avail to order Our Price: $2,909.20
002109864	Thrust Bearing Thrust Bearing	Avail to order Our Price: $7,026.38
001504611	Oil Filter Oil Filter	Avail to order Our Price: $474.63

Fuel-Air

PN	Item
001320172	Air Filter - Carbureted Air Filter Early Countach, Miura, Jarama, Espada SEE PN 001320172KN for Performance filter option	Avail to order Our Price: $474.94
002021140	Warm Up Regulator Heat Regulator 0438140004 (043 8140 004)	Avail to order Our Price: $1,608.28
002021172	Frequency Valve Frequency Valve Bosch 0280150300 (028 0150 300)	Avail to order Our Price: $825.35
002021173	Fuel Dampers Dampers	Avail to order Our Price: $483.20
002021146	Cold Start Injector Starter Injector	Current Stock: 4 Our Price: $331.59
002021170	Countach Fuel Distributor Fuel Distributor 0438100106 (043 8100 106)	Avail to order Our Price: $5,502.31
002021174	Countach Injection EFI ECU ECU	Avail to order Our Price: $4,410.25
002021141	Countach EFI Fuel Injection Pump SEE ALSO PN 002021141B Fuel Pump	Avail to order Our Price: $1,486.77
002021147	Countach Fuel Injector Injector	Current Stock: 11 Our Price: $295.93
002021176	Lambda O2 Sensor (READ DESCRIPTION) Lambda Sensor The Exact OEM replacement for this is PN 002021176OE you can save by simply using your existing connector.	Avail to order Our Price: $803.43
002021141B	Countach EFI Fuel Injection Pump OEM This is the original and SAME fuel pump used on all Countach EFI systems. It has a different part number, in order to que the order from another vendor rather than the Factory. We would be more than happy to get it from Italy, but it will be the same pump and much more expensive.	Current Stock: 1 Our Price: $117.00
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.	Current Stock: 1 Our Price: $125.33
002021142B	Fuel Filter - Countach - For Fuel Injected EFI This is the original and SAME fuel filter used on all Countach EFI systems. It has a different part number, in order to que the order from another vendor rather than the Factory. We would be more than happy to get it from Italy, but it will be the same pump and much more expensive. As of 1-3-2024 doesn't show availability	Current Stock: 1 Our Price: $37.39
002021145	Accumulator Accumulators	Current Stock: 1 Our Price: $606.71
002021173b	Fuel Dampers - For Fuel Injected EFI This is the original and SAME fuel regulator used on all Countach EFI systems. It has a different part number, in order to que the order from another vendor rather than the Factory. We would be more than happy to get it from Italy, but it will be the same pump and much more expensive.	Avail to order Our Price: $327.60
002021176OE	Lambda Sensors Original Equipment Lambda Sensors	Current Stock: 2 Our Price: $121.63
07M133843A	Air Filter - SPORT PERFORMANCE FILTER Performance filter replacement for 07M133843 Air Filter - Murcielago SV LP 670-4	Avail to order Our Price: $733.78
07M133843KN	K&N Air Filter - LM002, Countach, Diablo, Murcielago K&N's replacement air filters are designed to increase horsepower and acceleration while providing excellent filtration. These filters are washable and reusable and are custom designed to fit into your existing factory air box. Their drop-in design means adding performance is simple.	Avail to order Our Price: $67.93
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $15.04

Fuses-Bulbs-Relays

PN	Item
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 5 Our Price: $12.67
006617094	Check Parts Manual for location Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 77 Our Price: $9.28
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.01
006311154	Relay Relay	Avail to order Our Price: $52.25
006617093	12v 5w Bulb 12v 5w Bulb	Avail to order Our Price: $18.99
006309758	Cylinder Bulb 6411/12v 10w Cylinder Bulb 6411/12v 10w	Avail to order Our Price: $11.01
006617103	3w Bulb 3w Bulb	Avail to order Our Price: $6.69

Gaskets

PN	Item
001526489	Engine Gasket Set - Countach Quatro 5000 Carbureted Engine Gasket Kit - Countach Quatro 5000 Carbureted see pn 001526469 for seals	Avail to order Our Price: $2,106.81
001526469	Grommet and Oil Seals Set - Countach Quatro 5000 Carbureted Grommet and Oil Seals Set Countach Quatro 5000 Carbureted	Avail to order Our Price: $146.98
001526488	Countach 5000 Engine Gasket Kit Engine Gasket Kit see pn 001526468 for seals kit	Avail to order Our Price: $1,284.36
001526468	Countach 5000s Grommet & Oil Seals Set - EURO Grommet & Oil Seals Set	Avail to order Our Price: $140.17
001526490	Countach 5000 USA - Engine Gasket Kit Engine Gasket Kit see pn 001526470 for seals kit	Avail to order Our Price: $1,120.74
001526470	Countach 5000 USA - Grommet & Oil Seals Set Grommet & Oil Seals Set	Avail to order Our Price: $104.79

Ignition

PN	Item	Diagram
008811403	Spark Plug - Countach-Jalpa Spark Plug		Avail to order Our Price: $61.84
001611403	Countach Wiring Harness Countach Wiring Harness		Avail to order Our Price: $2,801.84

Misc

PN	Item
006111300	Long Wiper Blade Long Wiper Blade	Avail to order Our Price: $50.47
006128790	Wiper Short Blade 13 inch Wiper Short Blade (Previous PN 006111019)	Current Stock: 1 Our Price: $18.73
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.87
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57

Sensors

PN	Item
002409895	NLA (No Longer Available) Reverse Switch	Avail to order Our Price: $120.91
001801333	NLA (No longer Available to order) Oil & Coolant Temperature Thermometer	Avail to order Our Price: $141.76
002021143	Thermostat Switch - EFI Countach only Original OEM Thermostat Switch - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $825.35
001724565	Fan Motor Thermal Contact Fan Motor Thermal Contact	Avail to order Our Price: $230.95

Open All

Select Group and TAV

< Previous Next >

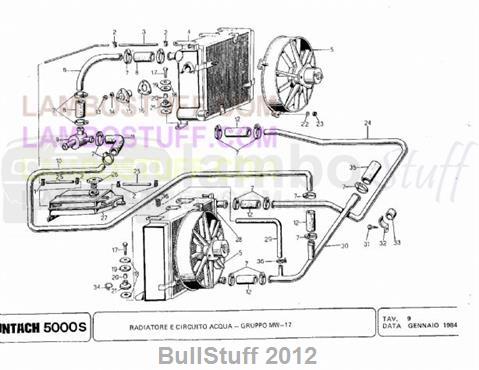

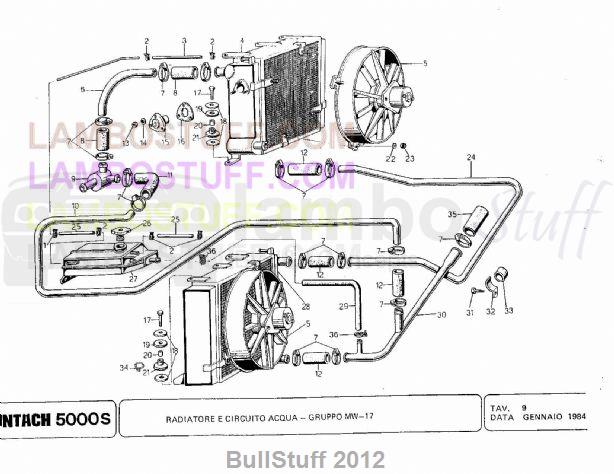

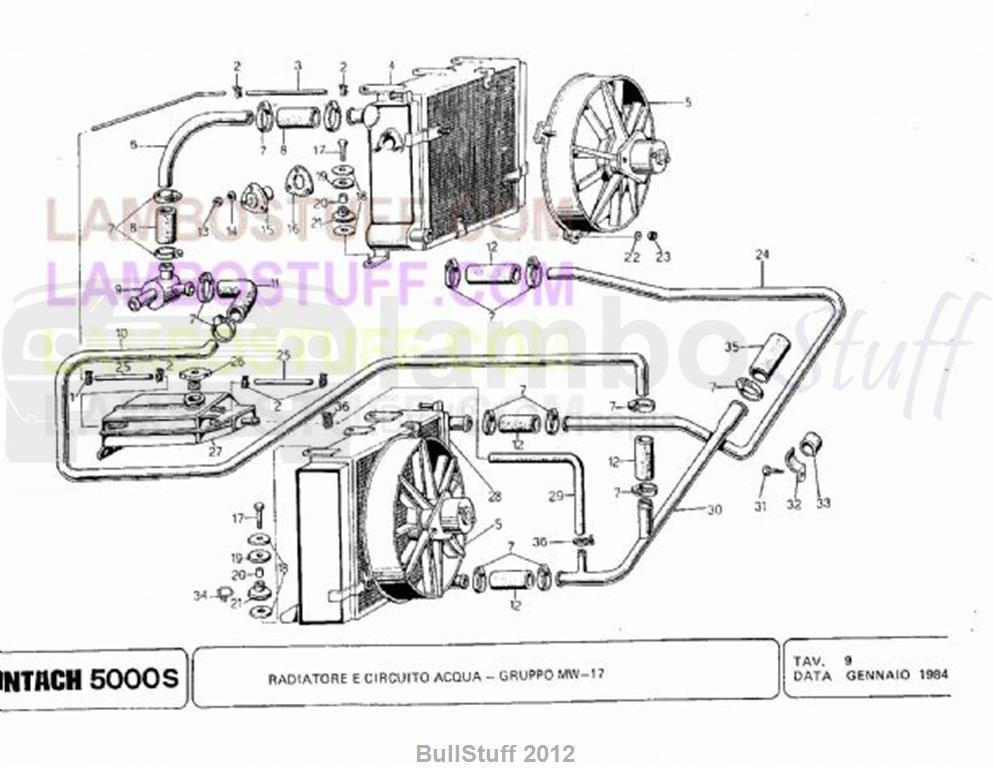

TAV: 9 - Radiator and Cooling System

1984 Lamborghini Countach 5000s USA Radiator and Cooling System (9)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008830122	Clamp	1 req	Avail to order Our Price: $2.00
2	008830204	Clamp	5 req	Avail to order Our Price: $9.37
3	001711395	Rh Radiator Pipe/Chassis Pipe	1 req	Current Stock: 1 Our Price: $33.24
4	001720300	Rh Coolant Radiator	1 req	Avail to order Our Price: $1,239.47
5	001720302	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
6	001711314	DISCONTINUED - NLA - CONTACT US	1 req	*See Description
7	008835004	Clamp	17 req	Avail to order Our Price: $10.28
8	001719368	Thermostat Valve Union Pipe	2 req	Avail to order Our Price: $41.92
9	001719309	Coolant Thermostat	1 req	Avail to order Our Price: $331.59
10	001719371	Coolant Circuit PipeTo Valve	1 req	Avail to order Our Price: $431.74
11	001711337	Radiator Pipe	1 req	Avail to order Our Price: $584.70
12	001711338	Pipe Protection Sleeve	4 req	Avail to order Our Price: $55.82
13	008200402	M4 Brass Special Nut	3 req	Current Stock: 2 Our Price: $2.65
14	008410402	Washer D.4.3 Uni 1751 /Zd	3 req	Current Stock: 17 Our Price: $2.00
15	001701645	SEE PN: 1724565 AND 1724564	1 req	Avail to order Our Price: $48.00
16	001705504	Engine Thermal Contact Seal	1 req	Avail to order Our Price: $28.31
17	008100831	Screw M8x30 Uni 5737/8g/Z	8 req	Avail to order Our Price: $2.00
18	WHT001942	WASHER	14 req	Current Stock: 13 Our Price: $3.30
19	WHT001189	RUBBER WASHER MOUNT	8 req	Avail to order Our Price: $3.95
20	001701592	Radiator Shim	8 req	Avail to order Our Price: $19.62
21	001701495	Supplementary Reservoir Bracket	8 req	Current Stock: 1 Our Price: $55.25
22	WHT003040	WASHER	8 req	Current Stock: 2 Our Price: $7.53
23	N0211963	HEX.HEAD CLAMPING	8 req	Avail to order Our Price: $2.00
24	001719339	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
25	001710068	Lh Radiator/Supplementary Rese	2 req	Current Stock: 2 Our Price: $16.16
26	001704296	Coolant Cap	1 req	Avail to order Our Price: $146.25
27	001710971	NLA (No Longer Available)	1 req	*See Description
28	001728845	Lh Radiator	1 req	Avail to order Our Price: $3,931.26
29	001722223	Three-Way Pipe & Reservoir Out	1 req	Avail to order Our Price: $67.99
30	001719341	Lh Radiator Coolant Circuit Pi	1 req	Avail to order Our Price: $34.10
31	008100609	Screw M6x45 Uni 57378g F	2 req	Avail to order Our Price: $2.00
32	001719347	Pipe U-Bolt From Rh Radiator	2 req	Avail to order Our Price: $278.74
33	001711743	Pipe Guard Ring	4 req	Avail to order Our Price: $28.02
34	001705796	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
35	001712492	Coolant Pipe On Pump	1 req	Avail to order Our Price: $28.95
36	008830206	Clamp	2 req	Current Stock: 1 Our Price: $21.66
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
