1984 Countach 5000s - USA

Group :

Tav :

Maintenance Parts:

Belts

PN	Item	Diagram
001613915	ALTERNATOR DRIVE BELT ALTERNATOR DRIVE BELT - NLA FROM LAMBORGHINI WAREHOUSE - SECONDARY SOURCE		Avail to order Our Price: $661.42

Brakes

PN	Item	Diagram
003113912	BRAKE PAD BRAKE PAD SET NLA FROM LAMBORGHINI WAREHOUSE - SECONDARY SOURCE		Avail to order Our Price: $48.23

Common repairs and upgrades

PN	Item
007021195	SHOCK ABSORBER COUNTACH DOOR SHOCK ABSORBER WITHOUT INTERNAL PARTS YOU MAY ALSO NEED N02214812 X1 HEX.HEAD 007021193 X1 SHOCK ABSOR.FIX.PIN TO DO 007021208 X1 SHOCK ABSORBER SECURPIN A 008580801 X1 O-RING E 8 UNI 7535-75 N01118410 X1 HEX.HEAD CLAMPING NUT WHT002962 X3 WASHER	Current Stock: 7 Our Price: $126.61
007029005	BONNET LIFTER BONNET LIFTER	Current Stock: 4 Our Price: $114.94
007029006	TRUNK LIFTER STRUT TRUNK LIFTER WITH STAB.	Current Stock: 4 Our Price: $89.17
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
002109862	CLUTCH PLATE CLUTCH PLATE	Current Stock: 2 Our Price: $1,431.28
002109861	NLA (NO LONGER AVAILABLE) ENGINE FLYWHEEL	Avail to order Our Price: $3,123.45
002109864	THRUST BEARING THRUST BEARING	Avail to order Our Price: $7,551.46
001501188	OIL FILTER - MIURA COUNTACH ESPADA JARAMA OIL FILTER CARTRIDGE	Current Stock: 5 Our Price: $48.08

Fuel-Air

PN	Item
001320172	AIR FILTER - CARBURETED AIR FILTER EARLY COUNTACH, MIURA, JARAMA, ESPADA SEE PN 001320172KN FOR PERFORMANCE FILTER OPTION	Avail to order Our Price: $502.34
002021140	WARM UP REGULATOR / HEAT REGULATOR WARM UP REGULATOR / HEAT REGULATOR	Avail to order Our Price: $1,729.41
002021146	COLD START INJECTOR STARTER INJECTOR	Current Stock: 4 Our Price: $350.83
002021170	COUNTACH FUEL DISTRIBUTOR FUEL DISTRIBUTOR 0438100106 (043 8100 106)	Avail to order Our Price: $5,811.46
002021172	FREQUENCY VALVE FREQUENCY VALVE BOSCH 0280150300 (028 0150 300)	Avail to order Our Price: $872.46
002021173	FUEL DAMPERS FUEL DAMPERS	Avail to order Our Price: $518.87
002021174	COUNTACH INJECTION EFI ECU ECU	Avail to order Our Price: $4,741.13
001320172KN	PERFORMANCE FILTER FOR COUNTACH/ESPADA/JARAMA/MIURA HIGH FLOW PERFORMANCE FILTER.	Current Stock: 1 Our Price: $130.02
001501128	OIL FILTER SEAL OIL FILTER SEAL	Current Stock: 3 Our Price: $22.01
002021141	COUNTACH EFI FUEL INJECTION PUMP FUEL PUMP	Avail to order Our Price: $799.00
002021142B	FUEL FILTER - COUNTACH - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL FILTER USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE. AS OF 1-3-2024 DOESN'T SHOW AVAILABILITY	Avail to order Our Price: $38.79
002021145	ACCUMULATOR ACCUMULATORS	Current Stock: 1 Our Price: $642.13
002021147	FUEL INJECTOR FOR COUNTACH FUEL INJECTOR FOR COUNTACH	Current Stock: 11 Our Price: $318.36
002021173b	FUEL DAMPERS - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL REGULATOR USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE.	Avail to order Our Price: $339.85
002021176	LAMBDA O2 SENSOR LAMBDA SENSOR *MAY NEED TO USE YOUR EXISTING CONNECTOR	Current Stock: 4 Our Price: $863.20
002021176OE	LAMBDA SENSORS LAMDA SENSORS	Current Stock: 2 Our Price: $126.18
07M133843A	AIR FILTER - SPORT PERFORMANCE FILTER PERFORMANCE FILTER REPLACEMENT FOR 07M133843 AIR FILTER - MURCIELAGO SV LP 670-4	Avail to order Our Price: $782.63
07M133843KN	K&N AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO K&N'S REPLACEMENT AIR FILTERS ARE DESIGNED TO INCREASE HORSEPOWER AND ACCELERATION WHILE PROVIDING EXCELLENT FILTRATION. THESE FILTERS ARE WASHABLE AND REUSABLE AND ARE CUSTOM DESIGNED TO FIT INTO YOUR EXISTING FACTORY AIR BOX. THEIR DROP-IN DESIGN MEANS ADDING PERFORMANCE IS SIMPLE.	Avail to order Our Price: $70.48
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $16.01

Fuses-Bulbs-Relays

PN	Item
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $13.59
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $9.90
006309758	CYLINDER BULB 6411/12V 10W CYLINDER BULB 6411/12V 10W	Avail to order Our Price: $11.86
006311154	RELAY RELAY	Avail to order Our Price: $56.11
006617093	12V 5W BULB 12V 5W BULB	Avail to order Our Price: $20.28
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.14
006617103	3W BULB 3W BULB	Avail to order Our Price: $7.18

Gaskets

PN	Item
001526469	GROMMET AND OIL SEALS SET - COUNTACH QUATRO 5000 CARBURETED GROMMET AND OIL SEALS SET COUNTACH QUATRO 5000 CARBURETED	Avail to order Our Price: $156.07
001526489	ENGINE GASKET SET - COUNTACH QUATRO 5000 CARBURETED ENGINE GASKET KIT - COUNTACH QUATRO 5000 CARBURETED SEE PN 001526469 FOR SEALS	Avail to order Our Price: $2,229.43
001526468	COUNTACH 5000S GROMMET & OIL SEALS SET - EURO GROMMET & OIL SEALS SET	Avail to order Our Price: $148.22
001526470	COUNTACH 5000 USA - GROMMET & OIL SEALS SET GROMMET & OIL SEALS SET	Avail to order Our Price: $112.60
001526488	COUNTACH 5000 ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526468 FOR SEALS KIT	Avail to order Our Price: $1,358.52
001526490	COUNTACH 5000 USA - ENGINE GASKET KIT ENGINE GASKET KIT SEE PN 001526470 FOR SEALS KIT	Avail to order Our Price: $1,186.06

Ignition

PN	Item	Diagram
008811403	SPARK PLUG - COUNTACH-JALPA SPARK PLUG		Current Stock: 16 Our Price: $39.99
001611403	COUNTACH WIRING HARNESS COUNTACH WIRING HARNESS		Avail to order Our Price: $2,876.02

Misc

PN	Item
006111300	LONG WIPER BLADE LONG WIPER BLADE	Current Stock: 1 Our Price: $54.16
006128790	WIPER SHORT BLADE 13 INCH WIPER SHORT BLADE (PREVIOUS PN 006111019)	Current Stock: 2 Our Price: $20.13
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $70.78
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $373.98

Sensors

PN	Item
002409895	REVERSE SWITCH REVERSE SWITCH NLA FROM FACTORY PLEASR CONTACT US FOR CURRENT PRICE AND AVAILABILITY	Avail to order Our Price: $127.96
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.16
001719309	URRACO THERMOSTAT COOLANT THERMOSTAT	Current Stock: 2 Our Price: $195.00
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $244.48
002021143	THERMOSTAT SWITCH - EFI COUNTACH ONLY ORIGINAL OEM THERMOSTAT SWITCH - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $872.46
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $647.04
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $177.89

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

TAV: 27 - Steering

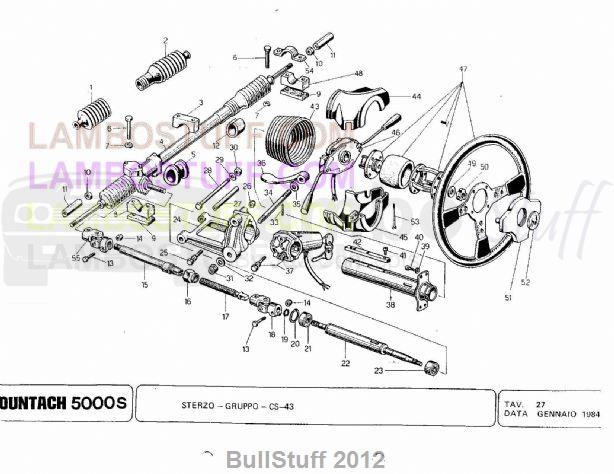

1984 Lamborghini Countach 5000s USA Steering (27)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	004320203	BOOT	1 req	Avail to order Our Price: $128.25
2	004320204	BOOT	1 req	Avail to order Our Price: $128.25
3	004313890	STEERING BOX SIDE LOWER BRACKE	1 req	Avail to order Our Price: $78.86
4	004313894	RACK	1 req	Avail to order Our Price: $4,040.32
4	004319026	RACK	1 req	Avail to order Our Price: $4,711.28
5	004309926	RACK RUBBER RING	1 req	Avail to order Our Price: $235.61
6	008101018	SCREW M10X1.5X60 UNI5737/	2 req	Avail to order Our Price: $0.70
7	008401006	WASHER 22X10.5X2.5 UNI 1734/5S	2 req	Current Stock: 1 Our Price: $0.60
8	004313889	STEERING BOX LOWER BRACKET	1 req	Avail to order Our Price: $76.53
9	004313893	RACK SHIM	2 req	Avail to order Our Price: $72.35
10	008201412	M14X1.5 LH SPECIAL NUT	2 req	Avail to order Our Price: $21.39
11	004319589	BOX THRUST TIEROD	2 req	Avail to order Our Price: $302.45
12	004313901	This item is no longer available	1 req
13	N01033520	HEXAGON HEAD BOLT	4 req	Current Stock: 6 Our Price: $1.80
14	N0111849	HEX.HEAD CLAMPING NUT	4 req	Current Stock: 5 Our Price: $2.43
15	004309797	LOWER STEERING COLUMN	1 req	Avail to order Our Price: $557.57
16	004309799	STEERING COLUMN NUT	1 req	Avail to order Our Price: $368.25
17	004309798	UPPER STEERING COLUMN	1 req	Avail to order Our Price: $1,013.82
18	004309886	STEERING COLUMN JOINT	1 req	Avail to order Our Price: $90.04
19	008581501	O-RING E 17 UNI 7435-75	1 req	Current Stock: 16 Our Price: $0.40
20	07M109381	O-RING SEAL RING	1 req	Current Stock: 34 Our Price: $1.80
21	410115207	BEARING	1 req	Avail to order Our Price: $35.93
22	004319324	STEERING COLUMN	1 req	Avail to order Our Price: $763.33
23	008522002	VS. CODE 30050003120	1 req	Avail to order Our Price: $12.35
24	004309809	STEERING COLUMN BRACKET	1 req	Avail to order Our Price: $1,513.25
25	008100852	SCREW 8X1.25X35 UNI5739 ZG	1 req	Avail to order Our Price: $29.95
26	N0111849	HEX.HEAD CLAMPING NUT	1 req	Current Stock: 5 Our Price: $2.43
27	004309824	STEERING WHEEL MOUNTPIN	1 req	Avail to order Our Price: $86.35
28	008100815	SCREW M8X1.25X105 UNI 5737	1 req	Avail to order Our Price: $11.18
29	N90179103	WASHER	1 req	Current Stock: 5 Our Price: $1.80
30	N0111849	HEX.HEAD CLAMPING NUT	1 req	Current Stock: 5 Our Price: $2.43
31	008201212	NUT	1 req	Current Stock: 1 Our Price: $2.04
32	008401306	WASHER D.13X24X3 8G	1 req	Avail to order Our Price: $2.72
33	008900401	ELASTIC PIN 4X20 DIN1481	1 req	Current Stock: 5 Our Price: $0.30
34	008301220	SPECIAL STUD M12X120	1 req	Avail to order Our Price: $30.53
35	008401306	WASHER D.13X24X3 8G	1 req	Avail to order Our Price: $2.72
36	004309825	STEERING COLUMN BRACKET LEVER	1 req	Avail to order Our Price: $255.74
37	004309810	ANTI-THEFT SWITCH IGNITION SWITCH AND KEYS	1 req	Avail to order Our Price: $428.09
38	004309802	COLUMN OUTER SLEEVE ASSEMBLY	1 req	Avail to order Our Price: $418.91
38	004311190	COLUMN SLEEVE ASSEMBLY	1 req	Avail to order Our Price: $418.91
39	008410603	WASHER D.6.4 UNI 1751/ZD	4 req	Avail to order Our Price: $0.10
40	N90612002	PAN HEAD BOLT	4 req	Current Stock: 37 Our Price: $0.90
41	N10648502	HEXALOBULAR SOCKET	4 req	Avail to order Our Price: $1.50
42	004310698	STEERING COLUMN GUIDE	1 req	Avail to order Our Price: $562.05
43	004309812	STEERING COLUMN BELLOWS	1 req	Avail to order Our Price: $250.49
44	004309808	STEERING COLUMN UPPER COVER	1 req	Avail to order Our Price: $1,508.58
45	004309807	STEERING COLUMN LOWER COVER	1 req	Avail to order Our Price: $1,508.58
46	004320773	LIGHT STALK	1 req	Avail to order Our Price: $1,523.51
47	004328501	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
48	004313891	This item is no longer available	1 req
49	008401417	WASHER 15X25X2 UNI 1736/ZD AQ4	1 req	Current Stock: 1 Our Price: $3.40
50	WHT003099	NUT	1 req	Avail to order Our Price: $17.87
51	004319262	NLA (NO LONGER AVAILABLE)	1 req	*See Description
52	004301790	STEERING WHEEL BADGE	1 req	Avail to order Our Price: $165.77
53	008700412	SCREWS 4X40 UNI 5931/8G/ZD SHROUD SCREW	2 req	Current Stock: 10 Our Price: $6.50
54	004313892	STEERING BOX U-BOLT	1 req	Avail to order Our Price: $129.43
55	004313898	NLA (NO LONGER AVAILABLE)	1 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
