2020 Lamborghini HURACAN EVO SPYDER USA AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C (820.01.00)

Maintenance Parts:

Tools and Tookits

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $317.22

Open All

Select Group and TAV

< Previous Next >

TAV: 820.01.00 - AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C

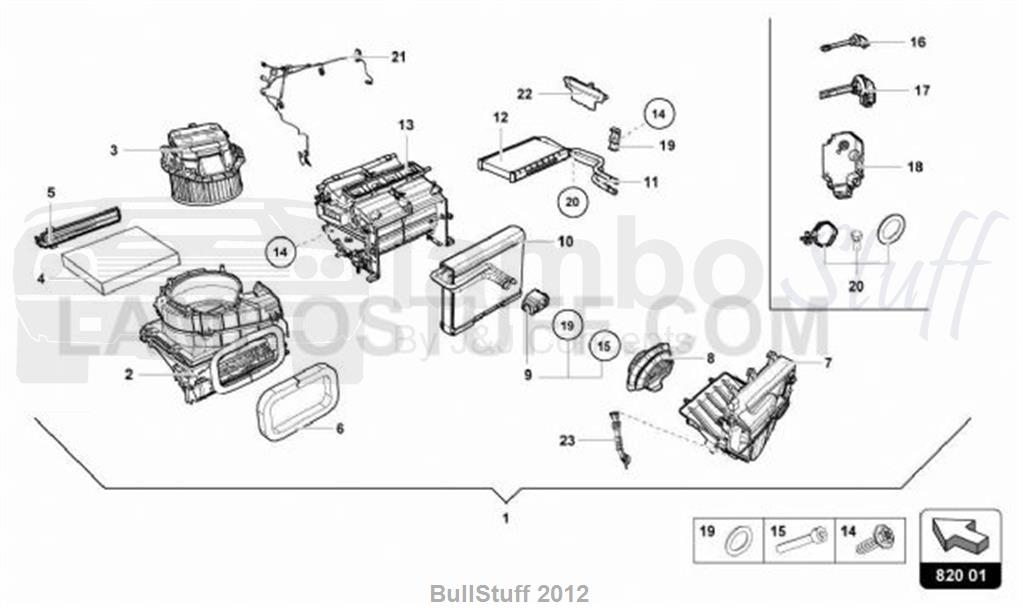

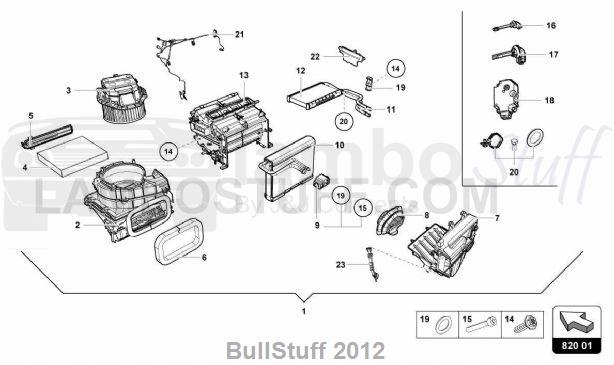

2020 Lamborghini HURACAN EVO SPYDER USA AIR INTAKE BOX FOR ELECTRONIC- ALLY CONTROLLED A/C (820.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S1816005C	Hvac Unit AIR CONDITIONING (REFRIGERANT HFO1234YF- LHD)	1 req	Avail to order Our Price: $2,511.43
1	4S1820005D	HVAC UNIT 2 ZONEN OHNE PTC AIR CONDITIONING (REFRIGERANT R134A- LHD)	1 req	Avail to order Our Price: $2,231.58
1	4S1820005F	HVAC UNIT AIR CONDITIONING (REFRIGERANT R134A)	1 req	Avail to order Our Price: $2,468.37
2	4S1820153	AIR INLET UNIT INTAKE DUCT ( LHD)	1 req	Avail to order Our Price: $144.23
3	4S1820021	FAN FAN MOTOR ( LHD)	1 req	Avail to order Our Price: $888.33
4	4S0819439	Filter Element FILTER INSERT WITH ODOUR AND HARMFUL SUBSTANCE FILTERING	1 req	Avail to order Our Price: $101.01
5	4S0819422	COVER COVER	1 req	Avail to order Our Price: $14.28
6	4S0819229	GASKET SEAL	1 req	Avail to order Our Price: $33.87
7	4S1820024	EVAPORATOR EVAPORATOR HOUSING ( LHD)	1 req	Avail to order Our Price: $116.82
8	4S0820061	GASKET SEAL	1 req	Avail to order Our Price: $35.46
9	4S0816679	TXV VALVE EXPANSION VALVE (INCLUDE REF. 15,20-HFO1234YF)	1 req	Avail to order Our Price: $226.75
9	4S0820679	TXV VALVE EXPANSION VALVE (INCLUDE REF. 15,20-R134A)	1 req	Avail to order Our Price: $226.75
10	4S0820102A	EVAPORATOR EVAPORATOR	1 req	Avail to order Our Price: $789.31
11	4S1898037	EVAPORATOR 1 SET: PIPES FOR HEAT EXCHANGER ( LHD)	1 req	Avail to order Our Price: $81.52
12	4S0819031	HEATER HEAT EXCHANGER	1 req	Avail to order Our Price: $350.89
13	4S0820356	AIR DISTRIBUTOR AIR DISTRIBUTION HOUSING	1 req	Avail to order Our Price: $343.00
14	4S0898919	REPAIR KIT REPAIR SET	2 req	Avail to order Our Price: $3.01
15		HEXAGON SOCKET HEAD BOLT (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 9)	0 req
16	4S0907543	TEMPERATUR SENSOR TEMPERATURE SENSOR	1 req	Avail to order Our Price: $38.75
17	4S0907543A	EVAPORATOR TEMPERATUR SENSOR TEMPERATURE SENSOR	1 req	Avail to order Our Price: $38.75
18	4H0820511E	POSITIONER SERVO MOTOR SERVOMOTOR	6 req	Avail to order Our Price: $106.92
19		O-RING (CANNOT BE SOLD SEPARATELY - IT IS PART OF REF. 10)	0 req
20	4S0898102	HEATER SPARE KIT REPAIR SET	6 req	Avail to order Our Price: $21.10
21	4S1971566	WIRING HARNESS WIRING SET FOR ELECTRONICALLY REGULATED AIR-CONDITIONING ( LHD)	1 req	Avail to order Our Price: $128.16
22	4S0819422A	HEATER COVER COVER	1 req	Avail to order Our Price: $14.28
23	4S0260113	WATER DRAIN KONDENZWASSER WATER DRAIN PIPE	2 req	Avail to order Our Price: $25.12
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
