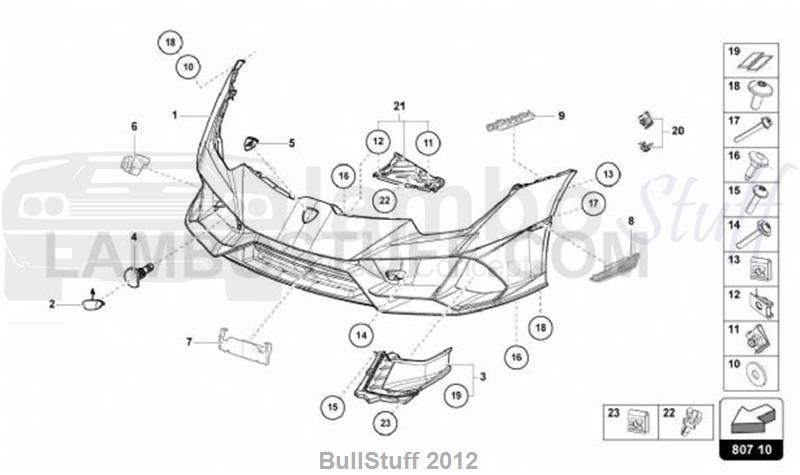

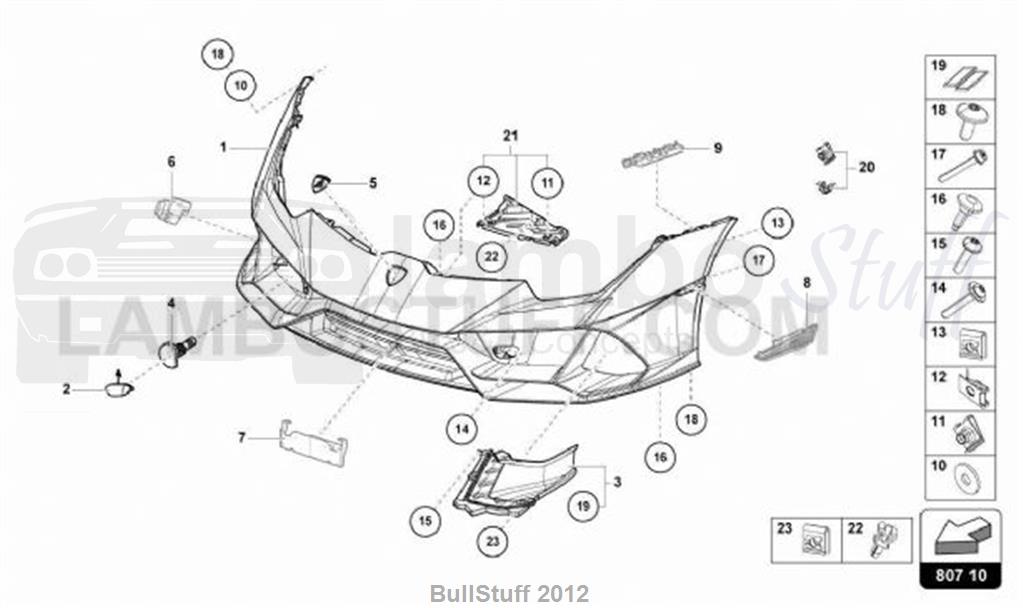

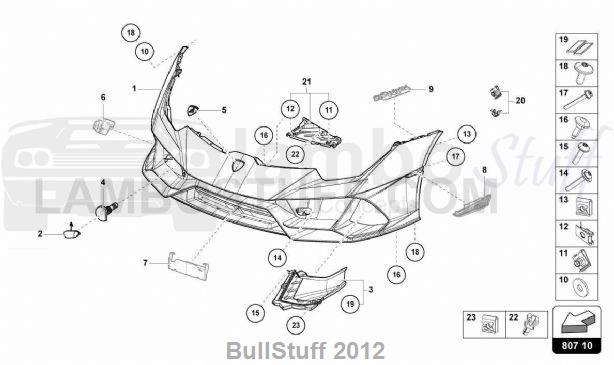

TAV: 807.10.00 - BUMPER

2020 Lamborghini HURACAN EVO SPYDER USA BUMPER (807.10.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4T0807103L	BUMPER BUMPER (PRIMER - SUPPLY VIN-FRONT)	1 req	Avail to order Our Price: $5,904.16
1	4T0807103M	BUMPER BUMPER (PRIMER - PARK DISTANCE CONTROL - SUPPLY VIN-FRONT)	1 req	Current Stock: 1 Our Price: $6,261.55
2	4T0803139C	Bumper Caps TOW HITCH (KIT WITH LEFT AND RIGHT-LEFT A. RIGHT)	1 req	Avail to order Our Price: $162.17
3	4T0807925A	GRILLE GRILLE (KIT WITH GRILLE LEFT AND RIGHT-FRONT)	1 req	Avail to order Our Price: $830.59
4	4T0807179A	COVER CAP CLOSURE	1 req	Avail to order Our Price: $10.55
5	4T0853745A	TYPE SIGN LOGO ANT. LAMBORGHINI EMBLEM (FRONT)	1 req	Avail to order Our Price: $440.32
6		SENSOR (SEE ILLUSTRATION : 919.03-FRONT)	1 req
7		LICENCE PLATE HOLDER (SEE ILLUSTRATION : 807.13-REAR)	0 req
8		TURN SIGNAL INDICATOR (SEE ILLUSTRATION : 845.02)	0 req
9		BRACKET (SEE ILLUSTRATION : 821.01)	0 req
10	N01166623	WASHER WASHER (6,4X18X1,6)	2 req	Avail to order Our Price: $2.00
11	N90475903	SNAP NUT CLAMP M5X13.6X11.5 SPEED NUT (M5X13,6X11,5)	4 req	Avail to order Our Price: $2.00
12	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	6 req	Current Stock: 2 Our Price: $2.00
13	N90276701	SPEED NUT SPEED NUT (4,8X14,25)	8 req	Avail to order Our Price: $2.00
14	N10442204	HEXALOBULAR SOCKET HEXAGON SOCKET OVAL HEAD BOLT (COMBI) (M6X40)	2 req	Current Stock: 8 Our Price: $1.94
15	12	OVAL HEXAGON SOCKET HEAD BOLT	0 req
16	420807739	FASTENING PART SHOULDERED BOLT	8 req	Avail to order Our Price: $7.53
17	N91191201	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M6X50)	2 req	Avail to order Our Price: $4.38
18	N91042302	HEXALOBULAR SOCKETM6X16 OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	4 req	Avail to order Our Price: $2.00
19		ADHESIVE SET (INCLUDED IN REF. 3)	0 req
20		1 SET ATTACHMENT PARTS (TEMPORARILY NOT AVAILABLE)	1 req
21	4T0807129A	BRACKET SUPPORT FIX BUMPER BRACKET (CENTRE LEFT)	1 req	Avail to order Our Price: $43.84
21	4T0807130A	BRACKET SUPPORT FIX BUMPER BRACKET (CENTRE RIGHT)	1 req	Avail to order Our Price: $43.84
22	N90997501	HOSE SUPPORT 6 HOSE BRACKET (6/4,8-6 BLACK)	2 req	Avail to order Our Price: $2.00
23	4T0898587C	1 Set Of Securing Parts 1 SET ATTACHMENT PARTS	1 req	Avail to order Our Price: $207.38
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
