2020 Lamborghini HURACAN EVO SPYDER USA SUPPORT FOR FRONT AXLE (409.02.00)

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G		Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item	Diagram
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58
4T0823359	GAS SPRING GAS SPRING		Current Stock: 2 Our Price: $82.49
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615		Current Stock: 2 Our Price: $48.32
079115561J	SPIN-ON FILTER SPIN-ON FILTER		Avail to order Our Price: $83.92
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series		Current Stock: 7 Our Price: $89.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE		Current Stock: 3 Our Price: $72.36

Fuel-Air

PN	Item	Diagram
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT		Avail to order Our Price: $477.90
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR		Current Stock: 1 Our Price: $123.28
4s0819439	Filter Element Filter Element		Current Stock: 6 Our Price: $104.52
07L127025S	FUEL PUMP FUEL PUMP		Avail to order Our Price: $695.26

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS		Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,		Avail to order Our Price: $80.25
4S0906262F	LAMBDA PROBE BACK RIGHT O2 SENSOR LAMBDA PROBE LSU 4.9		Current Stock: 1 Our Price: $571.69
4S0906262G	LAMBDA PROBE BACK LEFT O2 SENSOR LAMBDA PROBE LSU 4.9		Current Stock: 1 Our Price: $343.91
4E0927803F	RH ABS SENSOR SPEED SENSOR		Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR		Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98

Open All

Select Group and TAV

< Previous Next >

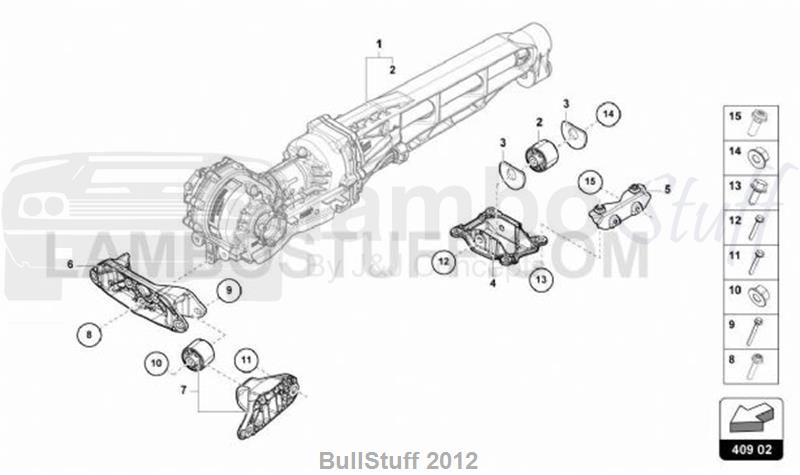

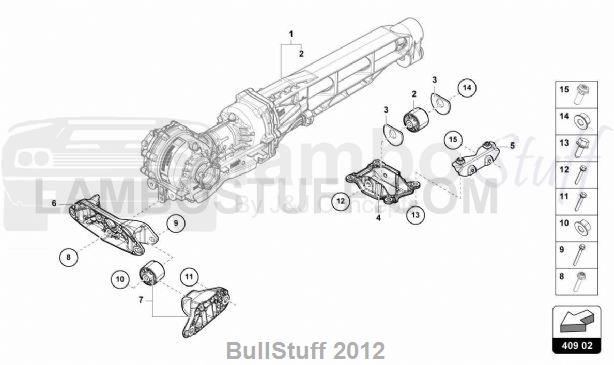

TAV: 409.02.00 - SUPPORT FOR FRONT AXLE

2020 Lamborghini HURACAN EVO SPYDER USA SUPPORT FOR FRONT AXLE (409.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1		FRONT AXLE DIFFERENTIAL WITH VISCO CLUTCH (SEE TABLE 409.01 REF.1)	0 req
2	9P1399202	REAR AXLE BEARING GEARBOX MOUNTING	1 req	Avail to order Our Price: $150.37
3	9P1399291	BEARING SUPPORT BEARING SUPPORT	2 req	Avail to order Our Price: $42.14
4	4S0599288A	CROSSMEMBER DIFFERENTIAL HI. CROSS MEMBER	1 req	Avail to order Our Price: $66.41
5	4S0599361B	BRACKET HINTEN, LINKS CONSOLE (LEFT)	1 req	Avail to order Our Price: $22.94
5	4S0599362B	BRACKET HINTEN, RECHTS CONSOLE (RIGHT)	1 req	Avail to order Our Price: $22.94
6	4S0599285B	CROSSMEMBER DIFFERENTIAL VOR. CROSS MEMBER	1 req	Avail to order Our Price: $76.97
7	4S0599437D	TRANSMISSION ZSB KONSOLE LI. BRACKET WITH BONDED RUBBER MOUNTING (LEFT)	1 req	Avail to order Our Price: $83.67
7	4S0599438F	BRACKET WITH BONDED RUBBER BRACKET WITH BONDED RUBBER MOUNTING (RIGHT)	1 req	Avail to order Our Price: $160.79
8	N10687201	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M10X45)	3 req	Avail to order Our Price: $3.35
9	N10640301	HEXAGON FLANGE HEX COLLARED BOLT (M12X1,5X100)	2 req	Avail to order Our Price: $7.89
10	N0150816	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M12X1,5)	2 req	Avail to order Our Price: $2.46
11	N10699601	HEXAGON FLANGE BOLT,HEX.HD.WITH SHOUL.(COMBI) (M10X60)	2 req	Current Stock: 2 Our Price: $4.32
12	N10699501	HEXAGON FLANGE HEX COLLARED BOLT (M10X95)	1 req	Avail to order Our Price: $5.21
13	N10714101	HEXAGON FLANGE HEXAGON FLANGE SCREW	4 req	Avail to order Our Price: $3.73
14	N10261311	HEXAGON FLANGE NUT HEXAGON NUT (M10)	1 req	Current Stock: 11 Our Price: $2.39
15	N91026802	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X20)	4 req	Avail to order Our Price: $3.43
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
