2021 Lamborghini AVENTADOR S AUSTRALIA BATTERY (915.01.00)

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

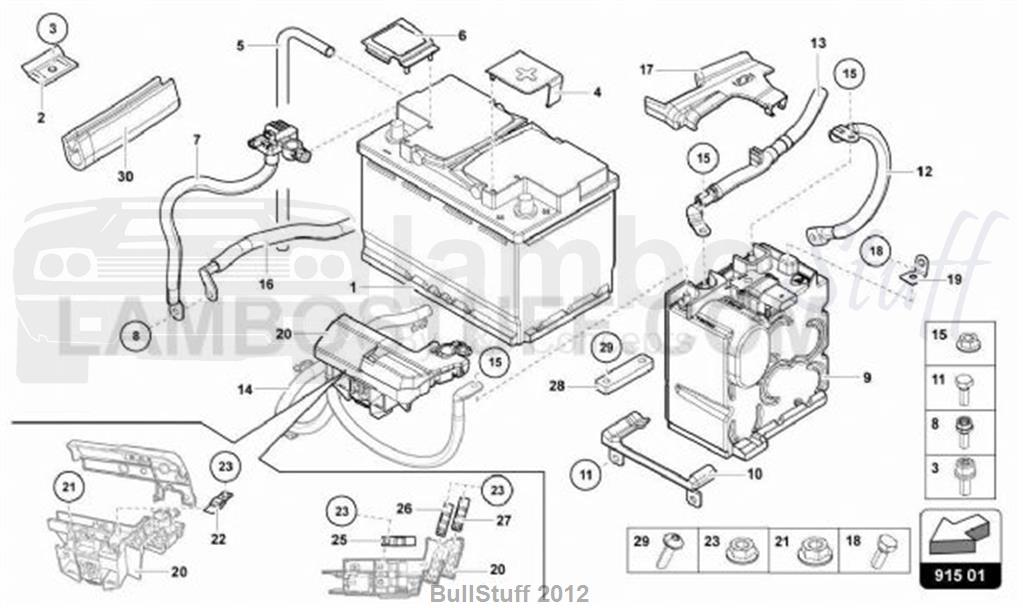

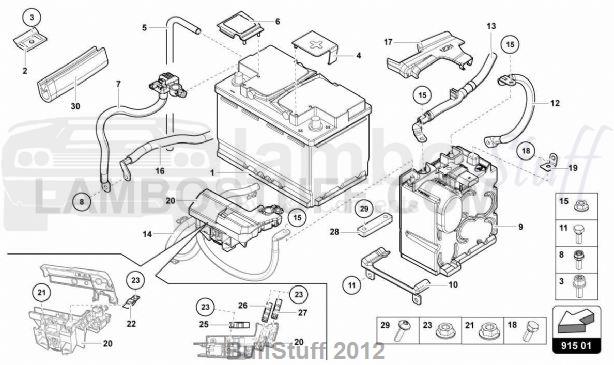

TAV: 915.01.00 - BATTERY

2021 Lamborghini AVENTADOR S AUSTRALIA BATTERY (915.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	5GM915105AE	SEE PN 000915105CB BATTERY WITH COUNTRY- SPECIFIC CERTIFICATION	1 req	Avail to order Our Price: $412.93
2	8D0803123A	CLAMPING STRIP CLAMPING STRIP FOR BATTERY	2 req	Avail to order Our Price: $4.38
3	N10347804	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (COMBI) (M8X20)	2 req	Current Stock: 8 Our Price: $2.00
4	8K0915429C	POLE COVER BATTERY POS. TERMINAL COVER	1 req	Avail to order Our Price: $11.48
5	4F0915531	TUBE CORRUGATED PIPE	1 req	Avail to order Our Price: $9.26
6	1K0971813F	COVER COVER CAP	1 req	Avail to order Our Price: $3.23
7	8X0915181	BATTERY MANAGEMENT CONTROL UNIT FOR BATTERY MONITORING	1 req	Avail to order Our Price: $278.41
8	N91048802	12-POINT SOCKET SCREW WITH INT. SERRATIONS (M8X20)	1 req	Current Stock: 9 Our Price: $3.09
9	470971417	CABLE BOX SUPERCAP MAGNETO (START - STOP)	1 req	Avail to order Our Price: $4,026.77
10	470803123	CLAMPING STRIP ARM	1 req	Avail to order Our Price: $44.49
11	N10664901	12-POINT SOCKET SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD (M8X16)	2 req	Current Stock: 18 Our Price: $3.01
12	470971013	HARNESS SUPERCAP WIRING SET FOR ROOF CONSOLE	1 req	Avail to order Our Price: $107.21
13	470971008	HARNESS SUPERCAP WIRING (SUPERCAP - STARTER)	1 req	Avail to order Our Price: $464.98
14		WIRING SET FOR ROOF CONSOLE (SEE ILLUSTRATION 971.03 REF 1)	0 req
15	N10609201	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M8)	3 req	Current Stock: 11 Our Price: $2.15
16	470971250	GROUND STRAP EARTH LINE	1 req	Avail to order Our Price: $284.87
17	470972899A	PROTECTIVE CAP COVER	1 req	Avail to order Our Price: $51.74
18	N10653201	HEXAGON FLANGE HEX COLLARED BOLT (M6X16)	1 req	Current Stock: 12 Our Price: $2.01
19	410905131	BRACKET SECURING PLATE	1 req	Avail to order Our Price: $27.92
20	470915459	FUSE FUSE BOX FL MAIN FUSE SOCKET	1 req	Avail to order Our Price: $173.66
21	N90295502	HEXAGON FLANGE NUTM8 HEXAGON COLLAR NUT	1 req	Avail to order Our Price: $2.15
22	N10424905	FUSE STRIP FUSE	3 req	Avail to order Our Price: $6.03
23	N90488005	HEXAGON NUT W. M6 HEX. NUT WITH WASHER	3 req	Avail to order Our Price: $2.06
24	470915521	PROTECTIVE CAP COVER CAP (L83X-A.01. 14 E LB83X - A.02.2014)	1 req	Avail to order Our Price: $40.06
25		FUSE (NOT FOR THIS VERSION - ONLY FOR CENTENARIO-80A -WHITE-)	0 req
26		FUSE (NOT FOR THIS VERSION - ONLY FOR CENTENARIO-125A -PINK-)	0 req
27		FUSE (NOT FOR THIS VERSION-80A -CL/GLASS-)	0 req
28	470803219	BATTERY HOLD DOWN ARM	1 req	Avail to order Our Price: $155.71
29	N10637302	HEXALOBULAR SOCKETFLANGE BOLT OVAL HEXAGON SOCKET HEAD BOLT (M5X20)	2 req	Current Stock: 8 Our Price: $2.00
30	4T7201152A	EDGE PROTECTION CRASH-BOX,60MM NEU EDGE PROTECTION	1 req	Avail to order Our Price: $4.52
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
