2021 Lamborghini AVENTADOR S AUSTRALIA RADIO UNIT (035.01.00)

Maintenance Parts:

Common repairs and upgrades

PN	Item	Diagram
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter		Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615		Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER		Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS		Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,		Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE		Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR		Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR		Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

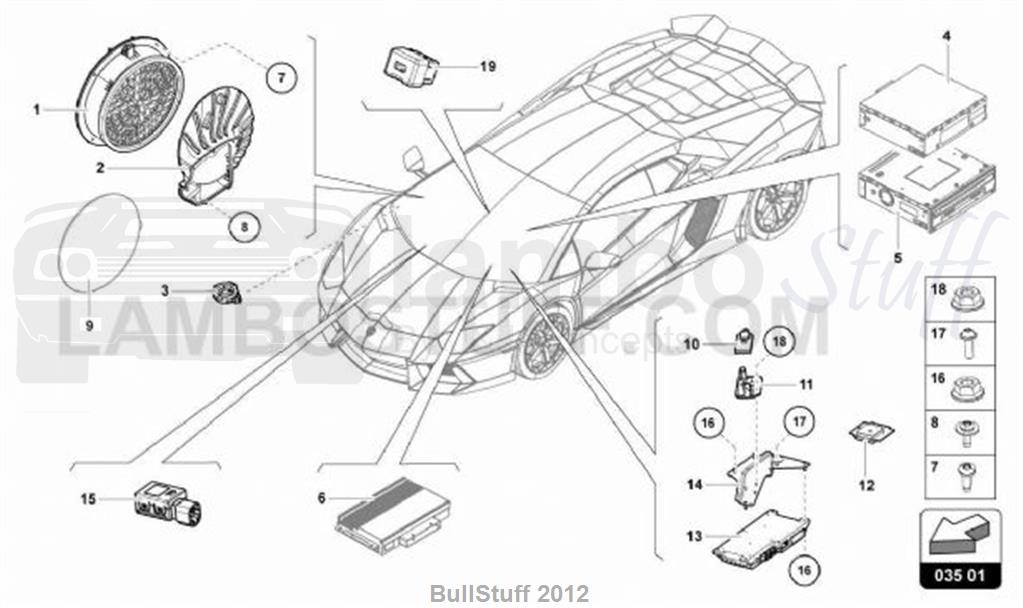

TAV: 035.01.00 - RADIO UNIT

2021 Lamborghini AVENTADOR S AUSTRALIA RADIO UNIT (035.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470035411	LOUDSPEAKER MID-RANGE BASS SPEAKER (PREMIUM SOUND SYS)	2 req	Avail to order Our Price: $747.36
1	8T0035415A	LOUDSPEAKER MID-RANGE BASS SPEAKER (STANDARD)	2 req	Avail to order Our Price: $59.71
2	470035467A	ADAPTER WOOFER ADAPTER CABLE FOR RADIO POWER AND LOUDSPEAKER CONNECTION (PREMIUM SOUND SYS-LEFT)	1 req	Avail to order Our Price: $51.06
2	470035468A	ADAPTER WOOFER ADAPTER CABLE FOR RADIO POWER AND LOUDSPEAKER CONNECTION (PREMIUM SOUND SYS-RIGHT)	1 req	Avail to order Our Price: $51.06
3	470035399	LOUDSPEAKER TREBLE SPEAKER (PREMIUM SOUND SYS)	2 req	Avail to order Our Price: $580.62
3	8T0035399	LOUDSPEAKER TREBLE SPEAKER (STANDARD)	2 req	Avail to order Our Price: $72.36
4		RADIO UNIT (SEE ILLUSTRATION :- 907-050)	0 req
5		MULTIMEDIA SYSTEM (REAR SEAT ENTERTAINMENTRSE) (SEE ILLUSTRATION :- 907-050)	0 req
6		AMPLIFIERS (SEE ILLUSTRATION :- 907-040)	0 req
7	N10595002	HEXALOBULAR SOCKET ROUND HD. SCREW (M5X18)	8 req	Avail to order Our Price: $2.00
8	12	OVAL HEXAGON SOCKET HEAD BOLT (4X12)	0 req
9		BLANKET (ONLY FOR SV VERSION)	0 req
10	4N0035500	ANTENNA W-LAN AERIAL (W-LAN)	1 req	Avail to order Our Price: $29.70
11	4T0035720	BRACKET WI-FI CARPLAY RETAINING BAR	1 req	Avail to order Our Price: $13.40
12	8S7035503B	ANTENNA ERA GNSS AERIAL	1 req	Avail to order Our Price: $106.75
13	4T0035751C	EL.CONTROL UNIT CONTROL UNIT (TSU UNIT)	1 req	Avail to order Our Price: $2,569.18
14	472035821	BRACKET ECU CAR PLAY MOUNTING BAR	1 req	Avail to order Our Price: $62.23
15	5Q0035726	BUSH USB CONNECTOR	1 req	Avail to order Our Price: $23.90
16	N10017304	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5)	5 req	Current Stock: 16 Our Price: $2.01
17	N10569501	HEXALOBULAR SOCKET ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M5X16)	1 req	Avail to order Our Price: $2.39
18	N01100412	HEX.NUT HEXAGON NUT (M4)	3 req	Current Stock: 6 Our Price: $2.00
19	470035909	TRIM MOSTRINA PRESA USB TRIM FOR CONNECTION OF AUDIO SOURCES (DASH PANEL BOX)	1 req	Avail to order Our Price: $142.33
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
